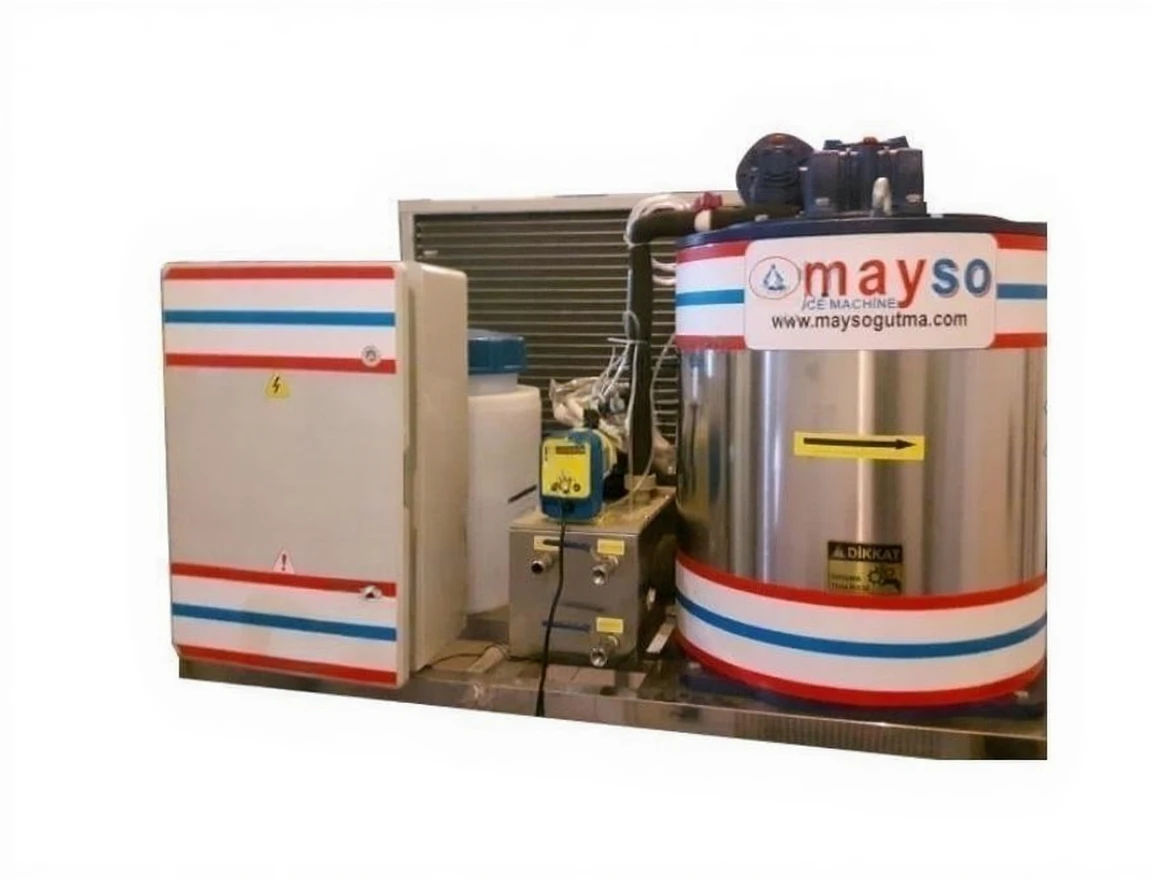

15,000 Kg / Day Fresh Water Leaf Ice Machine
| Brand | Mayso Soğutma |
|---|---|
| Model Type |
MYBZ-FW / 15 T |
15,000 Kg / Day Fresh Water Leaf Ice Machine
The MYBZ-FW / 15 T model produced by Mayso Cooling is an excellent solution for businesses looking for a high-capacity Fresh Water Leaf Ice Machine. This machine has a daily ice production capacity of 15,000 kg and can operate efficiently in all climate conditions. With its durable design resistant to non-standard weather conditions, it provides high performance tailored to the needs of businesses, including tropical climates.
Features:
-
High Capacity: Offers an ideal solution for medium and large-scale businesses with a 15,000 kg/day ice production capacity.
-
Climate-Suitable Performance: Ability to operate smoothly in all weather conditions, including tropical climates.
-
Efficient Ice Production: Provides energy savings with high efficiency, producing quality ice.
-
Vertical and Horizontal Evaporator Options: Flexible solutions with vertical or horizontal evaporators according to needs.
-
Working with Fresh Water: Ensures economical and efficient ice production.
Technical Specifications:
-
Capacity: Optional production between 500 kg – 15,000 kg
-
Ice Type: Leaf Ice
-
Water Type: Works with fresh water
-
Evaporator Type: Options for vertical and horizontal types
Advantages:
-
High Efficiency: Provides high efficiency with low energy consumption, thus reducing operating costs.
-
Adaptation to All Climate Conditions: Offers a reliable solution to meet your business needs, even in hot climates.
-
Flexible Capacity Options: Provides customized solutions with capacity options ranging from 500 kg to 30,000 kg.
-
Durability and Long Life: Ensures long-lasting use with quality materials and robust design.
Areas of Use:
-
Food and Beverage Industry: Reliable ice production for cooling and storage.
-
Industrial Cooling: Especially for large-scale industrial cooling applications.
-
Medical and Pharmaceutical Applications: In sectors where ice is used for cooling and storage purposes.
The Fresh Water Leaf Ice Machine meets high capacity requirements, providing high-efficiency and durable solutions. We produce solutions suitable for every possibility with flexible capacity options ranging from 500 kg to 30,000 kg. You can contact us for detailed information and quotes.
Mayso Cooling MYBZ-FW / 15 T Technical Specifications
|
Machine Model |
MYBZ-FW / 15 T |
|---|---|
|
Daily Ice Capacity |
15,000kg / 24h |
|
Cooling Capacity |
95,000 Watt |
|
Refrigerant |
R404A |
|
Compressor Type |
Semi-Hermetic |
|
Total Power Consumption |
62 kW |
|
Compressor Power |
55 kW |
|
Condenser Fan Power |
6 kW |
|
Reducer Power |
1 kW |
|
Water Pump Power |
0.25 kW |
|
Dosage Pump Power |
0.016 kW |
|
Energy Input |
380V/50Hz/3P |
|
Total Current Draw |
109 A |
|
Cooling Type |
Air-Cooled |
|
Evaporator Channel |
Spiral channel |
|
Evaporator Temperature |
-20°C |
|
Condenser Temperature |
45°C |
|
Ice Output Temperature |
-4 / -8 °C |
|
Ice Thickness |
1.5-2.2mm |
|
Water Supply Pressure |
0.1Mpa-0.5Mpa |
|
Water Inlet Pipe Diameter |
1, 1/2" |
|
Operating Ambient Temperature |
25°C |
|
Water Inlet Temperature |
20°C |
|
Evaporator Unit Weight |
1,150 kg |
|
Evaporator Unit Dimensions |
1750×1280*1740 |
|
Machine Operating Water Type |
FRESH WATER |
