1500×2500 mm Column Semi-Automatic Band Saw Machine
| Brand | Cronosstech |
|---|---|
| Model Type |
CRONOSS 1500X2500 SY |
MACHINE MODEL:

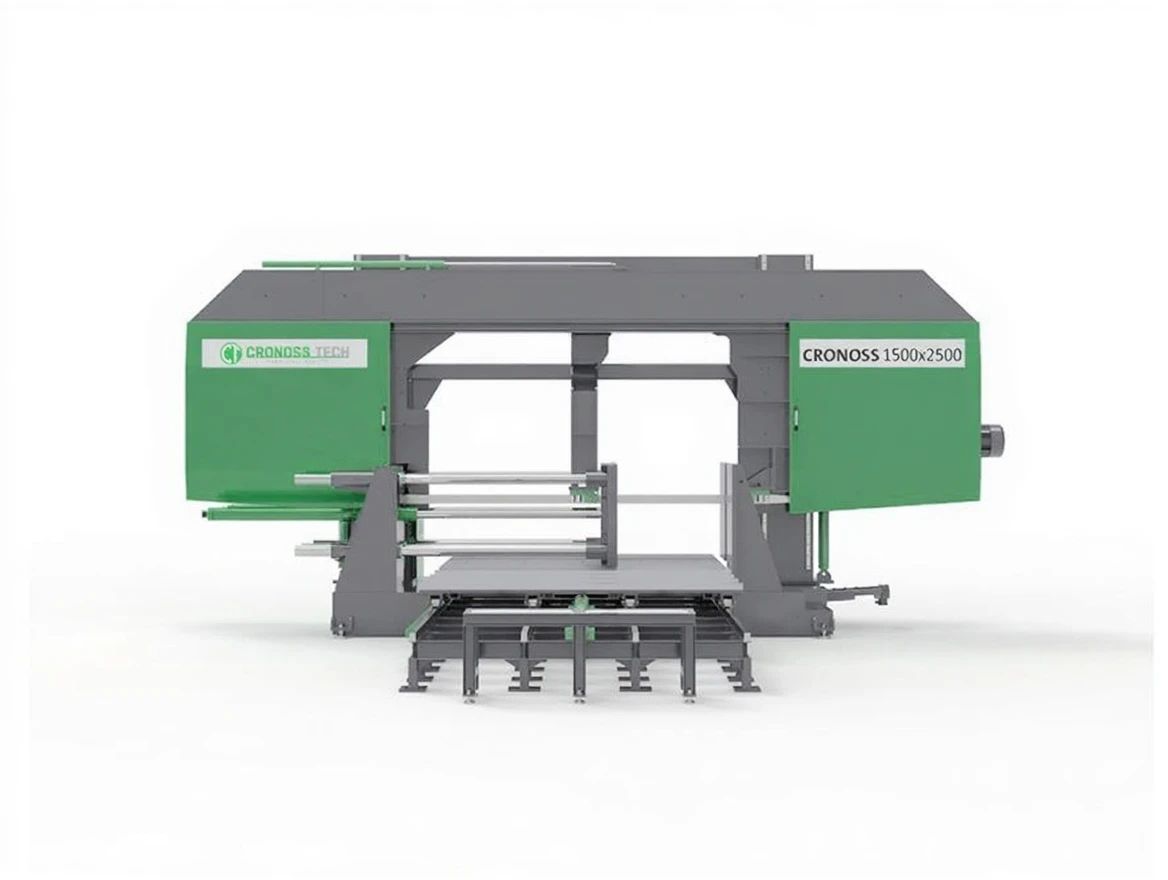

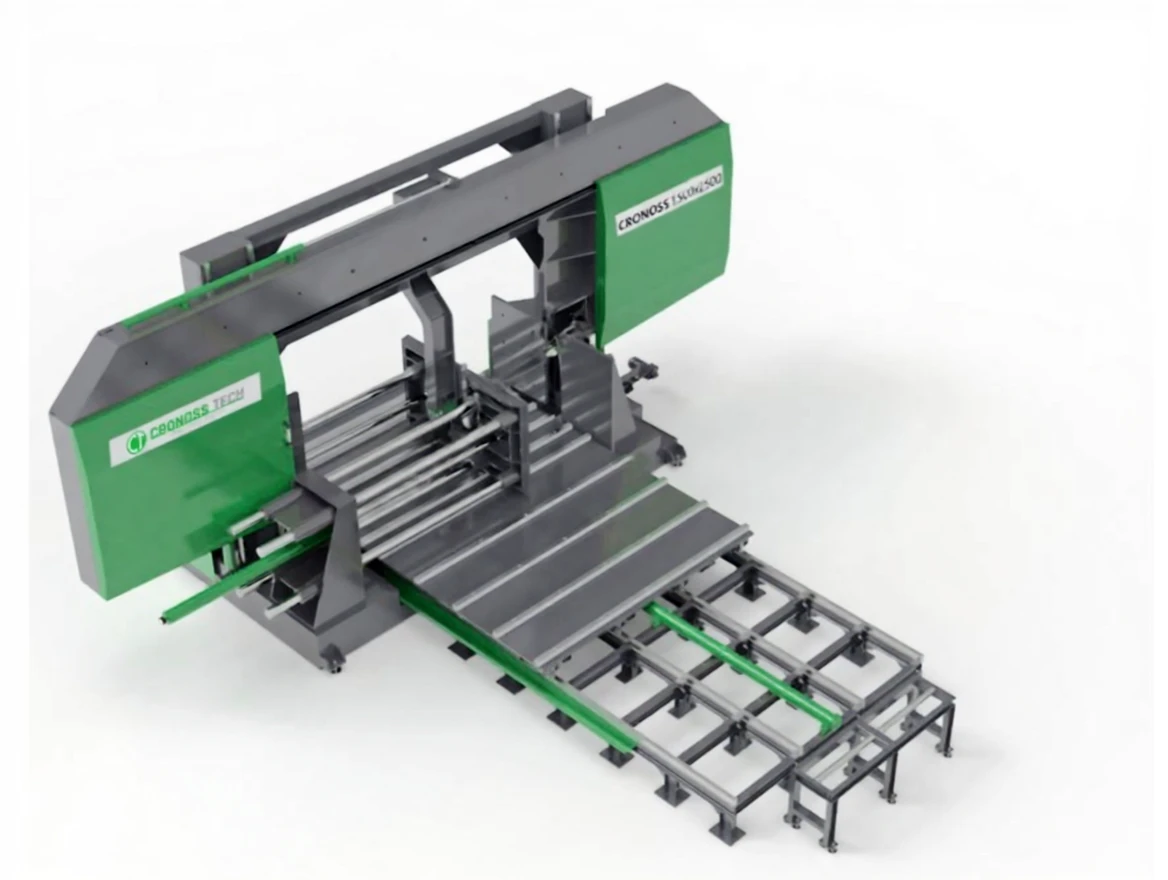

CRONOSS 1500×2500 SY – Column Semi-Automatic Band Saw Machine
STANDARD FEATURES:
-
Hydraulic vice
-
Variable speed control (inverter)
-
Table with sliding material feeding table
-
Chip conveyor
-
Chip cleaning brush
-
Hydraulic band saw tensioning system
-
1 saw blade (mounted on the machine)
-
Linear descent and ascent system
MACHINE MODEL:
CRONOSS 1500×2500 SY – Column Semi-Automatic Band Saw Machine
CUTTING CAPACITIES:
| Cutting Angle | Round (❍) | Square (❒) | Rectangle (▭) |
|---|---|---|---|
| 90° | 1500 mm | 1500 × 1500 mm | 1500 × 2500 mm |
| 60° | – | – | – |
| 45° | – | – | – |
TECHNICAL SPECIFICATIONS:
1500 × 2500 Linear – Semi-Automatic
-
Blade Size: 80 × 1.6 × 15650 mm
-
Blade Speed: 20–80 m/min
-
Main Motor: 15 kW
-
Hydraulic Motor: 2.2 kW
-
Water Motor: 0.09 kW
-
Drive Motor (Table): 1.5 kW
-
Voltage: 3 × 380 V
-
Frequency: 50 Hz
-
Hydraulic Oil Capacity: 70 lt
-
Cooling Water Capacity: 150 lt
-
Machine Dimensions (W × L × H): 7200 × 6350 × 4320 mm
-
Table Dimensions (W × L × H): 2430 × 6350 × 540 mm
-
Material Feeding Height: 540 mm
-
Machine Weight: 15,500 kg
-
Table Weight: 4,500 kg
