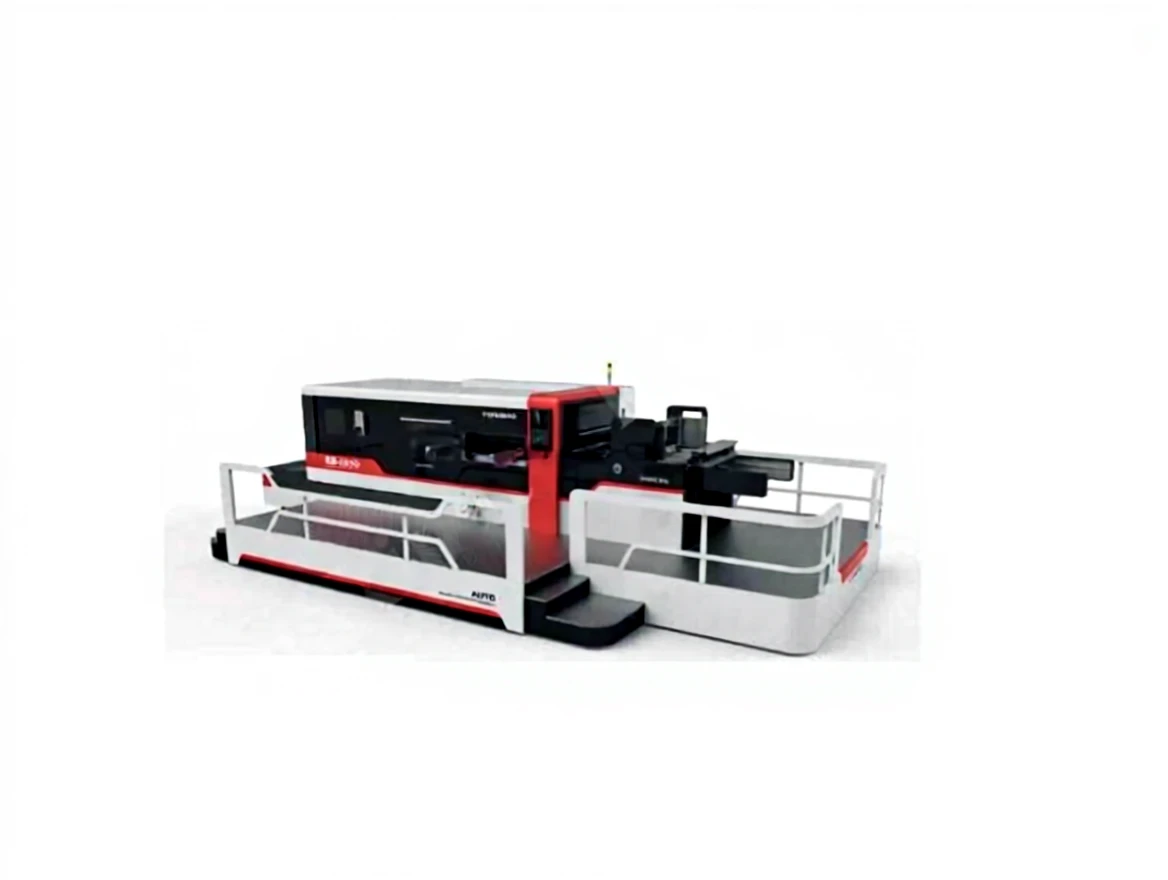

1500×1100 mm Automatic Die Cardboard Cutting Machine

1500×1100 mm Fully Automatic Die Cardboard Cutting Machine

Baştürk MY-1500

• Using the patented lead edge feeding structure can effectively prevent and reduce damage to the paper printing surface.

• This machine is mainly used for corrugated paper of not less than 3mm.

• The main chain (Germany) adopts heavy load and high precision transmission chain, with very small manufacturing error, high tensile strength and wear resistance.

• There are two paper taking ways such as drawing board and trolley, which greatly improves the working efficiency. It has safe and reliable photoelectric detection device, ensuring fast and stable removal of paper.

• It has overload protection mechanism, to achieve accidental overload, active separation of the mold – cutting board frame can effectively prevent the mold – cutting board from sagging and falling.

• Pneumatic lock plate mechanism adopts imported cylinder, stable performance, convenient and fast operation.

• The electrical control system is controlled by PLC and equipped with various safety protection devices, which can sound and visual alarm and automatically shut down in case of malfunction, truly guaranteeing man-machine safety.

• Timing and quantitative automatic oil supply system can ensure complete lubrication of other moving parts of the machine and long service life.

• Stripping unit (optional). The new version of the transmission realizes stable die cutting, pneumatic version lock, pneumatic clutch, quickly and stably, and the unique die cutting board frame can effectively prevent the die cutting board from sagging and falling.

• Adopt high precision servo motor control, accurate positioning, stable paper feeding. Increase the schedule and activities to make the positioning of the corrugated paper side more accurate and smoother towards the front.

• Keep automatic paper collection clean and tidy. Uninterrupted paper delivery device increases efficiency. Continuous sampling mechanism can realize control of die cutting mental delay at any time.

• Complete waste cleaning system adopts central positioning system, automatic clamping, convenient and fast return; chip removal rack adopts motor control lifting device; It can automatically remove three, four sides and middle waste to ensure clean and efficient production. A semi-waste extraction system can be used to remove the desired portion of the cardboard to ensure clean and efficient waste removal.

Baştürk MY-1500 Technical Specifications
