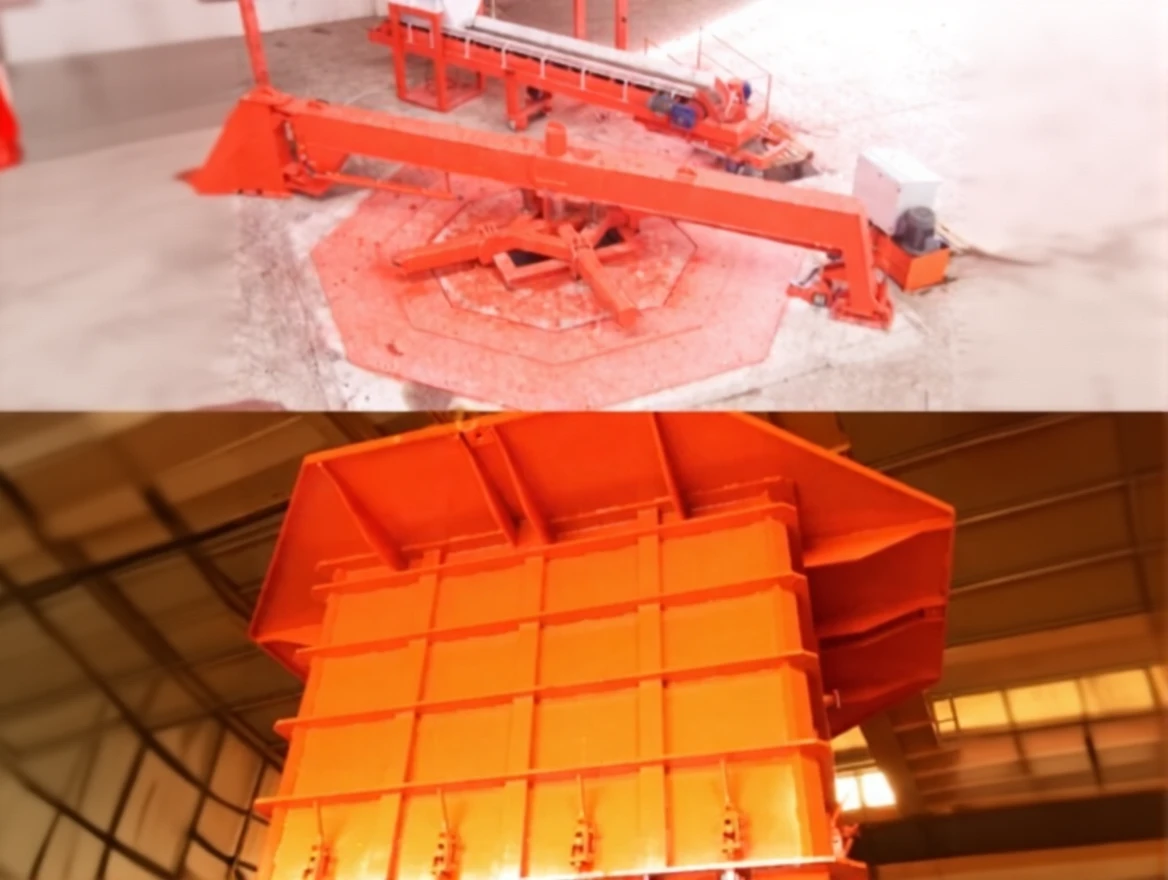

Ø1500×2000 mm Concrete Pipe Culvert Machine
| Brand | Koyuncular Makina |
|---|
Description
Ø1500×2000 mm Concrete Pipe Culvert Machine
• KMS 1500×2000 Concrete Pipe and Box Culvert Machine; produces Concrete Culverts in lengths between 1000mm minimum and 2000mm maximum, compliant with the İller Bankası TSE 821 specification, for diameters ranging from Ø800 to Ø3000mm.
• Production is done by connecting a single mold for all sizes.
• The machine’s vibration system is a liquid-oil closed circulation system. The automatic lubrication system activates with the operation of the machine. High-speed and heat-resistant bearings are used in the vibrator.
| Feature | Specification |
|---|---|
| Working System | Manual / Semi-Automatic |
| Production Capacity | Ø800mm-3000mm |
| Motor Power | 30 kW 3000 rpm |
| Hydraulic Pressure | 120 Bar |
| Mortar Bucket | 1.5 m³ |
| Production Size | Number of Pieces (Per Press) | Size (mm) | Daily Production (8 Hours) |
|---|---|---|---|
| Ø800mm x 800mm | 1 Piece | 1000/2000 | 25 Pieces |
| Ø1000mm x 1000mm | 1 Piece | 1000/2000 | 25 Pieces |
| Ø1000mm x 1500mm | 1 Piece | 1000/2000 | 20 Pieces |
| Ø1500mm x 1500mm | 1 Piece | 1000/2000 | 20 Pieces |
| Ø1500mm x 2000mm | 1 Piece | 1000/2000 | 15 Pieces |
| Ø2000mm x 2000mm | 1 Piece | 1000/2000 | 15 Pieces |
| Ø2000mm x 2500mm | 1 Piece | 1000/2000 | 10 Pieces |
| Ø2500mm x 2500mm | 1 Piece | 1000/2000 | 10 Pieces |
| Ø2500mm x 3000mm | 1 Piece | 1000/2000 | 5 Pieces |
| Ø3000mm x 3000mm | 1 Piece | 1000/2000 | 5 Pieces |
