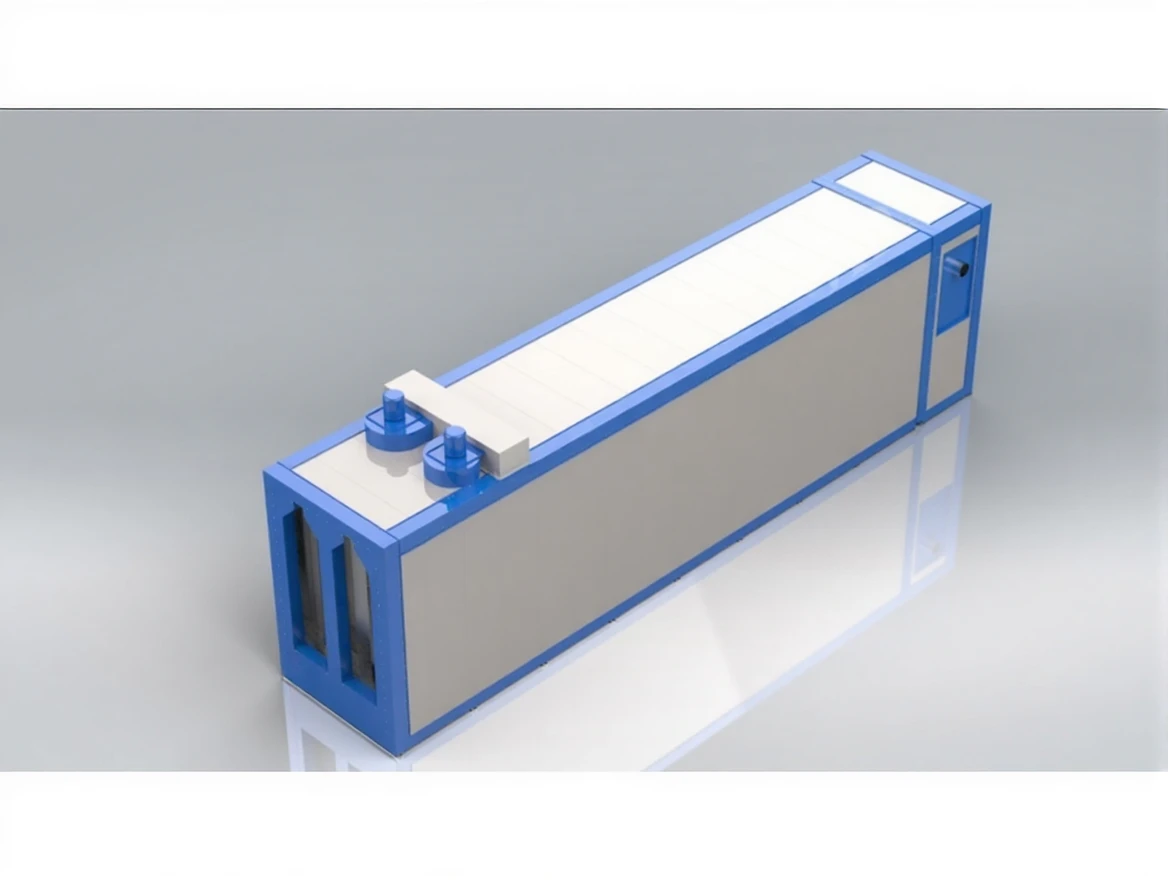

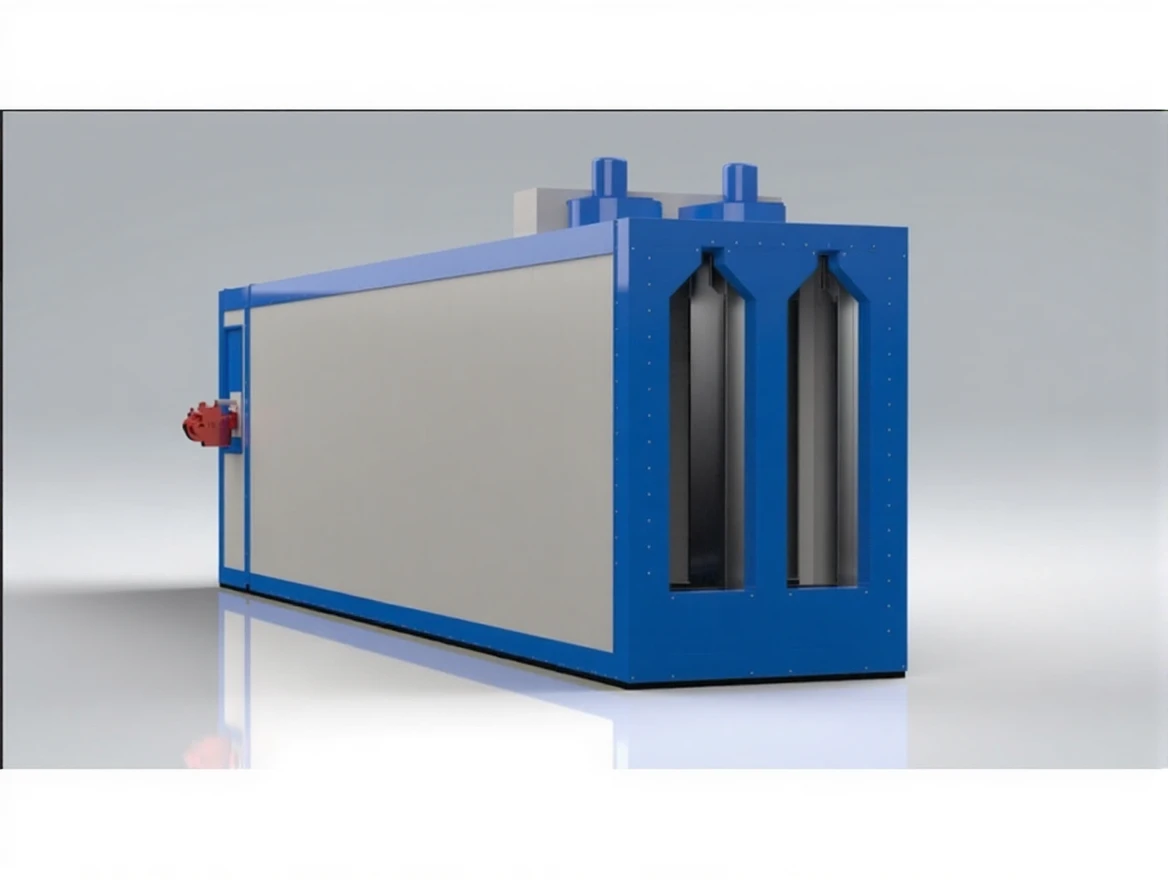

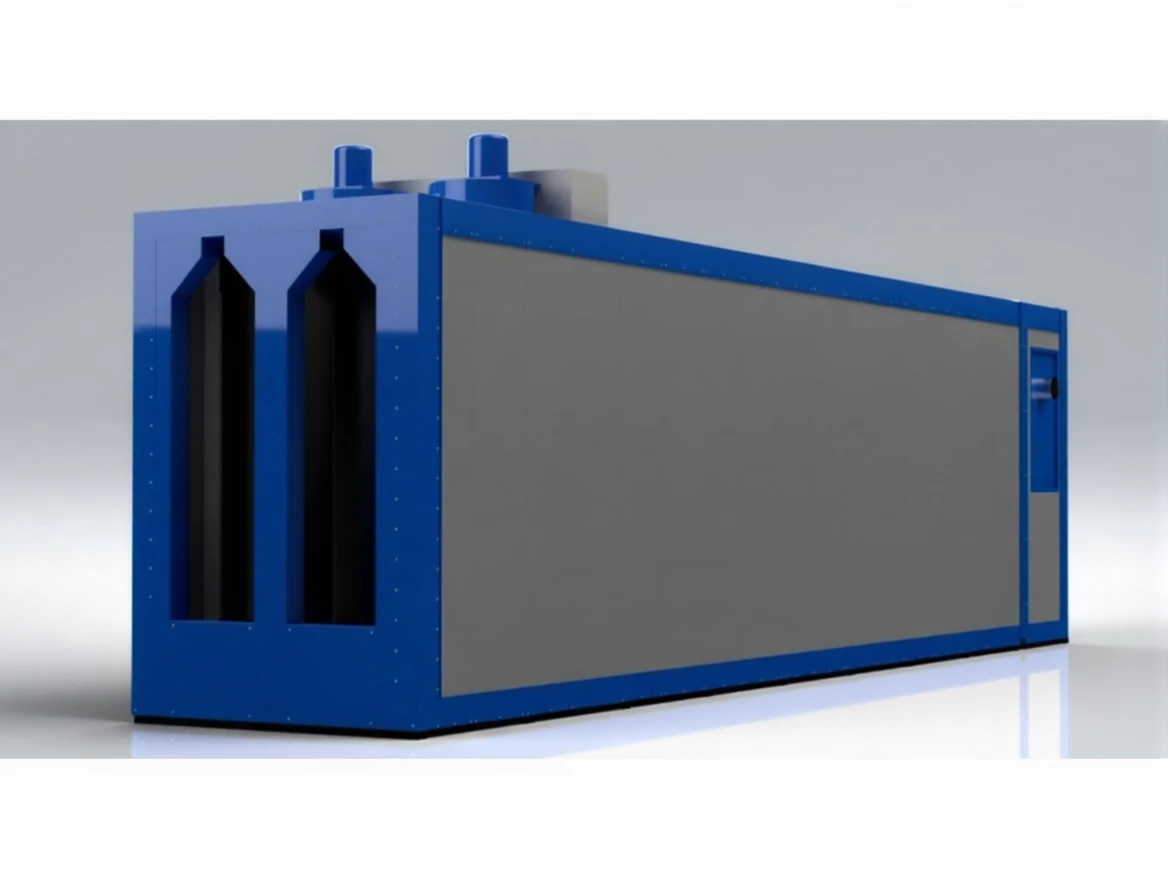

1500x2300x8000 mm Electric U Type Electrostatic Paint Oven

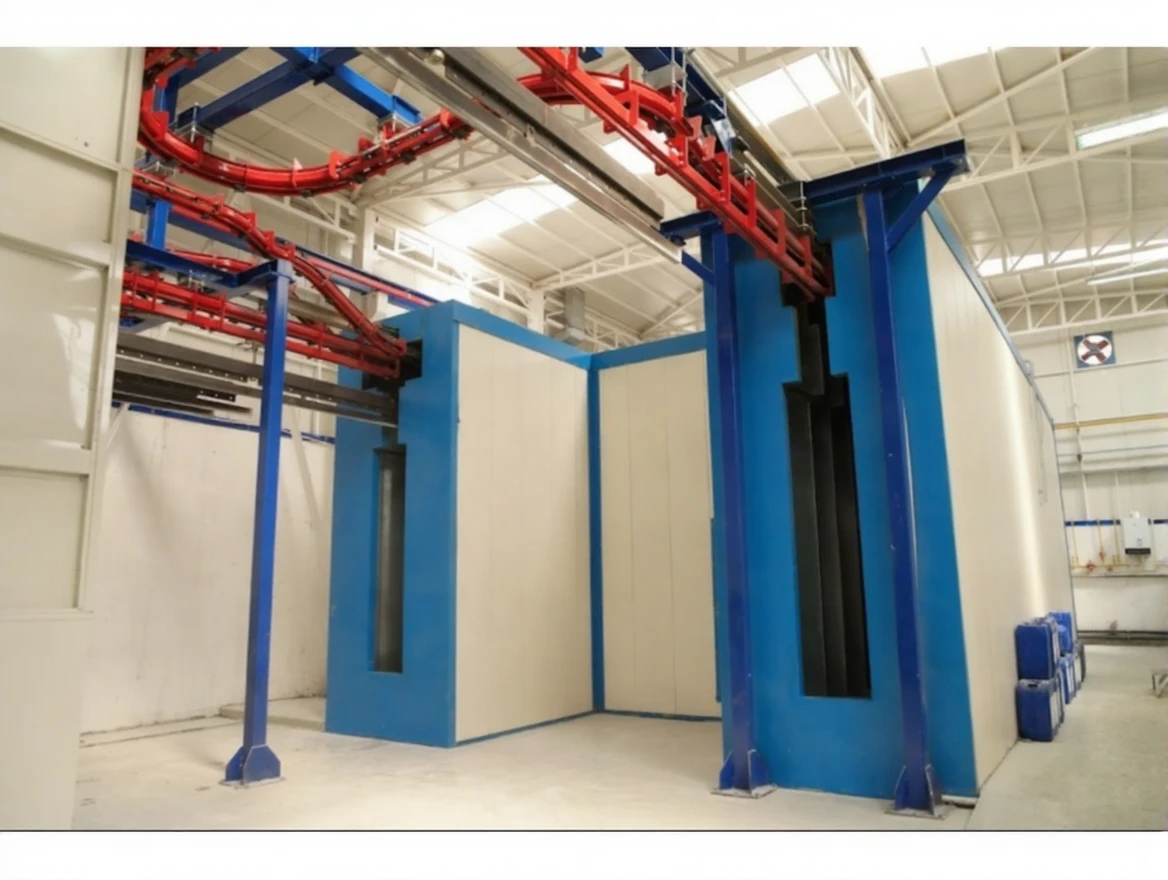

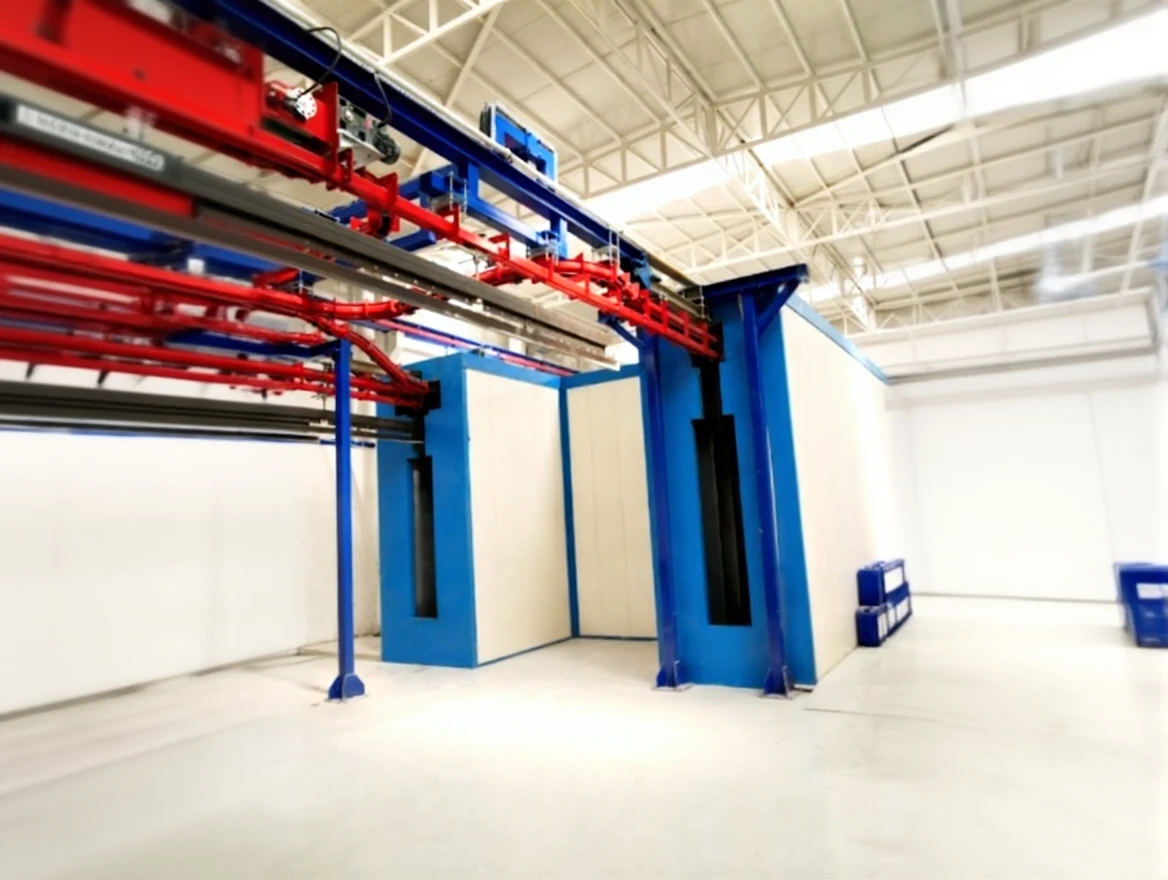

It is based on the principle of cooking the workpiece to be cooked in U Type Baking and Drying ovens by hanging it on the oven conveyor.

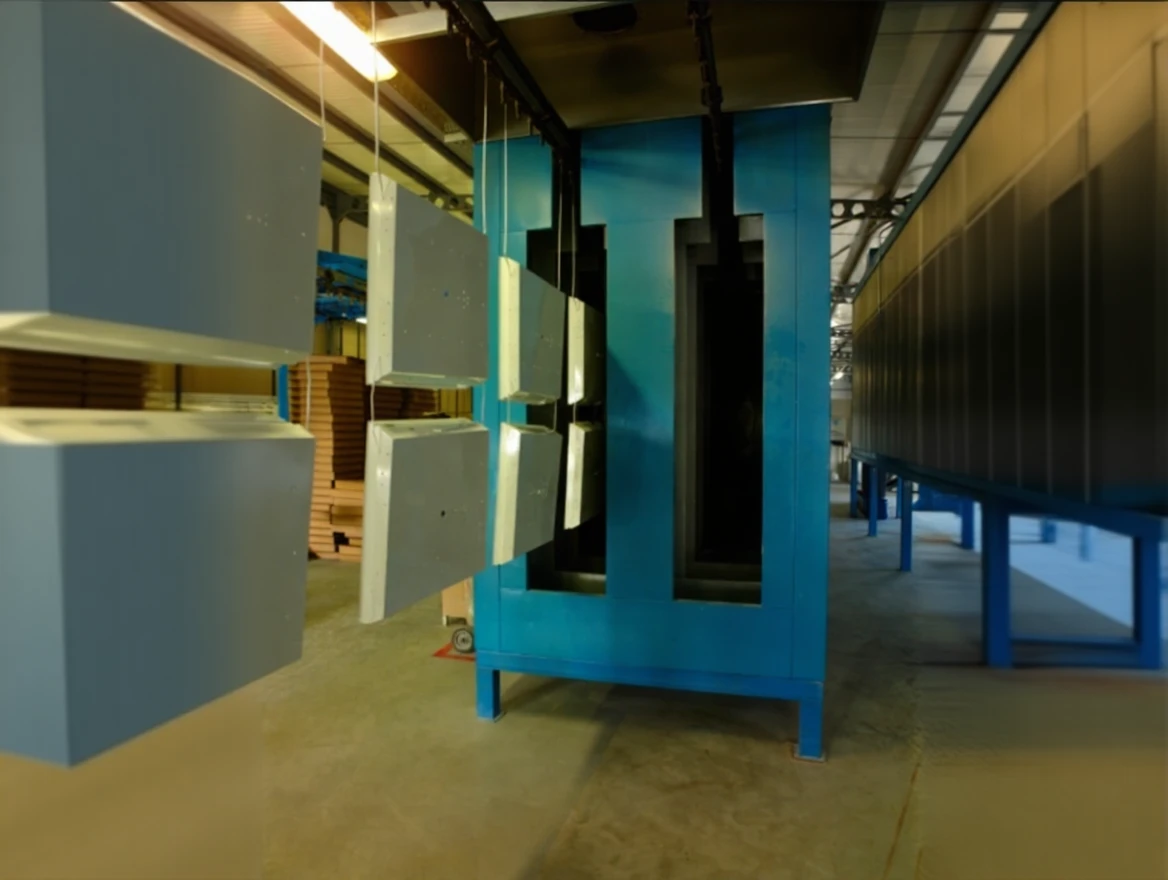

These types of ovens are internal rotation ovens. After the workpiece is hung on the conveyor, it is cooked or dried while moving at a certain speed according to the thickness and m2 area of ​​the part.

BOYMAK U Type Baking and Drying Ovens are specially designed by our expert engineering staff. disassembled
is manufactured. Thanks to this feature, it can be easily assembled and moved to other areas if desired.

U Type Baking and Drying Ovens are preferred by businesses with high capacity in the industry. It is used in various sectors such as white goods, automotive, construction, agricultural machinery, aluminum industry…,

BOYMAK Heating Exchangers are designed on the basis of maximum efficiency and minimum fuel consumption. Our thermoblocks mounted at the back of the oven can increase the oven temperature from ambient temperature to 230 ºC. BOYMAK Heating Exchangers are manufactured from 310 quality Stainless Steel material and are resistant up to 1000 ºC.

The smoke pipes used in the thermoblock are normalized seamless smoke pipes. Thermoblock is placed inside the combustion chamber and its surroundings are insulated with 150mm Rock Wool. There is an intervention cover in the combustion chamber against thermoblock malfunctions. There is a turbine fan in the combustion chamber that distributes the heat into the furnace. Thanks to the peephole on the thermoblock, combustion efficiency is controlled and precautions are taken against gas and diesel jams inside the thermoblock.

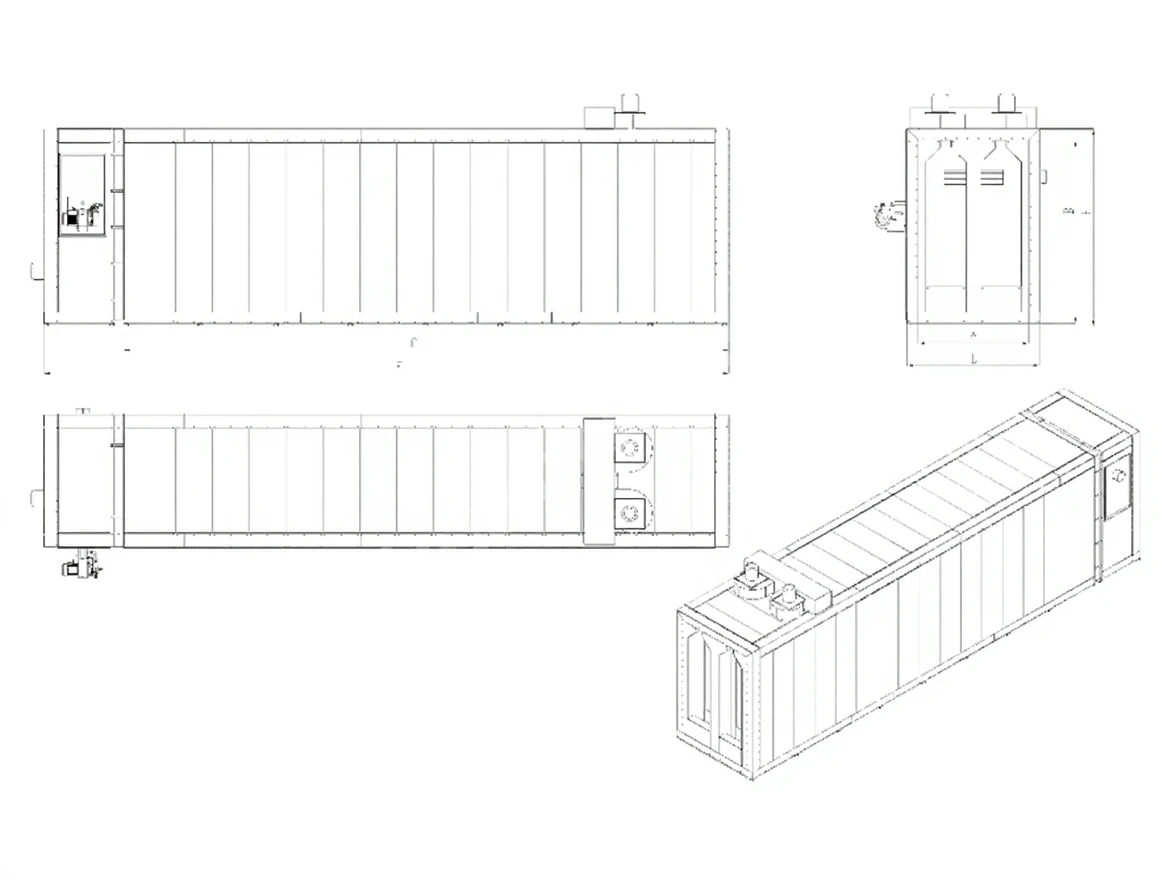

U Type Baking and Drying Ovens are manufactured in disassembled form by being installed on a chassis in the form of sandwich panels.
The inner part of the baking oven is made of 1.2 mm ST 37 Galvanized material, and the outer part is made of 1.2 mm ST 37 material. The outer sheet of the oven is coated with electrostatic powder paint and corrosion resistance is increased. Baking oven panels are insulated with 150mm insulation material as standard. The inner part of the oven panels is insulated with 50mm Rock Wool and the outer part is insulated with 120mm Cm Wool. Due to this insulation feature in the baking oven, heat losses do not exceed the ambient temperature (-10) degrees. In this way, our cooking ovens consume less fuel and do not overheat the working environment. There is a radiant type fan that provides air circulation inside the baking oven, and a homogeneous heat distribution is achieved within the oven thanks to the air ducts extending along the oven and the vents placed on the channels. U Type Baking Ovens have two sliding doors at the entrance and exit. These doors are adjusted automatically or manually according to the piece size. In this way, unnecessary heat losses are prevented and savings are achieved.

Temperature control is carried out by means of a thermocouple placed inside the oven. BOYMAK U Type Baking and Drying Ovens automatically give a signal when it reaches the desired temperature, and the cooking oven can be adjusted from 0 to 250 °C via the digital clock on the temperature control panel.
