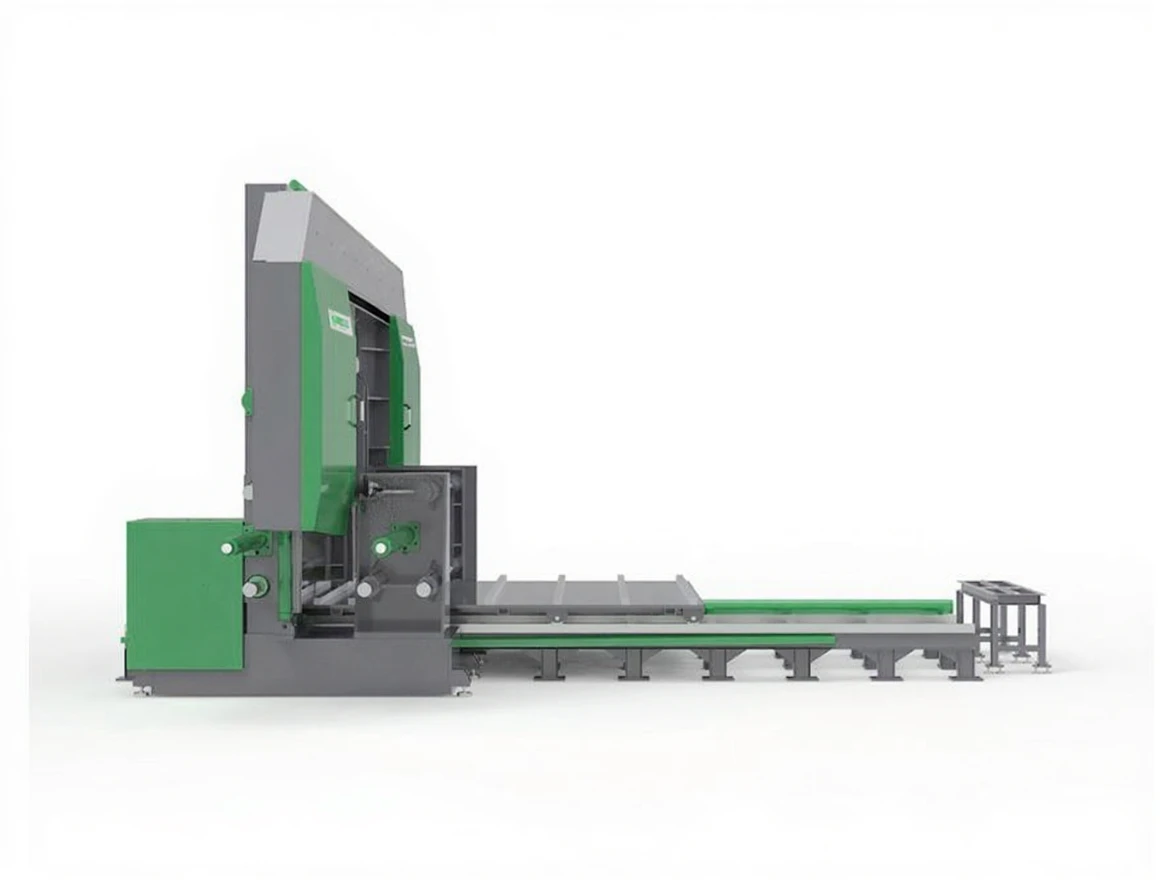

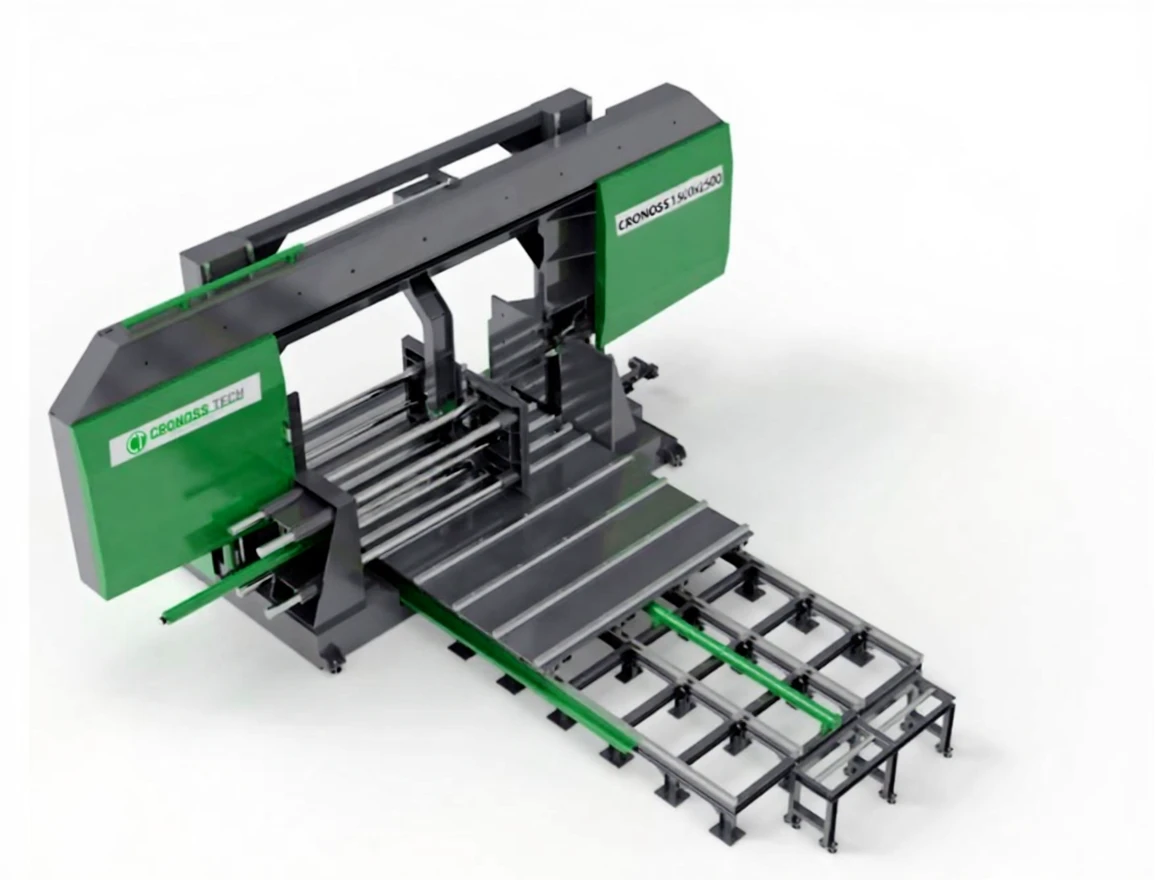

1500X2500mm – Column Semi-Automatic Band Saw Machine (With Table Sliding System)
| Brand | Cronosstech |
|---|
STANDARD FEATURES
-
able to work independently of each otherdouble hydraulic vise system
-
hydraulic vise
-
Inverter controlled strip speed adjustment
-
Adjustable speed valve
-
Material application system with table
-
Hydraulic strip tensioning system
-
Motorized chip removal brush
-
chip conveyor
-
safety switches
-
1 band saw blade
-
Design and production in accordance with CE standards
CUTTING CAPACITIES
| Section Type | 90° | 60° | 45° |
|---|---|---|---|
| ● Filled material | 1500mm | – | – |
| ■ Square profile | 1500×1500mm | – | – |
| ▭ Rectangular profile | 1500×2500mm | – | – |
TECHNICAL SPECIFICATIONS
Model
1500 × 2500 Linear Semi-Automatic Band Saw
Saw Size
80×1.6×15,650mm
Saw Speed
20 – 80 m/min
Main Engine Power
15 kW
Hydraulic Engine Power
2.2kW
Cooling (Water) Engine
0.09 kW
Drive Motor (Stand)
1.5kW
Supply Voltage
3×380V
Frequency
50Hz
Hydraulic Oil Capacity
70 liters
Cooling Water Capacity
150 liters
Machine Dimensions (Width × Length × Height)
7,200×6,350×4,320mm
Coffee Table Dimensions (Width × Length × Height)
2.430×6.350×540mm
Material Feeding Height
540mm
Machine Weight
15,500kg
Coffee Table Weight
4,500kg
