1500x3200x150 mm Advertiser Cnc Router

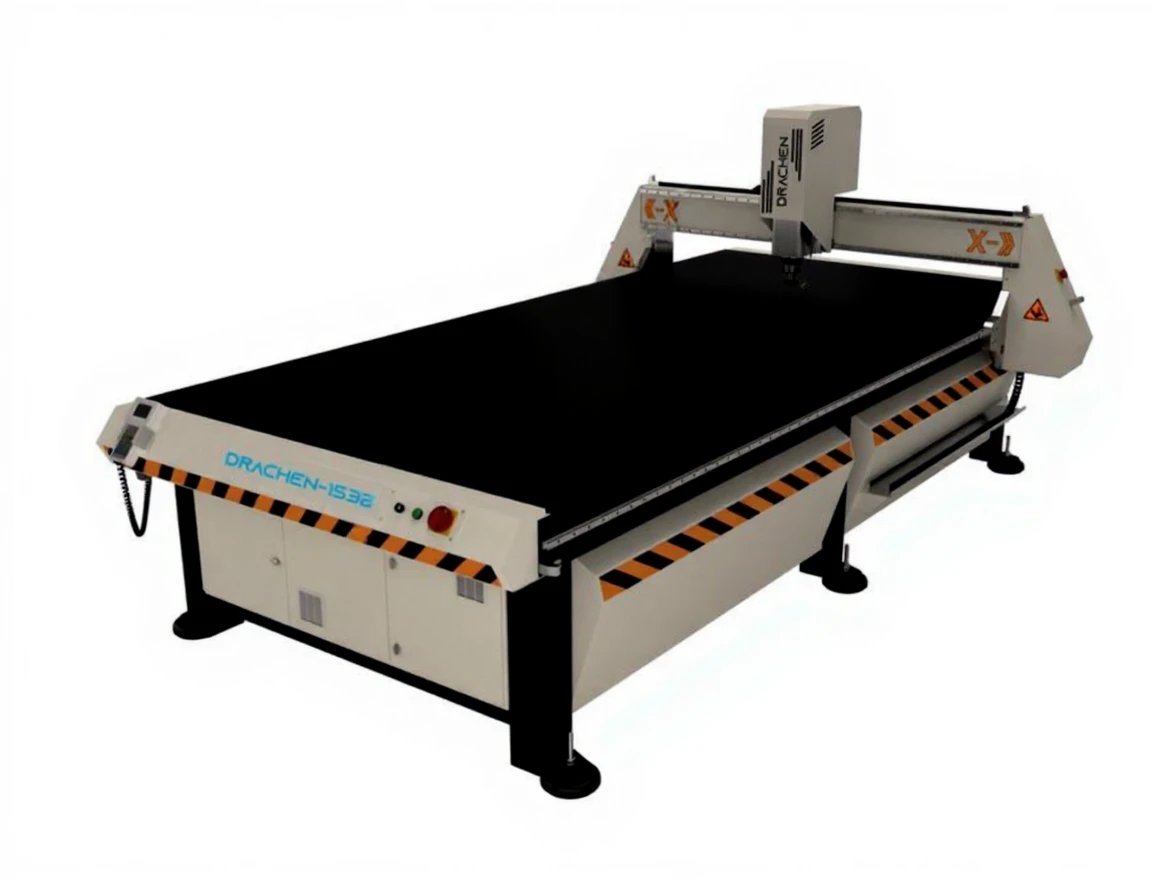

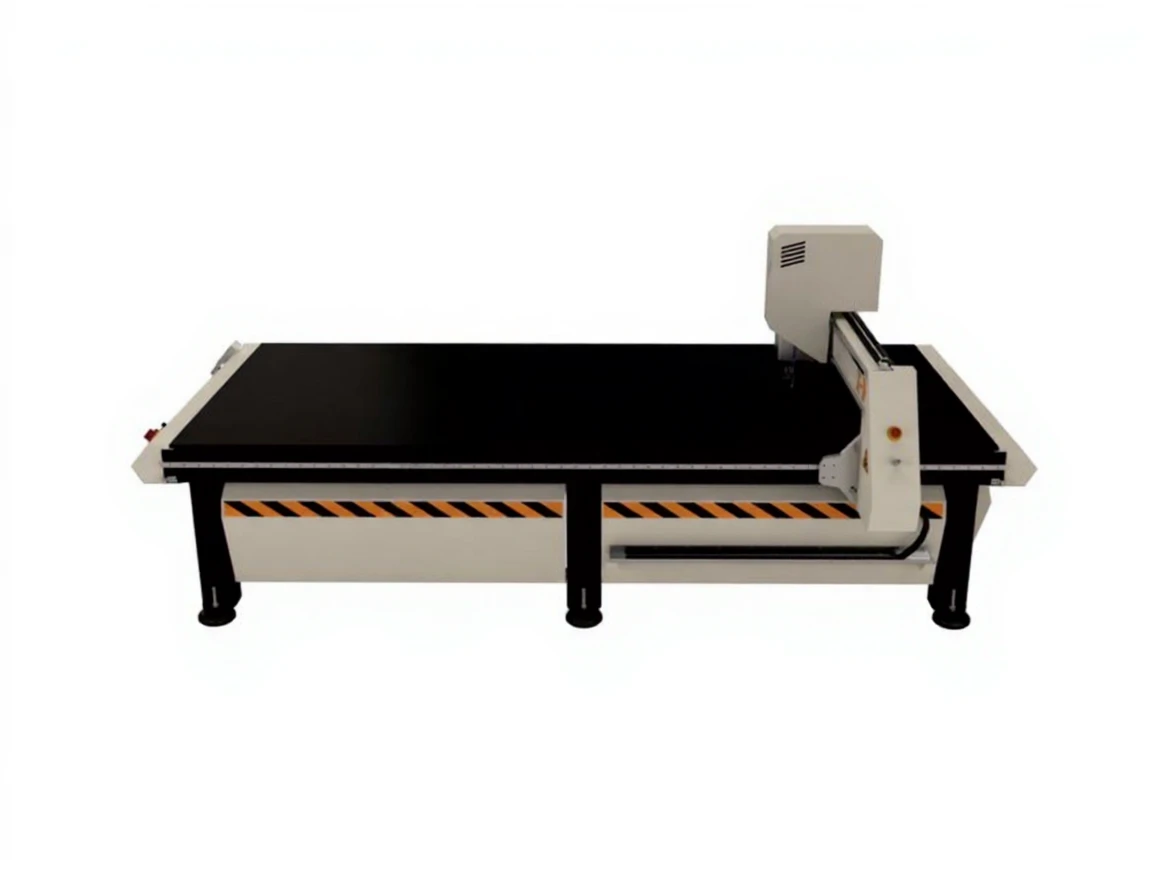

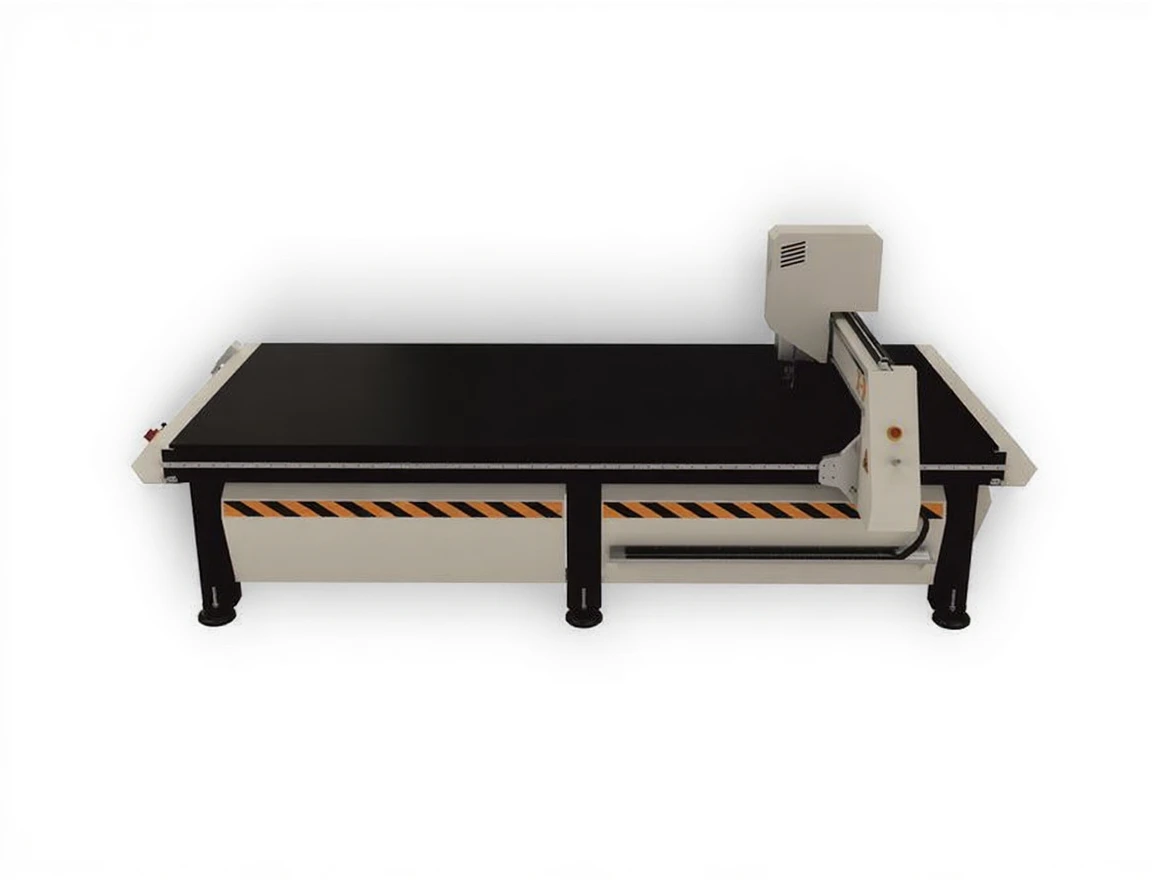

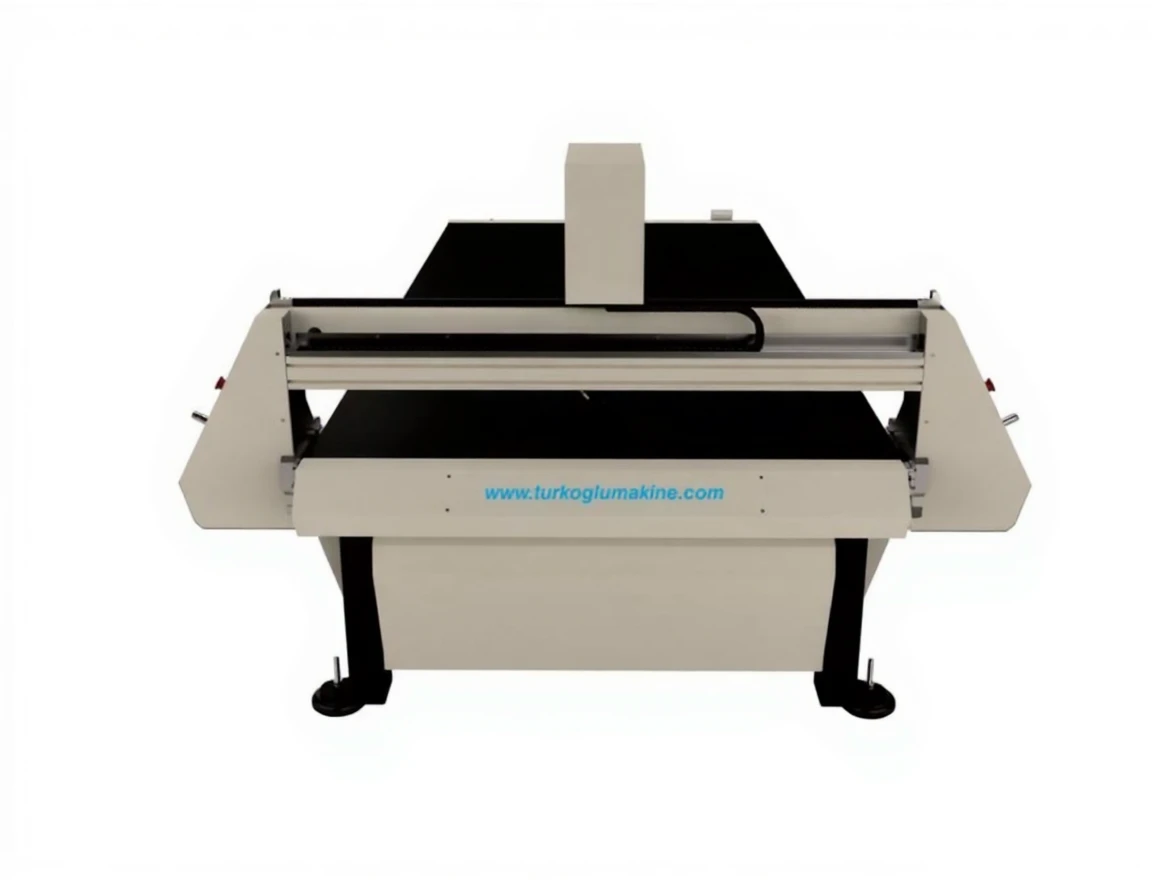

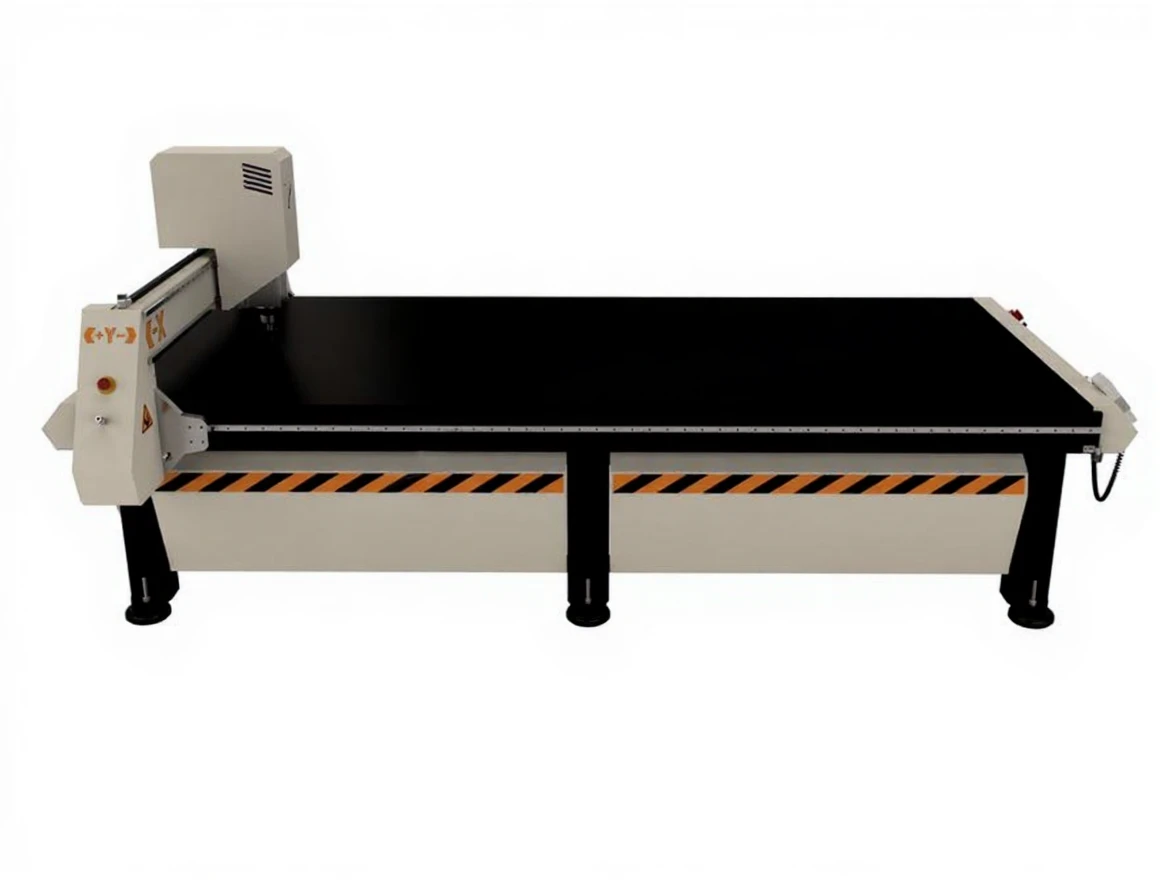

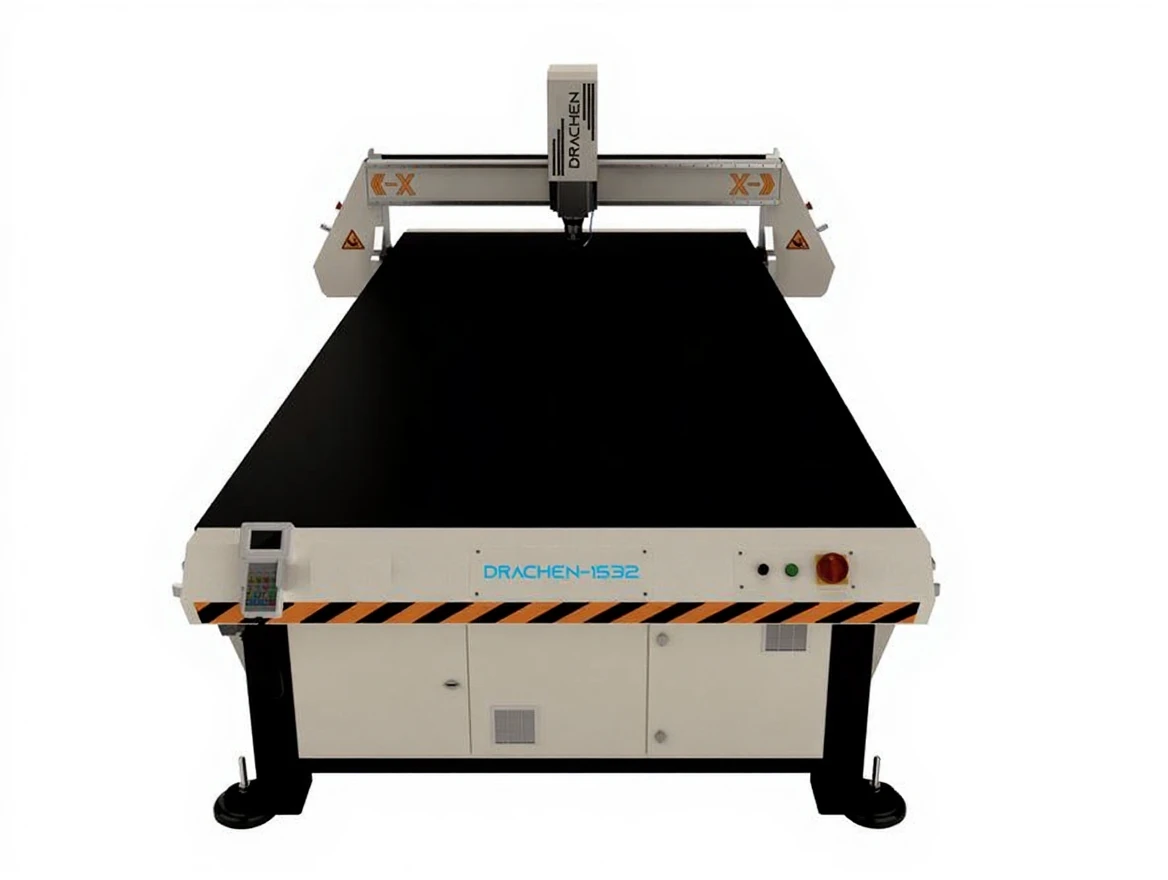

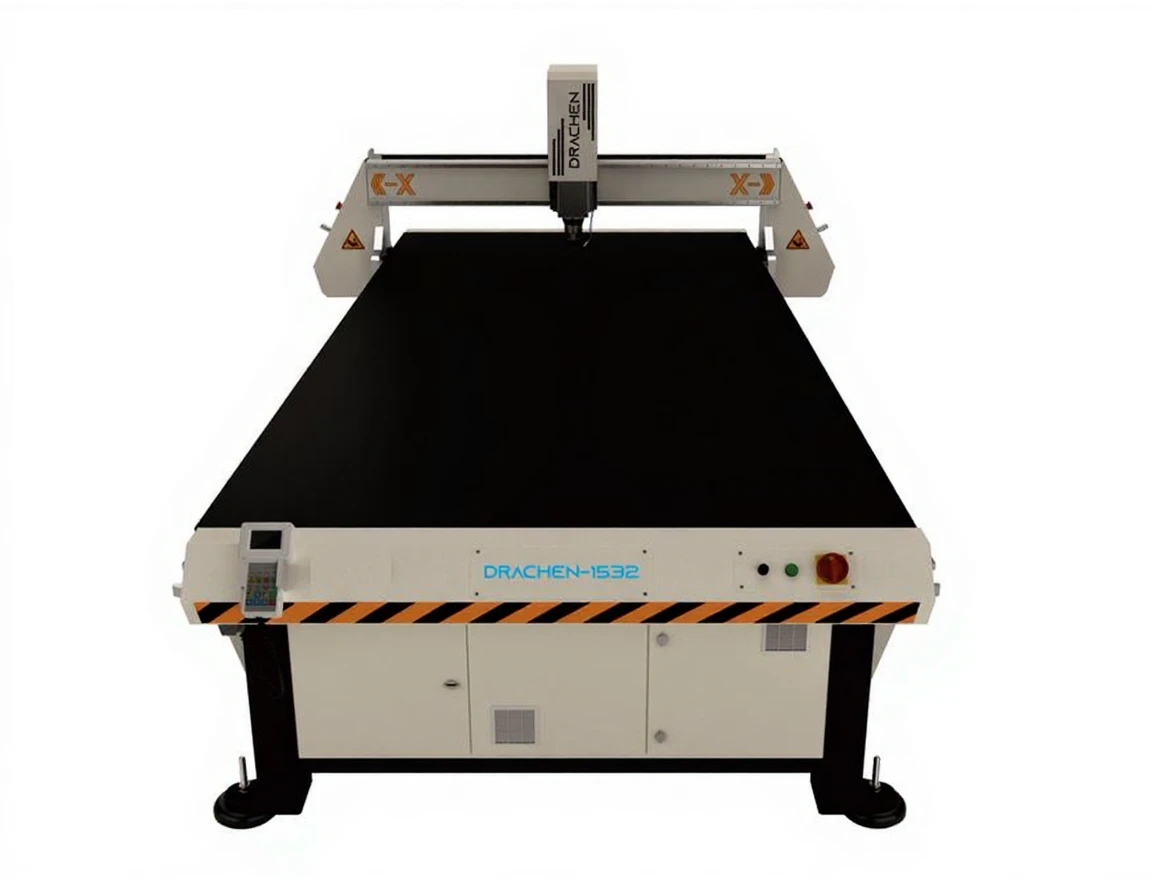

1500x3200x150 mm Delta Advertiser CNC Router

General Specifications
*Working area of 1500X3200X150 – 2100x4000x150 mm (Custom sizes can be produced)
*5.5 Kw, 380v 18000 Rpm built-in fan-cooled steel ball bearing spindle (Domestic Production)
*Step motor(X,Y1,Y,Z)
*Drive system with 70 1/5 ratio reducer
*Control system from the console (Domestic Production)
*Traverse speed of 15 m per minute in idle mode
*1.5 module creamier drive system (Provides faster, quieter and more precise movement)
*Fault detection system
*25 mm Mdf table
*Air installation for cleaning inside the machine
*Internally produced electronic panel and material cabinet in European standards
*Reinforced iron chassis (Total weight between 1250-1350 kg)

Processable Materials

Plastic, Plexiglass, Mdf, Chipboard, Composite Panel, etc.
