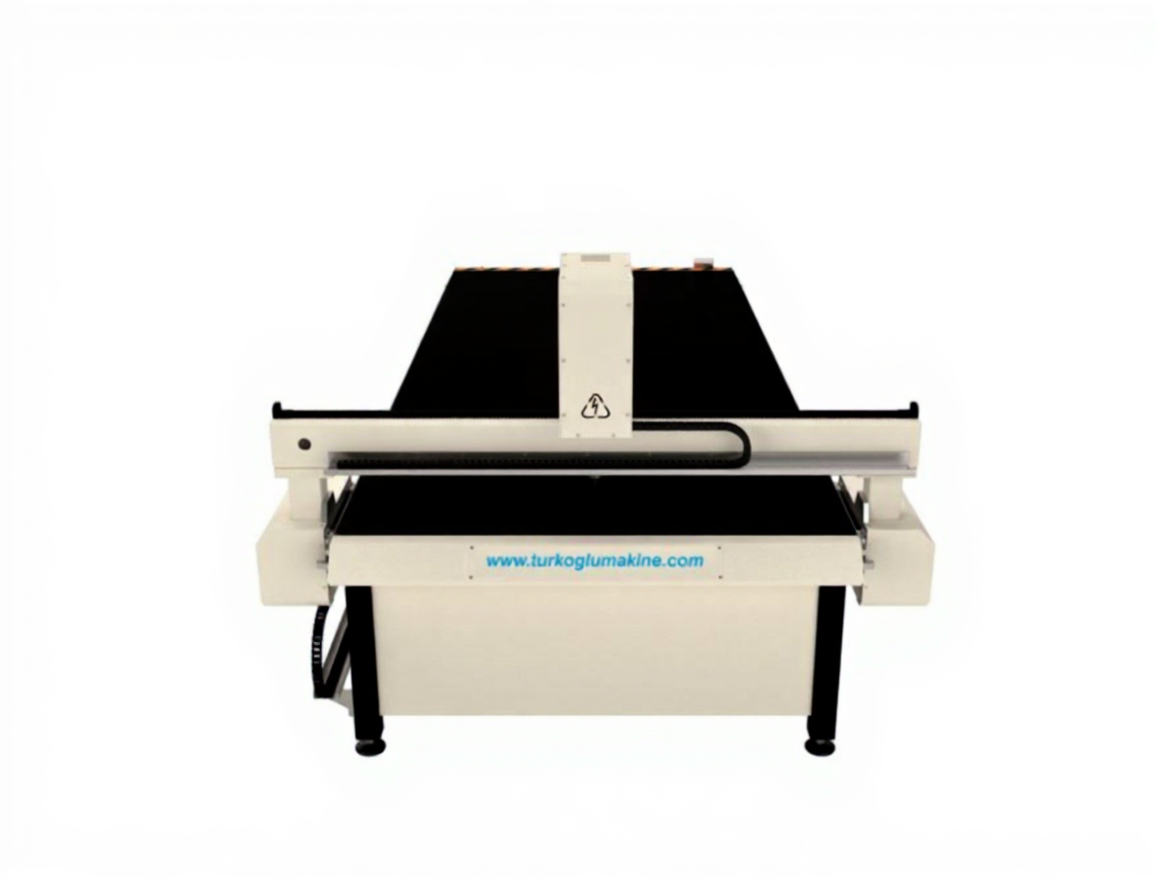

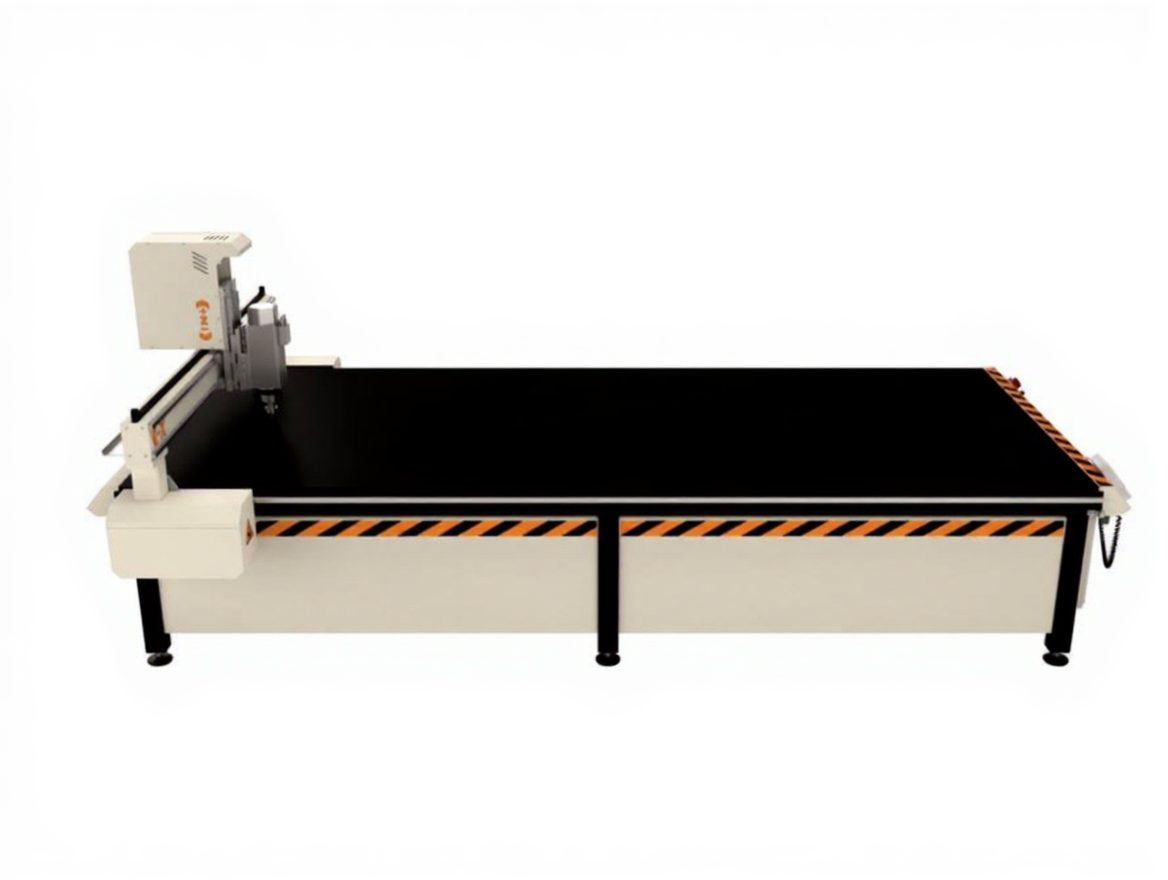

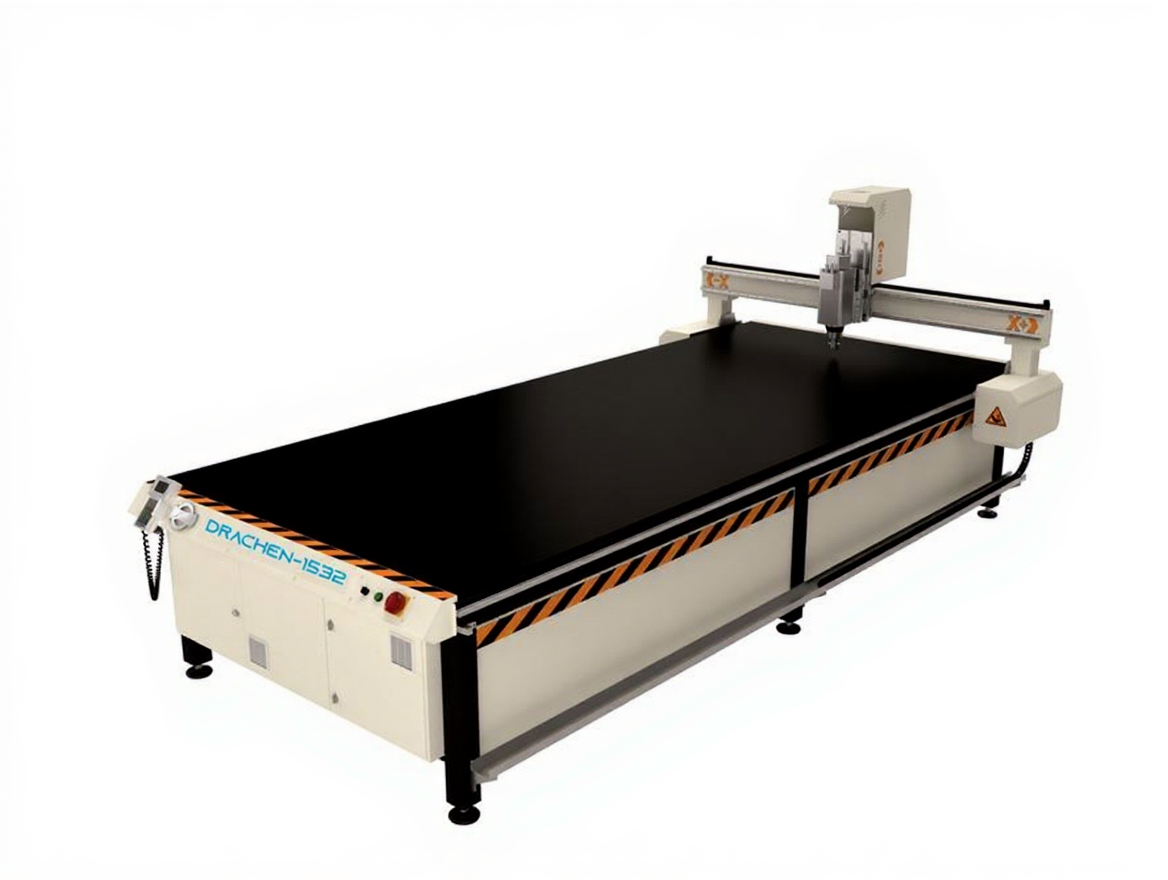

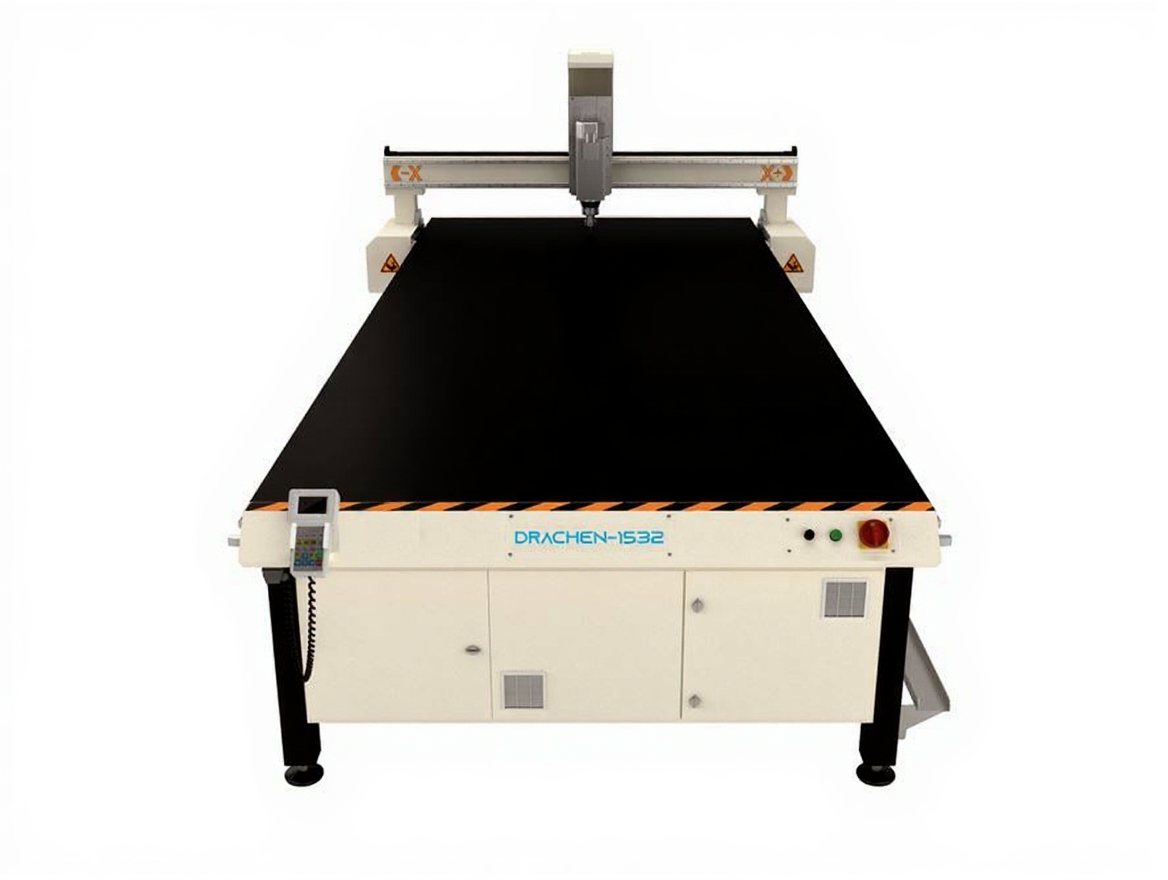

1500x3200x150 mm Wooden CNC Router

Drachen Spectra 1532 1500x3200x150 mm Spectra Wood CNC Router

General Features
*1500X3200X150 – 2100x4000x150 mm working area (Produced in special sizes)
* 2.2 Kw, 220v 18000 Rpm steel bearing spindle with internal fan (Domestic Production) *Stepper motor (X,Y1,Y,Z)
*Drive system with 70 1/5 ratio reducer
* Remote control system (Domestic Production)
*Idle speed of 10 m per minute
*1.5 module rack drive system (Provides faster, quieter and more precise movement) *Fault detection system
*25 mm MDF countertop
*Air installation for use in cleaning inside the machine
*Internal electronic panel and material cabinet produced in European standards *Reinforced iron chassis (Total weight between 1250 and 1350 kg)

Materials it can process.
Plastic, Plexiglass, MDF, Chipboard, Composite Panel ETC.
