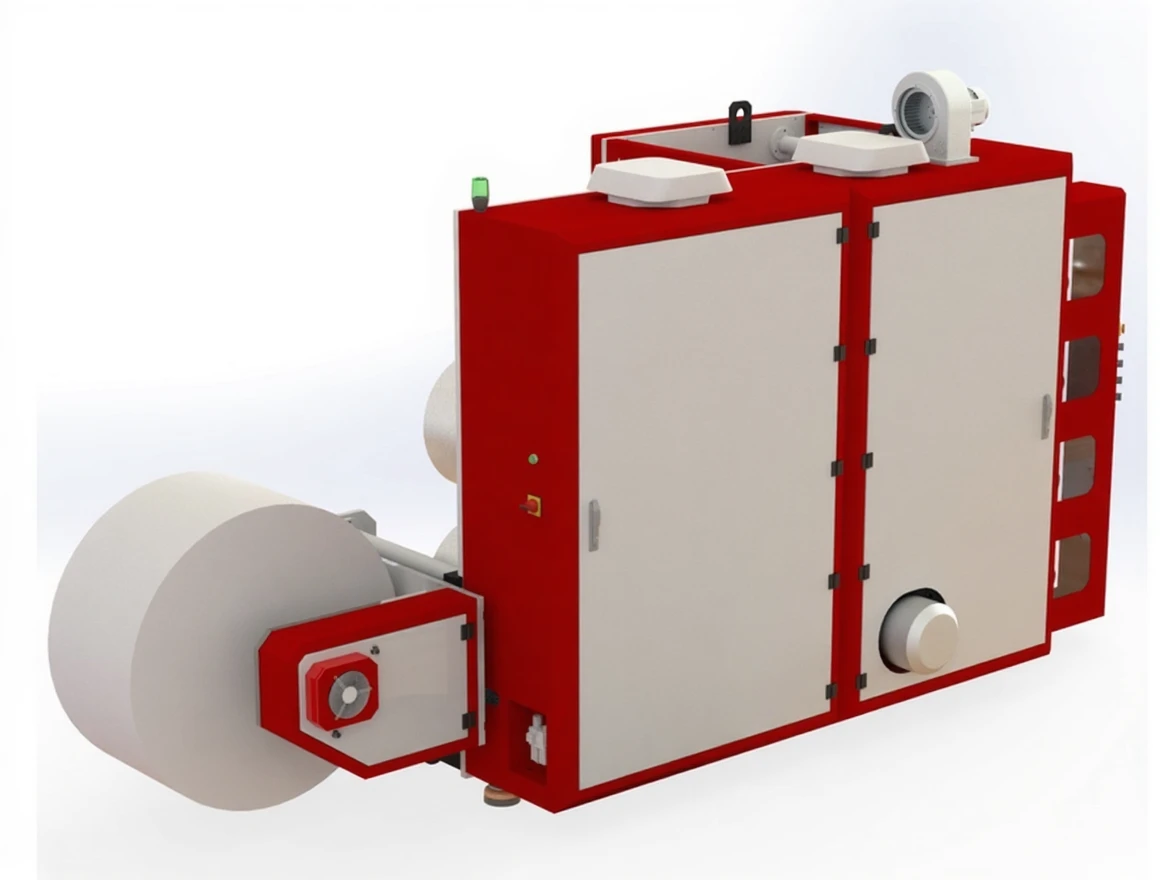

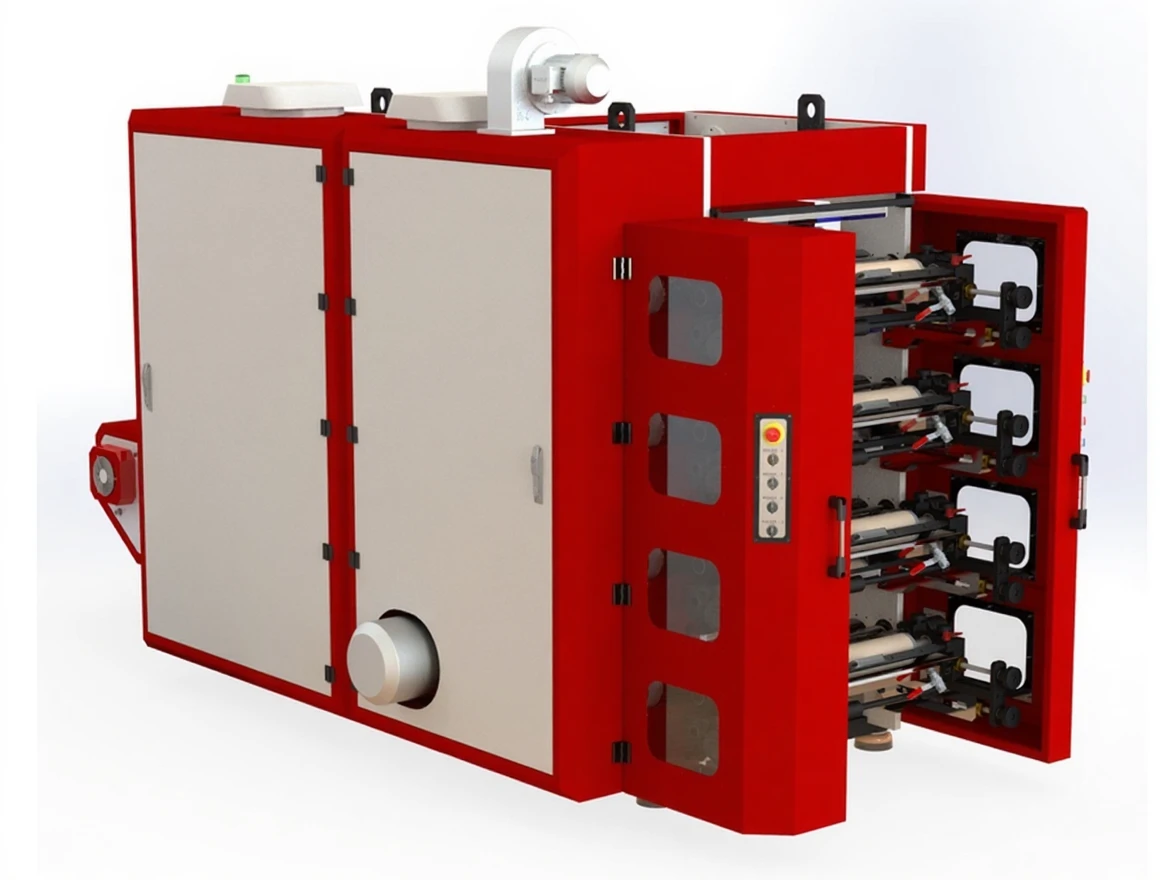

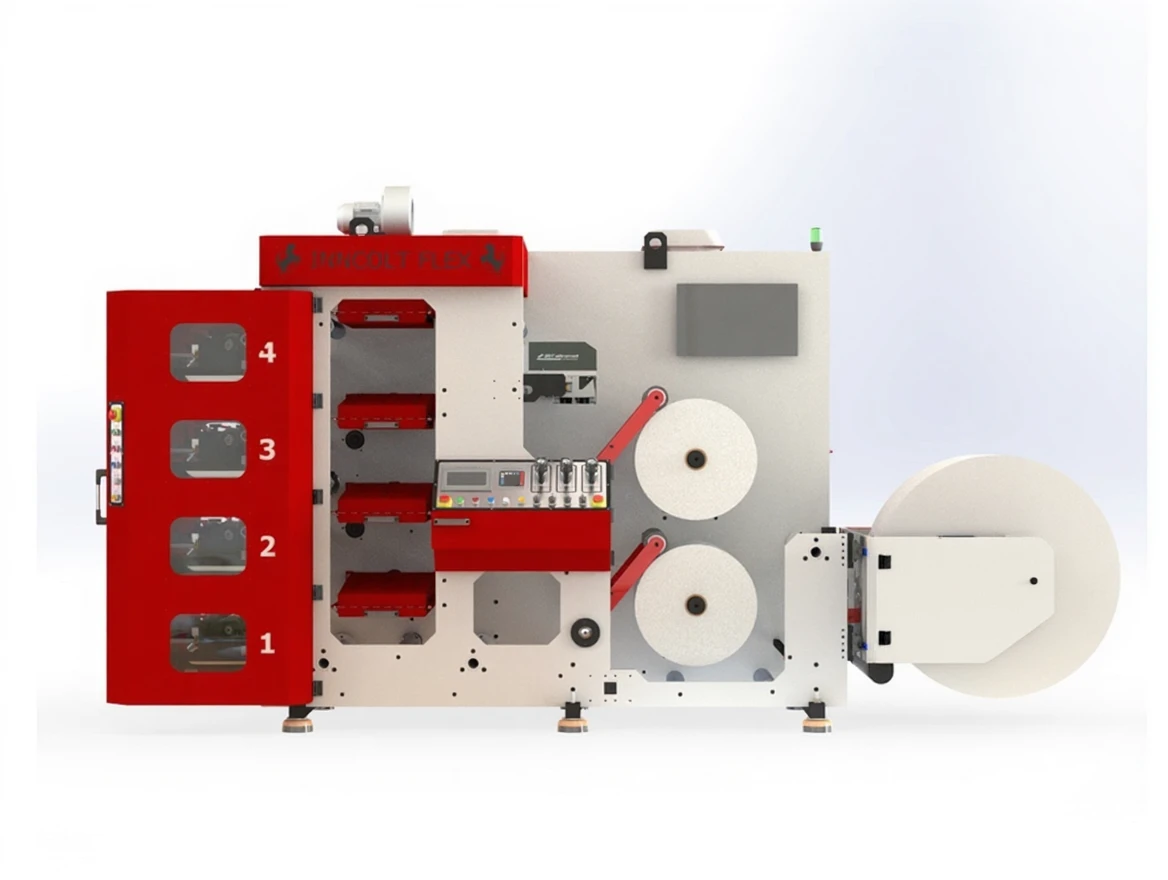

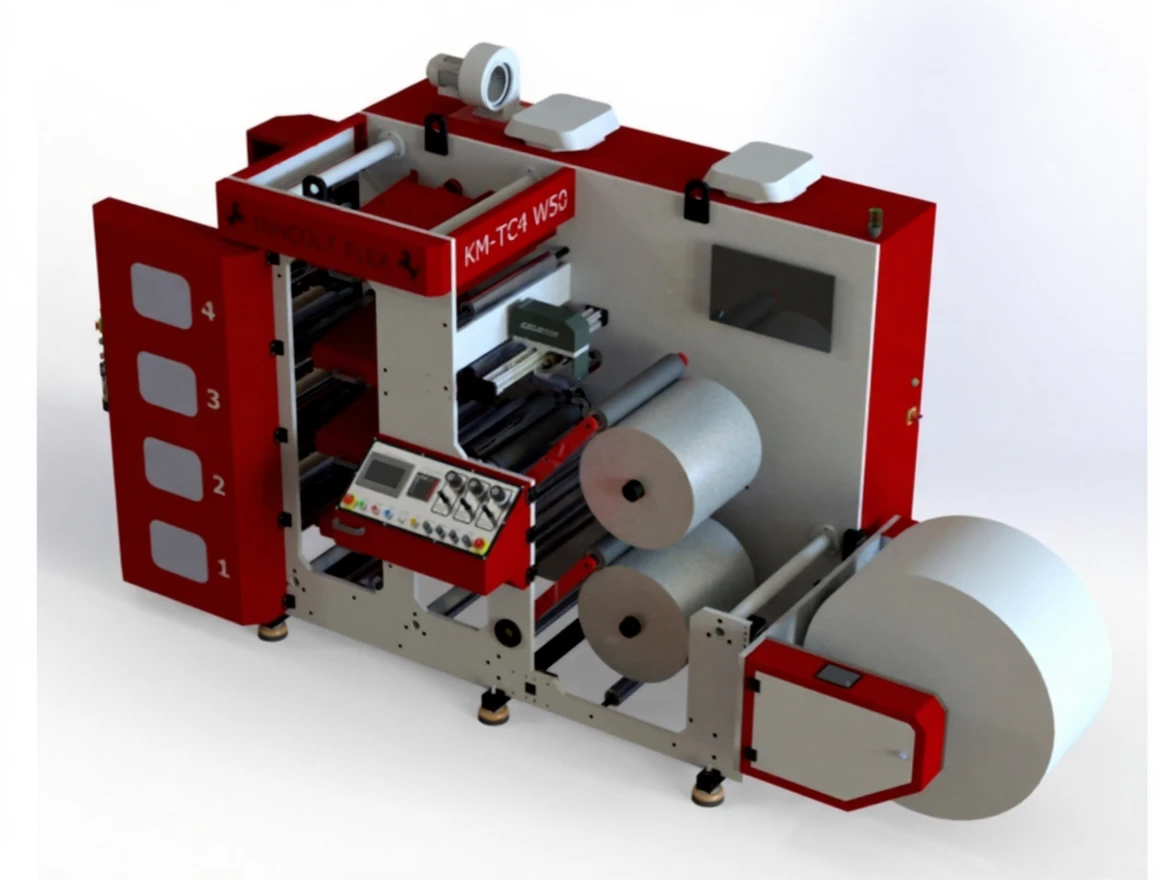

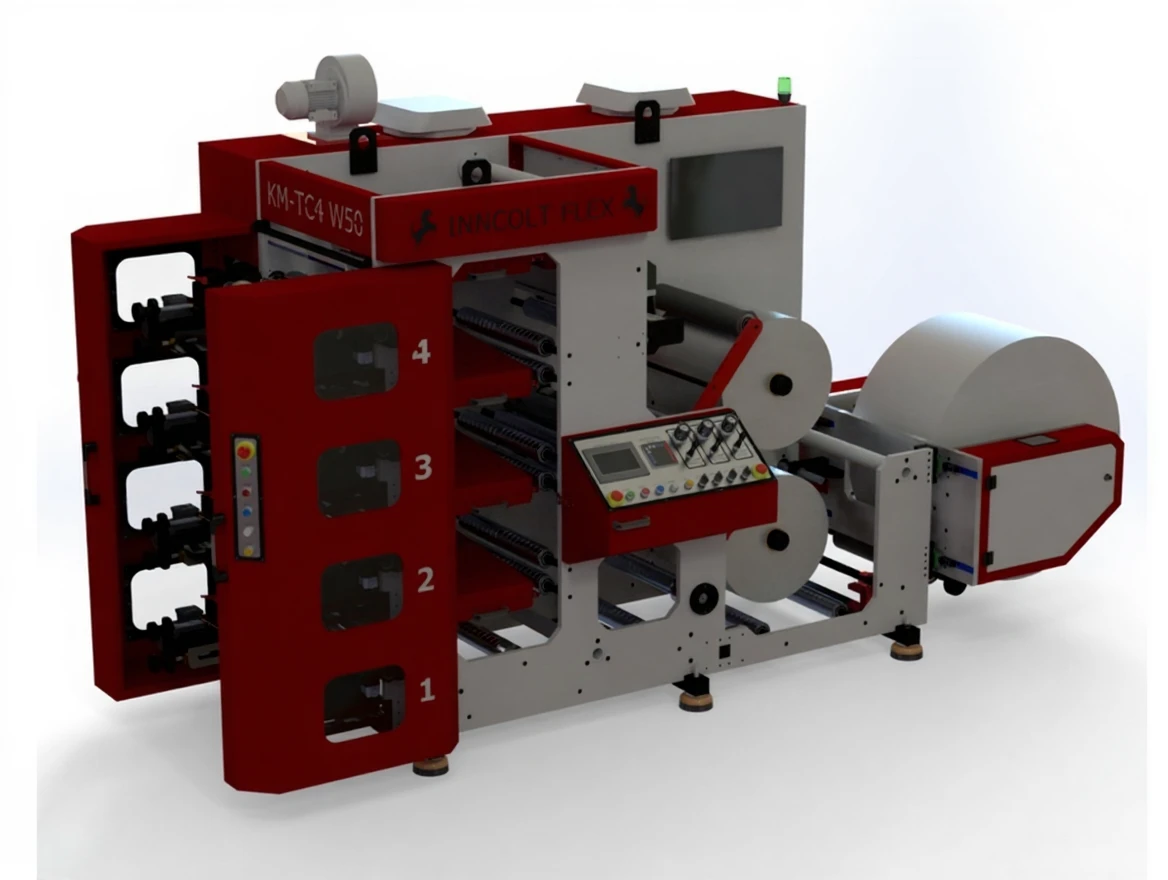

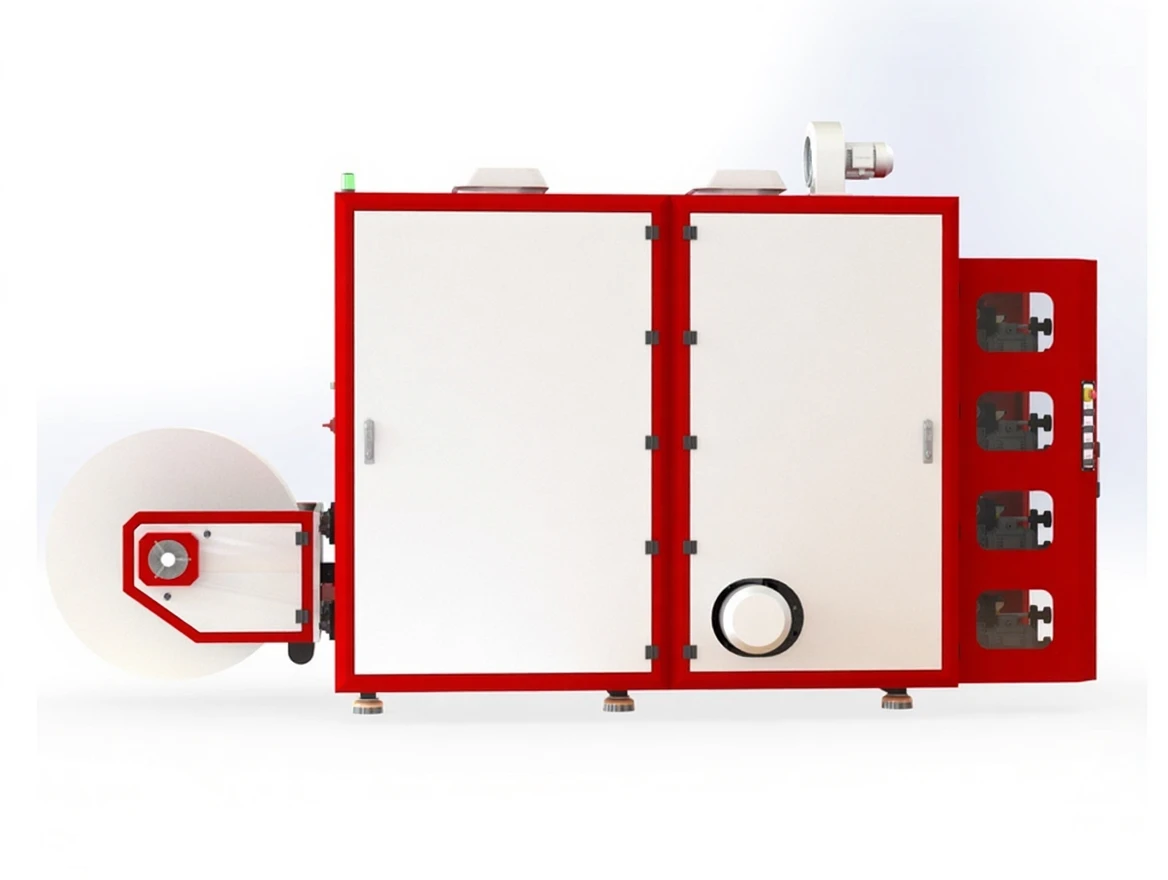

150mt/Minute Printing Speed Tower Type Flexo Printing Machine
| Brand | Karahan Makina |
|---|---|
| Model Type |
KM-TC4 W50 |
Description

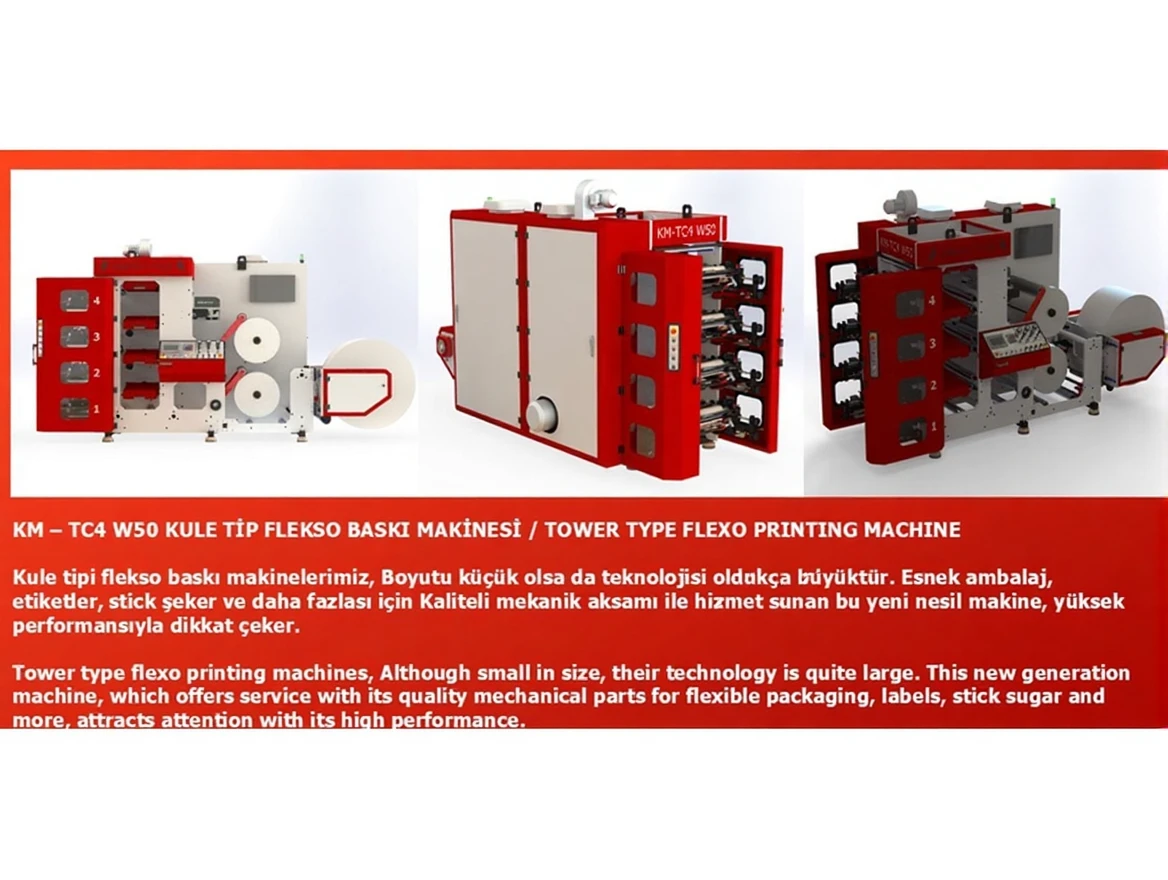

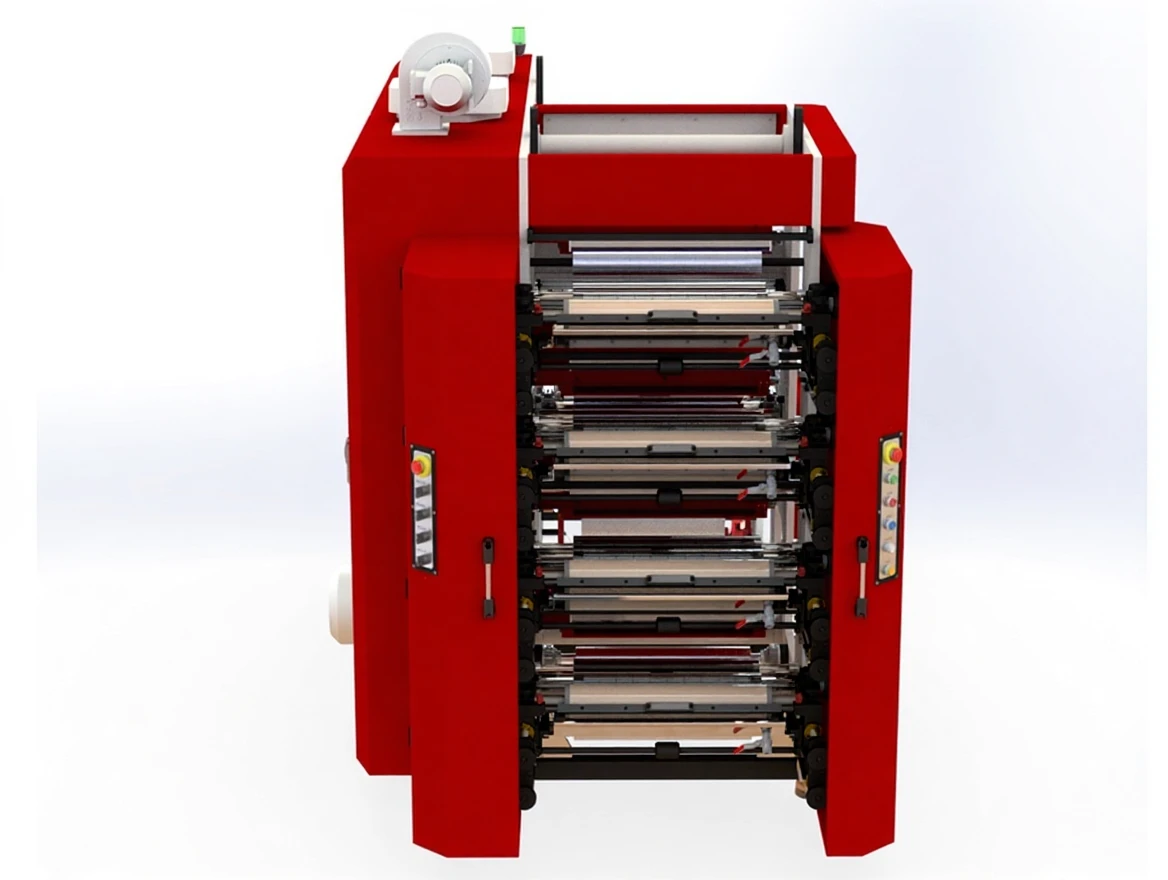

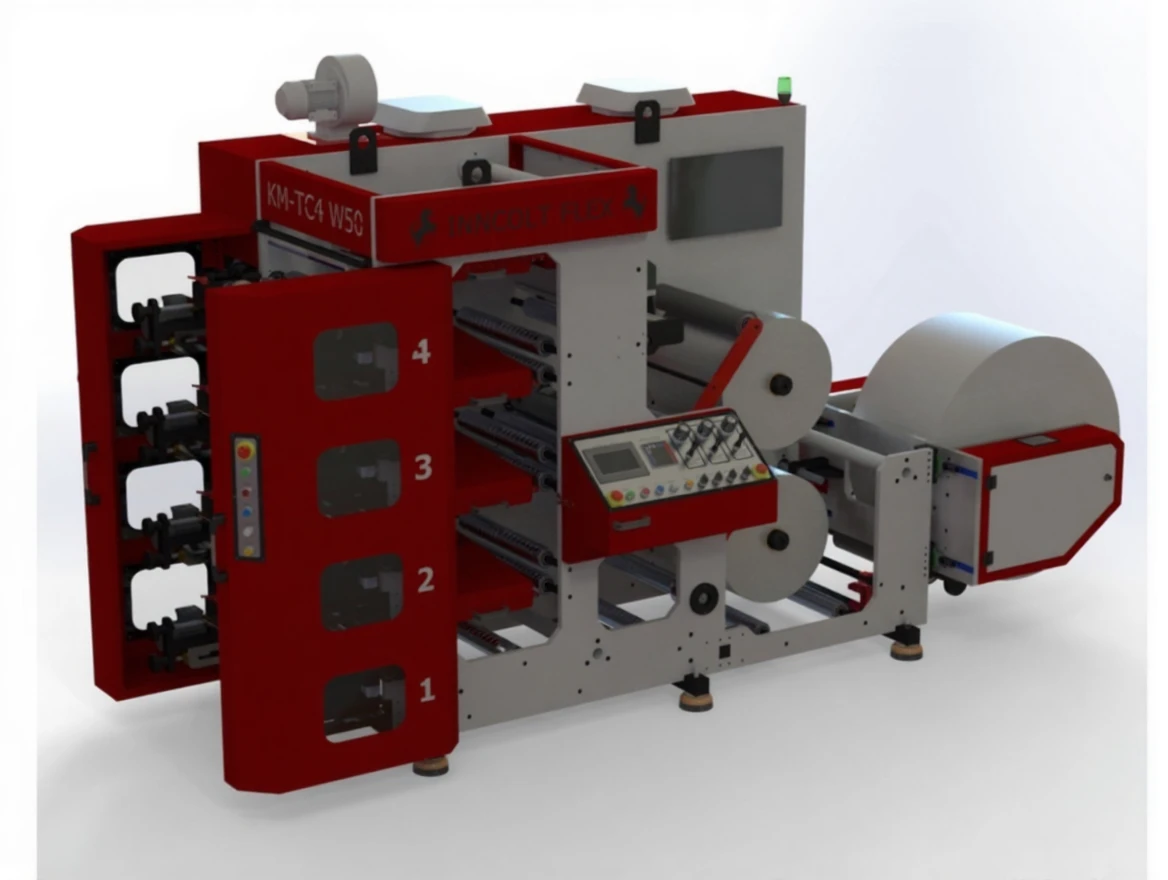

150mt/Minute Printing Speed Tower Type Flexo Printing Machine
Tower type flexo printing machines, Although small in size, their technology is quite large. This new generation machine, which offers service with its quality mechanical parts for flexible packaging, labels, stick sugar and more, attracts attention with its high performance.

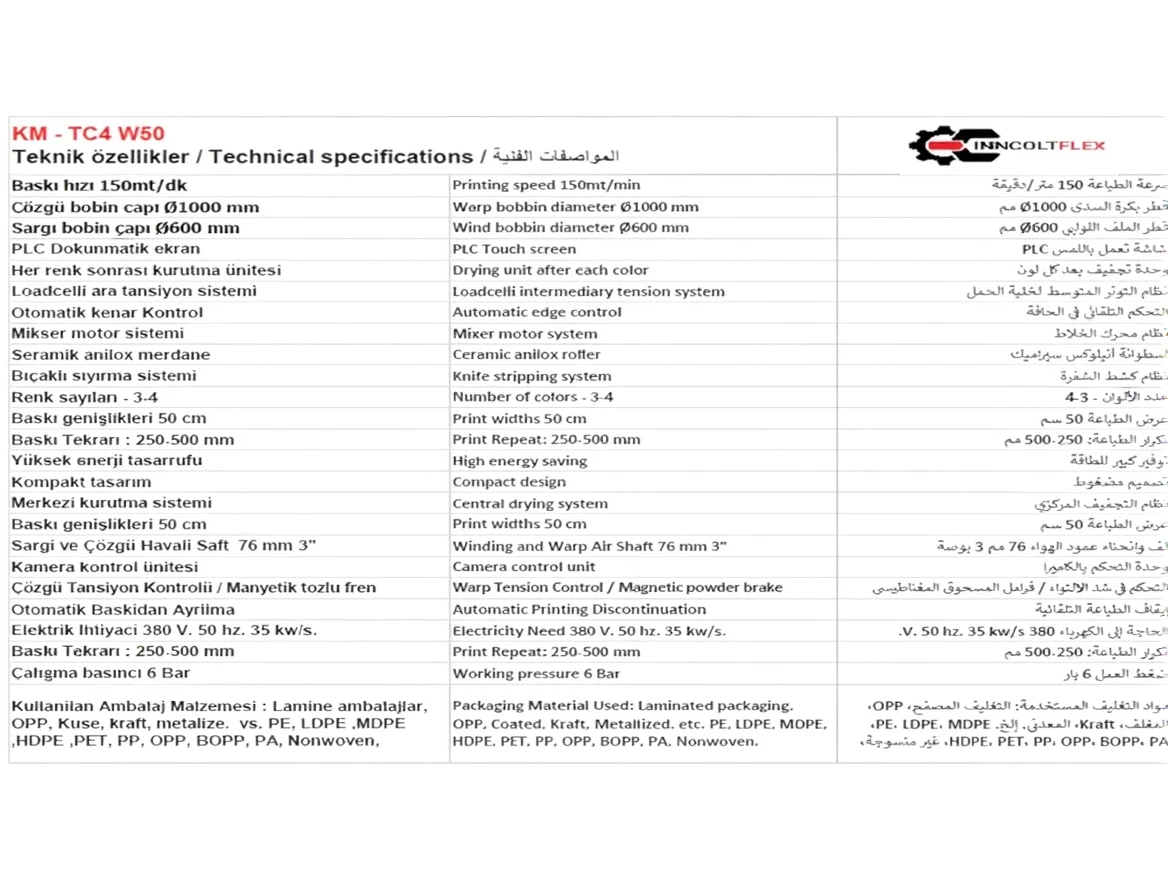

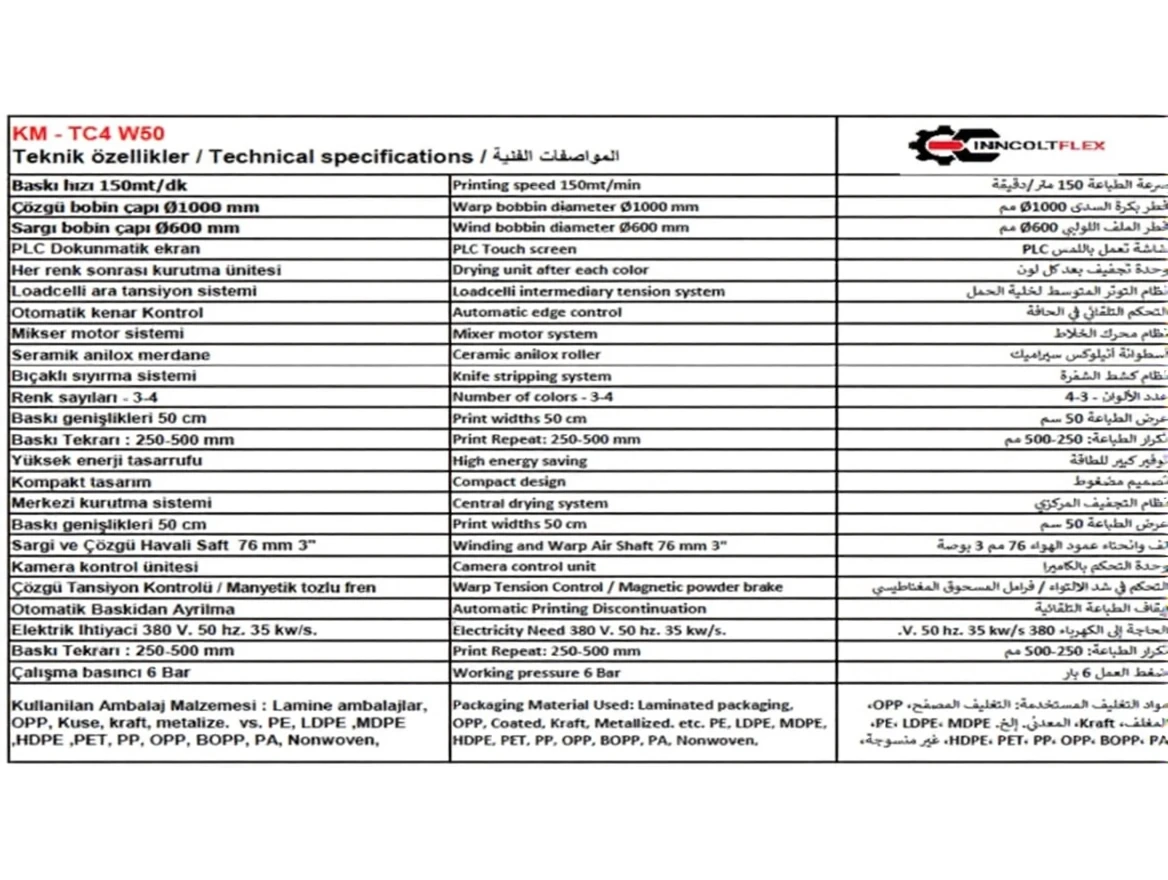

KM – TC4 W50 Teknik Özellikler / Technical Specifications
| No | Teknik Özellik (Türkçe) | Technical Specification (English) |
|---|---|---|
| 1 | Baskı hızı 150mt/dk | Printing speed 150mt/min |
| 2 | Çözgü bobin çapı Ø1000 mm | Warp bobbin diameter Ø1000 mm |
| 3 | Sargı bobin çapı Ø600 mm | Wind bobbin diameter Ø600 mm |
| 4 | PLC Dokunmatik ekran | PLC Touch screen |
| 5 | Her renk sonrası kurutma ünitesi | Drying unit after each color |
| 6 | Loadcelli ara tansiyon sistemi | Loadcelli intermediary tension system |
| 7 | Otomatik kenar kontrol | Automatic edge control |
| 8 | Mikser motor sistemi | Mixer motor system |
| 9 | Seramik anilox merdane | Ceramic anilox roller |
| 10 | Bıçaklı sıyırma sistemi | Knife stripping system |
| 11 | Renk sayıları – 3-4 | Number of colors – 3-4 |
| 12 | Baskı genişlikleri 50 cm | Print widths 50 cm |
| 13 | Baskı tekrarı: 250-500 mm | Print Repeat: 250-500 mm |
| 14 | Yüksek enerji tasarrufu | High energy saving |
| 15 | Kompakt tasarım | Compact design |
| 16 | Merkezi kurutma sistemi | Central drying system |
| 17 | Baskı genişlikleri 50 cm | Print widths 50 cm |
| 18 | Sargı ve Çözgü Havalı Saft 76 mm 3" | Winding and Warp Air Shaft 76 mm 3" |
| 19 | Kamera kontrol ünitesi | Camera control unit |
| 20 | Çözgü Tansiyon Kontrolü / Manyetik tozlu fren | Warp Tension Control / Magnetic powder brake |
| 21 | Otomatik baskıdan ayırılma | Automatic Printing Discontinuation |
| 22 | Elektrik ihtiyacı 380 V. 50 hz. 35 kw/s. | Electricity Need 380 V. 50 hz. 35 kw/s. |
| 23 | Baskı tekrarı: 250-500 mm | Print Repeat: 250-500 mm |
| 24 | Çalışma basıncı 6 Bar | Working pressure 6 Bar |
| 25 | Kullanılan ambalaj malzemesi: Lamine ambalaj, OPP, Kuse, Kraft, metallize. vs. PE, LDPE, MDPE, HDPE, PET, PP, OPP, BOPP, PA, Nonwoven | Packaging Material Used: Laminated packaging, OPP, Coated, Kraft, Metallized. etc. PE, LDPE, MDPE, HDPE, PET, PP, OPP, BOPP, PA, Nonwoven |
