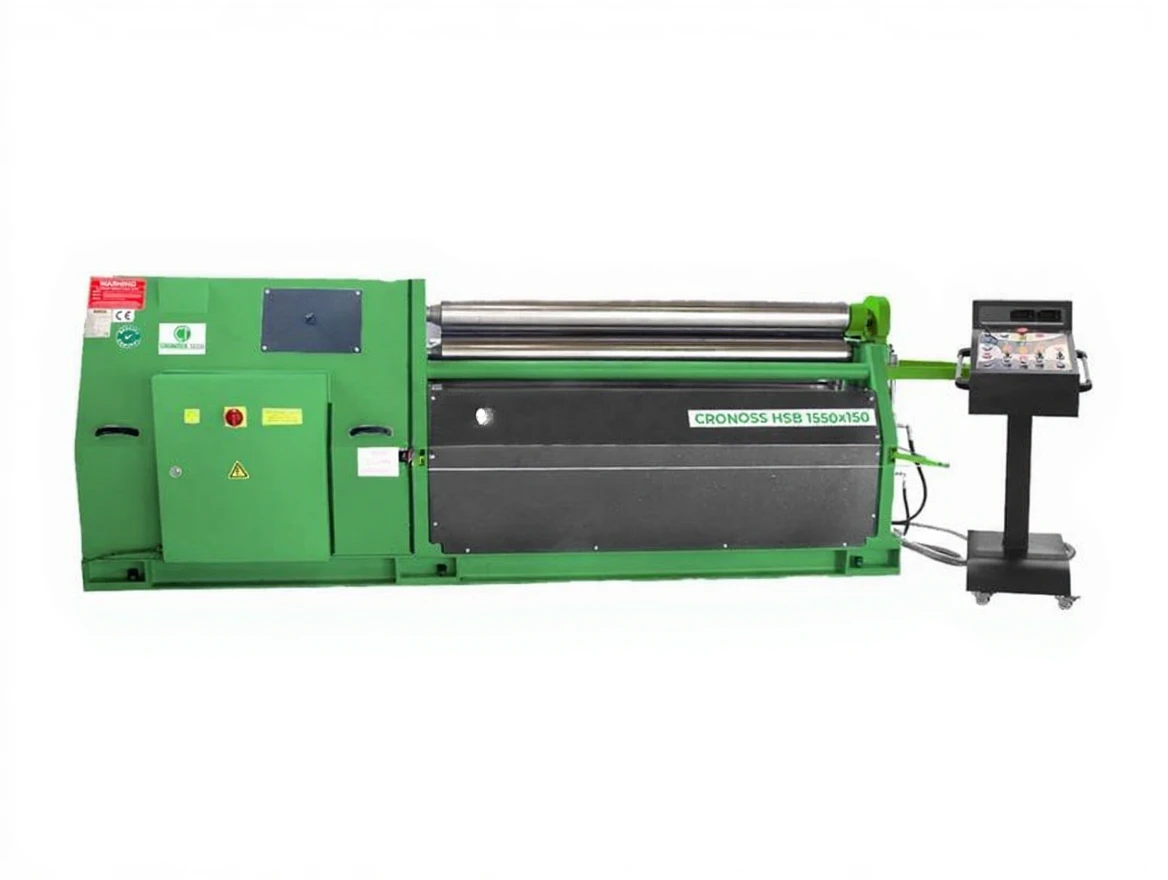

1550X15mm – 3 Roll Hydraulic Cylinder Bending Machine

HSB 3R 15–250 Hydraulic 3 Roll Cylinder Machine

⚙️ Standard Equipment

• Side rolls are hydraulically operated with orbital up-and-down movement

• Overload protection system

• All rolls are driven by hydraulic motor and planetary reducer

• Hydraulically opening head allows for easy removal of the bent piece

• Movable control panel for easy and ergonomic use

• Position of the lower rolls can be easily read with two digital displays

• Welded steel construction body

• SAE 1050 (CK45) induction hardened, hot rolled steel shafts

• Bearing conical bending system

• Hydraulic balancing system for parallel movement of the shafts

• Extended shaft ends to accommodate profile and pipe bending rolls

🔩 Optional Equipment

• Overhead crane (elevator) for support in large diameter bending

• Hydraulic side supports for support in large diameter bending

• Ground and polished rolls for special jobs

• Rolls for profile bending

• Infinitely variable hydraulic speed adjustment

• Electronic balancing system for parallel movement of the shafts

📊 Technical Specifications

• Bending Length: 1550 mm

• Pre-Bending: 10 / 12 mm

• Bending: 12 / 15 mm

• Upper & Lower Roll Diameter: Ø250 mm

• Side Roll Diameter: Ø200 mm

• Motor Power: 7.5 kW

• Bending Speed: 5 m/min

• Machine Length: 3500 mm

• Machine Width: 1200 mm

• Machine Height: 1370 mm

• Machine Weight: 3600 kg

🏭 OEM Production Note

This machine is manufactured in Turkey under OEM production.
Supply, configuration, and commercial management are conducted by CRONOSSTECH.
