1550X15mm – 4 Bulk Hydraulic Cylinder Bending Machine

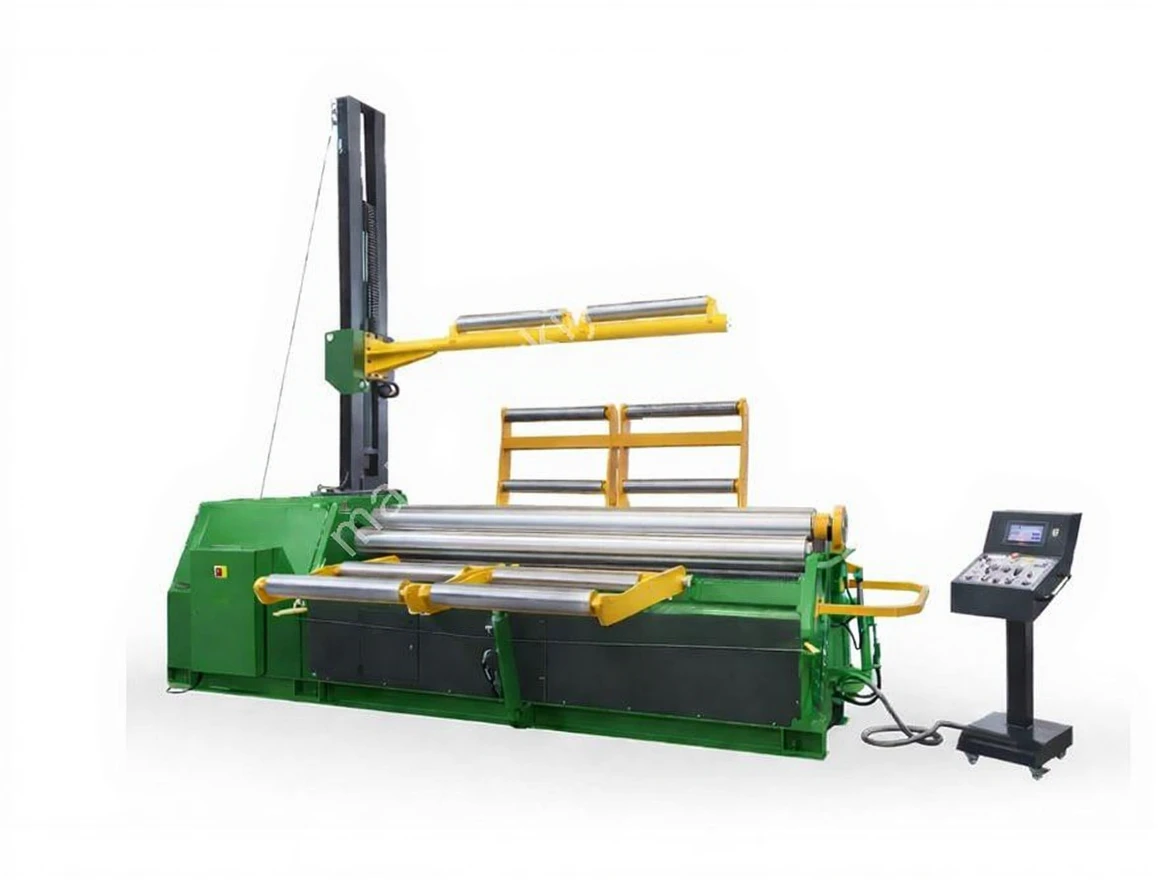

SHSB 4R 1550 × 250 Hydraulic 4 Roll Cylinder Machine

⚙️ Standard Equipment

• Suitable for bending light and medium sheet, aluminum, and stainless materials

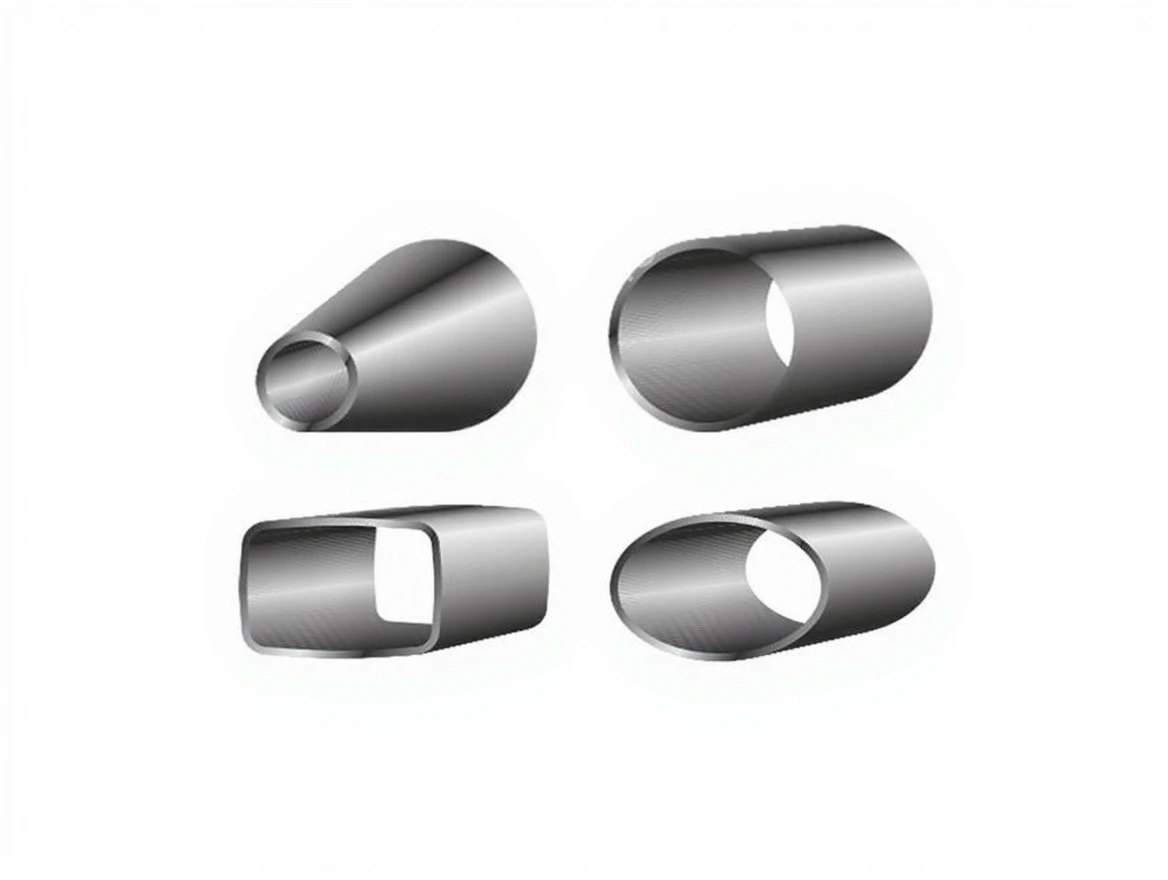

• Suitable for bending round and different diameter materials

• Bottom and side rolls are directly linearly controlled hydraulically

• Protected against overload

• Top roll driven by electric motor and planetary gear

• Bottom roll driven by cardan coupling system

• 2 roll rotation drives

• Position of rolls easily readable with three digital displays

• Piece can be easily removed thanks to hydraulically opened head

• Easy operation with movable control panel

• Welded steel construction body

• SAE 1050 (CK45) induction hardened forging or rolled steel shafts

• Taper bending system

• Hydraulic balancing system for parallel movement of the shafts

• Compliant with EU safety standards, bears the CE marking

• User manual

🔩 Optional Equipment

• Remote assistance with NC control

• Top crane (lift) for support in large diameter bending

• Hydraulic side supports for support in large diameter bending

• Ground and polished rolls

• Two-speed adjustment system

• Stepless speed adjustment

• Hydraulic motor driven rotation

• Extracting system

📊 Technical Specifications

• Bending Length: 1550 mm

• Pre-bending: 10 / 12 mm

• Bending: 12 / 15 mm

• Top & Bottom Roll Diameter: Ø250 mm

• Side Roll Diameter: Ø200 mm

• Minimum Bending Diameter: [ PHONE HIDDEN ] mm

• Motor Power: 7.5 + 1.5 kW

• Bending Speed: 5 m/min

• Tank Capacity: 40 l

• Machine Length: 3500 mm

• Machine Width: 1500 mm

• Machine Height: 1370 mm

• Machine Weight: 4650 kg

🏭 OEM Production Note

This machine is manufactured under OEM production in Turkey.
Supply, configuration, and commercial management are conducted by CRONOSSTECH.
