16-24 Tons / Hour (Granulator) Feed Pellet Machine
| Brand | Viteral |
|---|---|
| Model Type |
VCR-D 30×150 |
Description

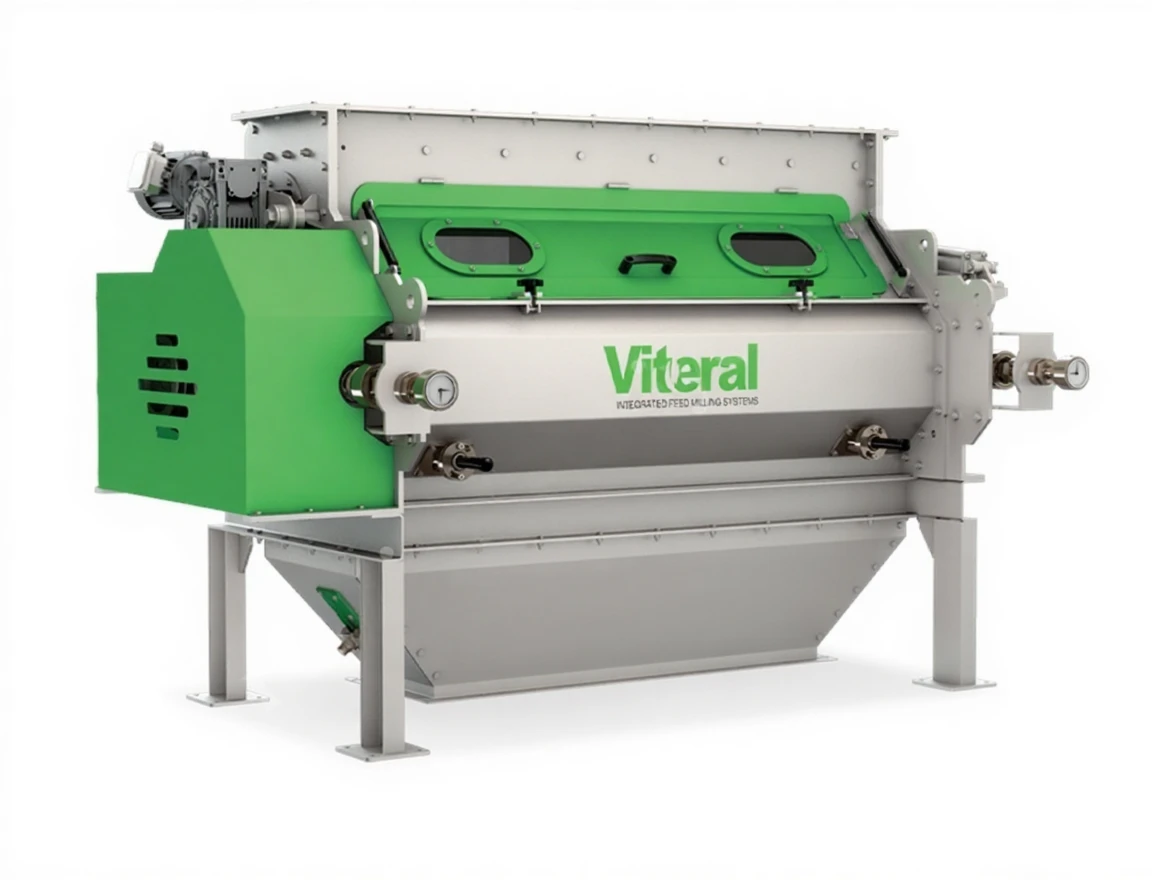

Viteral VCR-D 30×150
16-24 Tons / Hour (Granulator) Feed Pellet Machine
Viteral VCR-D 30×150 Technical Specifications
| Model | Main Motor | Motor | Capacity | Weight | Ball Diameter (mm) | Ball Length (mm) |
| VCR-S 25×100 | 11 | 0.75 | 4-6 | 1980 | 250 | 1000 |
| VCR-S 30×150 | 15 | 8-12 | 2680 | 1500 | ||
| VCR-D 30×150 | 2×15 | 2×0.75 | 16-24 | 5535 |

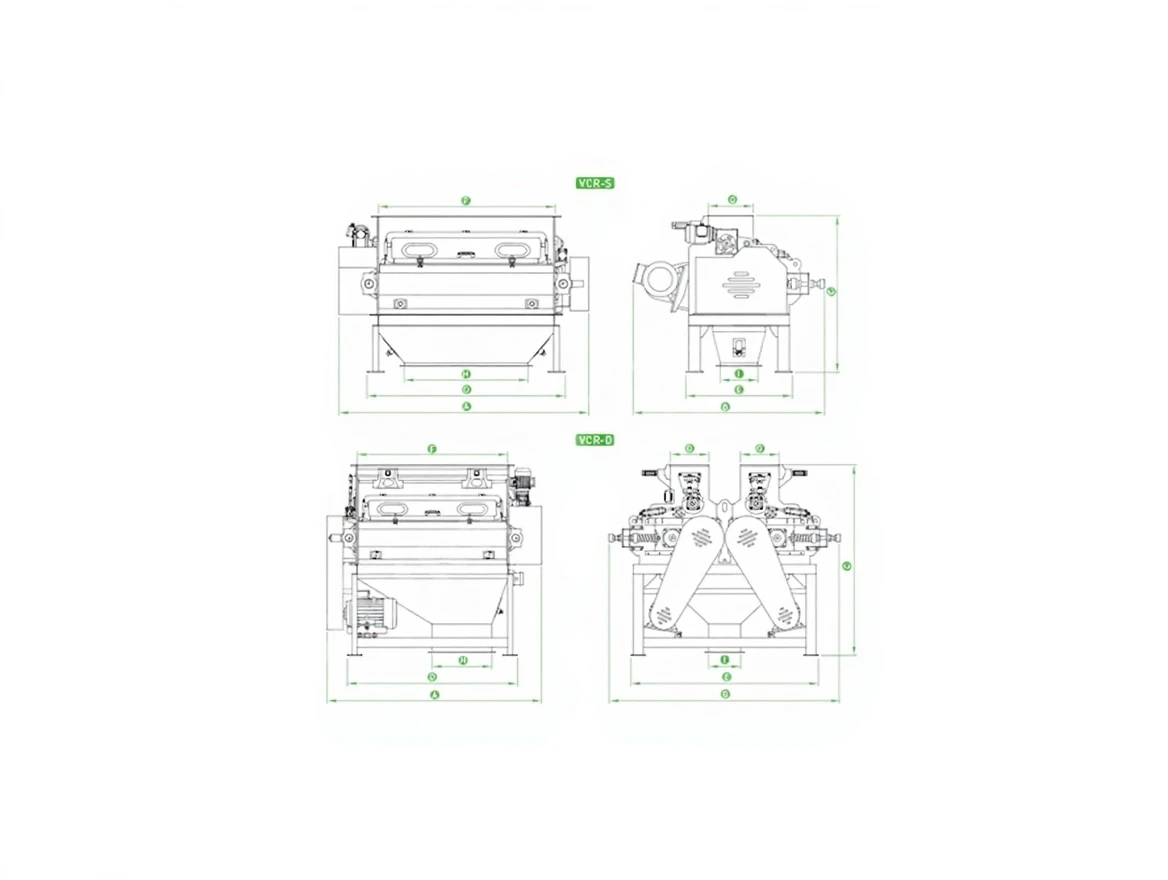

| Model | A | B | C | D | E | F | G | H | I |
| VCR-S 25×100 | 1675 | 1615 | 1375 | 1225 | 875 | 1025 | 300 | 570 | 270 |
| VCR-S 30×150 | 2175 | 1665 | 1725 | 925 | 1525 | 1070 | 320 | ||
| VCR-D 30×150 | 2345 | 1975 | 1900 | 600 |
