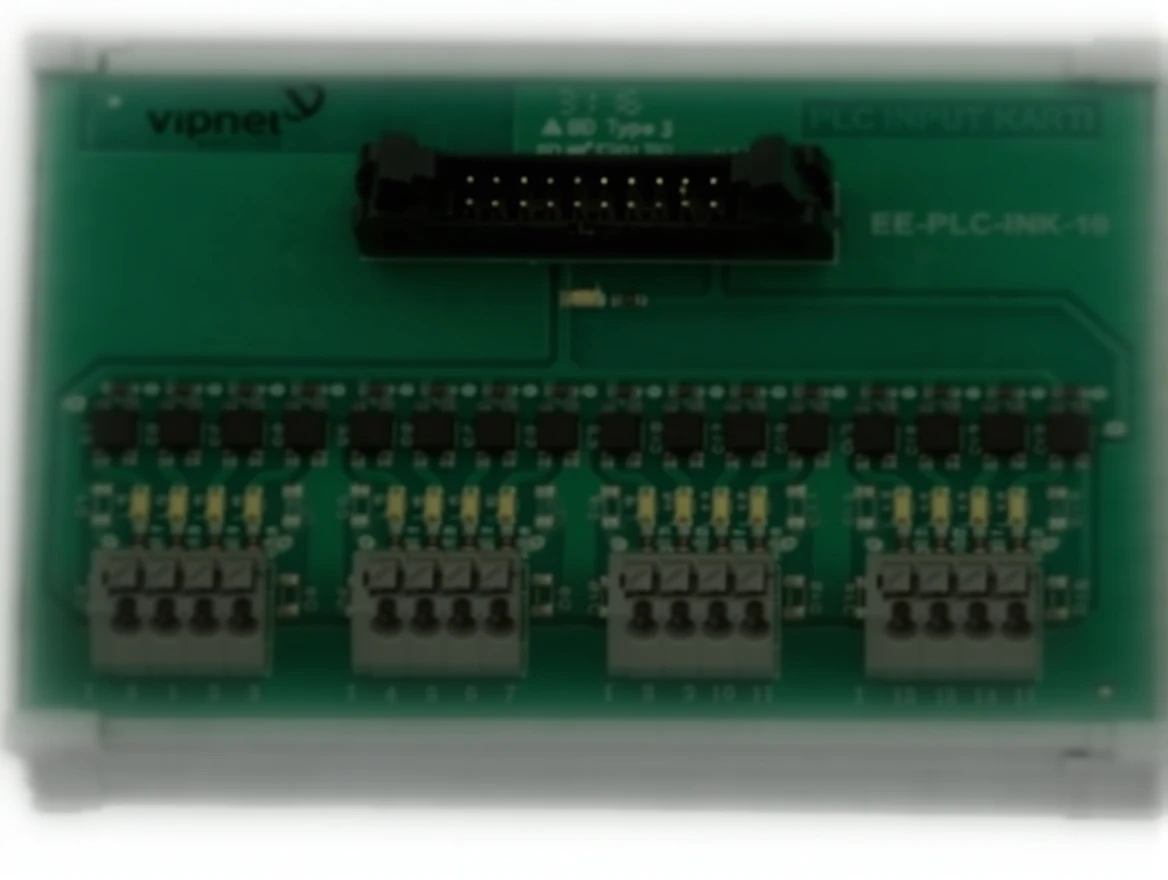

16-Channel Plc Input Card

• 16-channel Input card is used for Input inputs on PLCs.
• All inputs are isolated, so the PLC module is not affected by electrical faults in the field.
• Isolation Voltage is 3750V (1min).
• Provides fast installation with Box Header connection and spring socket connection.
• Input status can be monitored with LED indicators.
• Input LED lights up when the input is active.

Technical Specifications:
Product Code	VP-PLC-INK-16
Operating Voltage	24V DC
Input Voltage	24V DC
Input Pin Socket	5.08mm Spring Terminal
Input Pin Count	16
Output Pin Socket	Flat Male Socket (20 pin)
Nominal Wiring Cross-Section Area	2.5 mm²
Operating Temperature	–40 °C / 80 °C
Protection Element	Fuse (2A)
Input Signal Monitoring	LED
Mounting Type	Rail Mount (DIN-Rails)
