16 mm Desktop Milling Machine
| Brand | Ozco |
|---|---|
| Model Type |
FM20V |
Description

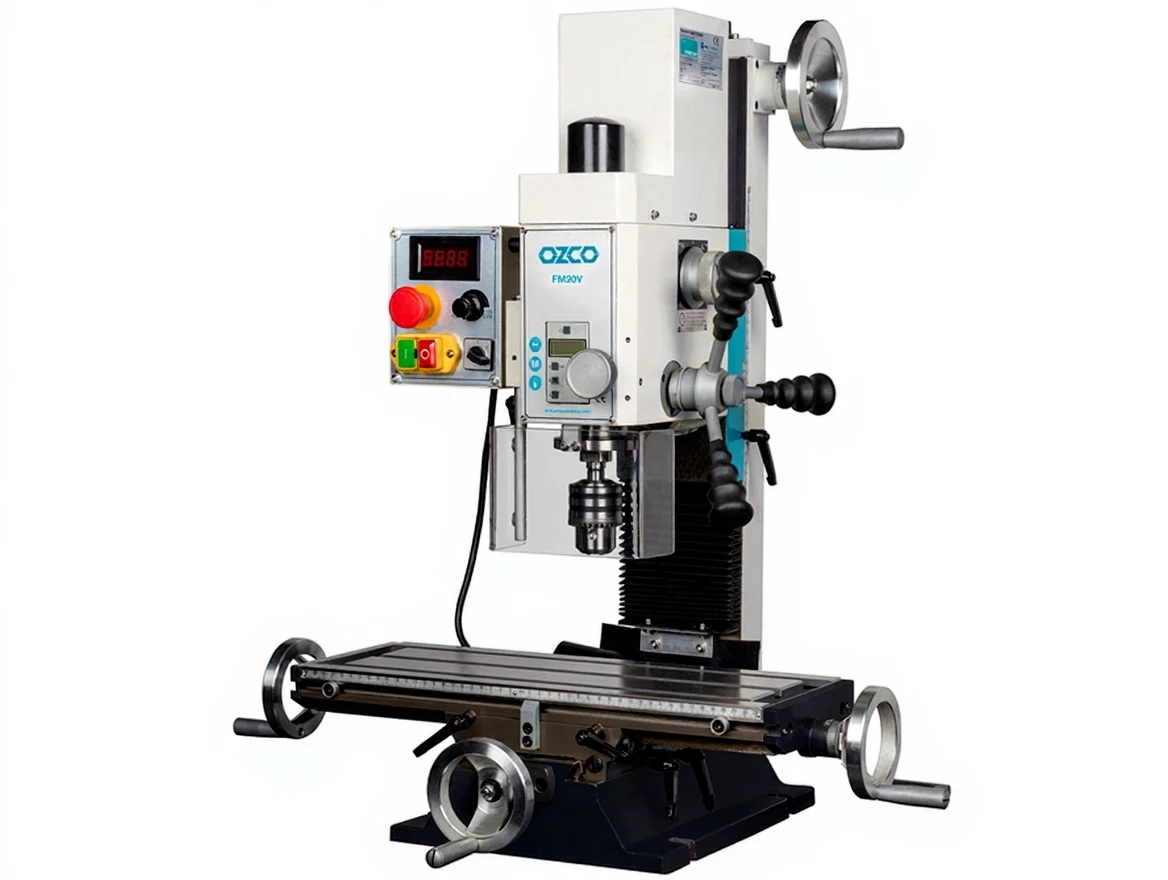

OZCO FM20V Desktop Milling Machine
OZCO FM20V Desktop Milling Capacity
X-axis movement is 280 mm, Y-axis movement is 175 mm, Z-axis movement is 270 mm.
OZCO FM20V Desktop Milling Shipment Scope
MK2 / M10 chuck, Tooling
OZCO FM20V Desktop Milling General Features
Right/Left rotation feature, Vario speed adjustment (infinitely variable), digital speed indicator, adjustable height safety, switchable guard, digital depth indicator, head angle up to 345˚, compliant with CE standards
Technical Specifications OZCO FM20V Desktop Milling
Motor Power 750 W, 230 V
Drilling Capacity 16 mm
Finger Milling Capacity 20 mm
Surface Milling Capacity 63 mm
Table Dimensions 500×180 mm
X Axis Movement 280 mm
Y Axis Movement 175 mm
Z Axis Movement 270 mm
T Slot Dimensions 3×12 mm
Spindle Taper MK2
Spindle Speed 50-2550 rpm
Step 2 / Variable
Quill Movement 50 mm
Head Rotation Angle 345°
Distance Between Spindle and Column 185 mm
Machine Dimensions (LxWxH) 750x560x930 mm
Net Weight 105 kg
