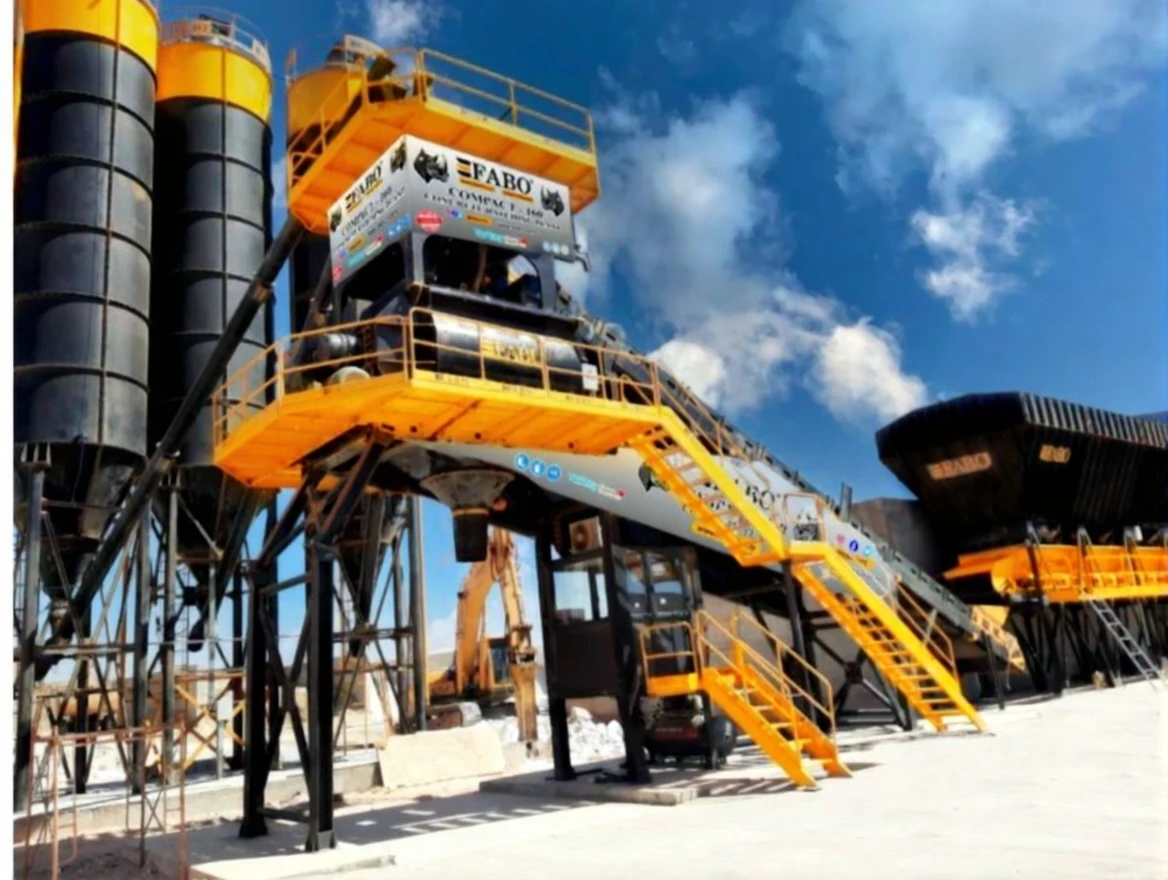

160 m3 New Generation Compact Fixed Concrete Plant

The COMPACT series fixed concrete plants provide satisfaction at every level needed with practical and effective solutions. Fixed concrete plants can easily and efficiently achieve high-capacity production of a homogeneous concrete mix.

The compact series has an easy operating system and the lowest investment costs. In addition, the facility ensures the correct use of corporate resources, thus saving time will turn into more profit.

.

TECHNICAL SPECIFICATIONS:

Model: Compact 160

Production capacity: 160 m3

Mixer type: Twinshaft-4.5 m3

Aggregate bunker: 4×30 m3

Cement scale: 2000 kg

Additive scale: 2×50 kg

Water scale: 1000 lt

Cement silo is optional.

Compact 160 consists of:

* Aggregate Storage Hopper

* Aggregate Weighing Hopper

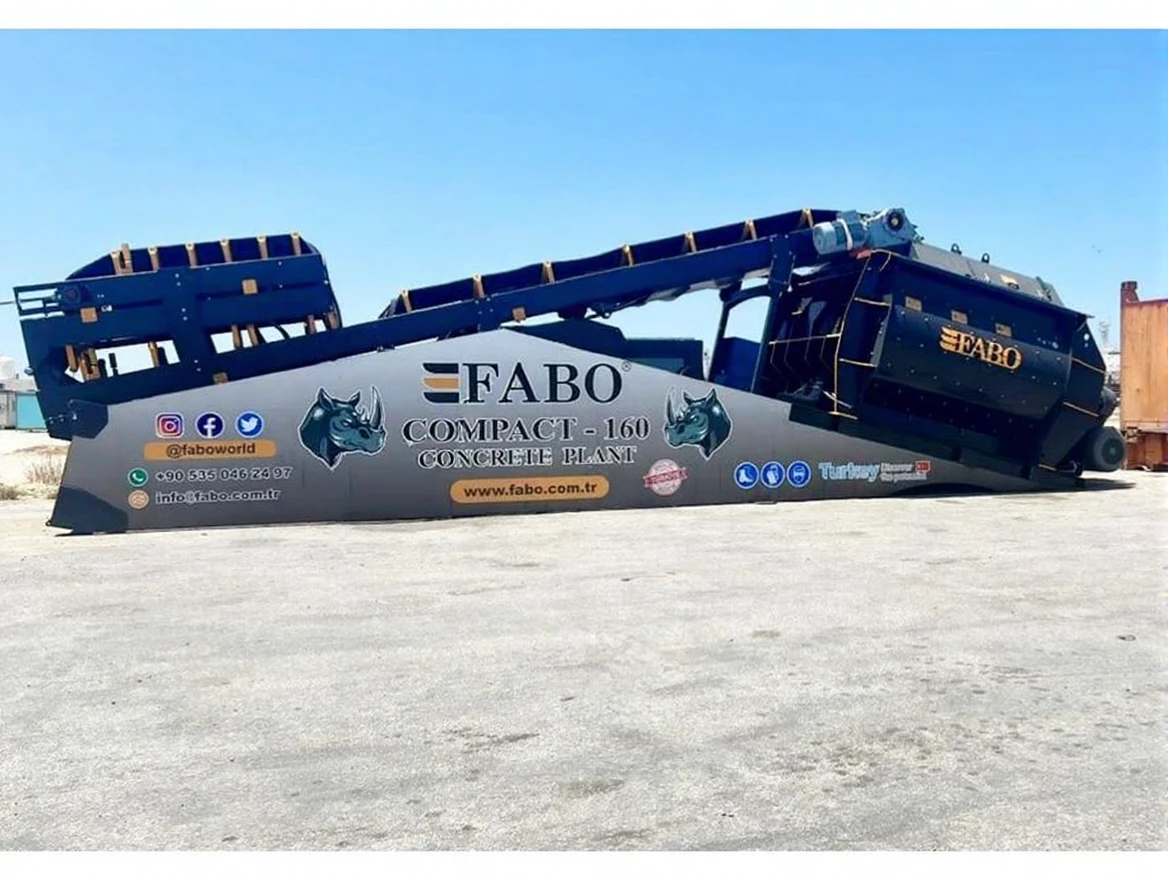

* Aggregate Transfer Conveyor

* Twinshaft Mixer

* Mixer Chassis, Walking Platforms, Ladder

* Water Weighing Hopper

* Cement Weighing Hopper

* Additive Weighing Hopper

* Air Compressor

* Cement Screw Conveyor

* Bolted Cement Silo

* Upper filter, Safety valve and accessories

• Control Cabinet

* PC and Automation System

* Control and power panel

* All our products are carefully made and are under 1 year warranty!

* Installation and operator training are free
