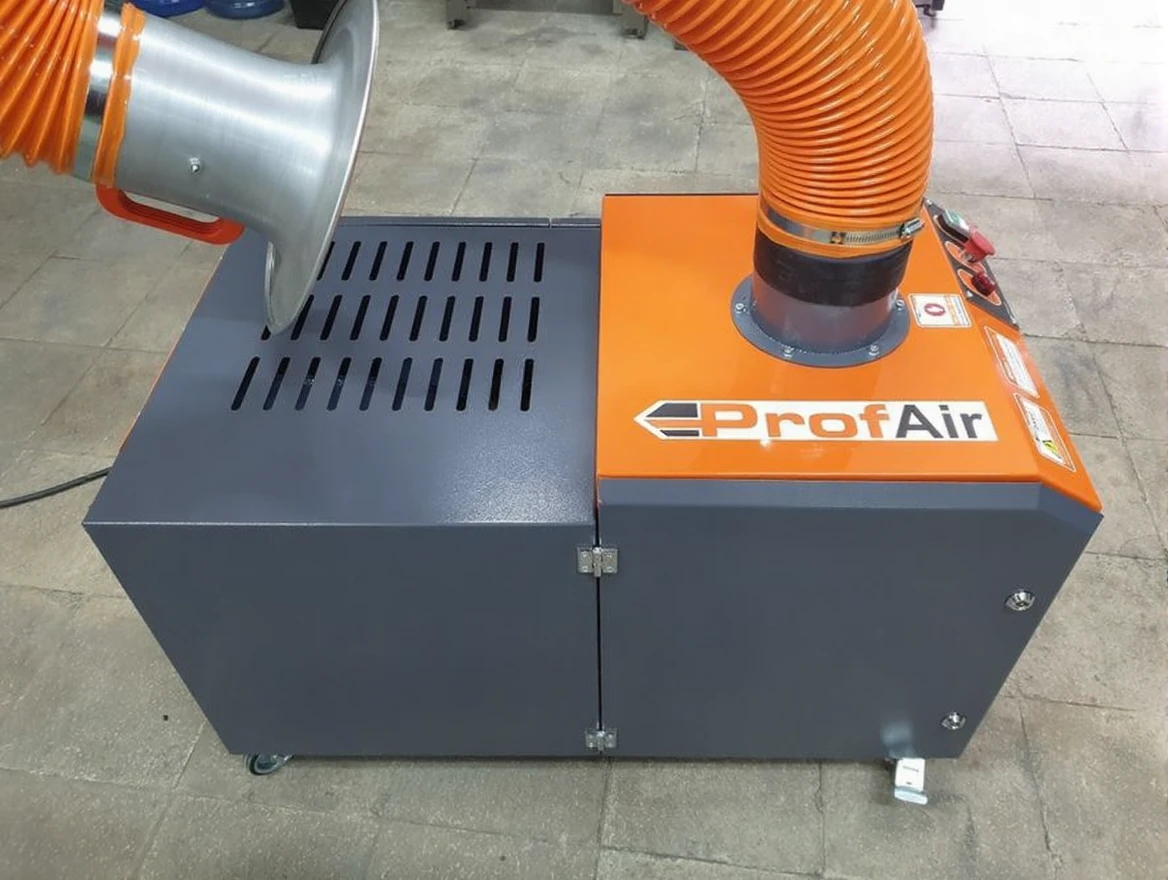

160 mm 2 Meter Single Arm Dust and Welding Fume Extractor

The ProfAir S10P is designed as a single-arm mobile filtration unit for dust and welding fume extraction. This unit cleans the air completely by filtering welding fumes and similar harmful gases and fumes, as well as unpleasant odors. By returning the cleaned air to the environment, it prevents heat loss and energy savings.

S10P Single Arm Dust and Welding Fume Extractor

The product features a 2-meter-long and 160mm diameter articulated arm structure. The filters have the sensitivity to clean particles as small as 1 μm and are based on MERV standards.

This unit is recommended for laser marking and non-alloy steel processing for light smoke filtration. For high amperage and intense smoke welding processes, M Series machines are recommended.

The product comes with ProfAir F20D 2-meter articulated arm and filter. The control circuit has functions such as filter control, motor protection, and phase protection with the MX-3 control.

ProfAir S10P Technical Specifications

• Voltage: 380V (Optional: 220V)
• Power: 0.55 KW Motor
• Capacity: Fan Flow Rate: 1800m3/s – Air Cleaning Capacity: 800mᶟ/h – Pressure: 400Pa
• Noise Level: 69DB
• Weight: 85 KG
• Dimensions: 1000X760X550mm
• Filter Type: Cartridge (Cylinder)
• Sensitivity: F9 Class, 10m2, 1 μm
• Cleanability: Cleanable
