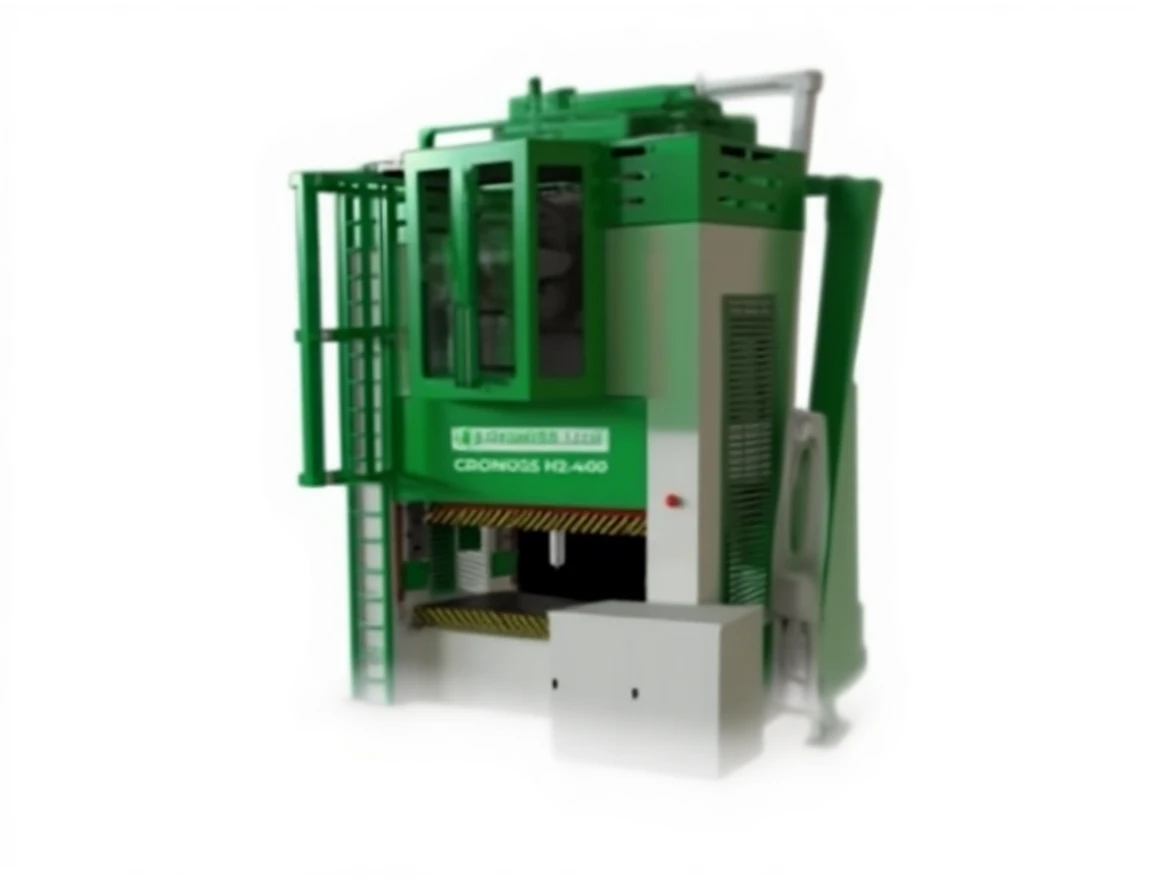

160 Ton H Type Double Tie Rod Eccentric Press

H Type Eccentric Press – CEHP 160 Ton

Standard Features

• Steel construction body

• Pneumatic clutch – brake system

• T channel additional slide plate

• 8 bearing crankshaft

• Adjustable stroke in single crank arm

• Balancer piston on crankshaft

• Automatic fine lubrication system

• PLC control system

• Grand piano type control panel

• Touchscreen LCD display

• Motor reverse movement

• Overload hydraulic safety valve

• Motorized crank adjustment mechanism

• Photoelectric protective curtain

• Gear group in closed oil tank

• Dual-coil safety valve

• Compliance with CE standards

Optional Features

• Press feeding systems

• Waste material discharge systems

• Sliding safety cover in front of the table

• Mold with desired features

Technical Specifications

• Steel construction 8-slide monoblock body

• Vibration stress relief in body and welded parts

• Available area with movable table: 1800 × 750 mm

• Available area with fixed table: 1800 × 750 mm

• Parallelism and perpendicularity tolerances compliant with ISO and DIN standards

• Stroke distance: 200 mm (fixed)

• Table – Crank distance (max.): 500 mm

• Crank adjustment (regulation): 120 mm

• Eccentric shafts: C4141

• Gears: Steel casting

• Motorized table-crank distance adjustment

• Approximate press height: 4600 mm

• Approximate press width: 2700 mm

• Approximate press depth: 2200 mm

• Press lower table height from ground: 900 mm

• Distance between walls: 2130 mm

• Press side window size can be adjusted as desired

• Flywheel roller bearing structure

• Slide bearing: Bronze (Zr14)

• Connecting rods, intermediate and main bearings: Bronze (Zr14)

• Central automatic grease lubrication

• Dual crank structure

• Pneumatic clutch and brake combination system (OMPI)

• 4 piece crank cushioning cylinders

• Approximate press weight: 26,000 kg

Automation and Electrical Information

• Main motor: 22 kW – IE3

• Touch panel and PLC: Delta

• PLC program for mold adaptation to the press

• Speed control device: Delta

• Operating speed: 25 – 45 pcs/min

• Mold recipe capacity: 100 pieces

• Switchgear materials: Siemens & Schneider

• Grand piano type or wall type electrical panel

• Table-crank distance measurement can be monitored from the screen

Production Information

This machine is manufactured by CronossTech in Turkey.
