1600 Litre Modular Ultrasonic Cleaning Machine

Mercury MERCURY1600L 1600 Litre Modular Ultrasonic Cleaning Machine

A high-performance modular system designed for the deep cleaning of large industrial parts. 1600 litre large tank capacity and 17280 Watt total ultrasonic power provide superior cleaning efficiency in heavy industry applications.

The machine is produced with a stainless steel tank measuring 2000 × 800 × 1000 mm. This large structure allows for the simultaneous cleaning of engine blocks, molds, metal casting parts, and production line equipment.

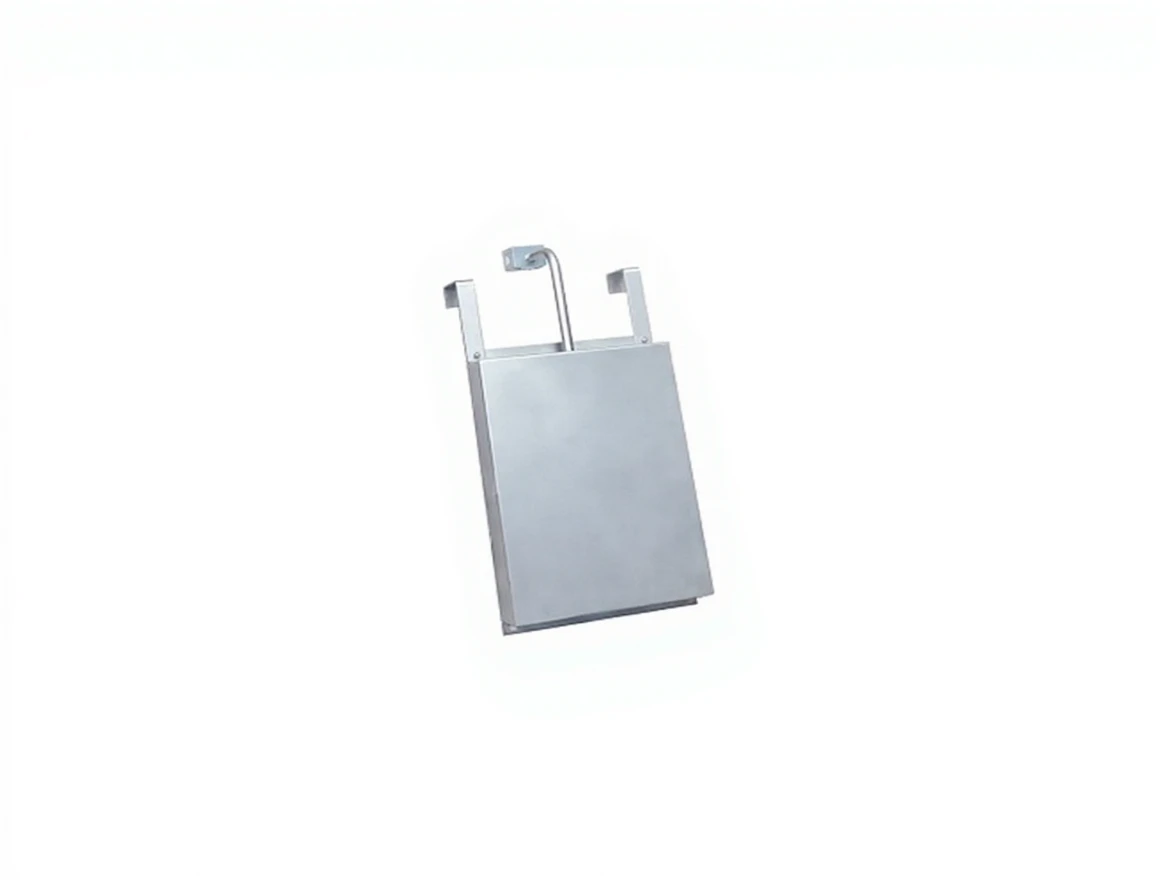

The system features 8 ultrasonic probes mounted in the tank. Each probe measures 400 × 600 × 80 mm and produces 2160 Watt power. This powerful structure ensures equal ultrasonic distribution in the cleaning liquid, creating maximum cleaning effect at every point of the surface.

The device is equipped with 8 independent generator systems. This allows each probe to be controlled by its own generator, and the system operates continuously with high efficiency. Its modular structure offers ease of maintenance and long-lasting usage advantages.

Technical Specifications

• Model: Mercury MERCURY1600L

• Tank Volume: 1600 Litres

• Tank Dimensions: 2000 × 800 × 1000 mm (Width × Length × Depth)

• Number of Probes: 8 Units

• Probe Dimensions: 400 × 600 × 80 mm

• Ultrasonic Power of Probe: 2160 Watt (Each probe)

• Total Ultrasonic Power: 17280 Watt

• Number of Generators: 8 Units (Independent control system)

• Material: Stainless steel body and tank

• Structure Type: Modular system – easy maintenance and expansion capability

Areas of Use

• Cleaning of automotive and heavy industry parts

• Foundry and mold industry

• Aerospace and defense industry

• Cleaning and maintenance processes of production line equipment

• Industrial motors, transmissions, and machine components
