1600 mm Diagonal Fabric Cutting Machine

1600 mm Diagonal Fabric Cutting Machine

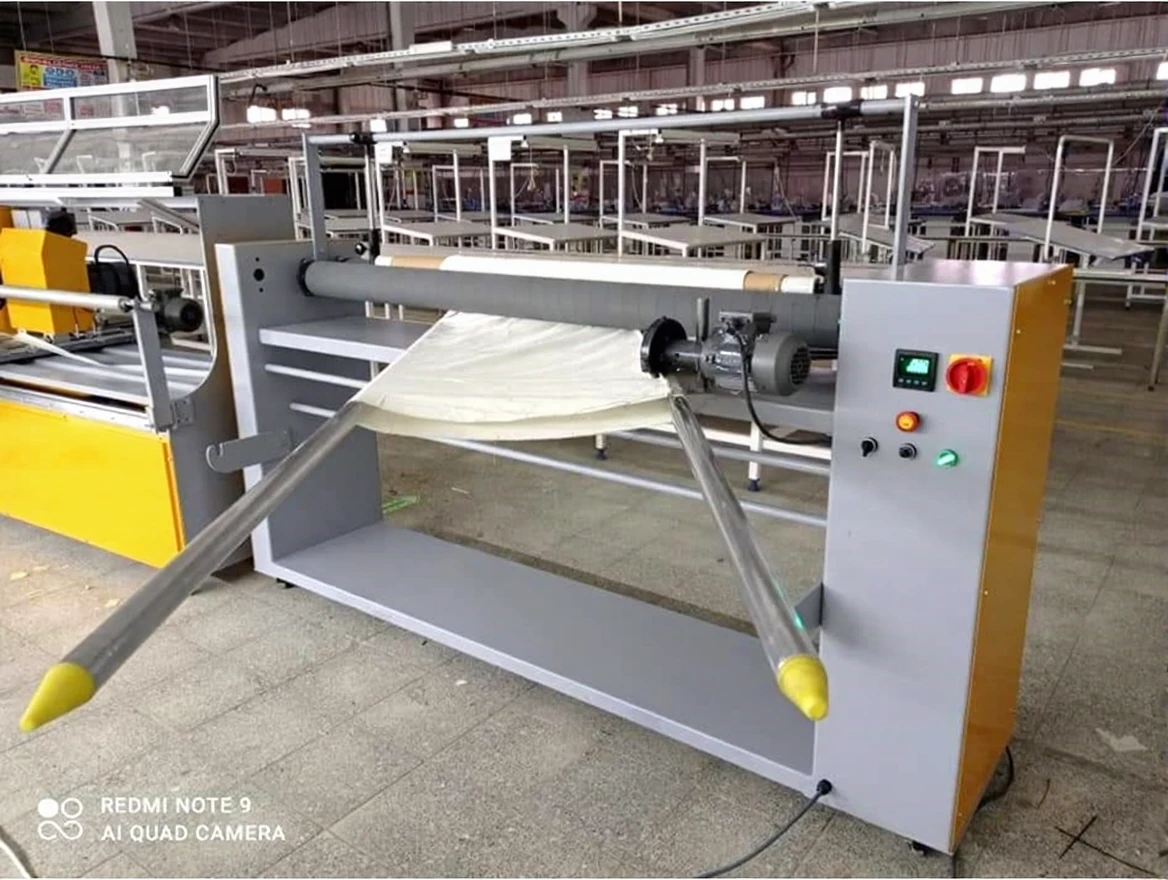

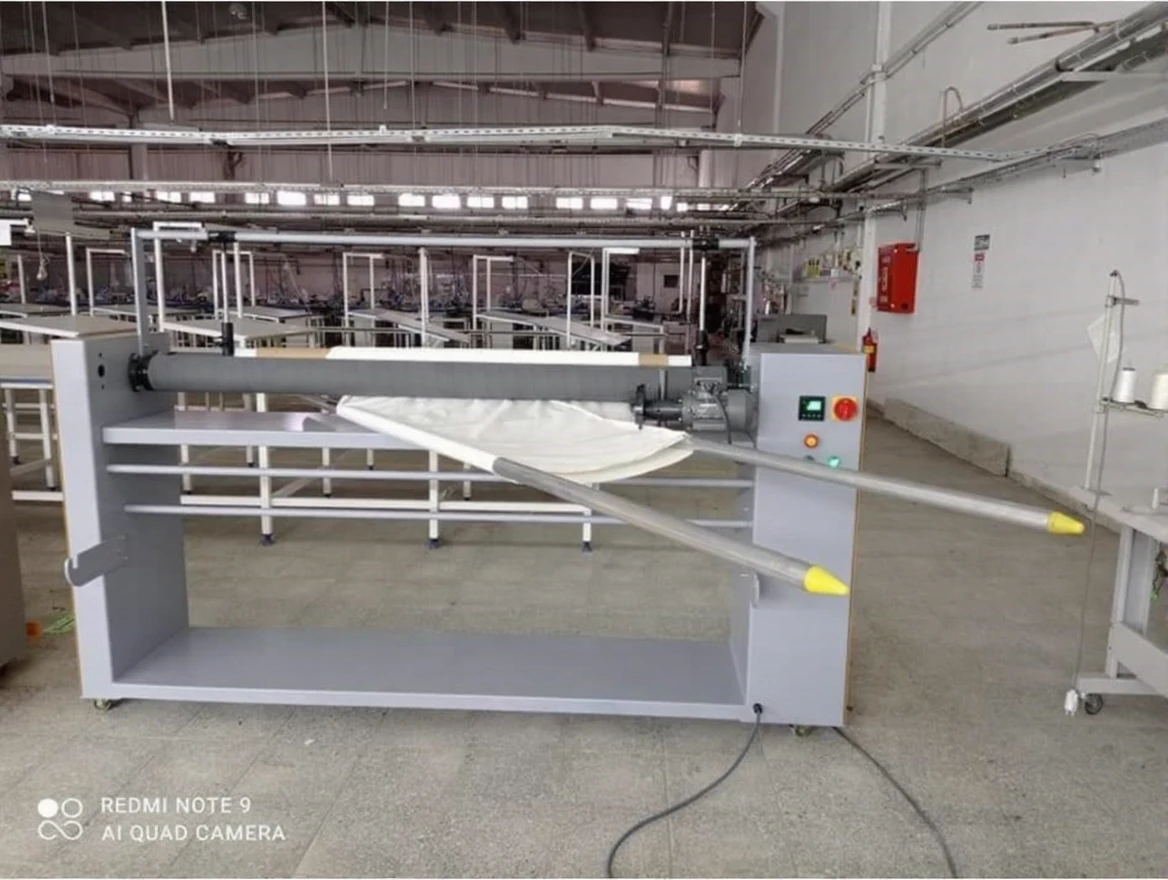

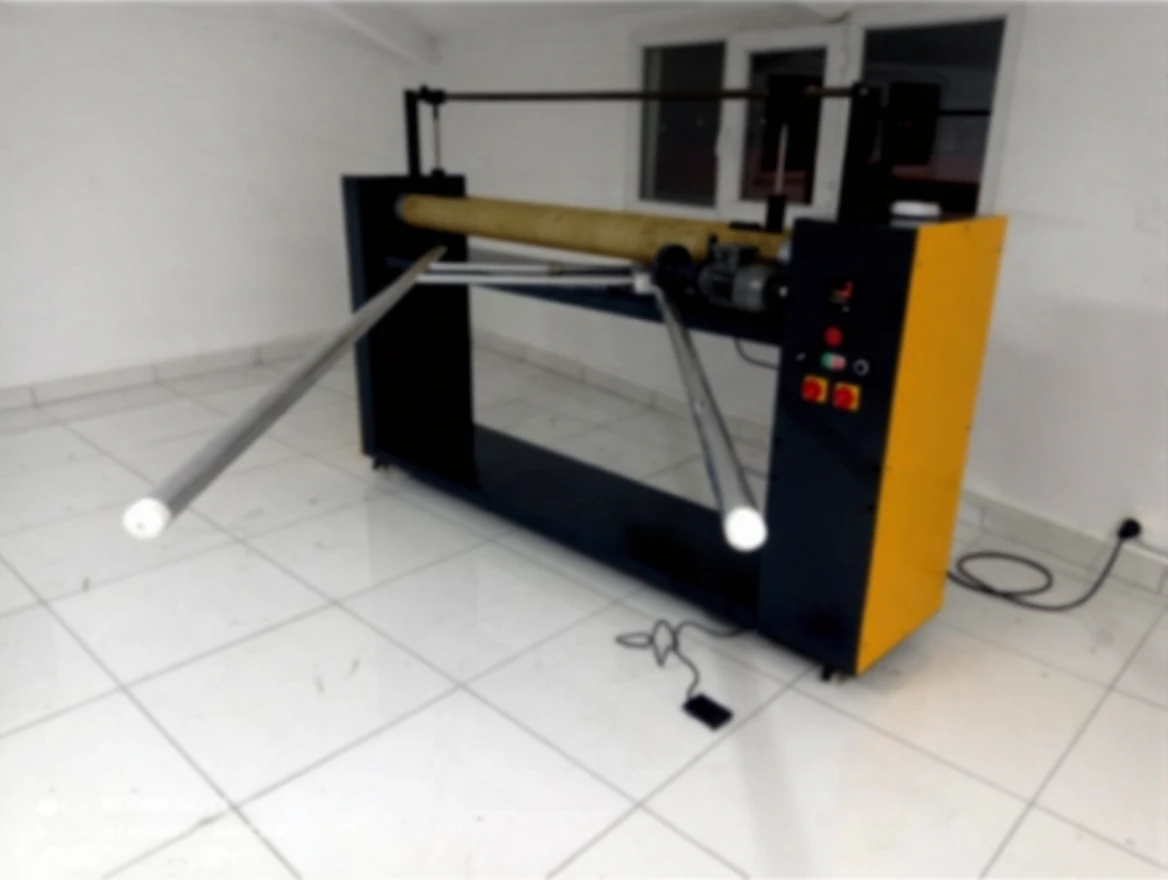

The Aksoy AK-4 1600 mm diagonal fabric cutting machine is a powerful device designed specifically for the precise and efficient cutting of fabrics. With a maximum fabric width of up to 1600 mm, this machine performs excellently in large-scale productions. The diagonal angle can be adjusted between 38 and 52 degrees, allowing for accurate and smooth results on fabrics with different cutting angles. This feature is ideal for projects with special cutting requirements.

With a maximum winding diameter of 280 mm, the Aksoy AK-4 ensures that the fabric is wound smoothly and regularly. The cardboard roll diameter can reach up to 50 mm, resulting in sturdier and more durable rolls. The cutting blade diameter is 150 mm, providing high precision in fabric cutting with minimal waste. The main motor used in the machine is 1.1 kW, the cutting motor is 0.18 kW, and the winding motor is 0.37 kW, ensuring that each motor performs its task optimally. Thanks to these motors, cutting, transporting, and winding processes are carried out quickly and efficiently.

The Aksoy AK-4 offers high precision, speed, and durability in fabric cutting, providing a significant advantage in production processes. With its powerful motor structure and adjustable features, it offers flexible usage on different types of fabrics. This machine guarantees long-lasting and efficient operation, increasing productivity in fabric production lines.

Maximum fabric width   1600 mm
Maximum winding diameter    280 mm
Cardboard roll diameter     50 mm
Cutting blade diameter   150 mm
Diagonal angle                38 52 degrees
Main motor               1.1 kW
Cutting motor            0.18 kW
Winding motor              0.37 kW
