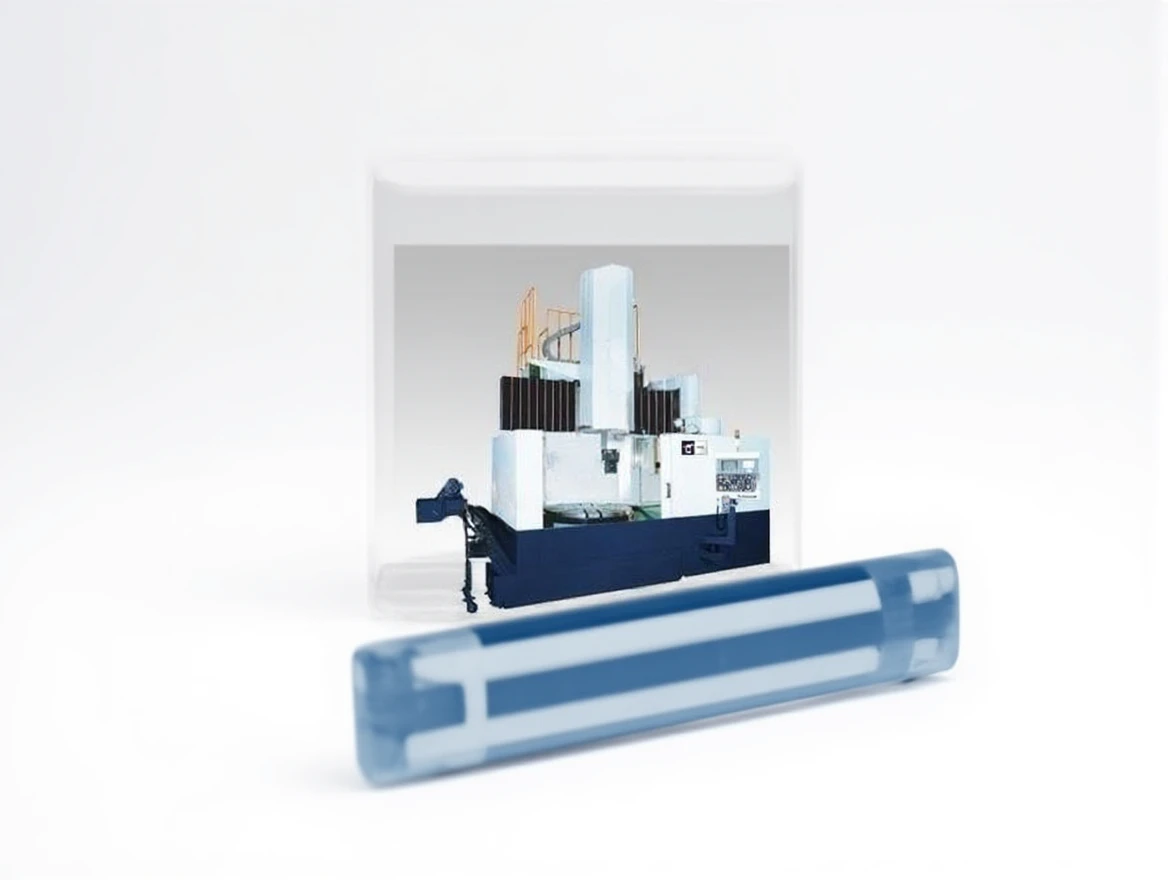

Ø 1600 mm Heavy Duty Vertical Lathe Machine

  12DCR 12DCM LATHE CAPACITYMax. Turning Diameter mmØ 1600Ø 1600Max. Turning Length mmØ 1600Ø 1600Distance from Tool Post to Table mm650-1450650-1450Max. Turning Height mm12501250Max. Workpiece Weight mm50005000SPINDLETable Diameter mm12501250Spindle Speed rpm3-3003-300Live Tool Speed rpm 50-2250Dual Speed Gearboxstep22ATCTurret Type ATCATCNumber of Positions sec.1216Tool Size mm25,3225,32Ram Section mm220X220220X220AXESRapid Traverse m/min1010 X Axis Travel    mm-200+950–200+950Z Axis Travel     mm900900Cutting Speed mm/rev.0.001-5000.001-500Column Movement mm800 (200X4 stage)800×200 (4 stage)MOTORSpindle Motor (%50 ED)kw37/4537/45X, Z Axis Motor Powerkw7/77/7C Axis Motorkw 90Power Requirementkva7511/15MACHINE DIMENSIONSWidth x Lengthmm4950×32004950×3200Heightmm50005500Machine Weightkg2450025300

Equipped with Fanuc OiTC and Standard Accessories.
