16000 M3 / Hour Dyeing And Drying Dehumidifying Machine
| Brand | Blastek |
|---|---|
| Model Type |
BLS-16000 |
Description

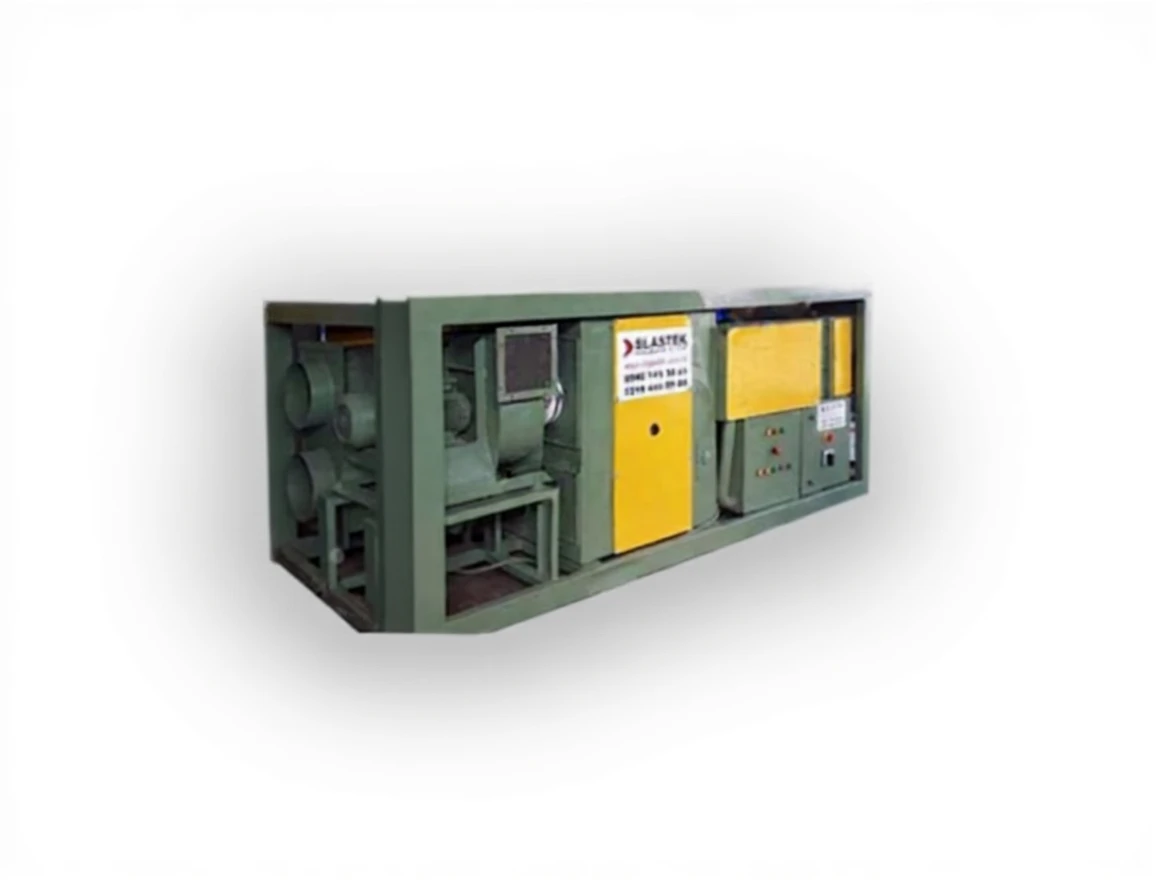

Blastek BLS-16000
16000 m3 / Hour Dyeing and Drying Dehumidification Machine
Our dehumidifying machines perform dehumidification using a silica gel rotor.
It absorbs the moist air in the environment and hits the silica gel.
An average of 9% relative humidity comes out of silica gel.
Dehumidifying machines should be used in places where dry air is required (45% humidity and below), for example, sandblasting and painting facilities, armories, libraries, textile and food factories. is.
Our standard production can be produced from 1,000 m3/hour to 30,000 m3/hour.
Blastek BLS-16000 Usage areas:
It can be used in areas such as the paint application industry, glass manufacturing, museums, ammunition depots, laboratories, pharmaceutical industry, etc.
Blastek BLS-16000 TECHNICAL SPECIFICATIONS |
|||||||
|
Features |
BLS-1500 |
BLS-5000 |
BLS-8000 |
BLS-10000 |
BLS-16000 |
BLS-20000 |
BLS-25000 |
|
Air Volume |
1500 |
5000 |
8000 |
10000 |
16000 |
20000 |
25000 |
|
Reactivation Energy(Kw) |
17 |
57 |
90 |
114 |
182 |
228 |
285 |
|
Rotor Speed/Hour Rph |
18 |
18 |
18 |
18 |
18 |
18 |
18 |
|
Reactivation Flow rate m/sec |
2.81 |
3.6 |
3.05 |
2.47 |
3.04 |
3.17 |
3.09 |
|
Process Output Cmh |
500 |
1667 |
2667 |
3333 |
5333 |
6667 |
8333 |
|
Reactivation Output |
62C° |
65C° |
64.9C° |
59.1C° |
64.9C° |
66.1C° |
65.3C° |
|
Process Output Cº |
50C° |
49.5C° |
49.5C° |
51.4C° |
49.5C° |
49.2C° |
49.4C° |
|
Transported Moisture |
8.51Kgs |
15.96Kgs |
27.9Kgs |
44.64Kgs |
89.9Kgs |
122.7Kgs |
154.24Kgs |
|
Rotor Dimension(mm) |
550 x 200 |
720 x 200 |
950 x 200 |
1050 x 200 |
1525 x 200 |
1940×200 |
2190 x 200 |
