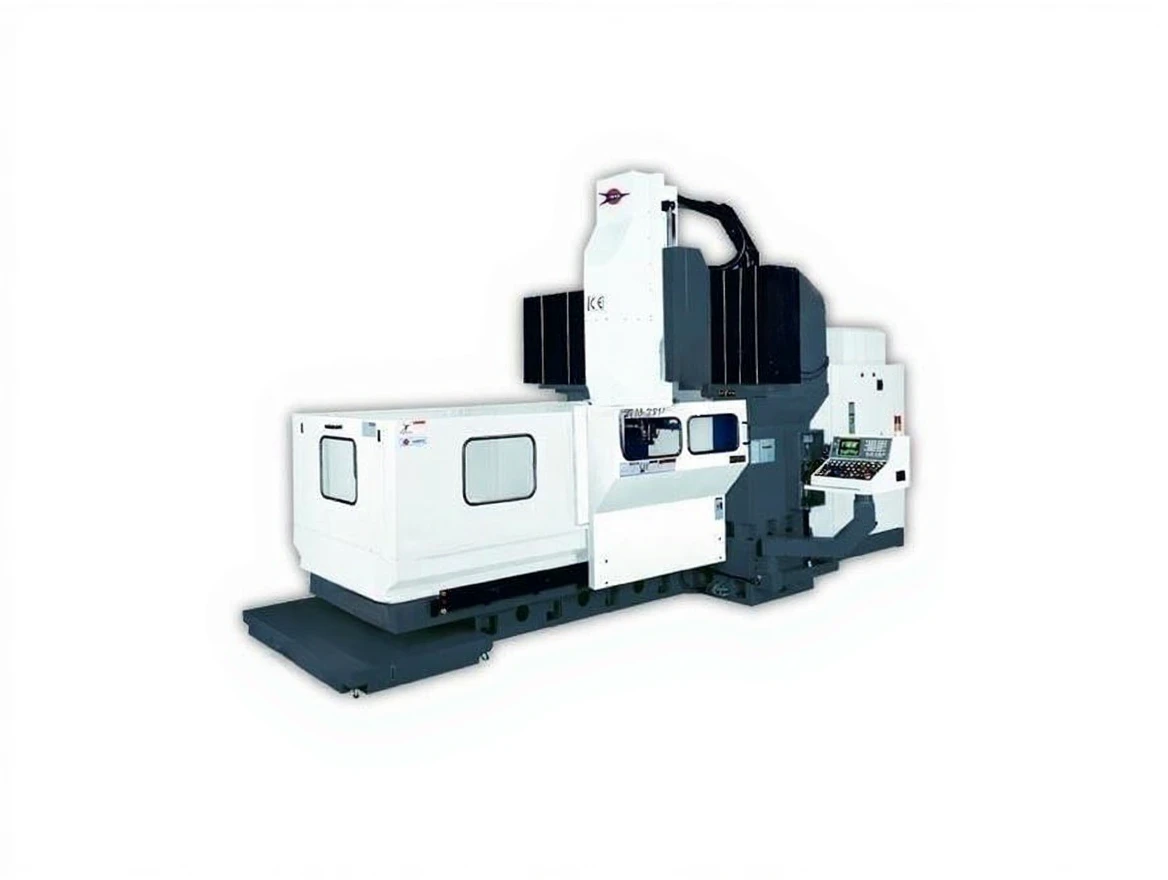

1600×1050 mm CNC Bridge Type Machining Center

Working Area    mm 1600×1050 Max Load Capacity      ton 3.5 X-Axis Movement  mm 1700 Y-Axis Movement mm 1200 Z-Axis Movement mm 750 (900,1200) Between Columns mm 1400 Spindle Nose to Table Distance mm Standard type : 220-970 Z=750 Spindle Taper   ISO NO.50 (BT40) (HSK-A63) Spindle Speedrpm 6000, BT50 Motor Fanuc kw 25/20  Cutting Feed mm 1-5000 Rapid Movement X/Y/Z m 12/12/10 Minimum Movementmm 0.001 Number of Tools   24 Max Tool Diameter mm Ø110  (Ø220, if no adjacent tool) Max Tool Weight kg 18 Tool-to-Tool Change Time s 8 (Arm type) Coolant Tank Capacity lt 395 Hydraulic Tank Capacity lt 80 Lubrication Tank Capacity lt 6 Positioning Accuracy mm ISO 230-2: A0.015MM Repeatability Accuracy mm ISO 230-2: R0.01MM Circularity Accuracy mm 0.02MM/300MM, diameter Machine Net Weight  ton 19 Electrical Requirement kva 45Equipped with Fanuc Control Unit and Standard Accessories.
