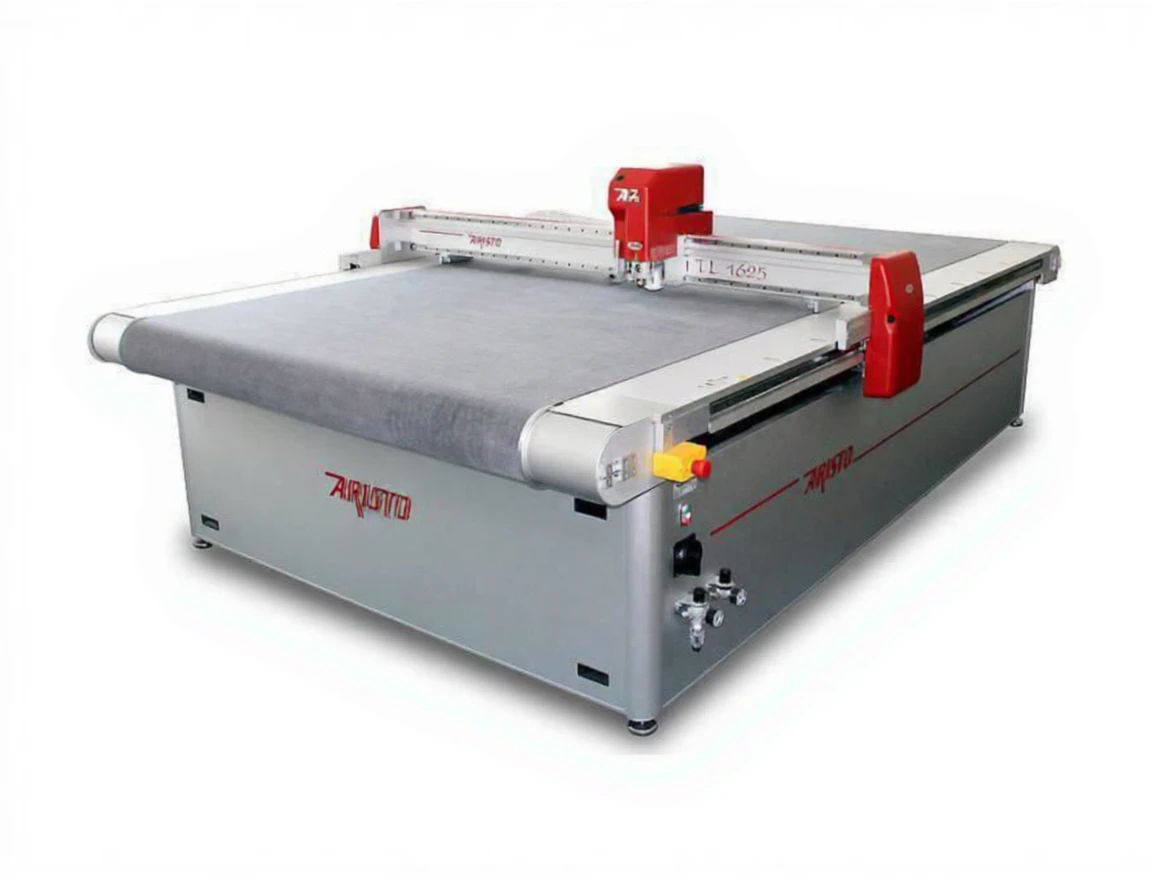

1600×1700 mm Digital Cutting Machine
| Brand | Aristo |
|---|---|
| Model Type |
TL 1617-8 |
1600×1700 mm Digital Cutting Machine
ARISTO ARISTOMAT TL 1617-8 TechLine Cutter Digital Cutting Systems
Add VALUE to your Business with ARISTO TL Series New Generation High Speed Digital Cutting Machines…
GERMAN TECHNOLOGY, FAST, PRECISION CUTTING, PRODUCTION AUTOMATION, INNOVATIVE
Table Option from 100 cm to 800 cm.
100’s of Cutting, Milling, Scoring, Grinding, Marking, Creasing, Drawing Pens and Blades
Cardboard / Corrugated Cardboard Cuttings, Advertising, Signage, Packaging, Textile, Shoes, Gasket, Sealing Products, Model, Stand, Decoration, Reflective Foil (Traffic), Display Product Cutting, Label (Full, Half Cut), Industrial Sampling, Production Automation and Solution Systems
V Cut, Textiles, Technical Textiles, Composite Materials, Leather, PVC Plates and More
Gasket Cutting, Model, Cardboard Stand, Model Toy, Box Manufacturing
ARISTOMAT TL Technical Specifications
Models and Dimensions
|
Model |
Process Area (mm/inch) |
External Dimensions (mm / inch) |
|---|---|---|
|
TL 1310-8 |
1300 x 1000 (51 x 40) |
1920 x 1760 x 1140 (76 x 69 x 45) |
|
TL 1310-8 Conveyor |
1220 x 1000 (48 x 40) |
1920 x 2140 x 1140 (76 x 84 x 45) |
|
TL 1617-8 |
1600 x 1700 (63 x 67) |
2220 x 2420 x 1140 (87 x 95 x 45) |
|
TL 1617-8 Conveyor |
1520 x 1700 (60 x 67) |
2220 x 2800 x 1140 (87 x 110 x 45) |
|
TL 1625-8 |
1600 x 2500 (63 x 100) |
2220 x 3220 x 1140 (87 x 127 x 45) |
|
TL 1625-8 Conveyor |
1520 x 2500 (60 x 100) |
2220 x 3600 x 1140 (87 x 142 x 45) |
Technical Specifications
-
Speed:max. 1.13 m/s (45 in/sec)
-
Acceleration Point:max. 1.15G
-
Material Thickness:max. up to 46mm
-
Control System:PC
-
Static Accuracy:± 0.02 mm/m (0.0008 in/40 in) @20°C
-
Electrical Control Mechanism:Digital AC servo motors
-
Data Format:HPGL
-
Vacuum:Adjustable Matrix Vacuum Fields
-
Power Supply:230V, 50/60Hz or 3 Phase, 400V, 50Hz
-
Operating System:
ARISTO Operating System, Cutting Control Panel
(Windows XP, Vista(32bit), 7(32bit))
Multilingual, Mobile Control Panel
Operating and Environmental Conditions
-
Operating Temperature:10°C ~ 30°C (50°F ~ 86°F)
-
Ambient Temperature:-15°C ~ 45°C (5°F ~ 113°F)
-
Humidity:40% – 80%
Certificates
-
CE Label
-
Emergency Stop
-
Luminous Barrier
-
Automatic Shutdown
Optional Equipment
-
Conveyor system and feeding table (PLC) for material feeding and collecting integrated into the system
-
Motorized feeding and collecting system for roll materials
-
Material holding systems
-
Automation system for sheet feeding (SheetFeeder) and motorized unloading compatible with the system
-
Matching knives/tools
-
CutRecall system with parameter adjustment for various materials
-
Smart camera system for printed materials (AutomaticEye)
-
Automatic data processing system (Mobile BarcodeReader)
-
projection system
-
InfraCrease™system (for plastic materials)
