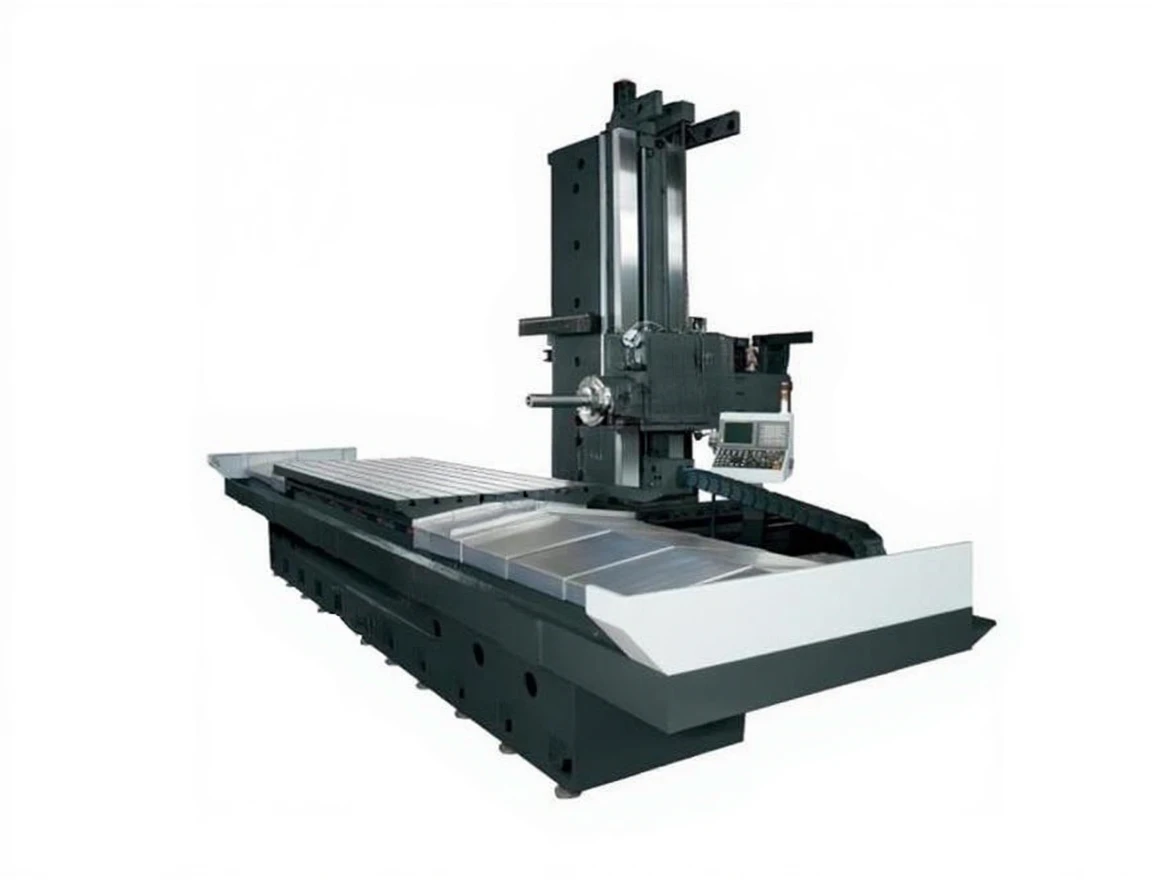

1600×1800 mm Borverk Bench
| Brand | Sanco |
|---|---|
| Model Type |
SHM13025R |
Sanco SHM13025R
1600×1800 mm Borverk Bench
13025R
13030R
13040R
TABLE DIMENSIONS
mm
2000 x [ PHONE HIDDEN ] x 2000)
T CHANNELS
mm
28X9
MAX LOAD CAPACITY
kg
1500
X AXIS MOVEMENT
mm
2500
3000
4000
Y AXIS MOVEMENT
mm
[ PHONE HIDDEN ])
Z AXIS MOVEMENT
mm
1700
W AXIS MOVEMENT
mm
700 (900)
SPINDLE DIAMETER
MM
Ø130
SPINDLE TAPER
RPM
24/7 NO.50
DISTANCE FROM SPINDLE FACE TO TABLE CENTER
MM
770-2470
DISTANCE FROM SPINDLE CENTER TO TABLE
MM
0-2500
TABLE HEIGHT MM 1420 RAPID MOVEMENT X/Y/Z
m/min
10
FAST MOVEMENT W
m/min
2
CUTTING SPEED
m/min
5
TOOL CAPACITY
Piece
[ PHONE HIDDEN ] opt.)
TOOL HOLDER
BT50
TOOL CHANGE TIME
sec.
15
MAX TOOL DIAMETER
mm
Ø125/Ø250
MAX TOOL LENGTH
mm
400
MAX TOOL WEIGHT
kg
25
SPINDLE
kw
18,[ PHONE HIDDEN ] opt.)
X/Y/Z/W/B SERVO MOTOR
kw
9/7/9/1.8/4.2
STRENGTH
KVA
55
HYDRAULIC TANK VOLUME
L.
260
COOLING TANK VOLUME
L.
400
LUBRICATION UNIT
L.
8
MACHINE DIMENSIONS
mm
7700X6300X5200
7700X6800X5200
7700x7800x5200
MACHINE WEIGHT
kg
33000
35000
37000
Comes with Fanuc Control Unit and Standard Accessories.
