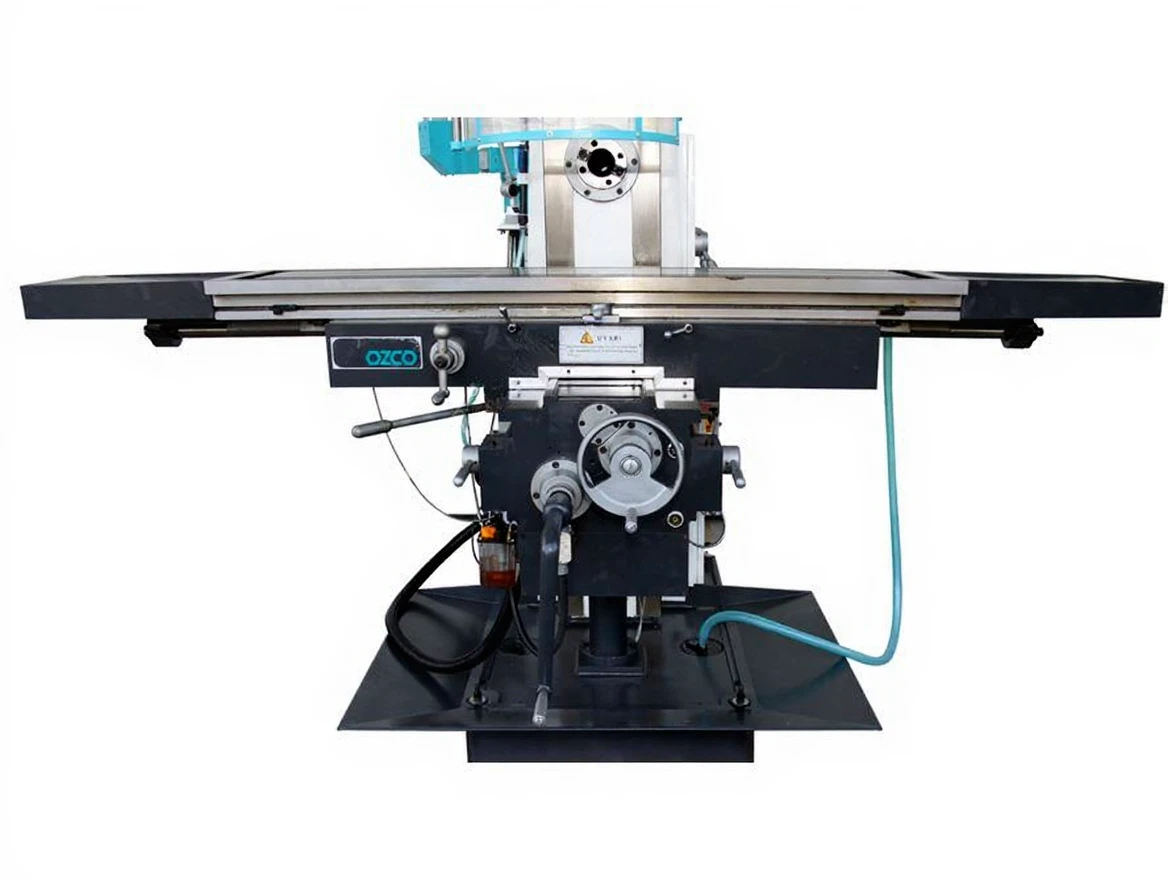

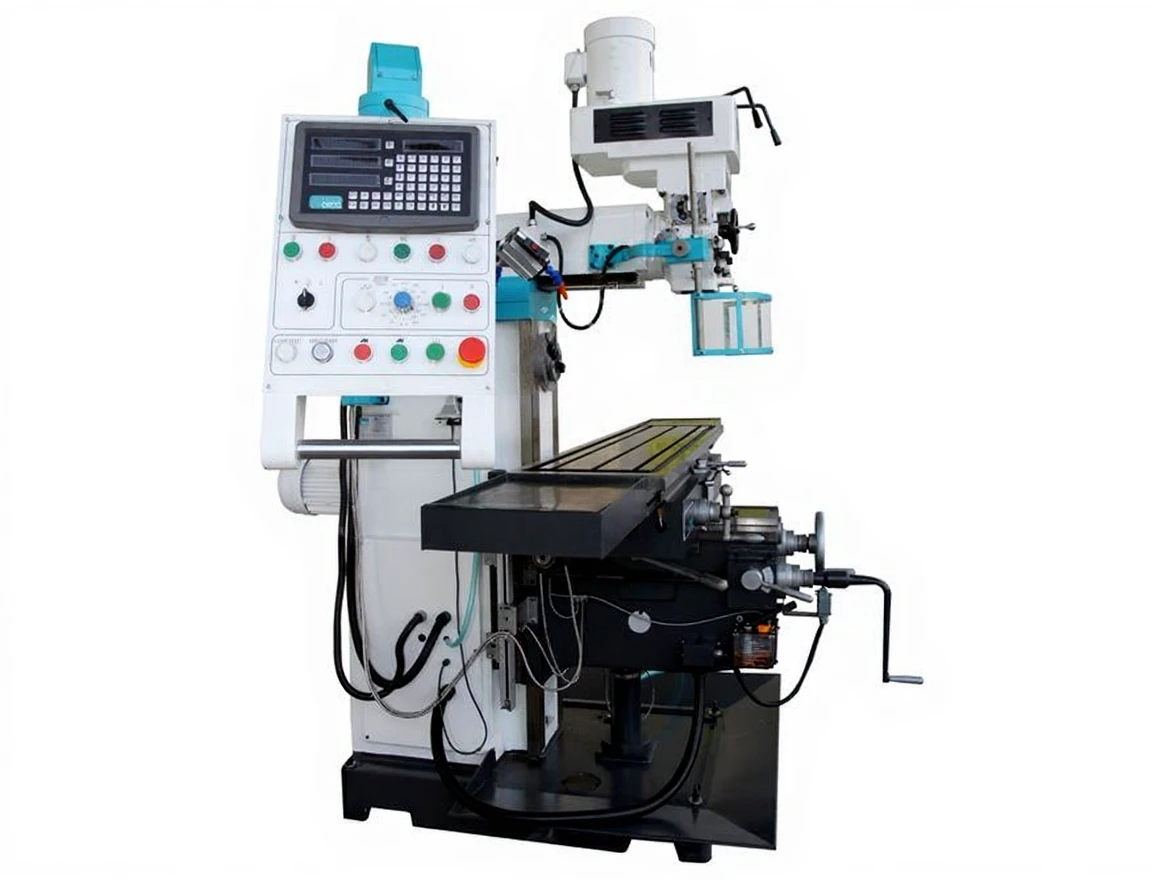

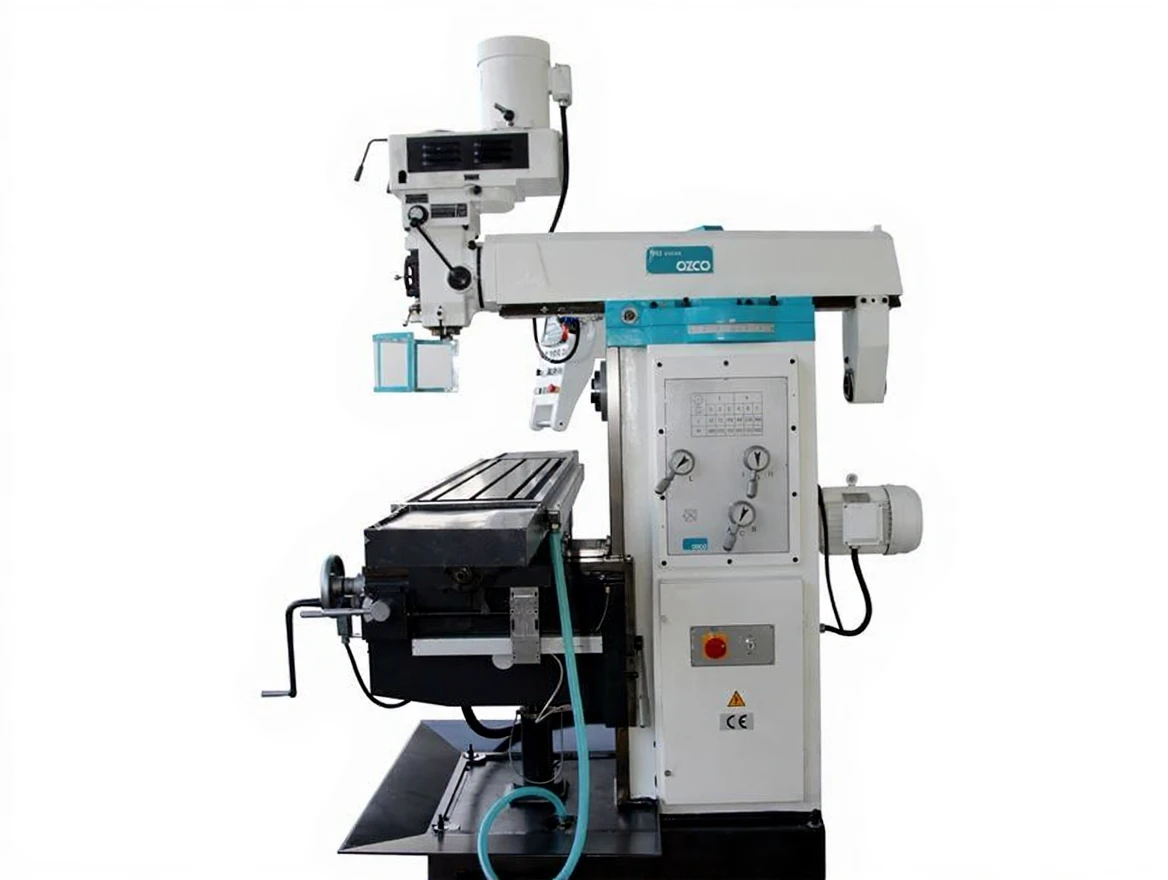

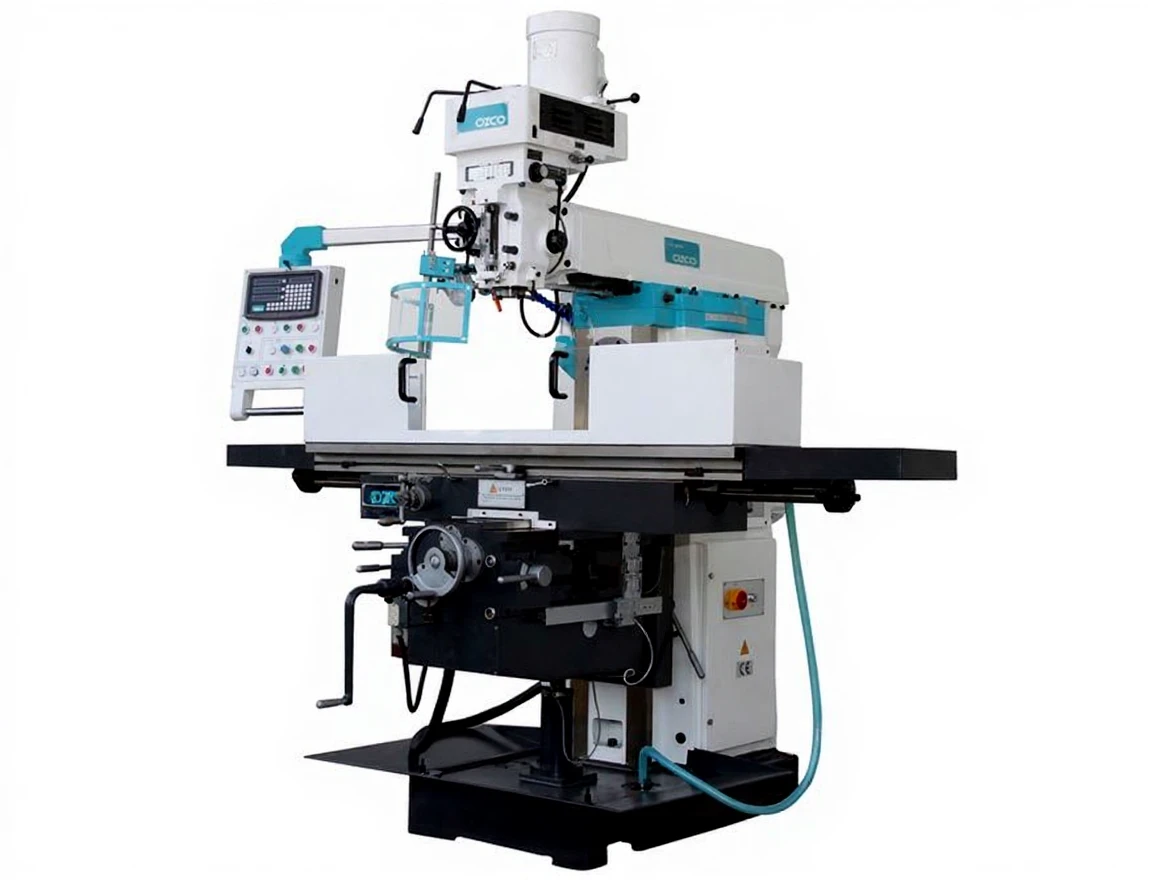

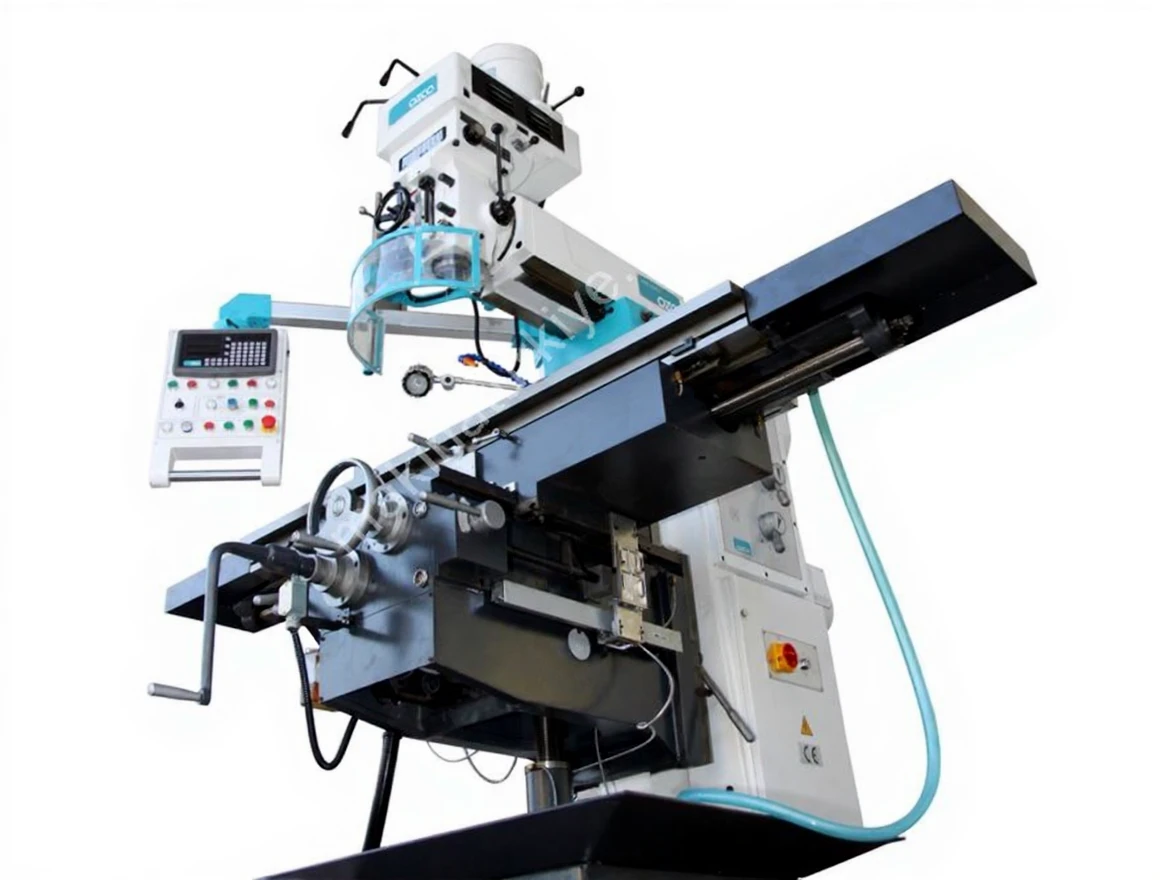

1600×360 mm Servo Universal Milling Machine
| Brand | Ozco |
|---|---|
| Model Type |
FR6 Servo |
Description
OZCO FR6 Servo Universal Milling Machine
OZCO FR6 Servo Universal Milling Capacity
X-axis movement is 1300 mm, Y-axis movement is 300 mm, and Z-axis movement is 400 mm.
OZCO FR6 Servo Universal Milling Shipment Scope
Mold clamping set, Vice, 8 pieces ISO 40 collet set, Tooling
OZCO FR6 Servo Universal Milling General Features
3-axis servo motor-automatic, 3-axis digital coordinate reader, Height adjustable safety switch guard, Taiwan manufactured milling head, Control panel, Automatic lubrication, Cooling system, Lighting, Chip tray, Compliant with CE standards.
Technical Specifications FR6 Servo Universal Milling
Motor Power Vertical: 5.5 kW, Horizontal: 5.5 kW, 400 V
Cooling Pump Power 90W
Table Dimensions 1600×360 mm
X Axis Movement 1300 mm
Y Axis Movement 300 mm
Z Axis Movement 400 mm
T Slot Dimensions 3×18 mm
Spindle Connection Vertical: ISO40, Horizontal: ISO50
Spindle Speed Vertical:60-3600 rpm, Horizontal:60-1800 rpm
Steps Vertical:12, Horizontal:12
Quill Movement 127 mm
Head Rotation Angle + – 90°
Distance Between Spindle and Table Vertical:200-650 mm, Horizontal:20-470 mm mm
Table Feed X:30-750 mm/min, Y:20-500 mm/min, Z:15-371 mm/min
Table Rapid Feed X:1200 mm/min, Y:800 mm/min, Z:600 mm/min
RAM Movement 550 mm
Table Feed Motor 15 N.m (Servo)
Machine Dimensions (LxWxH) 2500x2100x2500 mm
Net Weight 2850 Kg
