160×100 cm Laser Cutting Machine



Our machine is single-headed with a power of 130-150 W. It is a special price. There is no bargaining. Expenses for outside the city are the responsibility of the buyer.

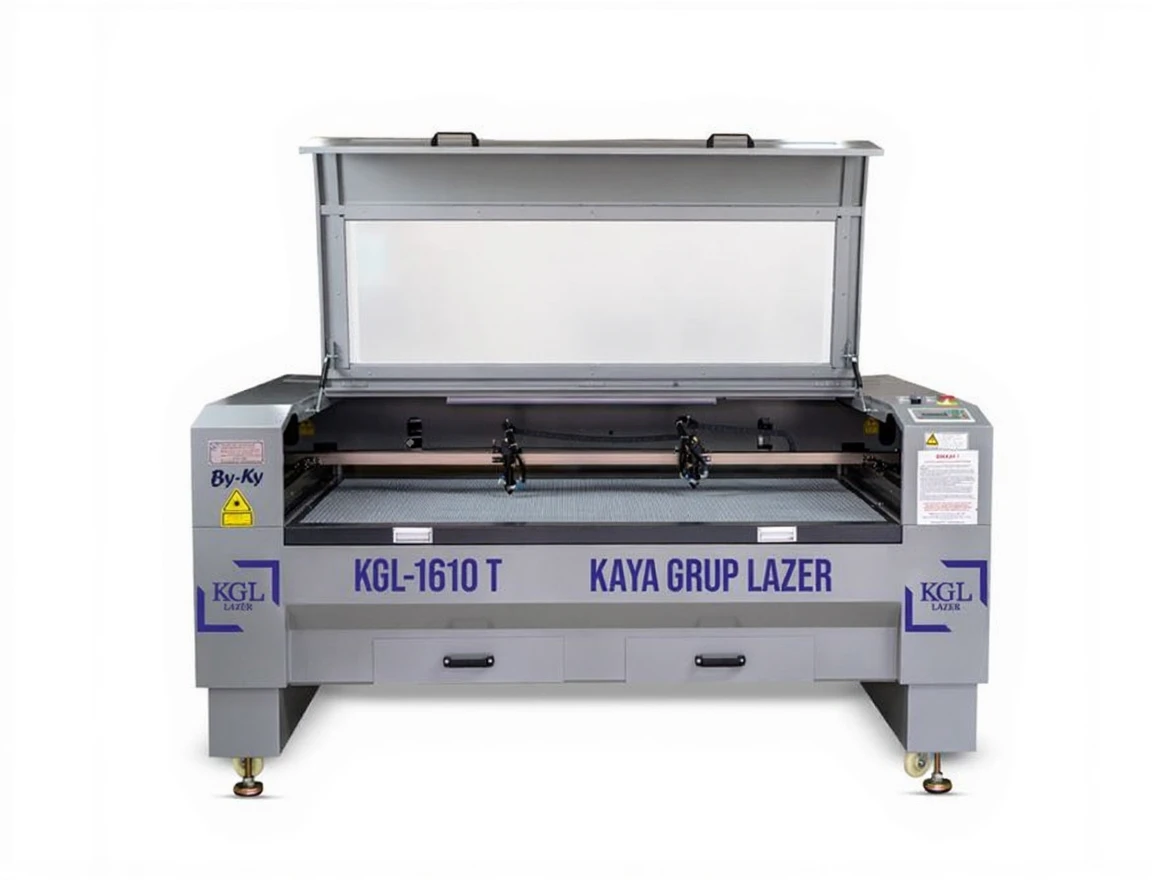

It is KGL 1610 laser cutting machine, with the option of single or double head. It has a working area of 160*100 cm and a power of 130 W. Depending on the material, it can easily cut up to 8-10 mm. It can perform cutting, engraving, and marking operations on materials such as wood, MDF, plexiglass, acrylic, leather, fabric, denim, felt, granite, glass, rubber stamp, paper, plastic, and many more.



WORKING AREA	X DIRECTION 1600MM / Y DIRECTION 1000 MM
LASER POWER	MINIMUM 130 W – MAXIMUM 150W
FOCUS	2” Focusing Lens (IIVI-infrared)
COOLING SYSTEM	Industrial Gas-Assisted Water Cooling System
LASER SOURCE LIFE	8000 hours
EXHAUST FAN	900 W
OPERATING SCREEN	RD6442
DRIVING MOTOR	STEP MOTOR
AXES SYSTEM	HIGH WORKING PRECISION
CONTROL SYSTEM / QUALITY	RD SOFTWARE
ELECTRICAL REQUIREMENTS	220 VAC – 50-60 Hz
ENERGY CONSUMPTION	0.78 KW / HOUR
OPERATING TEMPERATURE	18-32 C
PROGRAM FORMATS	bmp. jpg. tif. Dxf. Dst. Plt. Etc.
WORKING PRECISION	0.02 /800 mm
SINGLE LINE SCAN SPEED	800 mm / sec.
MACHINE SIZE (L*W*H)(mm)	2180*1580*1120 mm
WEIGHT (Kgs)	550 Kgs
