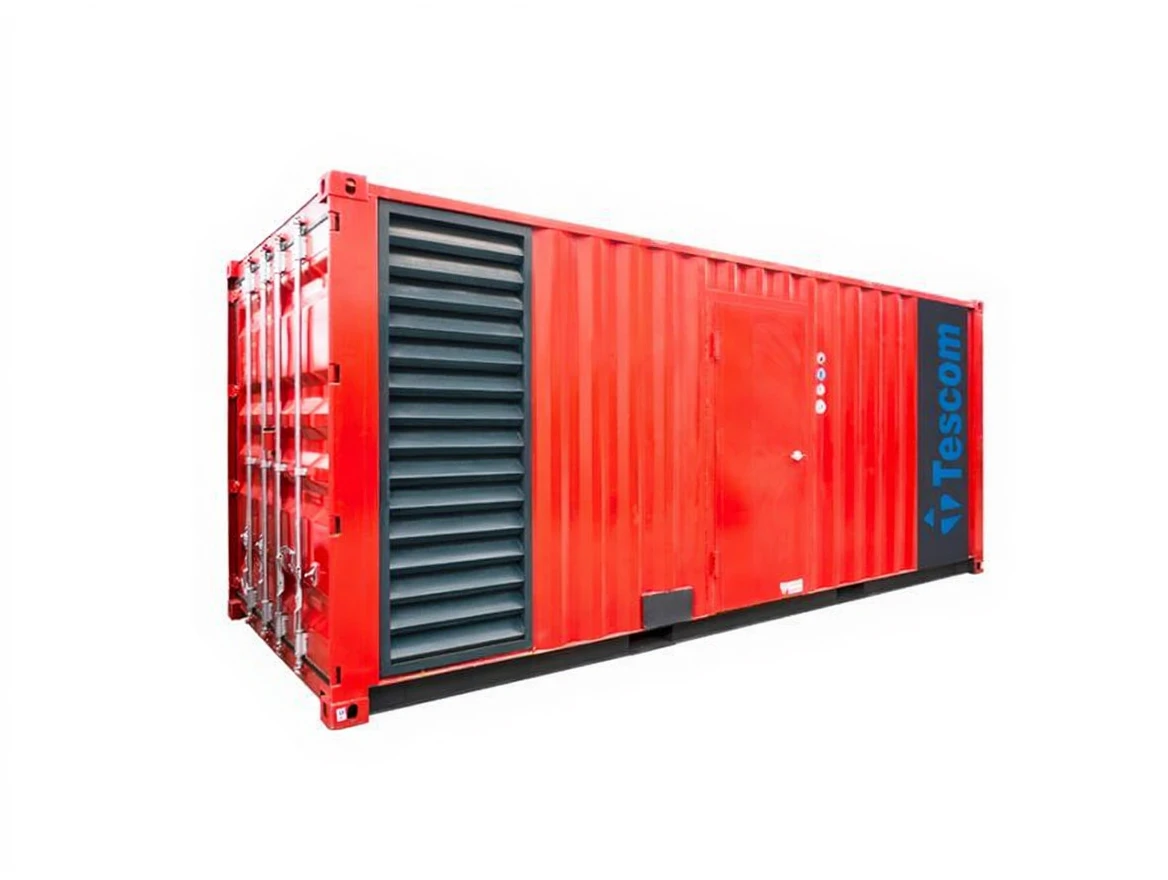

1650 kVA Dizel Jeneratör
| Brand | Tescom |
|---|---|
| Model Type |
TDJ1650B |
Description
1650 kVA Diesel Generator
| kVA | kW | |
|---|---|---|
| STANDBY | 1650 | 1320 |
| PRIME | 1500 | 1200 |
| Engine | BAUDOUIN | |
| ENGINE MODEL | 12M33G1650/5 | |
| FREQUENCY (Hz) | 50 | |
| PHASE | 3 Phase | |
| CYLINDER VOLUME (Lt) | 39.2 | |
| FUEL CONSUMPTION (Lt/Hr) | 234.2 | |
| FUEL TYPE | Diesel | |
| TANK CAPACITY (Lt) | 2000 | |
| ALTERNATOR | Tescom / Stamford | |
| GOVERNOR TYPE | Electronic | |
.PNG)
The Tescom TDJ Series Diesel Generator Sets provide optimal performance, reliability, and versatility for integrated power generation systems, standby, main power, and continuous operation applications.
STANDBY OPERATION
It is the operating mode of the generators at varying loads at specific time intervals. It can operate as a backup power. Operating it under overload is not suitable.
PRIME OPERATION
It is the operating mode of working as a continuous power source when there is no grid power. It operates at variable loads for 24 hours and allows 1-hour intervals with 10% overload every 12 hours.
CONTINUOUS OPERATION
It denotes continuous operation at the full defined power (100% load). Overloading above the defined power is not allowed. It is designed for use in places where grid power is not available.
CABIN STANDARD FEATURES
- Compact design connection with nut and bolt without welding.
- Integrated mounted cabin, generator set, exhaust system, and fuel tank.
- Body made of steel components processed with polyester powder coating.
- Easy access to all service points.
- Exhaust system inside the cabin.
- Wide doors on both sides.
- Lockable control panel.
- Emergency stop button mounted outside the cabin.
- Access to fuel filling compartment and accumulator is only possible through lockable access doors.
- Customer options are available to meet your application needs.
- The noise level tests of TESCOM generator sets have been approved by Szutest (CE standards compliance assessment body) in accordance with Directive 2000/14/EC.
ENGINE FEATURES
- Heavy-duty generator engine type.
- 4-stroke, water cooling, natural aspiration system.
- Mechanical governor system.
- 12/24 volt starter motor with charging alternator.
- Replaceable; air, fuel, and oil filters.
- With a flexible fuel hose.
- Oil drain valve and extension hose/oil drain pump.
- Industrial capacity silencer and exhaust spiral or compensator.
- Maintenance-free type starter battery.
- Engine block water heater (in automatic models).
- Diesel generator maintenance and operation manual and electrical diagrams.
ALTERNATOR FEATURES
- Brushless, single bearing, flexible disc 4-pole synchronous alternator.
- H-Class Insulation.
- IP21-23 Protection class.
- Self-regulated.
- Electronic voltage regulator.
- For harmonic distortions, stator winding is 2/3 steps.
- Alternator windings are protected with insulation varnish against oil and acid.
CONTROL PANEL FEATURES
- The cable group used in our generators is of the non-combustible cable class. Cable sheaths form the defenses line against various chemicals and fire.
- The use of halogen-free materials in the outer sheath of the cables prevents the spread of toxic gases during a fire. At the same time, the smoke density of non-combustible cable sheaths is low, and they have flame-retardant properties. This feature of non-combustible cable sheaths prevents the spread of fire, minimizing potential damages.
- Schneider Electric breaker group is used on generator control panels. As standard, all our products have a 4-pole TMS (Thermal Magnetic Switch).
ATS (AUTOMATIC TRANSFER SWITCH) GENERAL FEATURES
- The SQ5 Dual Power Automatic Transfer Switch Series is a type of automatic transfer switch that combines the switch and logic controller, making mechanical and electrical an integral whole.
- It has superior electromagnetic compatibility, resistance to parasites, is at a high level.
- There is zero transition technology with high reliability.
- Cuts double-circuit power simultaneously.
- In addition to PLC remote control, it has a multi-circuit input/output interface capable of automating the system.
