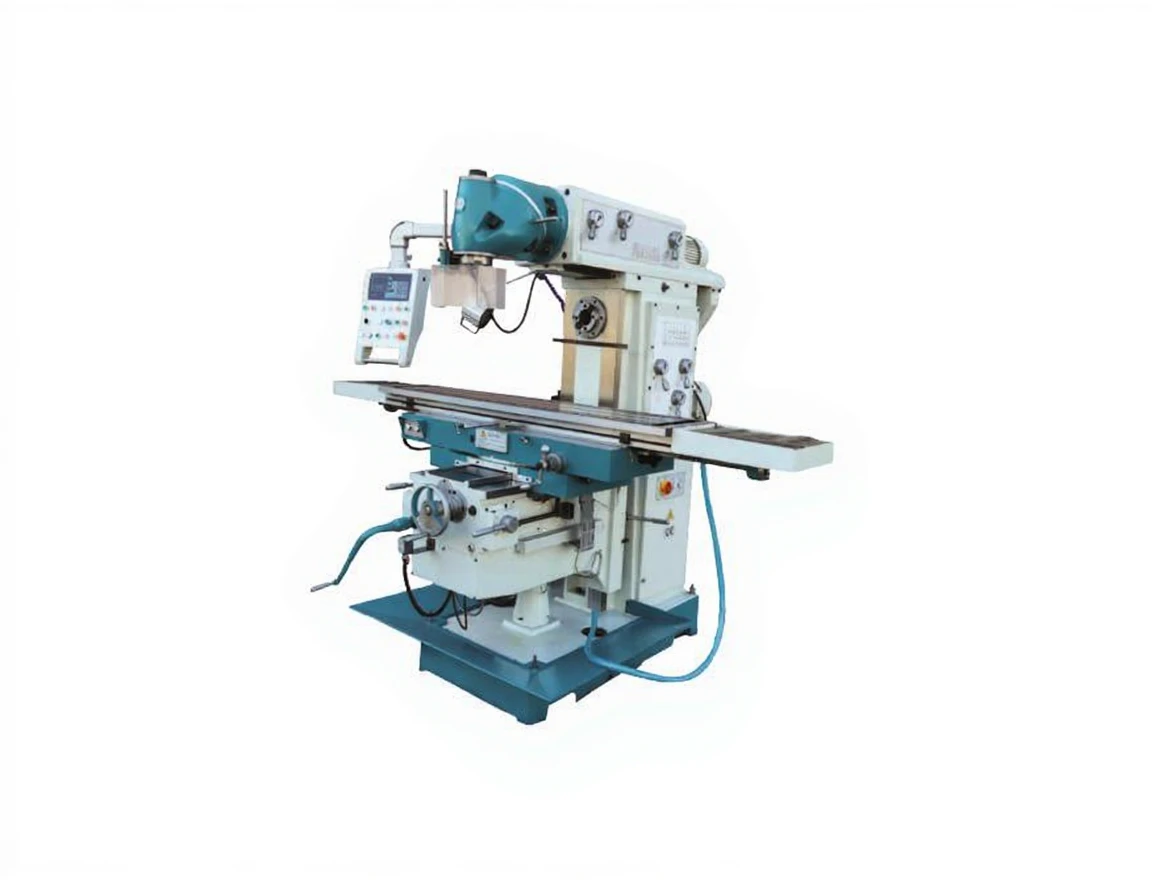

1650×360 mm Servo Universal Head Milling Machine

JETCO JVHM-5SERVO Universal Head Technical Specifications

Table size mm 1650 x 360

Maximum Table Movement mm 1300x320x420

Distance Between Spindle and Table mm 170-590

Distance Between Horizontal Spindle and Table mm 0-420

Spindle Diameter mm 105

Stroke Movement mm 140

Spindle Taper (Vertical) ISO40

Spindle Taper (Horizontal) ISO50

Maximum Drilling Diameter mm 10 (in steel)

Spindle Speed Range (Vertical) rpm 58-1800

Spindle Speed Range (Horizontal) rpm 60-1750

Main Motor Power (Vertical) kW 5.5 (7.5 HP)

Column Movement mm 1600x1900x2250

Net/Gross Weight kg 2500/2850
