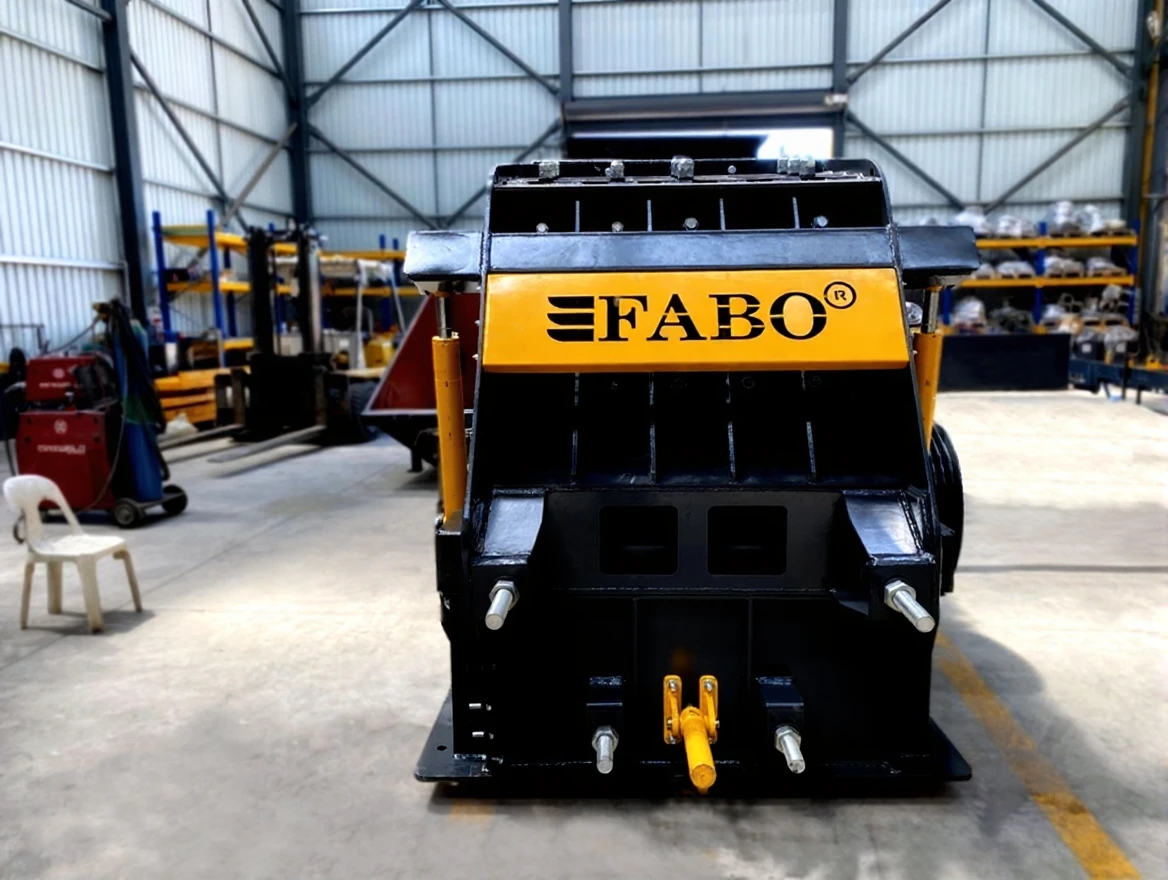

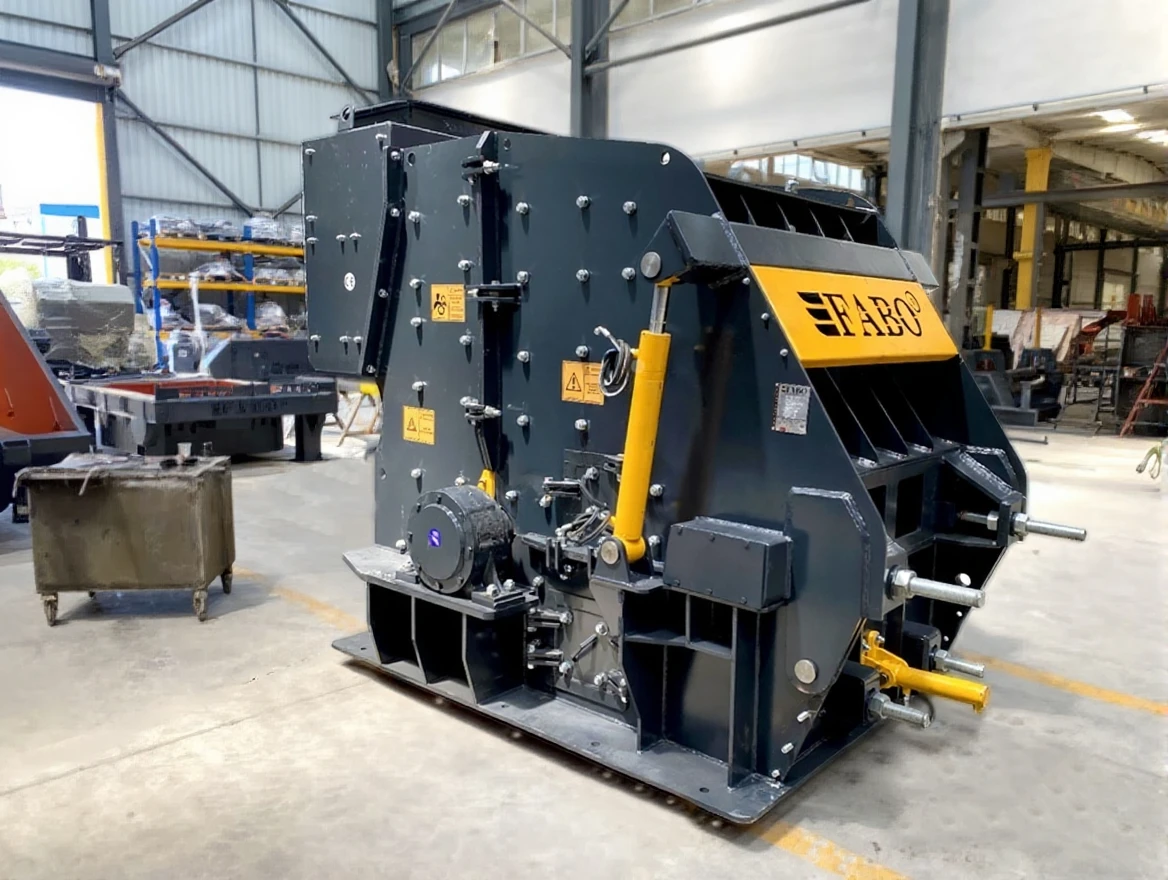

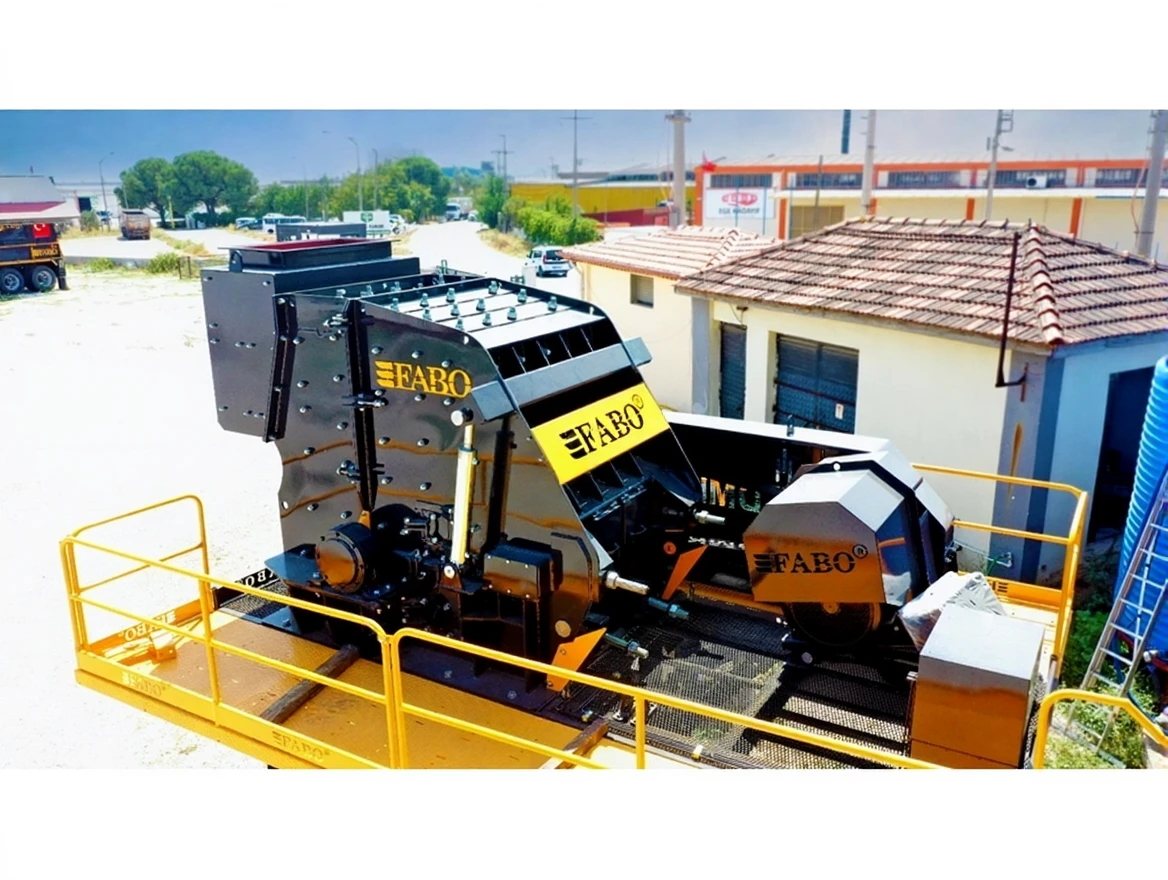

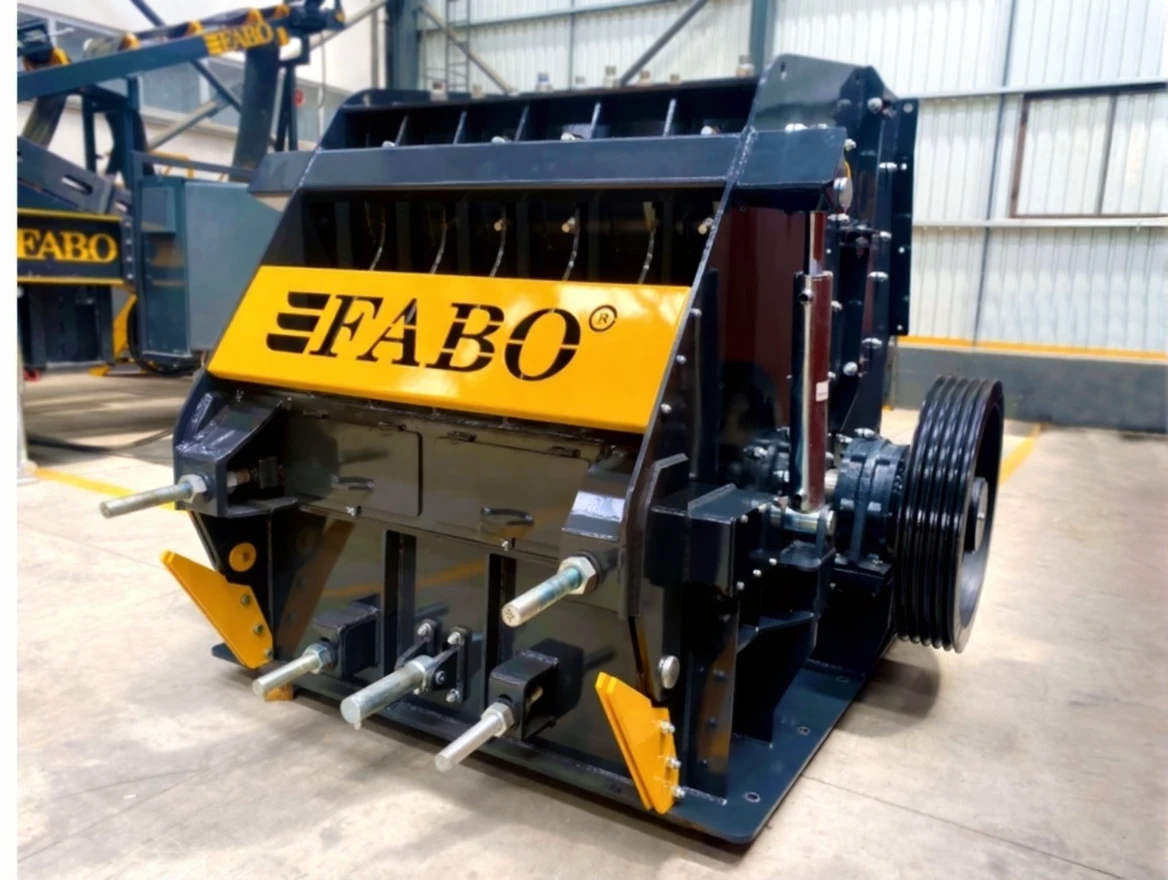

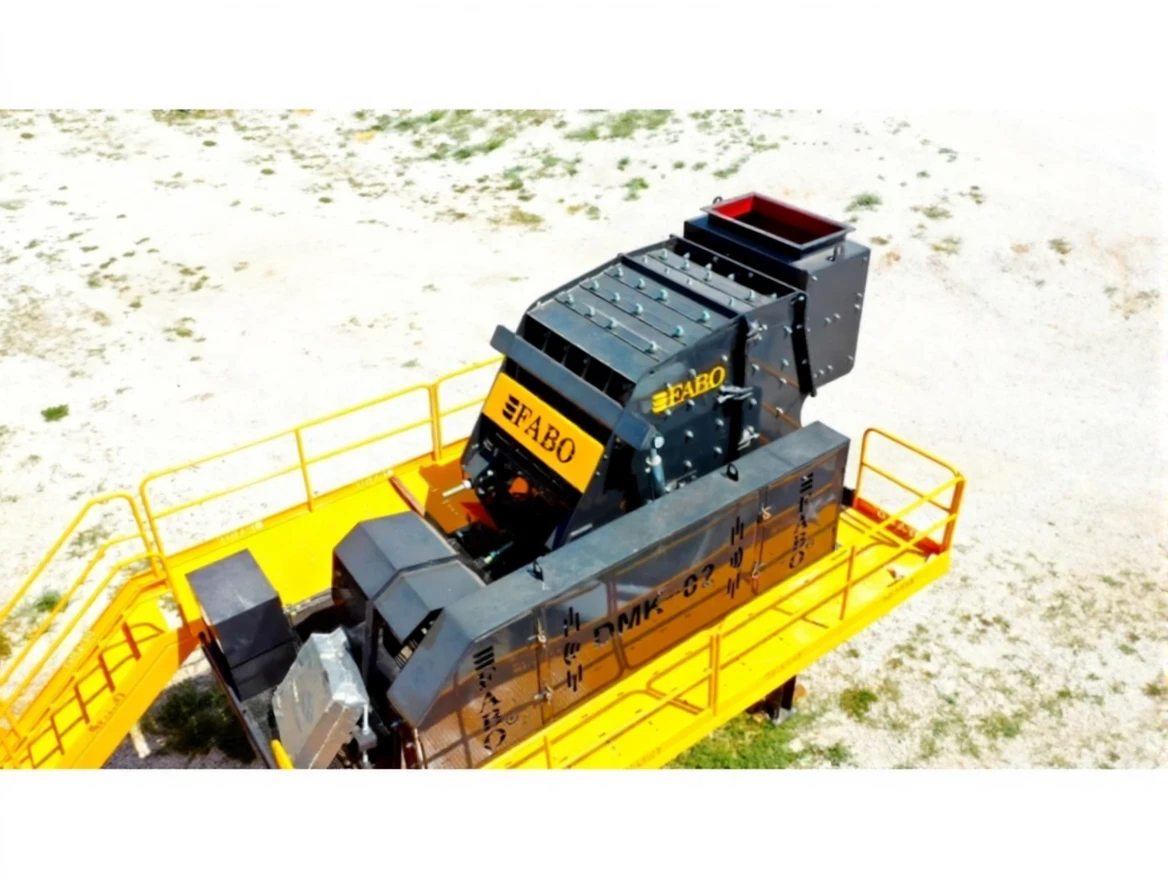

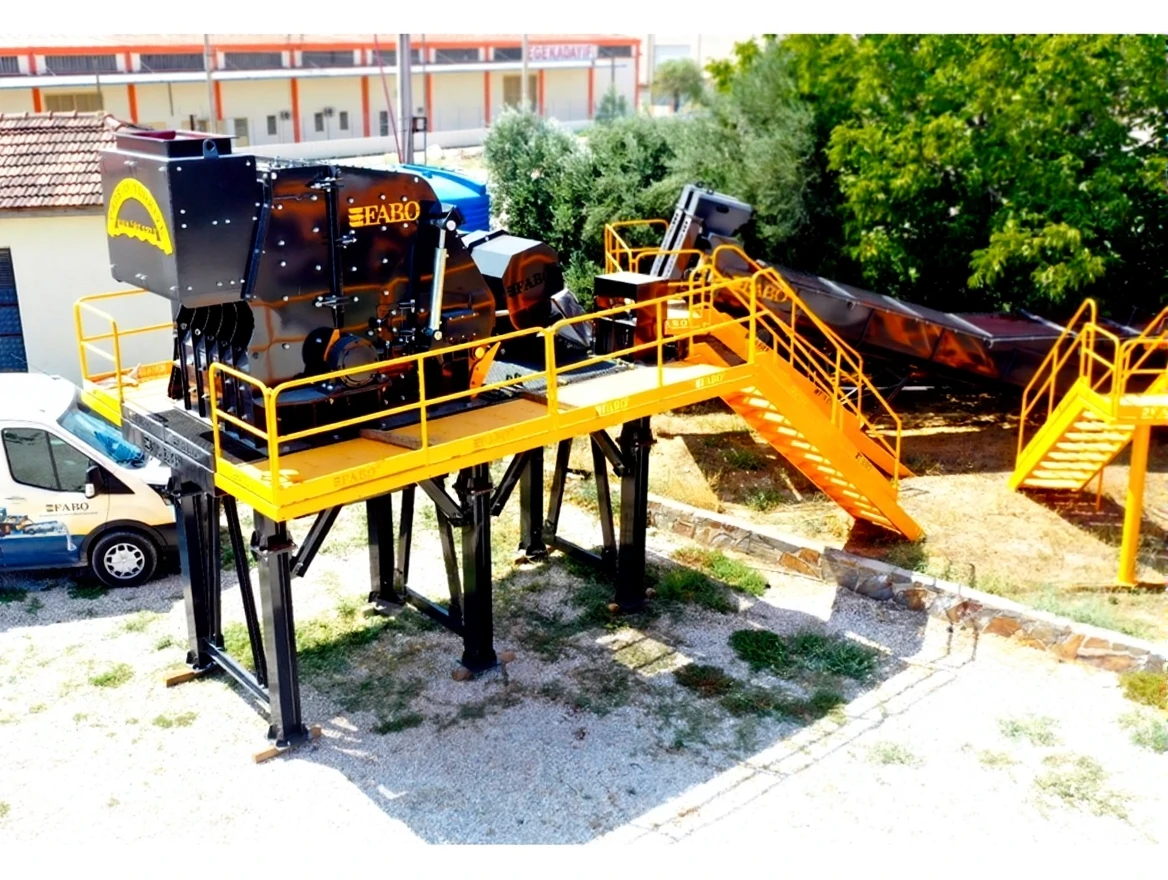

170-250 Tons / Hour Secondary Impact Crusher
| Brand | Fabo Makina |
|---|---|
| Model Type |
DMK-02 |

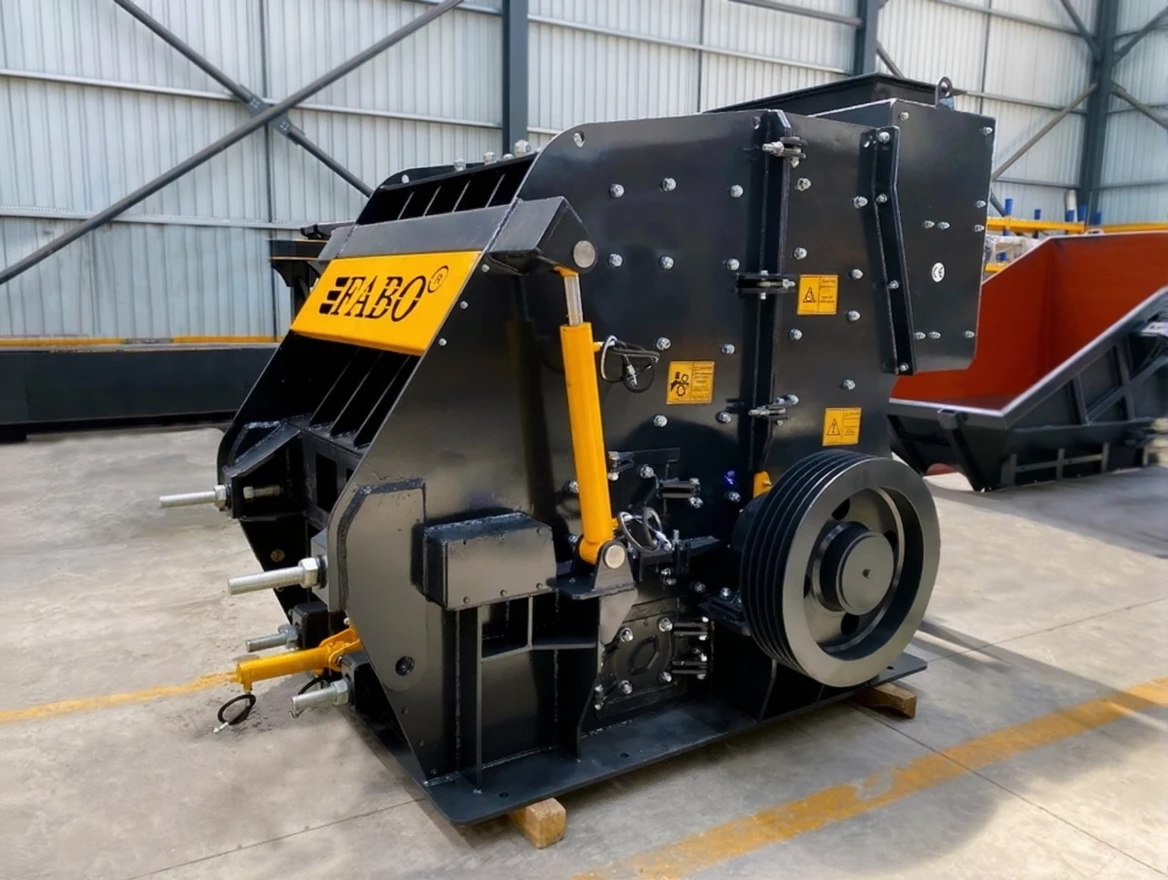

Fabo DMK-[ PHONE HIDDEN ] Tons / Hour Secondary Impact Crusher
DMK series secondary crushers are among our secondary impact crushers that are generally used after jaw crushers or primary impact crushers, facilitating the crushing of materials with medium and high hardness. DMK crushers are designed to increase capacity and cubic product quantity while reducing wear costs.
Ease of maintenance and adjustment is one of the most important advantages of this type of crushers. The hydraulic body opening system, external adjustment of the crusher plates, and easy pallet and liner replacement ensure that these types of crushers can be easily used under site conditions.
|
1- Crusher Feed Chute |
|
2- Crusher Rotor |
|
3- Pallet Holder Lock |
|
4- Crusher Lower Adjustment Pendulum |
|
5- Pallet Tightening Bolt |
|
6- Crusher Middle Pendulum Adjustment Slide |
|
7- Crusher Middle Pendulum |
|
8- Crusher Middle Upper Pendulum Castings |
|
9- Crusher Upper Wall Pendulums |
|
10- Crusher Side Liners |
General Features and Advantages:
-High capacity
-High reduction ratio
-High rate of cubic and fine material production
-Ease of maintenance thanks to the hydraulic adjustment system
-Wear-resistant liner plates
-Parts exposed to wear are protected with hard filler welding
-Pallets and crusher plates are made of high Chromium and Manganese steel casting
Fabo DMK-02 Technical Specifications
| ROTOR SIZE | Ø 1120 x 1250 mm | MOTOR POWER | 200 kW |
| MAXIMUM FEEDING | 450 mm | SPEED | 750 rpm |
| CAPACITY | 170-250 T/H | WEIGHT | 16600 kg |
