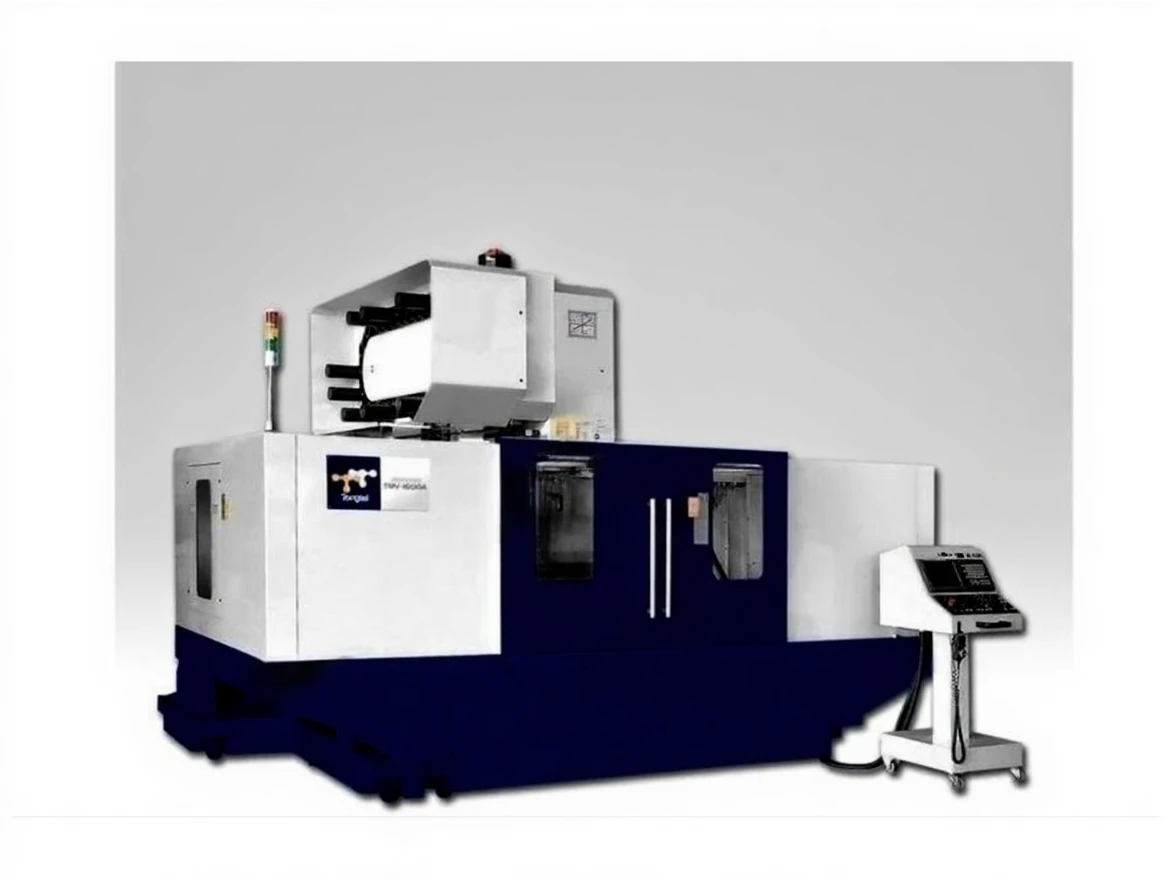

Topper Tongtai TMV-1600

1700×850 mm CNC Vertical Machining Center

TABLE	Table Size	mm	1700×850
	Maximum Workpiece Weight	kg	2000
	Table Height	mm	950
	T-Slots	mm	18×6
	Spindle Nose to Table Distance	mm	200-900
SPINDLE	Spindle Taper		7/24 No.50 (No.40 ops.)
	Spindle Speed	rpm	35-3500 (std.)
	Spindle Speed	rpm	60-6000 (ops.)
AXES	X Axis Travel	mm	1600
	Y Axis Travel	mm	800
	Z Axis Travel	mm	700
	Rapid Traverse Rates	m/min	15/15/12
	Cutting Feed Rate	mm/min	0-5000
TOOL MAGAZINE	Tool Capacity		32
	Max. Tool Diameter	mm	125
	Max. Tool Length	mm	300
	Max. Tool Weight	kg	15
MOTOR	Spindle Motor Power (%60 ED)	kw	15
	(X,Y,Z) Axis Motors	kw	[ PHONE HIDDEN ]
	Coolant Pump Motor	kw	0.37×2
	Hydraulic Motor	kw	2.25
MACHINE DIMENSIONS	Width x Length	mm	3433×4250
	Height	mm	3286
	Net Weight	kg	15000

Equipped with Fanuc OiMD and Standard Accessories.
