180-300 Ton Jaw Mobile Crusher

*All our products are carefully made and come with a 1-year warranty!

*Installation and Operator Training are FREE

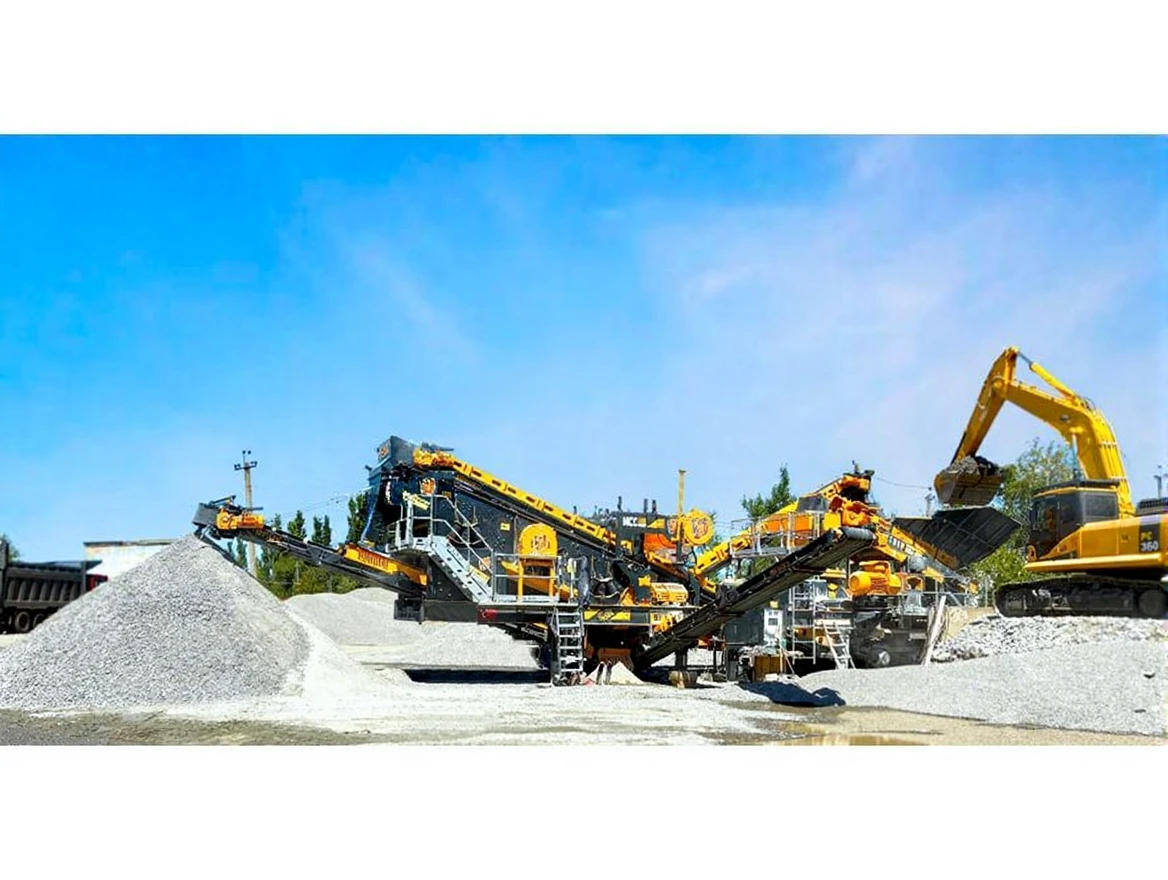

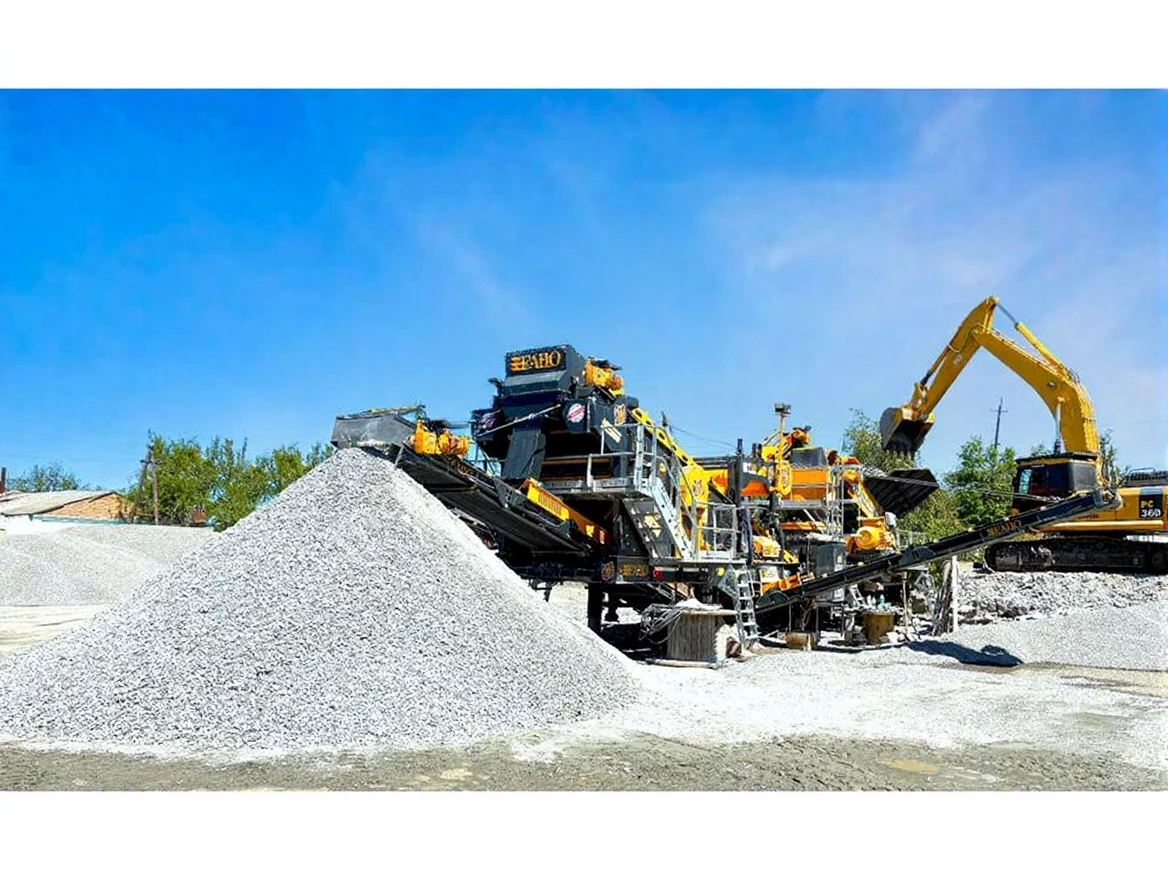

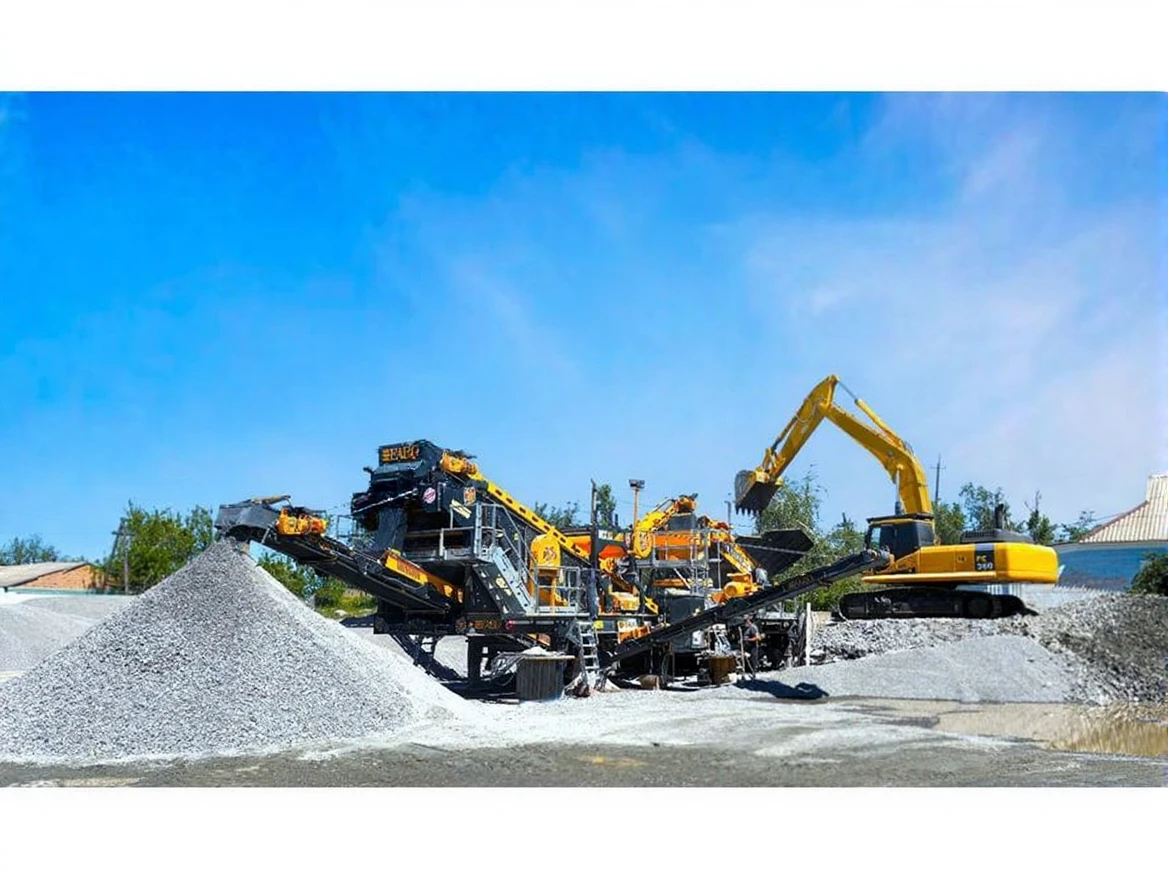

FABO MCK-115 is the largest model of the MCK series, used for processing hard materials such as basalt, granite, gabbro, and dolomite. MCK-115 includes a two-stage crushing process with a primary jaw crusher and a secondary cone crusher.

TECHNICAL SPECIFICATIONS:

– Bunker: 35 m3

– Plant Dimensions (1st chassis): 13000x4700x4400 mm

– Second chassis: 17700x4550x4650 mm

– Production Capacity: 180-300 Tons per hour

– 1st Crusher: Jaw Crusher – 1100×850 mm

– 2nd Crusher: Cone Crusher – FABO CC 300

– Maximum Feed Size: 800 mm

– Vibrating Screen Size and Deck: 2200x5000mm 3-4 deck

– Total Motor Power: 450 Kw

– Generator (optional): 600 kVA

MCK-115 is a COMBINATION OF:

• Bunker

• Vibrating Grizzly Feeder (bypass)

• Primary Jaw Crusher

• Cone Crusher

• High Impact Vibrating Screen

• Foldable type feeding, return, bypass, and stock conveyor belts

• Hydraulic legs

• Axle and wheeled Mobile Chassis

• Fully Automated System

• Dust Suppression System

• Easy access platforms for maintenance

• Diesel Generator (Optional)

FOR DETAILED INFORMATION, PLEASE CALL US!!!
