1800-2000 Mm Curved Horizontal Glass Washing Machine
| Brand | Girmaksan |
|---|---|
| Model Type |
GM-1800-2000R |

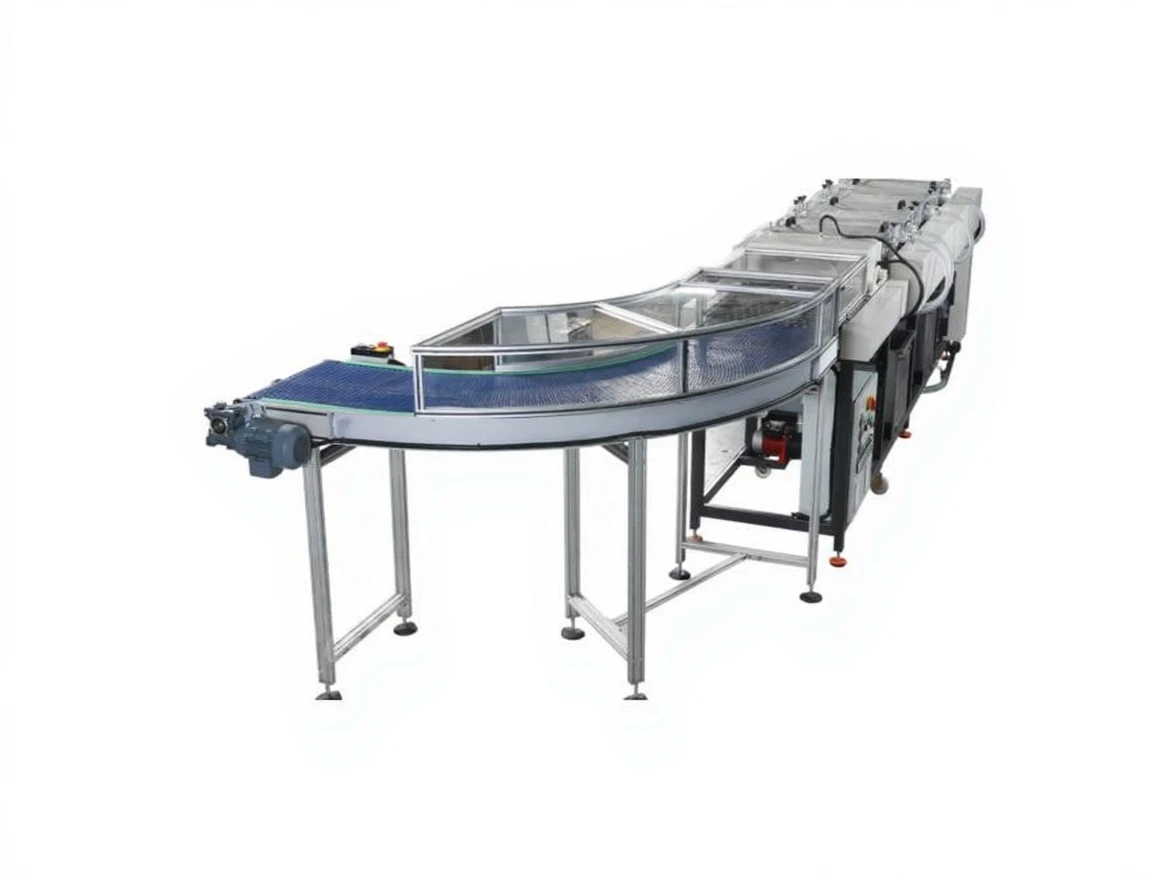

Girmaksan GM-1800-2000R 1800-2000 mm Curved Horizontal Glass Washing Machine
The curved glass washing machine is a special machine used to wash and dry the surface of automotive mirror glass precisely. The curved glass washing machine consists of a hot water pre-wash, clean water rinse wash, resistance hot air drying system, electronic control system, and adjustable pressurized water spraying circulation system. Curved glass washing machines can be produced with a curvature radius ranging from 320 to 2000.
|
TECHNICAL DETAILS |
GM-1200-1800R |
GM-1800-2000R |
|
Working Speed |
0.5-3 M/min. |
0.5-3 M/min. |
|
Max. Glass Width |
600 mm |
600 mm |
|
Min. Glass Width |
210*210 mm |
210*210 mm |
|
Glass Thickness Range |
2-3 mm |
2-3 mm |
|
Brush Quantity & Diameter |
6 pcs./120 mm |
6 pcs./120 mm |
|
Sponge Quantity & Diameter |
2 pcs./120 mm |
2 pcs./120 mm |
|
Total Power |
18 kw |
18 kw |
|
Machine Dimensions (W) – (L) – (H) |
1100*3500*1250 mm |
1100*3500*1250 mm |
|
Machine Weight |
750 kg |
750 kg |
|
Air Heater |
|
|
|
Blower |
|
|
|
Water Filter |
|
|
