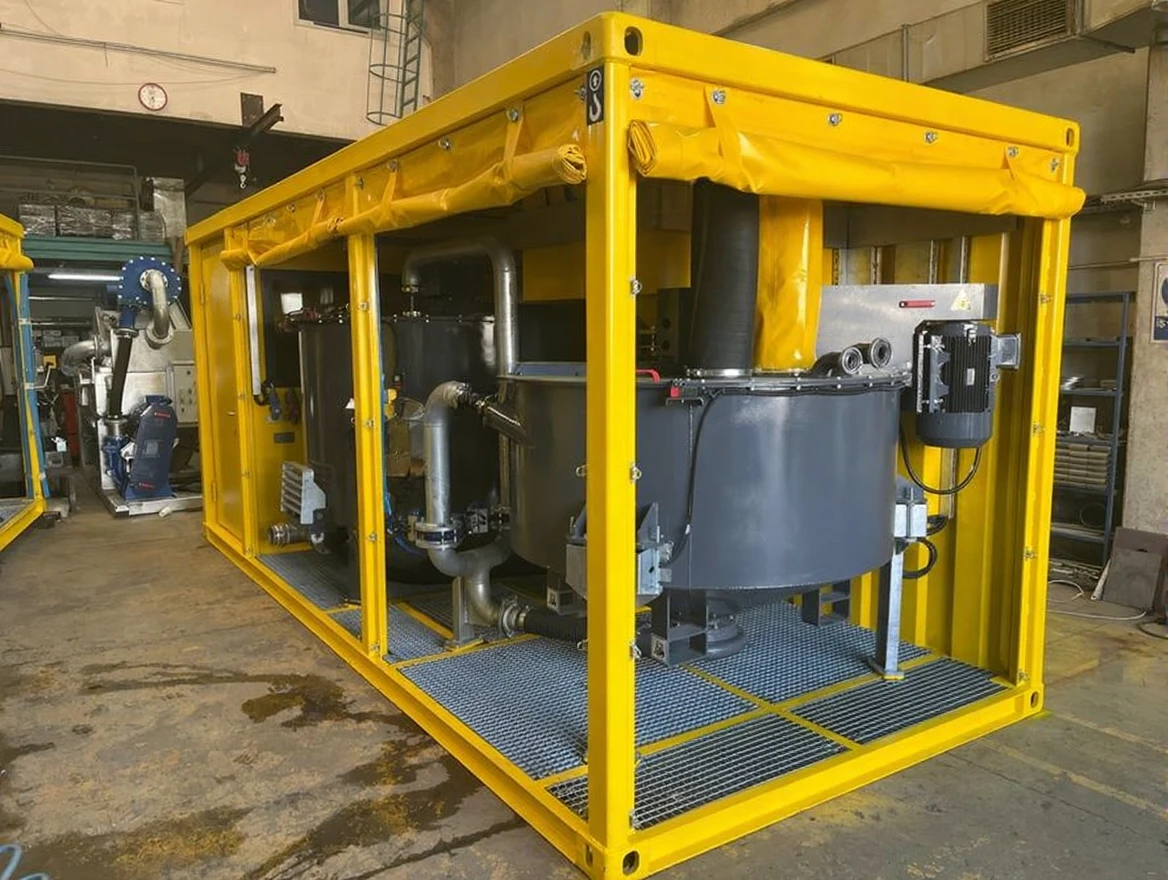

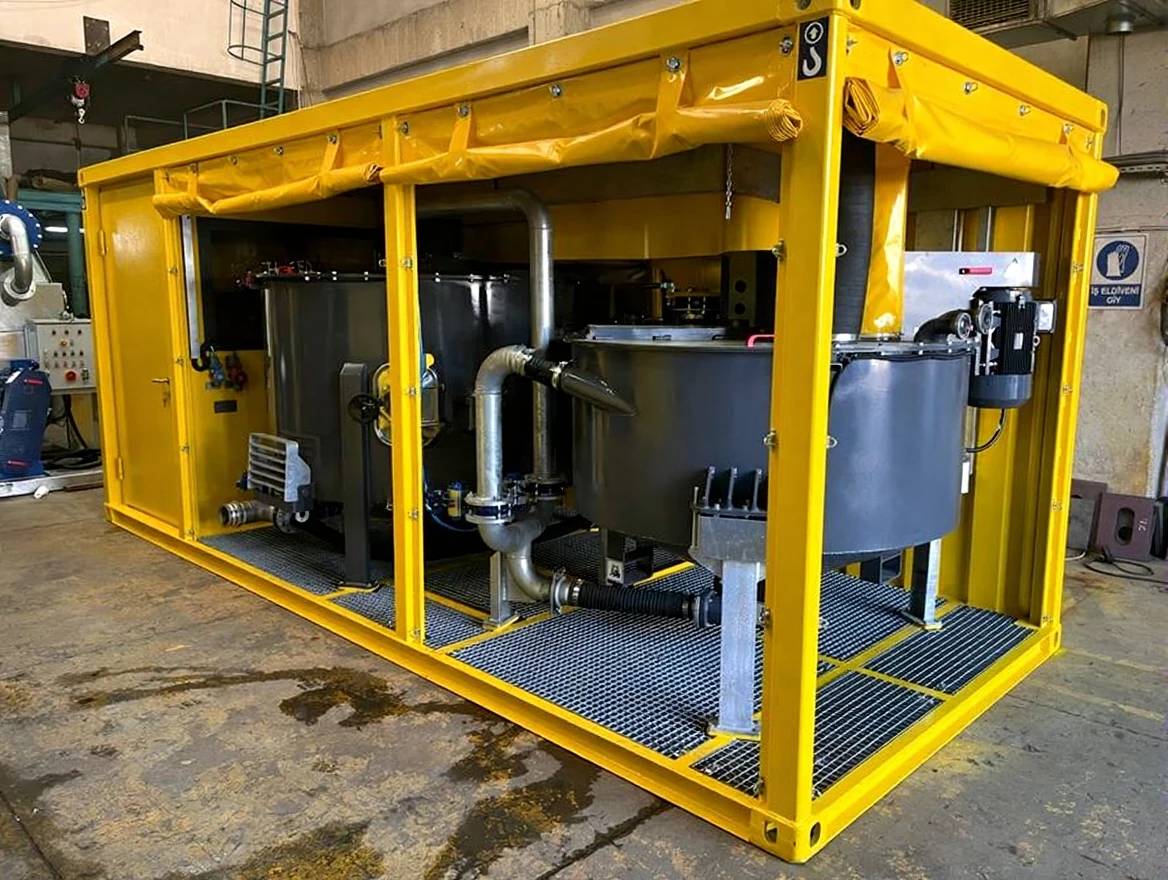

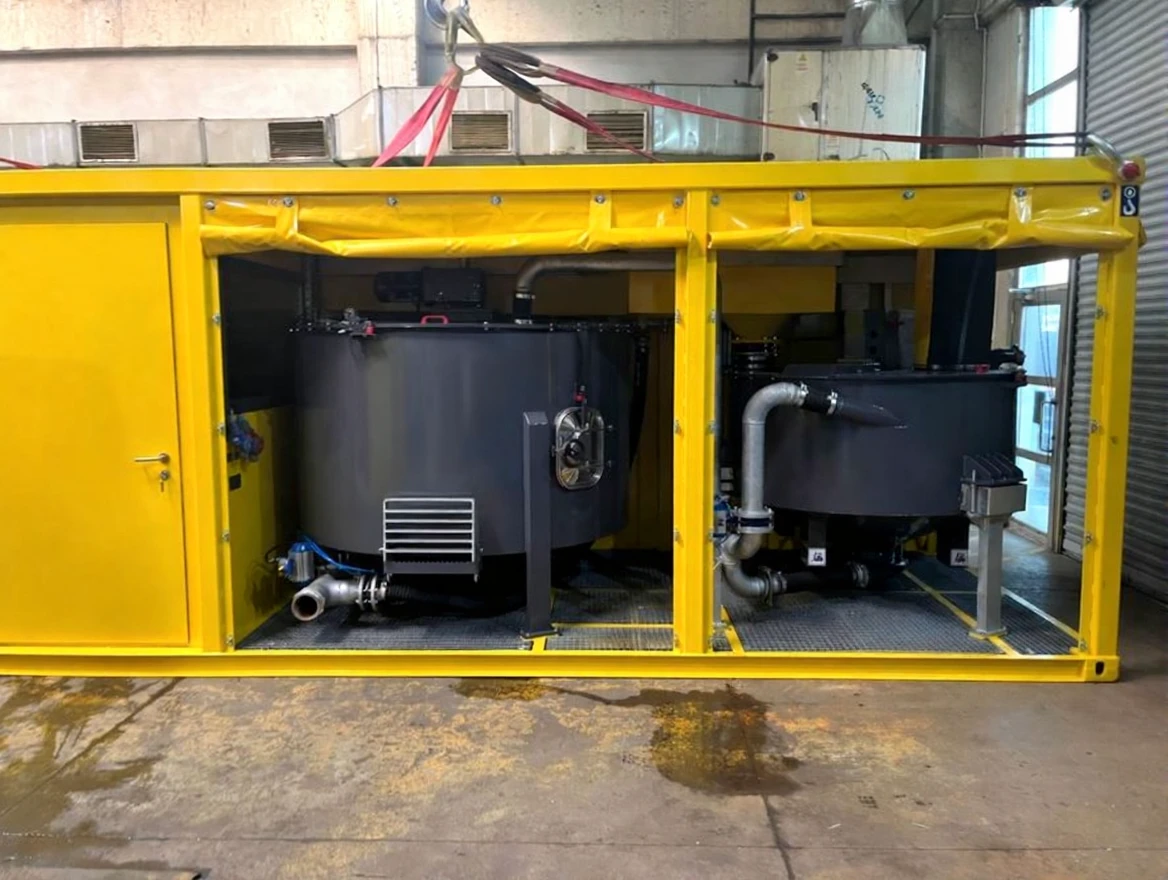

1800 Litre Bentonite and Injection Plant Jet Grout Mixer



In the jet grout method, which main components are cement and water, soil improvement is provided by creating columns of certain diameters and lengths. Since pressurized cement is injected into the ground, capillary voids and water veins are filled with cement. Jet Grout Mixer consists of Mixer and Resting Tank. The system operates fully automatically.





	MP 20	MP 30
Production Capacity	20m³/h	30m³/h
Total Power	17 kw	21 kw
Dimensions	2.43m x 6.05m x 2.59m	2.43m x 6.05m x 2.59m
Weight	5800 kg	6700 kg
Mixer Capacity	1500 lt	1800 lt
Mixer Electric Motor	11 kw	15 kw
Agitator Capacity	2700 lt	3800 lt
Agitator Electric Motor	3 kw	3 kw
Compressor Capacity	400 lt/min	400 lt/min
Compressor Tank	100 lt	100 lt
Compressor Power	3 kw	3 kw
