19.7-18 kVA MIG-MAG-CO2 N Carbon Steel Welding Machine
| Brand | Megmeet |
|---|---|
| Model Type |
Artsen PM 400 N |
Description

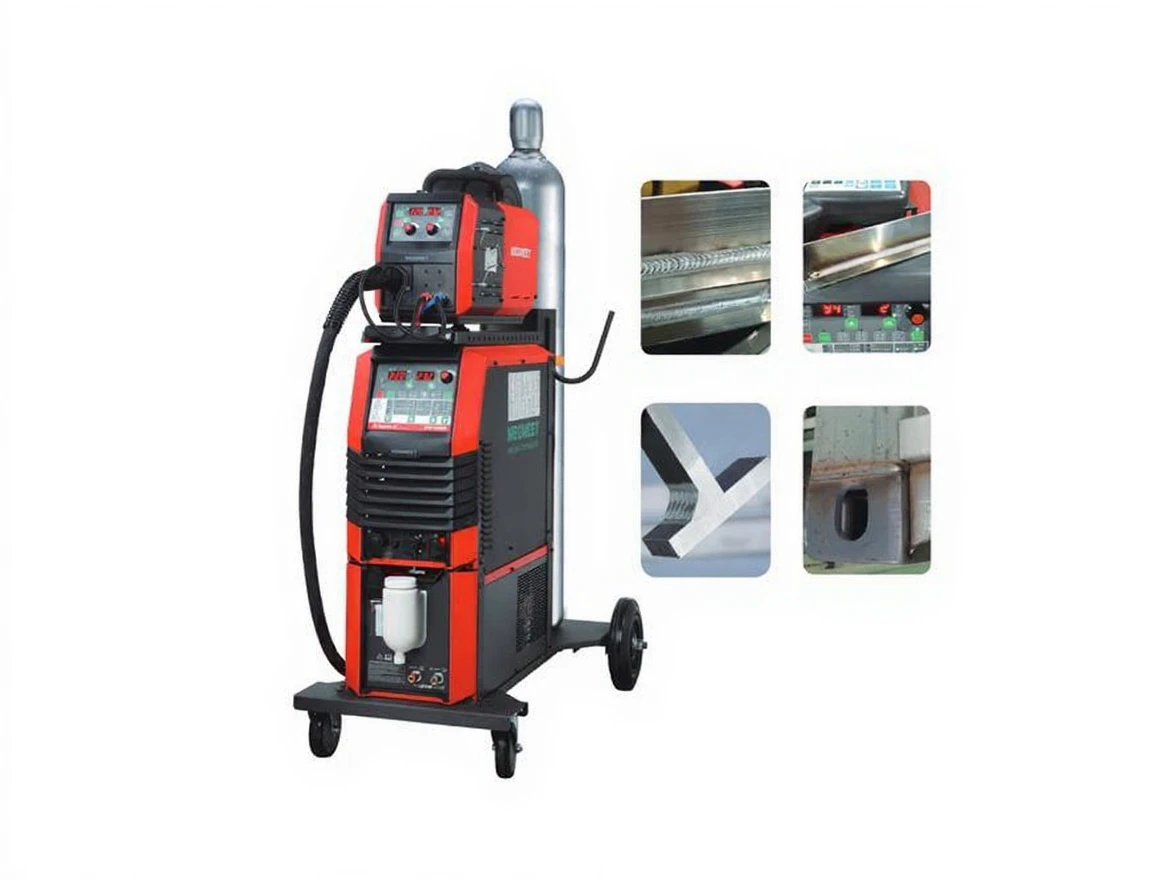

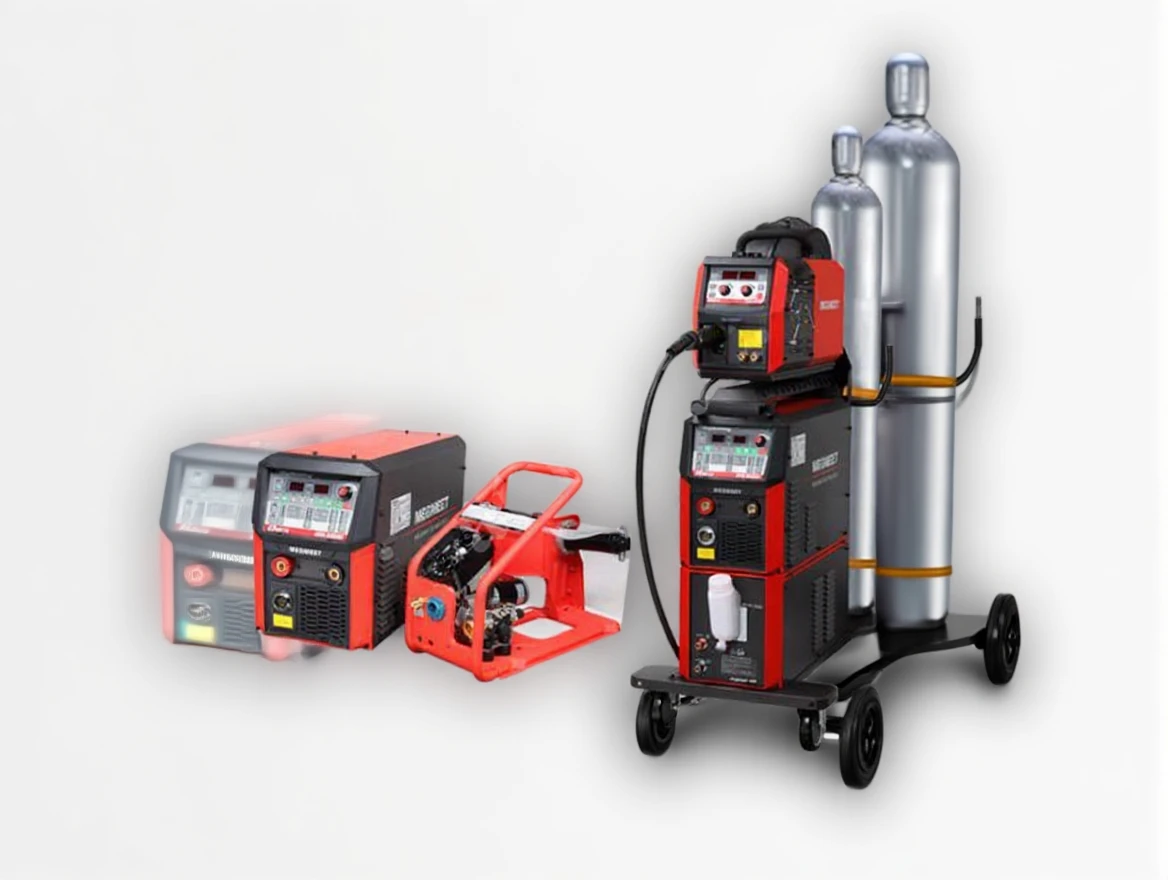

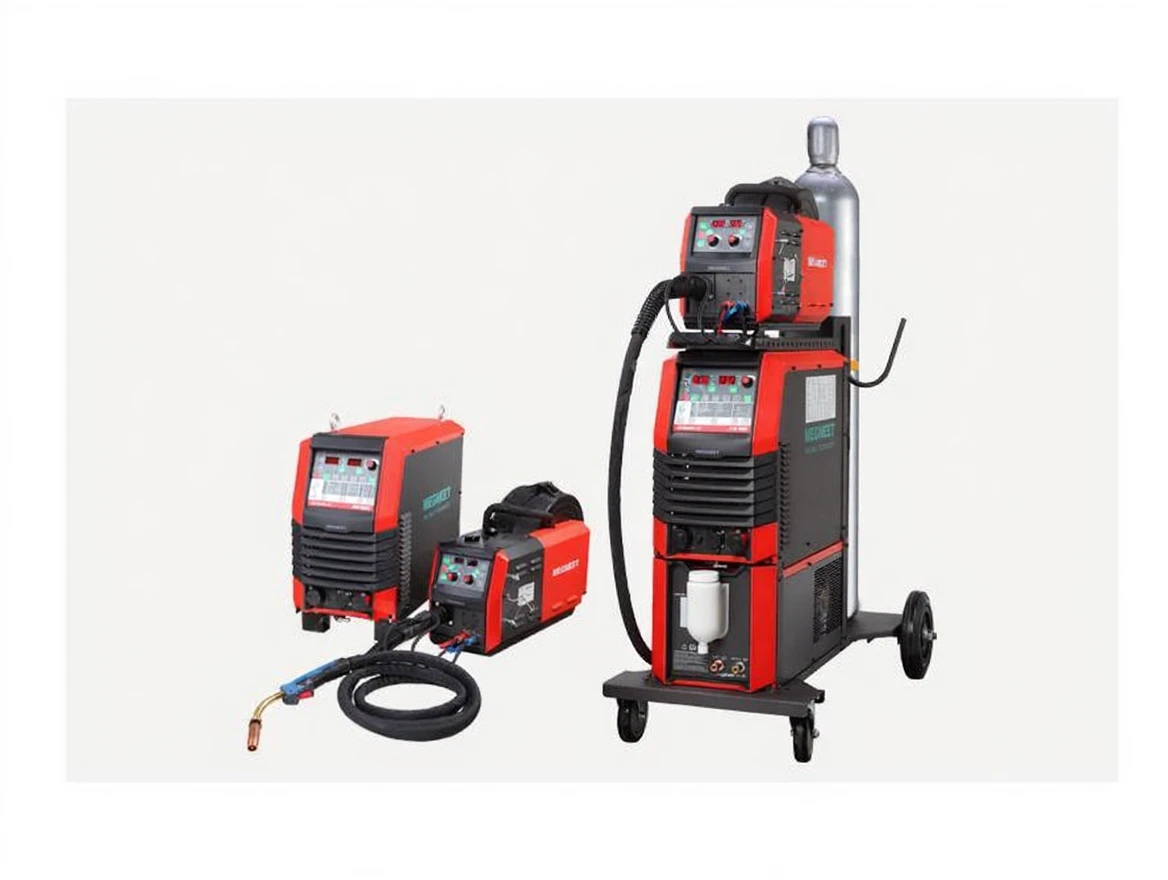

Megmeet Artsen PM 400 N Welding Machine
19.7-18 kVA MIG-MAG-CO2 N Carbon Steel Stainless Steel Welding Machine
Multiple Welding Methods:They can support different welding methods such as MIG (Metal Inert Gas), MAG (Metal Active Gas) and CO2 (Carbon Dioxide), providing flexibility for welding a variety of materials.
High Performance:With its strong and robust structure, Artsen PM welding machines offer high welding efficiency and stable performance.
User-Friendly Controls:They have a user-friendly control panel that provides easy operation, allowing operators to do their jobs more efficiently.
Security Features:They are designed in accordance with safety standards and have important safety features such as overcurrent protection and overheating protection.
Durability and Longevity:Artsen PM welding machines, manufactured from high quality materials, can operate for a long time and reliably.
Technological Innovation:Some models may have technological features such as digital displays, programmable welding parameters and automatic settings, allowing users to perform more precise and efficient welding operations.
Megmeet Artsen PM 400 N Technical Specifications
Control Mode: Full Digital Mode
Rated Input Voltage: AC 3PH 380V /-25% (3PH 285V ~ 3PH 475V)
Input Frequency: 30 ~80 HZ
Rated Input Power: 19.7-18 kVA
Power Factor: 0.93
Proficiency: 87%
Rated OCV:73.3V
Rated Output Current: 30 ~ 500 A
Duty Cycle: 400A 100% @ 40°C
Applicable Material: Carbon Steel Stainless Steel
Welding Process:MIG / MAG / CO2 – Pulse MIG / MAG – Double Pulse MIG / MAG
Wire Diameter: [ PHONE HIDDEN ] mm
Welding Working Mode: 2T / 4T / Special 4T / Spot Welding
Parameter Channel: 50
Inductance Scope: -9 ~ 9
Push-Pull Torch Function: Yes
Communication with Robot Controller: Analog; DeviceNet; CANOpen; MEGMEET CAN; EtherNet/IP
Digital Counter on Wire Feeder: Yes
Cooling Mode: Air Cooled – Water Cooling (Optional)
Electromagnetic Compatibility: IEC60974:10 EMS
Insulation Class: H
Ingress Protection: IP 23S
Lightning Protection: Class D (6000V/3000A)
operating temperature
Dimension (L / W / H): 620 x 300 × 480 mm
Gross Weight: 52KG
