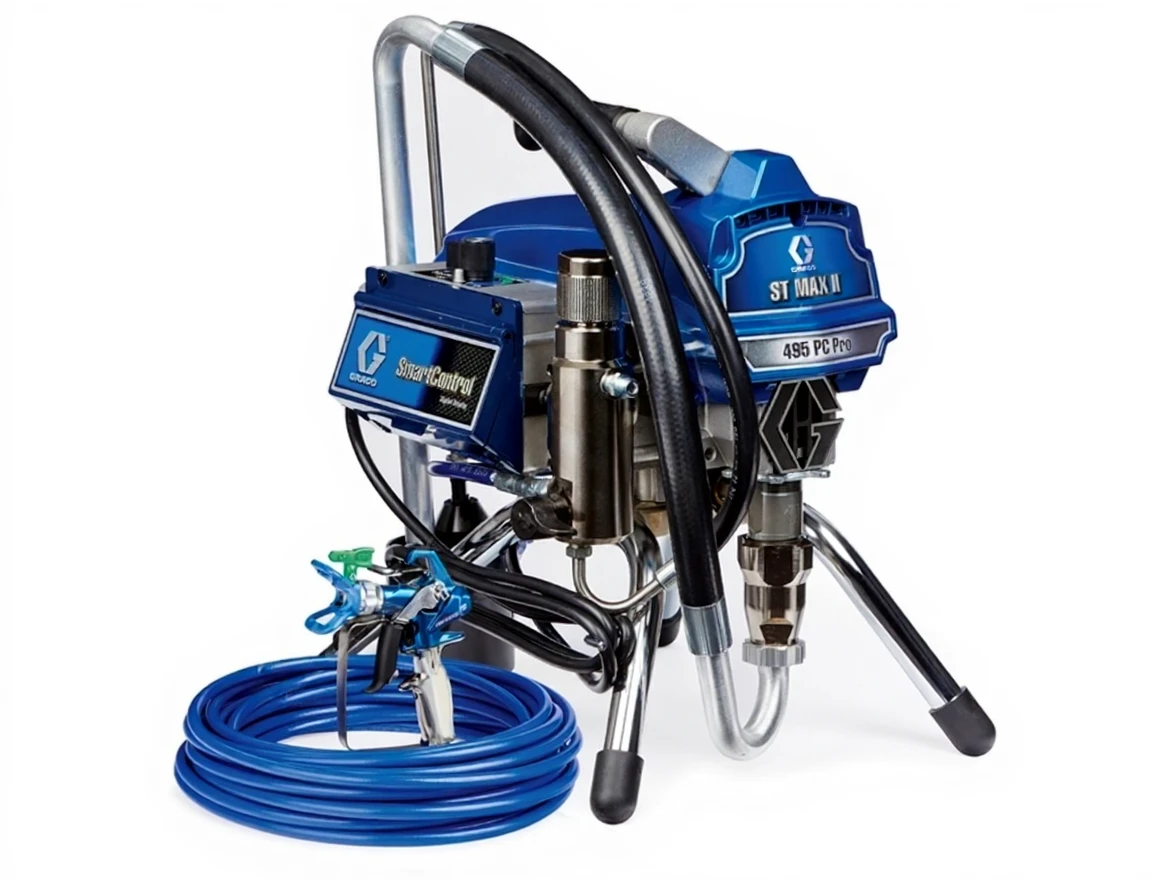

2.3 Litre / Minute Electric Airless Spray Machine
| Brand | Graco |
|---|---|
| Model Type |
ST Max II 495 PC Pro |
ST Max II 495 PC Pro 2.3 Litre / Minute Electric Airless Paint Sprayer
The ST Max II 495 PC Pro airless sprayer combines the leading technology and performance of Graco’s larger Ultra Max II models in a compact design that is lightweight (up to 15 kg) and easy to carry, providing higher torque, consistent pressure, and faster cleaning options to finish jobs faster.
High Efficiency. Unique Reliability. Graco’s medium-sized electric airless sprayer facilitates more work to be done in a day with higher flow rates and production speeds.
Durable Endurance Chromex Piston Pump
- Lasts 2 times longer than its biggest competitor
- Long-lasting V-Max Blue Seals, Chromex shaft, and hardened stainless steel cylinder
- Faster cleaning with QuikAccess inlet valve
SmartControl with Digital Display
- Even pressure distribution on every job
- Continuously monitors performance and adjusts motor speed according to your spraying needs
- Measures sprayer in litres/gallons, hours, and pressure
- Provides support messages and diagnostic assistance
MaxPower Motor and Advantage Drive
- Proven power and performance for all painting applications
- High torque brushless design
- Longest-lasting drive
- Hardened steel gears provide extremely quiet operation
ProConnect One-Piece Pump Replacement System
- Eliminates costly downtime
- Pump can be replaced in minutes – no lost tools, pins, or parts
FastFlush High Flow Cleaning System
- More spraying and less cleaning
- 4 times faster cleaning with half the water
Easy Out Pump Filter
- Easy Maintenance and Less Clogging
- Special inside-out filtering process provides a quality finish
Swivel Inlet Suction Hose
- Easily accesses paint buckets
Contractor PC Spray Gun
- All-Day Comfort and Control
- Lightest gun in its class
- Up to 50% lighter trigger pull force
- E-Z Fit adjustable trigger length
- Completely renewed gun in seconds with ProConnect cartridge
Durable Cart Design with Support Bar
- Withstands tough environments
- Design allows for easy bucket changes by one person
Contractor PC Spray Gun
- All-Day Comfort and Control
- Lightest gun in its class
- Up to 50% lighter trigger pull force
- E-Z Fit adjustable trigger length
- Completely renewed gun in seconds with ProConnect cartridge
ST Max II 495 PC Pro Technical Specifications
|
Fluid Hose Inside Diameter (inch) |
1/4 |
|---|---|
|
Fluid Outlet Size (inch) |
1/4 |
|
Fluid Outlet Size (mm) |
6.35 |
|
Fluid Outlet Thread Type |
NPSM |
|
Weight (kg) |
15 |
|
Pressure Control Type |
SmartControl |
|
Interchangeable |
Non-interchangeable |
|
Phase |
1 |
|
Filter Mesh Size |
60 |
|
Frequency (Hz) |
50 |
|
Power Rating (kW) |
0.89 |
|
Power Source |
Electric |
|
Hose Inlet Diameter (cm) |
0.635 |
|
Hose Inlet Diameter (inch) |
1/4 |
|
Hose Inlet Diameter (mm) |
6.35 |
|
Hose Diameter (inch) |
1/4 |
|
Wet Material |
Galvanized Carbon Steel, Nickel-Plated Carbon Steel, Nylon, Stainless Steel, PTFE, Acetal, Leather, UHMWPE, Aluminum, Tungsten Carbide, Polyethylene, Fluoroelastomer, Urethane |
|
Maximum Flow Rate (L/min) |
2.3 |
|
Maximum Hose Length (m) |
30 |
|
Maximum Sound Pressure Level (dB(A)) |
90 |
|
Maximum Liquid Working Pressure (psi) |
3300 |
|
Maximum Orifice Size (cm) |
0.0635 |
|
Maximum Orifice Size (inch) |
0.025 |
|
Maximum Orifice Size (mm) |
0.6350 |
|
Maximum Orifice Size 1 Gun (cm) |
0.0635 |
|
Maximum Orifice Size 1 Gun (inch) |
0.025 |
|
Maximum Orifice Size 1 Gun (mm) |
0.6350 |
|
Maximum Working Pressure (bar) |
227 |
|
Maximum Working Pressure (kPa) |
2270 |
|
Maximum Working Pressure (kg/cm²) |
22.7 |
|
Maximum Working Pressure (psi) |
3300 |
|
Minimum Generator Power (W) |
3750 |
|
Minimum Generator Power (kW) |
0 |
|
Model |
ST Max II |
|
Motor Size (kW) |
0.89 |
|
Motor Type |
Brushless DC |
|
Pump Housing Material |
Hardened Stainless Steel |
|
Pump Shaft Type |
Chromex |
|
Pump Mounting Type |
ProConnect |
|
Pump Type |
Endurance |
|
Spray Gun Type |
Contractor PC Pro Gun |
|
Spray Type |
Airless |
|
Series |
495 PC Pro |
|
Number of Guns |
1 |
|
Type |
Airless Spray Machine |
|
Total Width (cm) |
35.6 |
|
Total Width (mm) |
355.6000 |
|
Total Length (cm) |
40.6 |
|
Total Length (mm) |
406.4 |
|
Total Height (cm) |
47 |
|
Total Height (mm) |
469.9000 |
|
Compatible Replacement Pump |
17C489 |
|
Voltage (V) |
230 |
|
Chassis Configuration |
Stand |
|
Outlet Paint Filter |
60 mesh stainless steel screen |
|
Includes |
All units are shipped complete and ready to spray with the following parts: 17Y043 Contractor PC™ gun, LP517 Tip, 246215 RAC X™ Butterfly, 287032 Easy-Out™ filter (60 mesh), 240794 BlueMax™ II Hose (1/4 inch x 15m), 15F446 Gun Tool, 111733 adjustable wrench, 238049 TSL™ (118 ml). |
