2 Axis 2 Unit Eco Cnc Wood Lathe Machine

CNC LATHE TECHNICAL SPECIFICATIONS

Working area: square 300x300mm length 1050

Control unit: ADTECH AND OPTIONAL OMRON CONTROL UNIT

Product Features

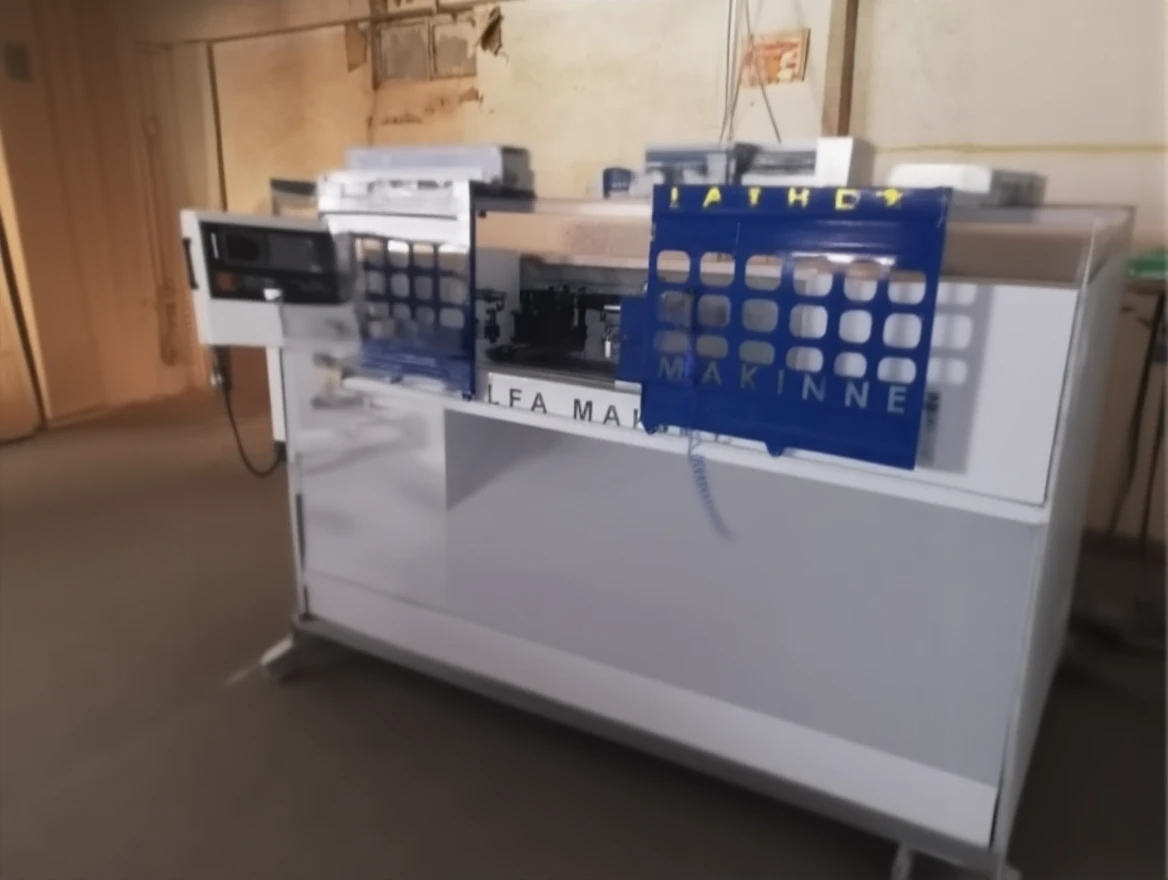

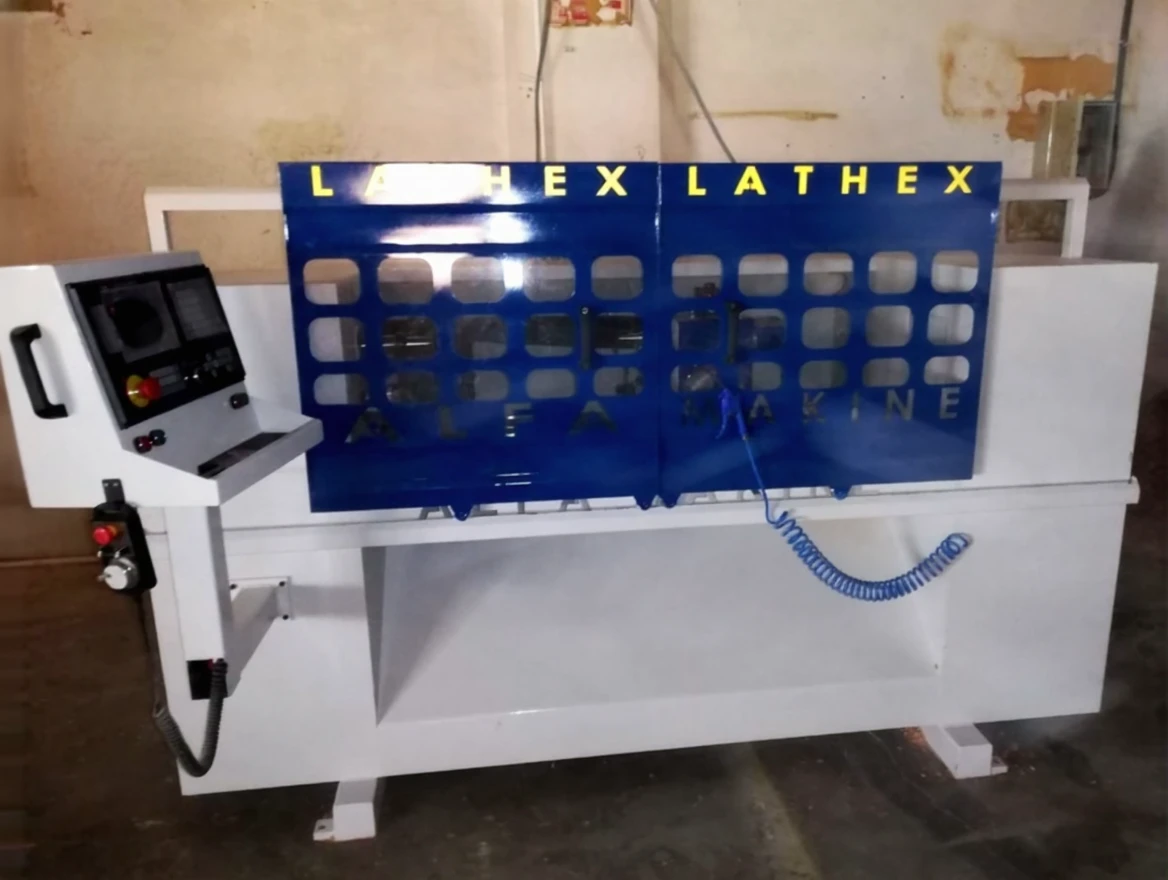

LATHEX 2 Axis Cnc Wood Lathe Machine

 It has an automatic changing double blade technology (triangular and cup) feature. This system saves users from the hassle of changing blades. Thus, operations can be completed easily and much faster. The extra benefit this feature brings to the user is that it can complete the process much faster according to standards by using the cup blade for rough operations and activating the triangular blade for pattern details.

Technical Specifications

Working Area: Max Diameter: 300 mm Max Length: 1100 mm

Control Unit: ADTECH 4620 7" Mono LCD Color Screen

USB Memory input on the front panel

3D model and simulation display of the workpiece

Point Pneumatic locking System

Z axis movement: 1100mm

X axis movement: 170mm

Long Axis Speed (Z): 98 m/min

Short Axis Speed (X): 28 m/min

Lathe Speed (C): 6000 rpm

Installed Power: 8.5 kw

Weight: 1800 kg

Machine Dimensions: Length: 2800mm * Width: 1450mm * Height: 1700mm

Automatic Lubrication: 19 Points Time-Adjusted Automatic Lubrication

Workpiece Clamping: Pneumatic Piston (7 Bar)

Workpiece Length Adjustment: Easy Adjustment with Control (Keyless, Screwless)

Workpiece Centering: Easily adjustable centering apparatus

Cutter Blade: Hardened triangular blade made of special steel

Cup blade made of hardened special steel

Drawing Program: PEGASUS Cad-Cam Program

DESIGN CAN BE MADE UPON REQUEST.

For detailed information, please call.
