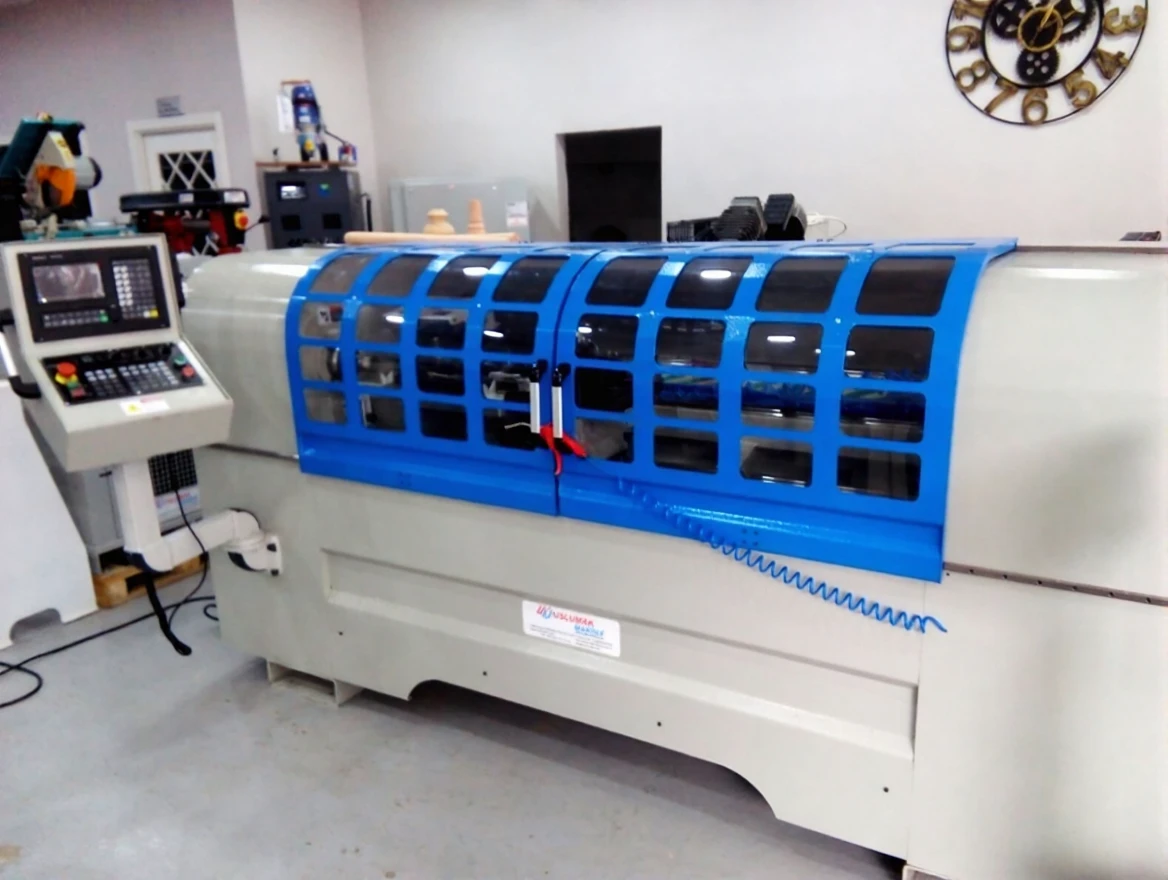

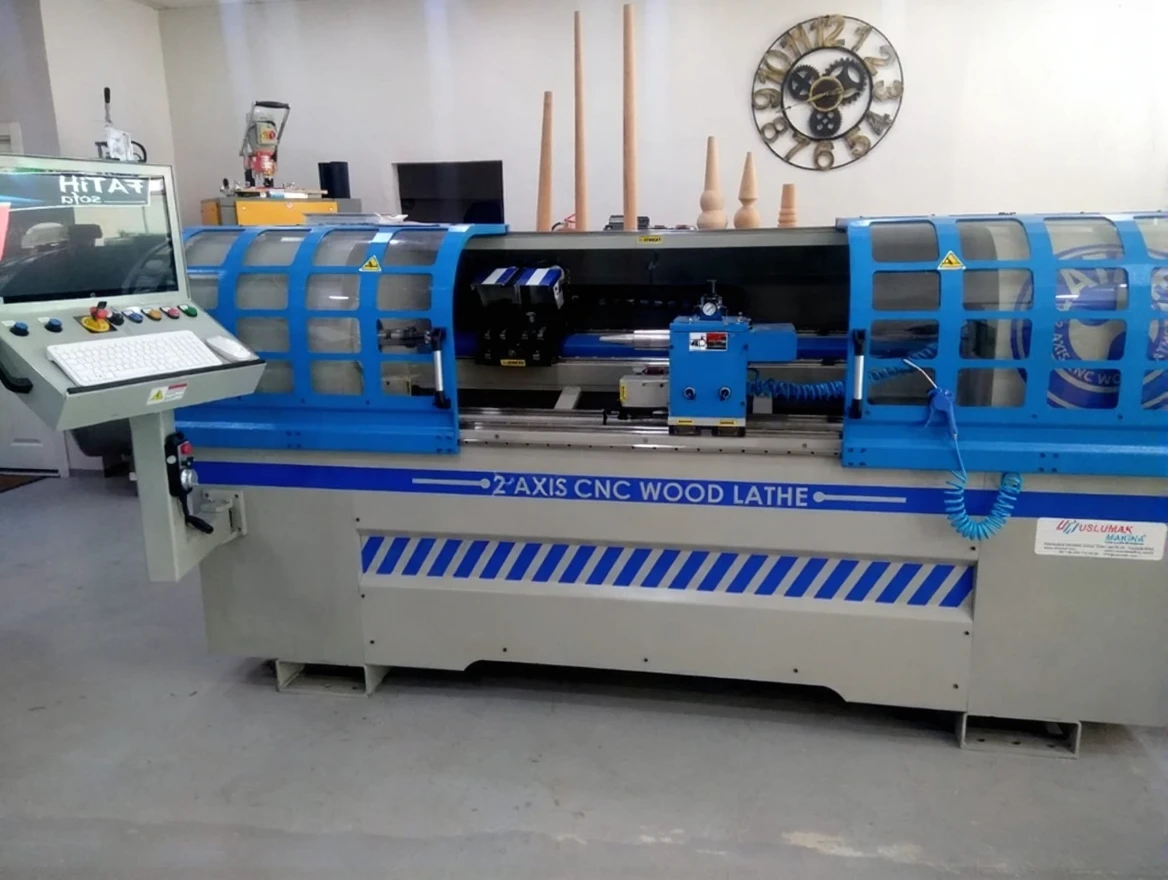

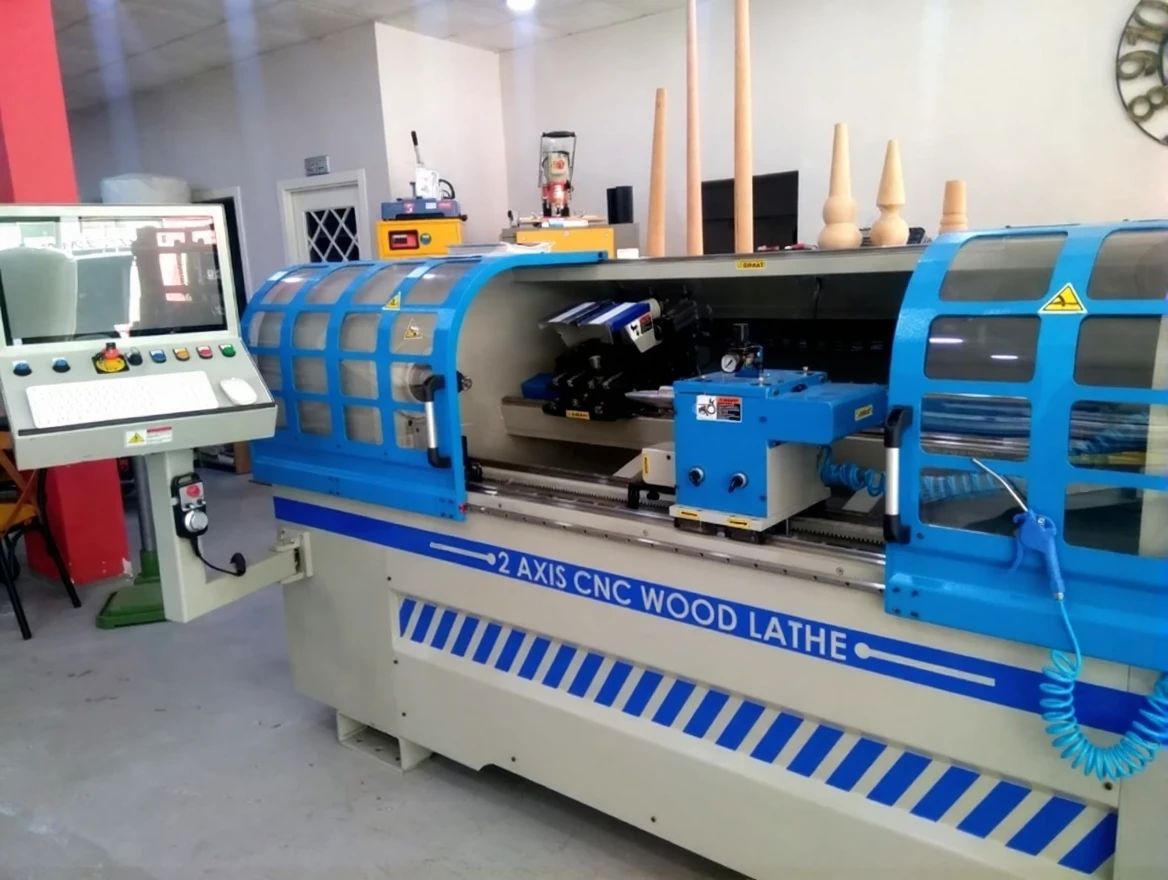

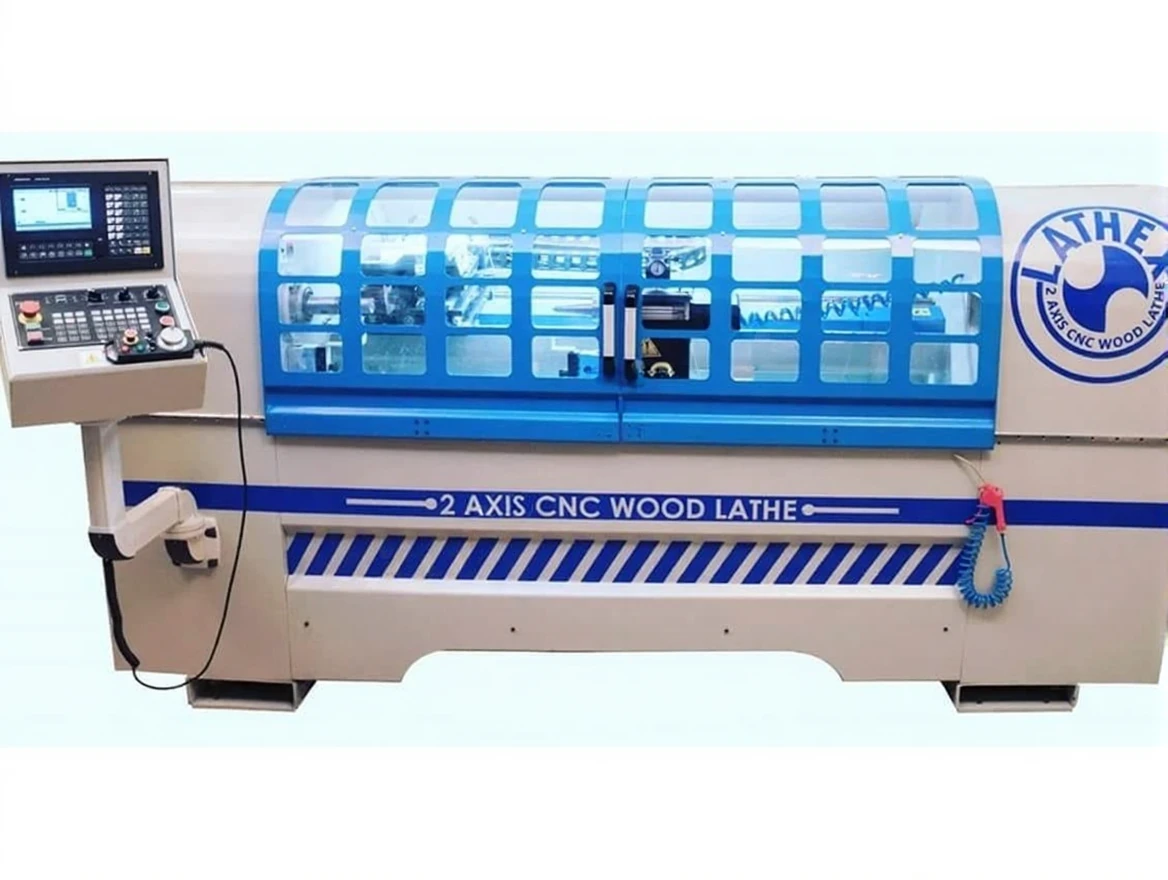

2 Axis 2 Unit Pro Cnc Wood Lathe Machine

•         Automatic Changing Double Blade Technology (triangle/cup and chisel tip) allows the user to complete the process much faster by using the cup blade for rough operations and the triangle blade for pattern details.

•         The machine has a CNC lathe control panel and keypad.

•         Easier and Faster Processing Thanks to Double Blades

•         The chip removal conveyor system ensures that the chips are discharged from a single point without spreading around.

•         19 points with a timed Automatic Lubrication System

•         USB Memory Input on the Front Panel and its own memory inside the panel

•         3D and Simulation Display of the Model to be Processed

•         Can perform operations such as profile and curve operations with G02 / G03 / G01 commands.

•         Part Clamping: There are two Pneumatic / 7 Bar clamping pistons on the counter point, which do not release the material during air cut-off.

•         Machine Dimensions: 2800x1450x1700 mm

•         Working Area: Max. 300 mm Length: 1100 mm

•         Spindle Speed: Lathe speed max 6000 rpm adjustable speed controlled 4 kw spindle motor

•         Z Axis Speed: 98 m/min 1.5 kw servo motor and driver

•         X Axis Speed: 28 m/min 0.75 kw servo motor and driver

•         The machine’s movement system uses a linear ball screw system.

•         Z axis movement is with a 1100 mm lead screw

•         X axis movement is with a 170 mm lead screw

•         Part length can be pneumatically adjusted without a wrench

•         Easy to adjust centering system for part centering

•         The machine body is made of SD 45 / 1050 manufacturing steel.

•         Our machine has a phase protection system.

•         Machine installed power 8.5 kw

•         Machine weight: ~1520 kg

•         Cutting blades are made of special steel, hardened triangle and cup blades

•         The parts of the machine are designed by our company in CAD software and processed in CNC machining centers, providing ease of spare parts.

•         Drawing program is Pegasus Cad / Cam program
