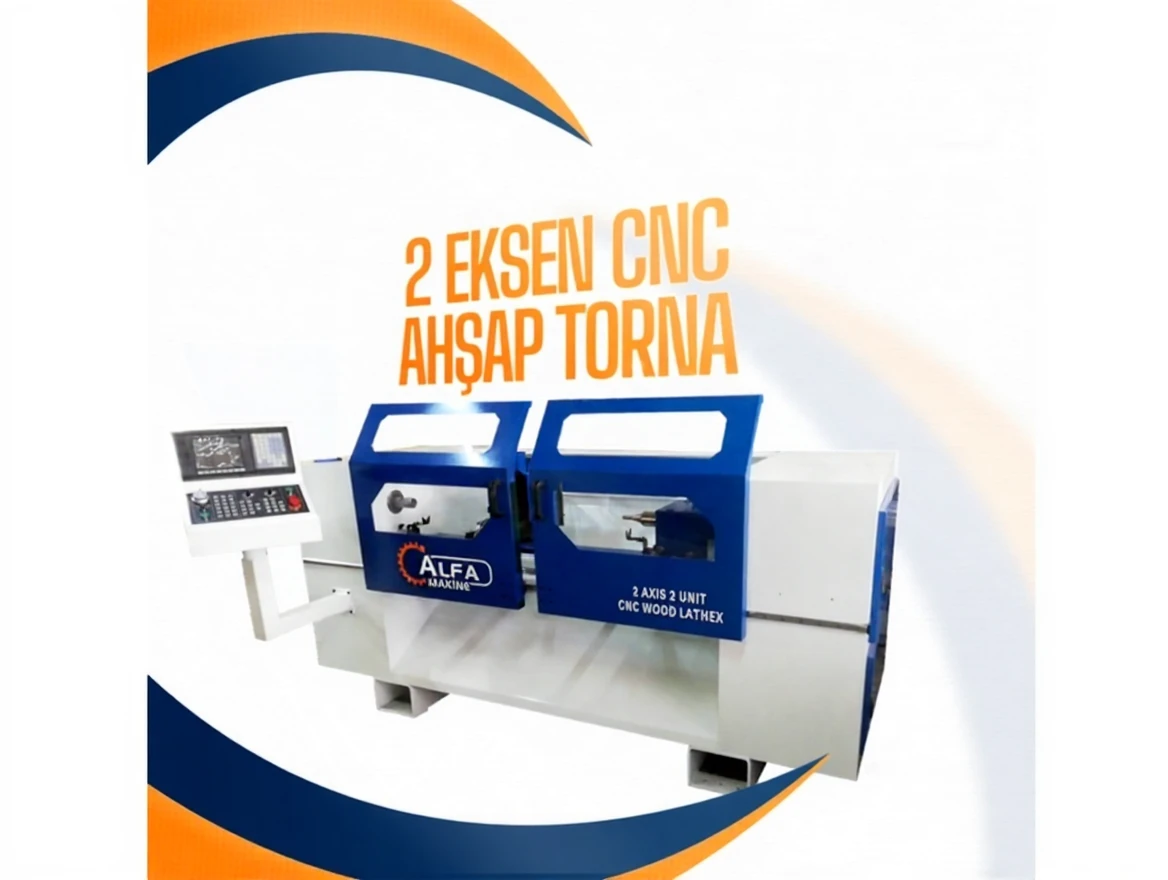

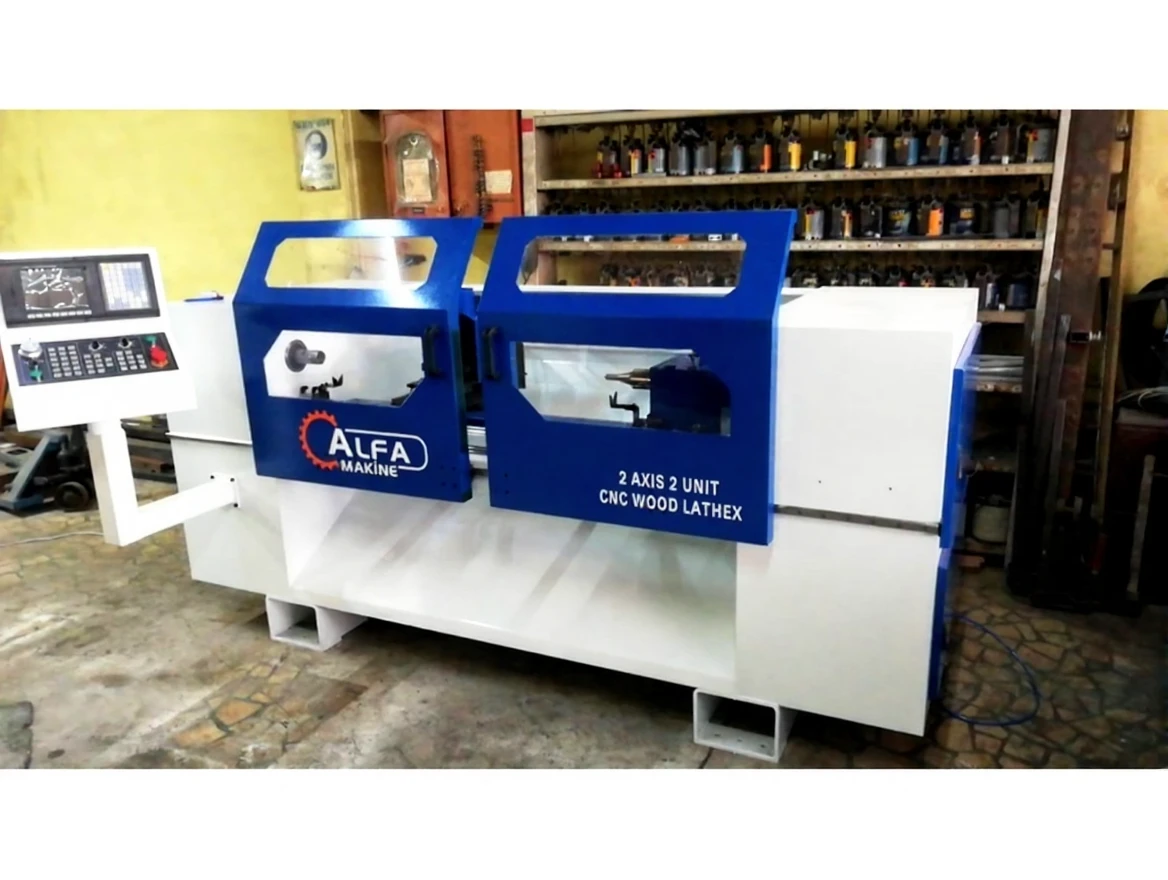

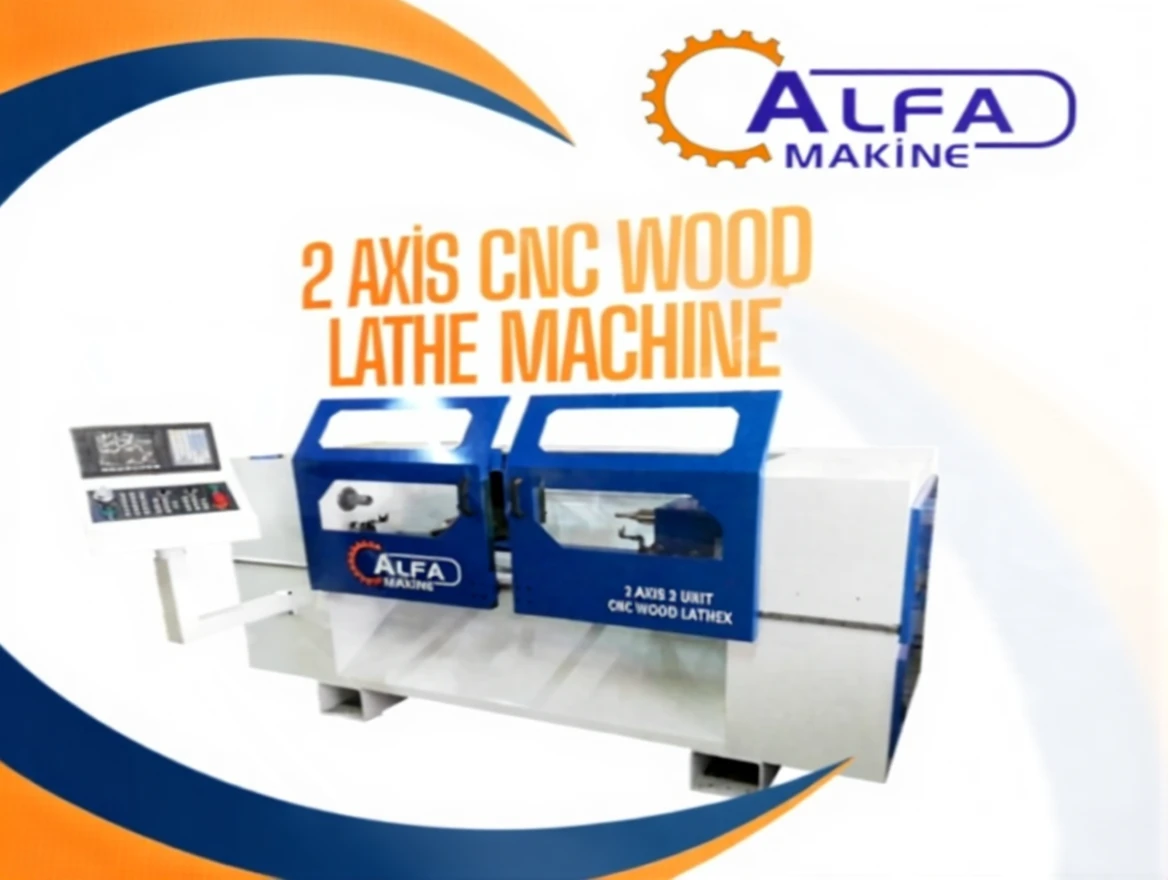

2 Axis 2 Unit Wooden Cnc Lathe Machine

It has an automatic changing double blade technology (triangular and cup). This system saves users from the hassle of changing blades, allowing you to obtain products much faster and cleaner.

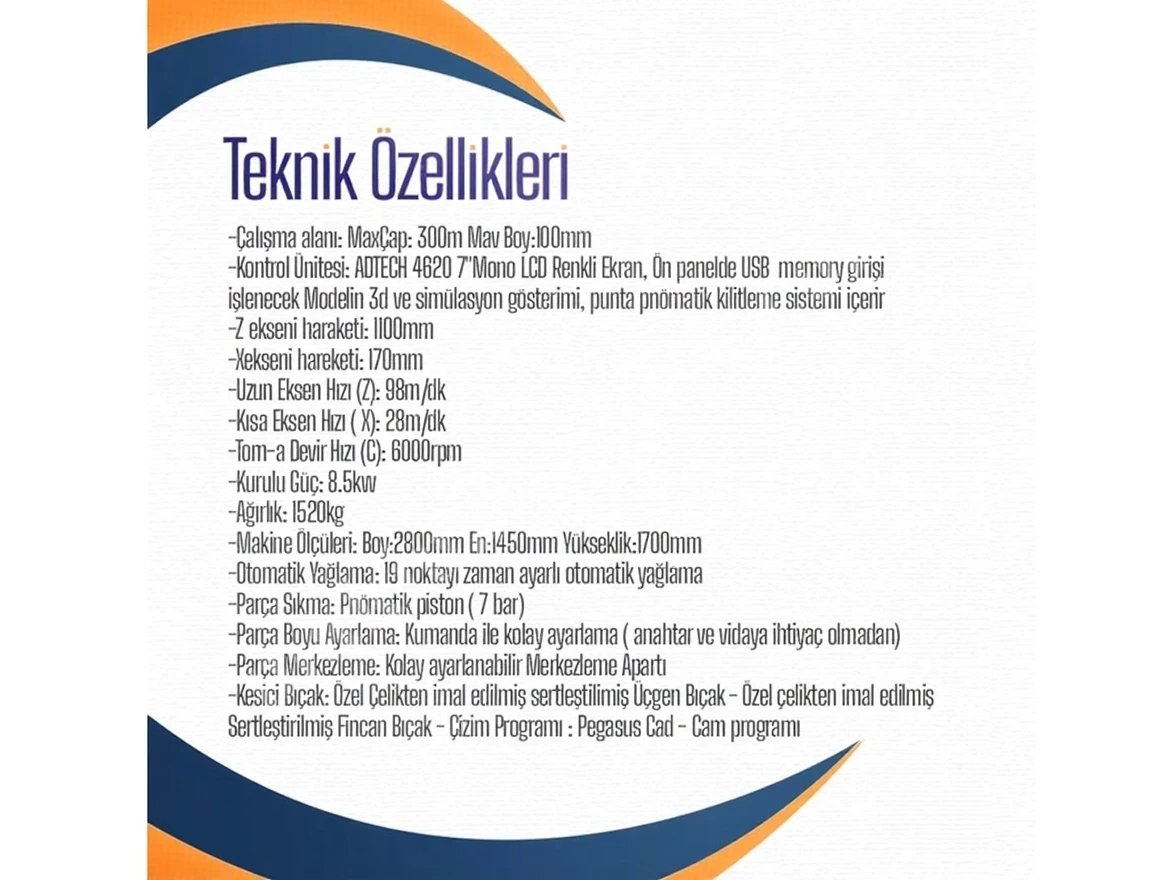

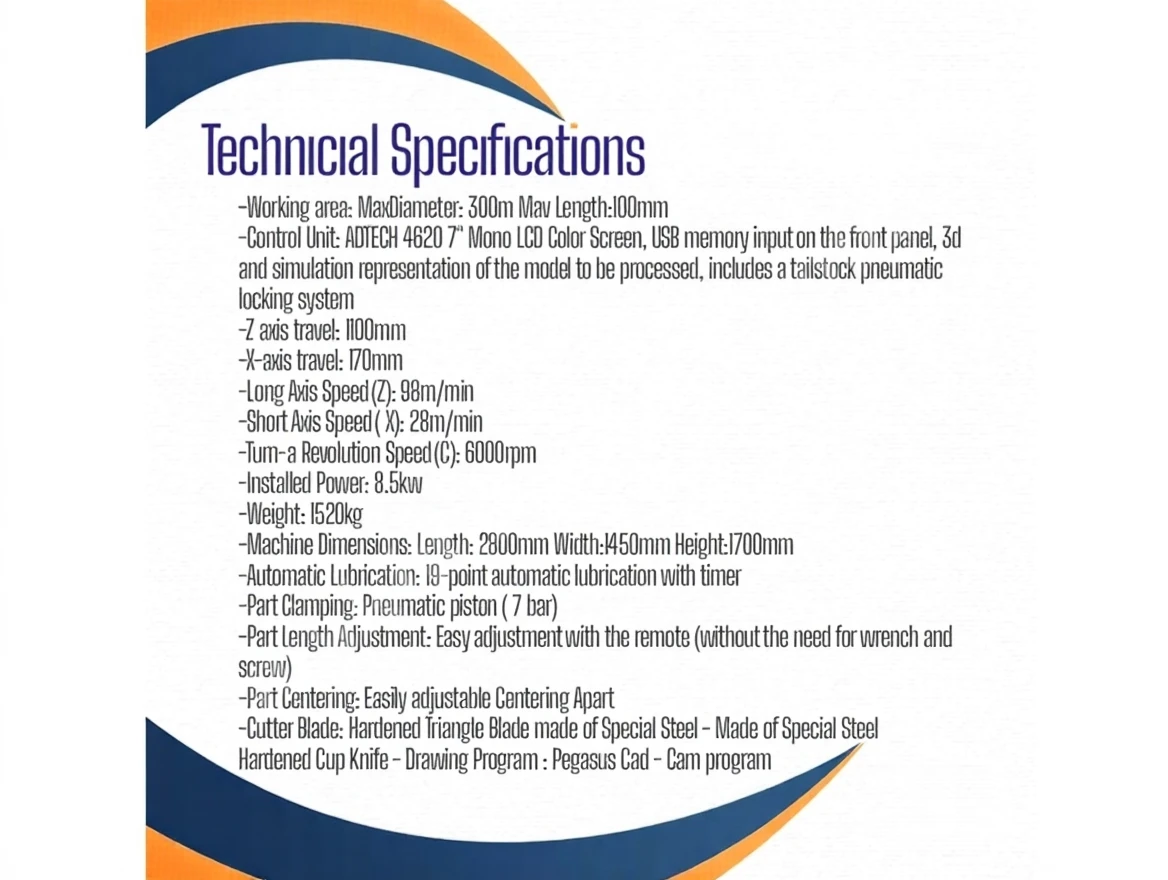

Working area: Max Diameter 300 Max Length 1100mm

Control Unit: ADTECH 4620 7¨ Mono LCD Color Screen, USB memory input on the front panel

Includes 3D and simulation display of the model to be processed, pneumatic locking system

Z axis movement: 1100mm

X axis movement: 170mm

Long axis speed (Z): 98m/min

Short axis speed (X): 28m/min

Lathe speed (C): 6000rpm

Installed power: 8.5kw

Weight: 1520kg

Machine dimensions: Length 2800mm Width 1450mm Height 1700mm

Automatic lubrication: Time-controlled automatic lubrication from 19 points

Part clamping: Pneumatic piston (7bar)

Part length adjustment: Easy adjustment with control (without the need for a key and screw)

Part centering: Easily adjustable centering device

Cutter blade: Hardened triangular blade made of special steel, hardened cup blade made of special steel

Drawing program: PEGASUS Cad-Cam Program
