2-Cavity 1000 Bottle / Hour PET Bottle Blowing Machine

2-Cavity Semi-Automatic PET Bottle Blowing Machine

Mucitler Makina ESHF2-SML

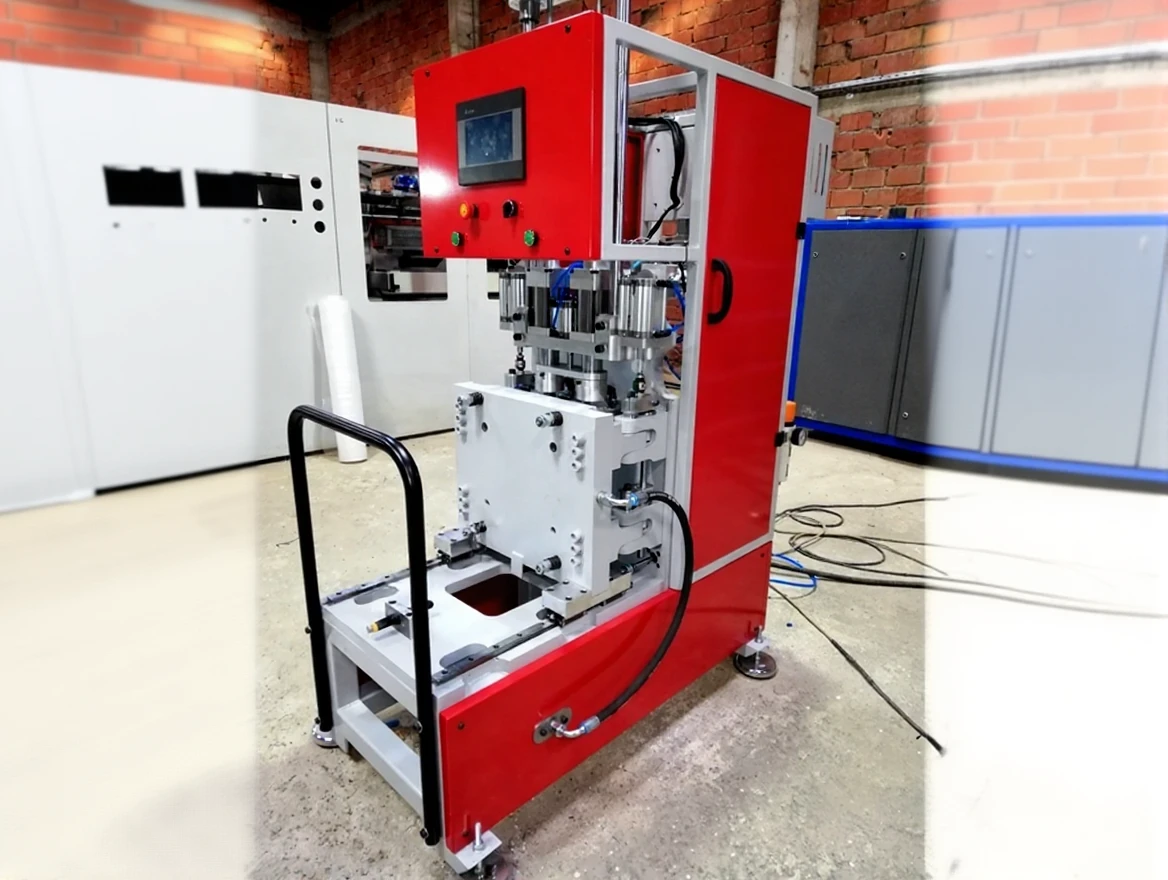

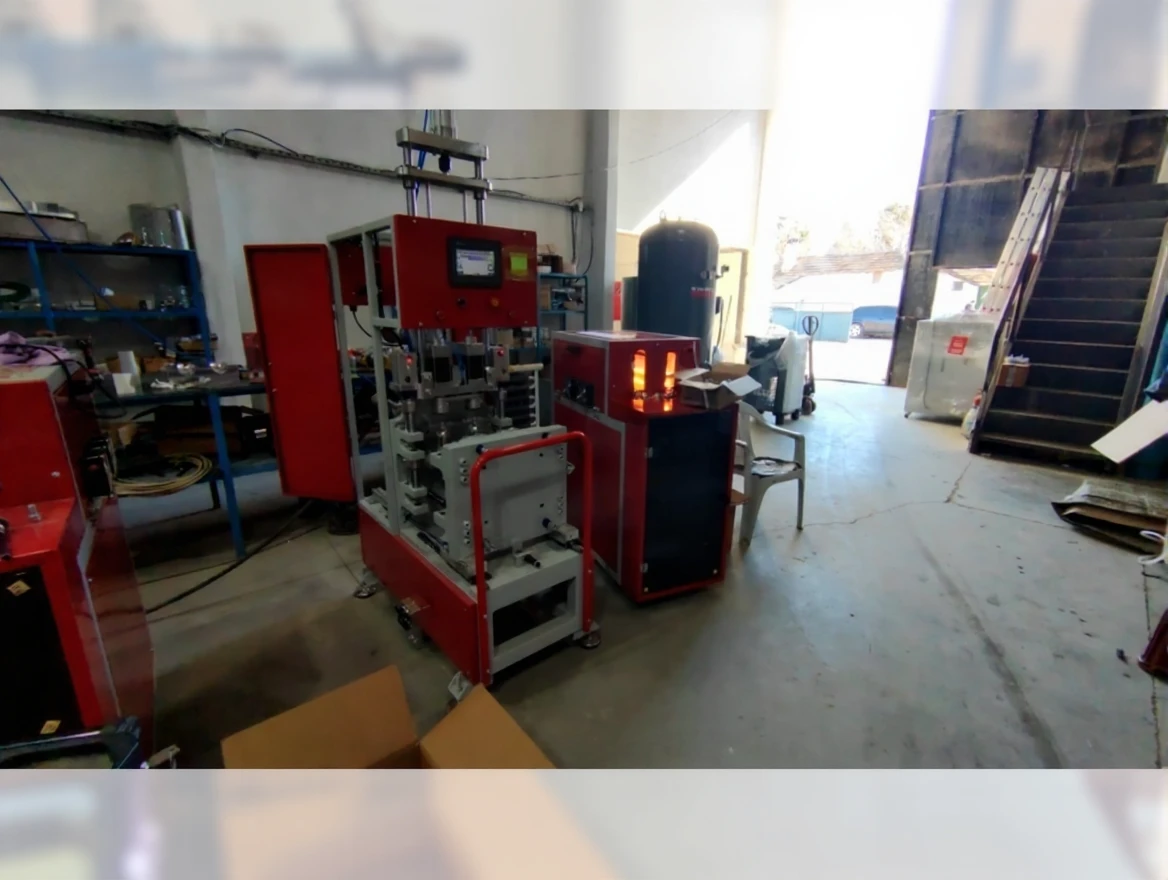

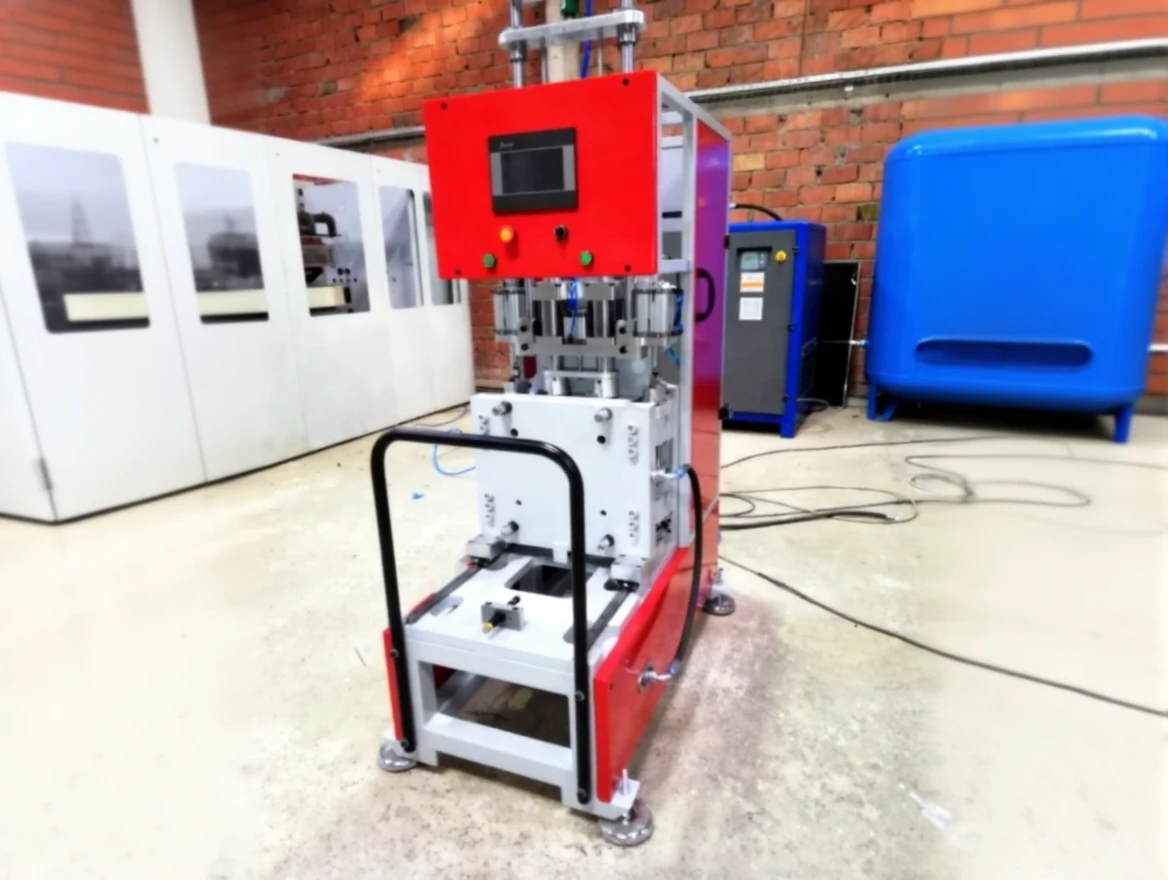

The ESHF2-SML model of Mucitler Makina is designed for businesses that want to produce PET bottles in different sizes from 100 cc to 3 liters. It is a 2-cavity, manually preform-fed semi-automatic blowing machine. This model, which is particularly suitable for medium-scale production lines, offers a production capacity of up to 1000 bottles per hour.

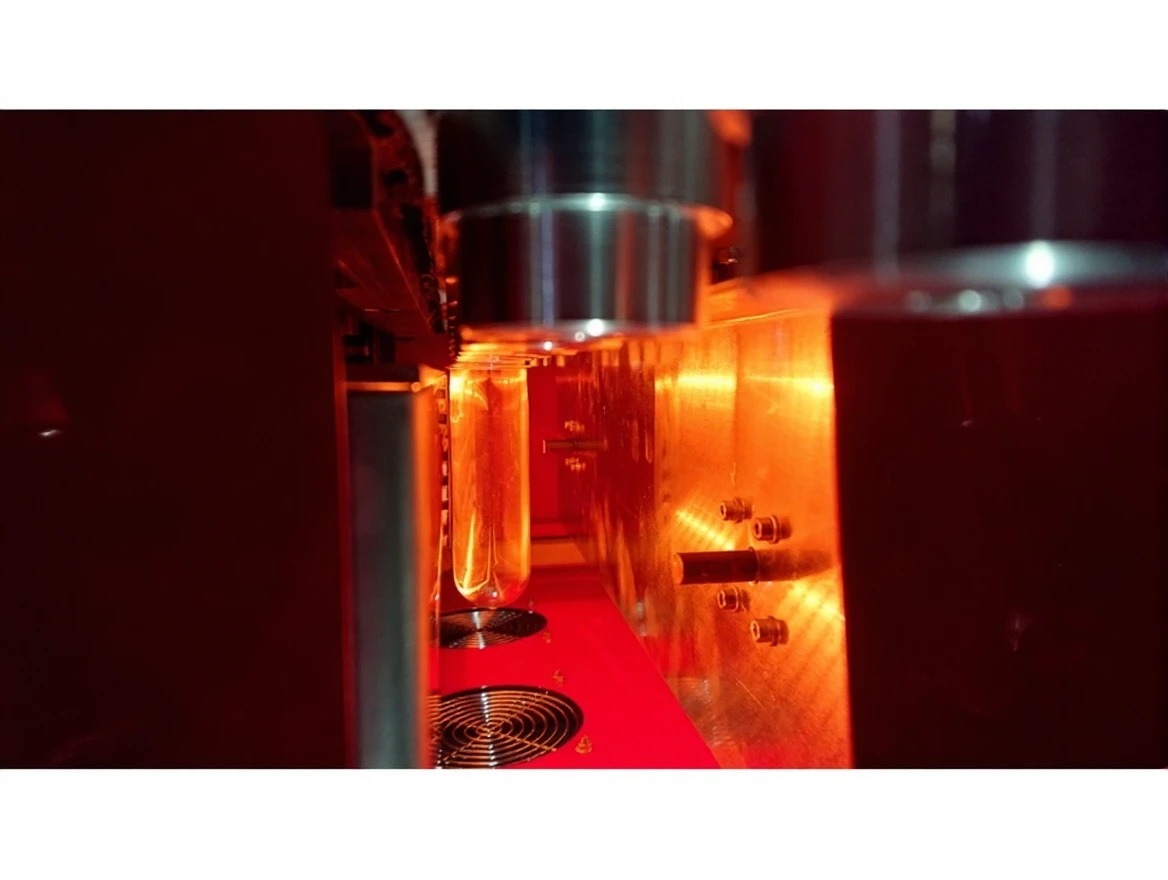

The machine can easily process bottle sizes of up to 160 mm in diameter and 350 mm in height. The mouth diameter can vary up to 48 mm. A 6-row lamp system that can be specially adjusted for short preform usage is provided as standard, while an optional 8 or 10 row lamp option is also available.

Technical Details:

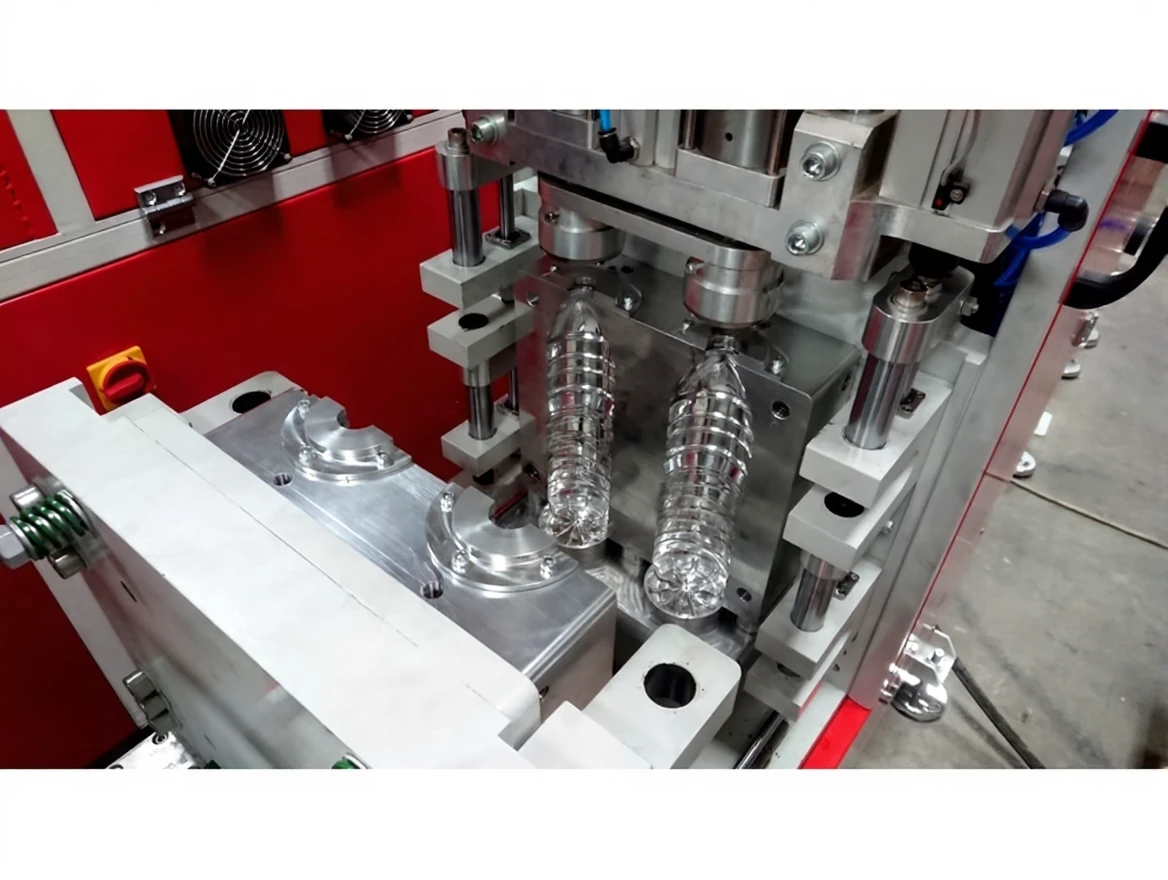

• Number of Cavities: 2 cavities

• Preform Feeding: Manual

• Capacity: 1000 bottles/hour (250 cc reference)

• Bottle Dimensions: 160 mm diameter x 350 mm height

• Bottle Volume: 100 cc – 3 liters

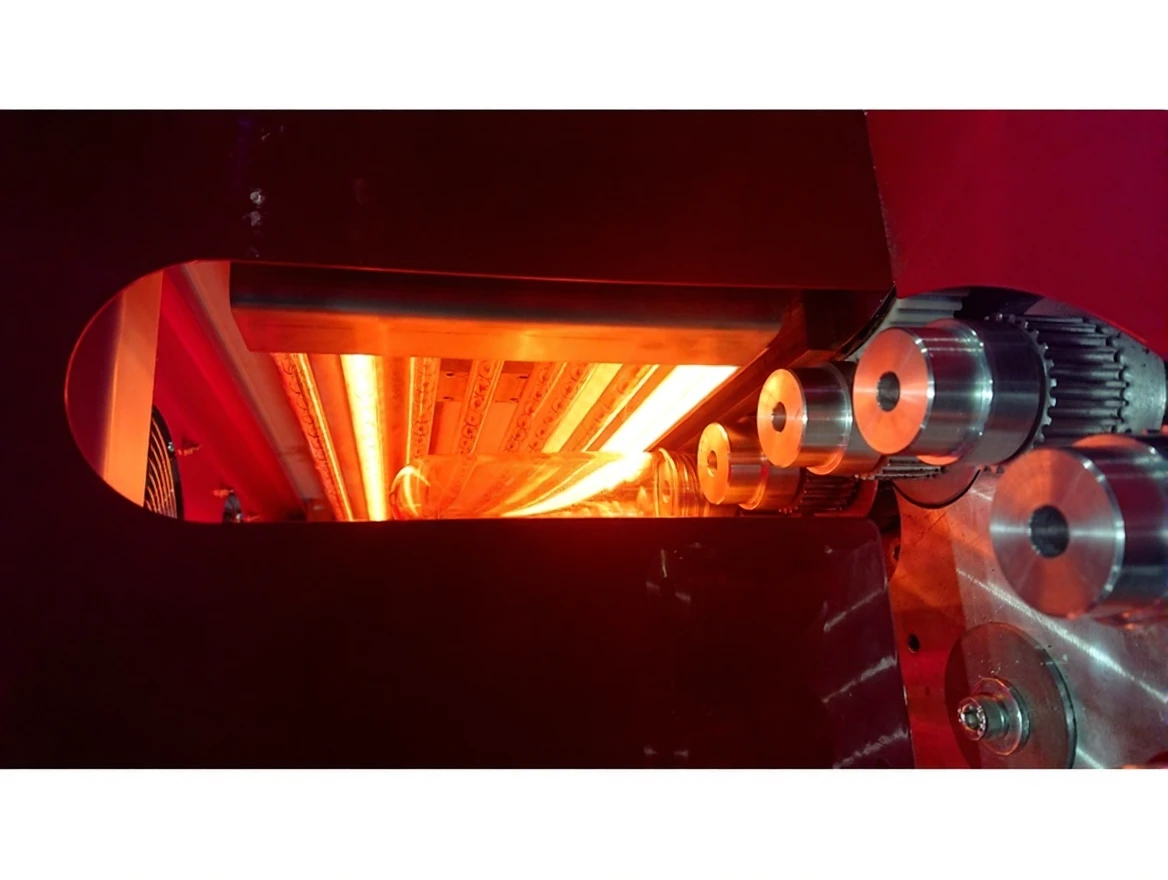

• Lamp Rows:

  • Standard: 6 rows (adjustable for short preforms)

  • Optional: 8 or 10 rows

• Motor Power:

  • 2 kW Mold Closing

  • 0.75 kW Oven Rotation

• Oven Heating Capacity: 36 kW

• Cooling Requirement: 4000 kcal (recommended cooling water between 5–10 °C)

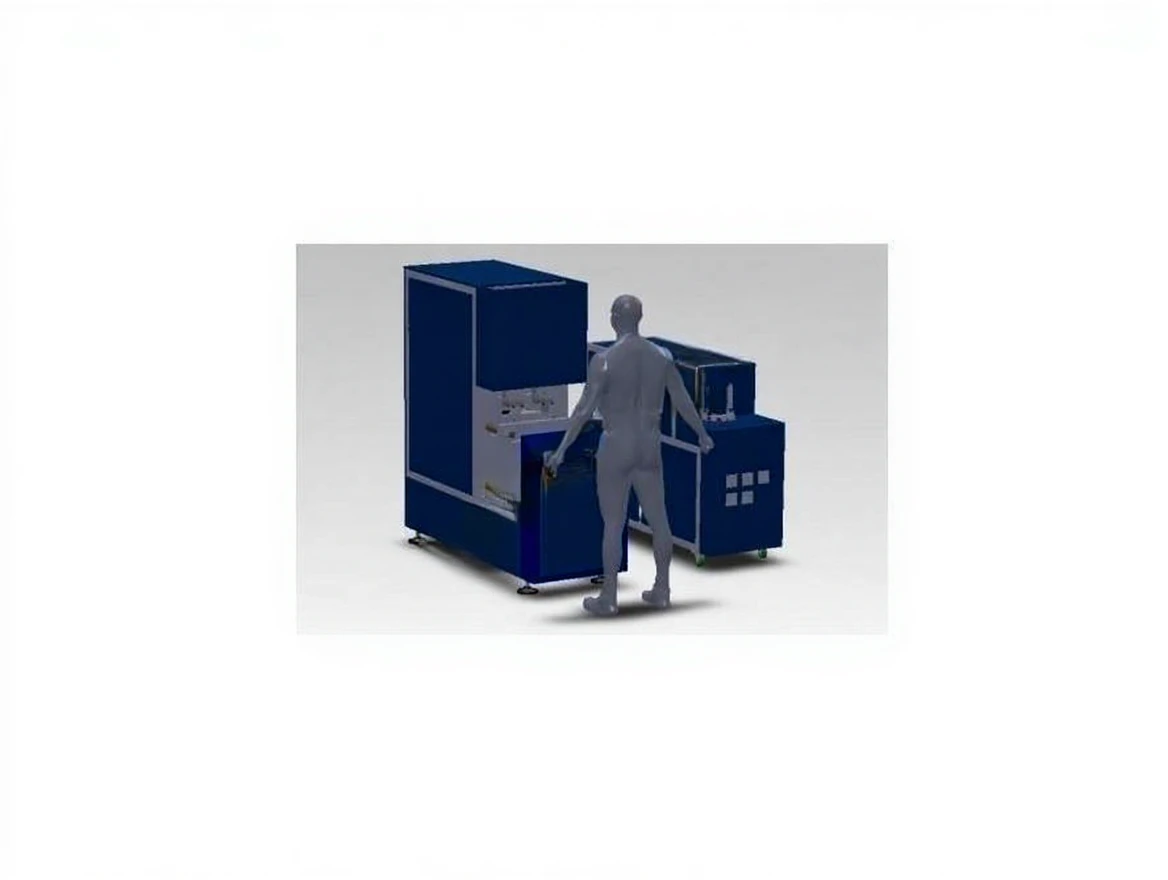

• Machine Dimensions (oven and blowing combined):

  • Height: 1600 mm

  • Length: 1400 mm

  • Width: 1200 mm

• Weight: 800 kg

ESHF2-SML offers an economical and practical solution for medium-scale water and liquid filling facilities. With the semi-automatic system, it is possible to achieve high efficiency without losing operator control. Its durable structure and energy-efficient design ensure long-term use.
