2 Eyed 5 Liter Fully Automatic PET Bottle Blowing Machine

2 Eyed 5 Liter Fully Automatic PET Bottle Blowing Machine

Inventors Machine ESFA2-MVC-MS

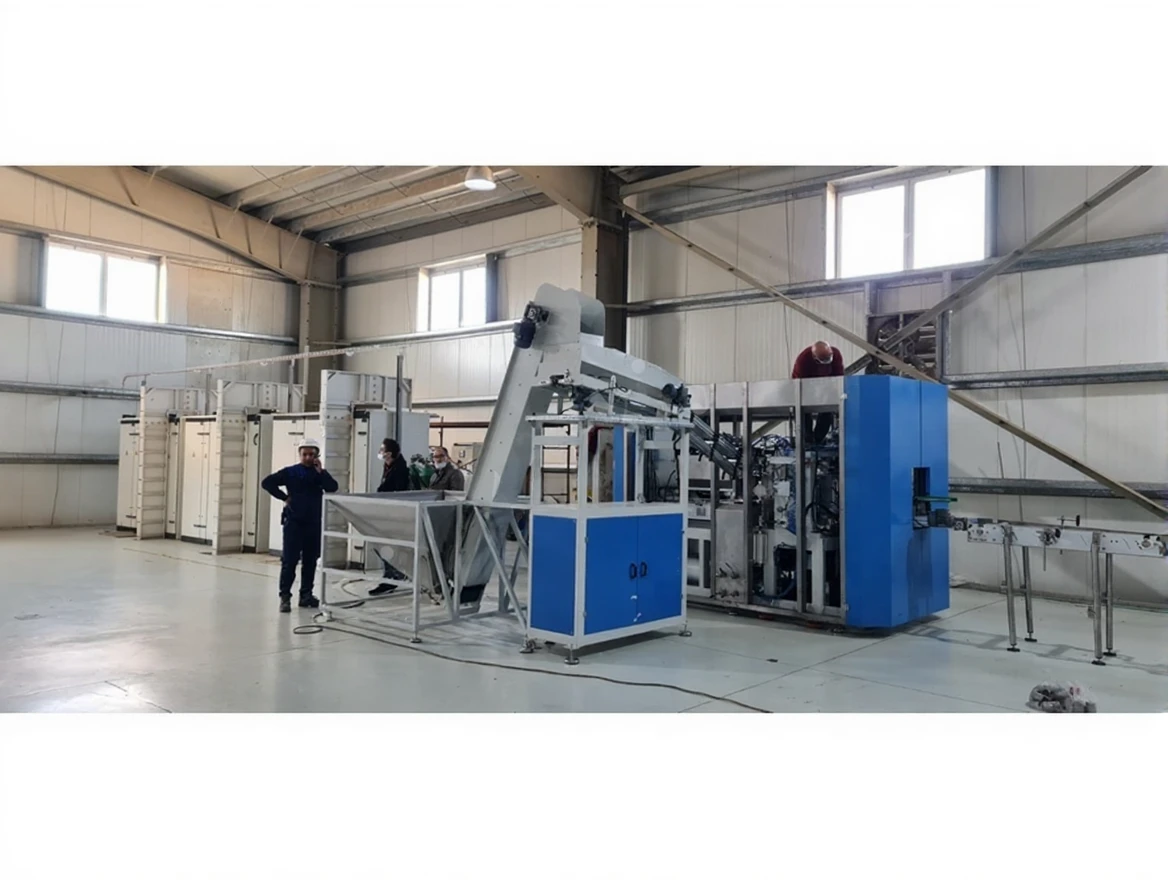

ESFA2-MVC-MS is a fully automatic and 2 eyed PET bottle blowing machine developed by Inventors Machine for the production of 5-liter water bottles. Thanks to its high efficiency and automation capability, it offers an ideal solution for facilities producing 5-liter water.

Although the machine is optimized especially for 5-liter bottles, it is suitable for producing bottles in different volumes from 1 cc to 6 liters. It is designed for bottles with a mouth diameter of 48 mm and has a production capacity of 1500 pieces of 5-liter bottles per hour. Bottle dimensions are compatible with 90 mm diameter x 320 mm height.

Technical Specifications:

• Lamp Heating System:
  Provides powerful and homogeneous heating with 10 rows of lamps. An optional 12-row version is also available.

• Motor Powers:

  • 4 kW Mold Closing

  • 2 kW Oven Rotation

  • 2 kW Preform Feeding

  • 2 kW Stretch

  • 1.2 kW Robot Systems

• Oven Heating Capacity: 120 kW

• Cooling Requirement: 6000 kcal – Recommended operating range 5-10 °C

• Machine Dimensions:

  • Height: 2000 mm

  • Length: 4700 mm

  • Width: 2300 mm

• Total Weight: 7700 kg

This model stands out with high production performance, reduced labor requirement, and low risk of failure in both medium and large-scale water filling plants. It accelerates the production process with its fully automatic system while providing consistent quality.
