2 m³ and 3 m³ Hydrostatic Compact Road Sweeper

Brand Çeksan
Model Type

CityMouse

Description

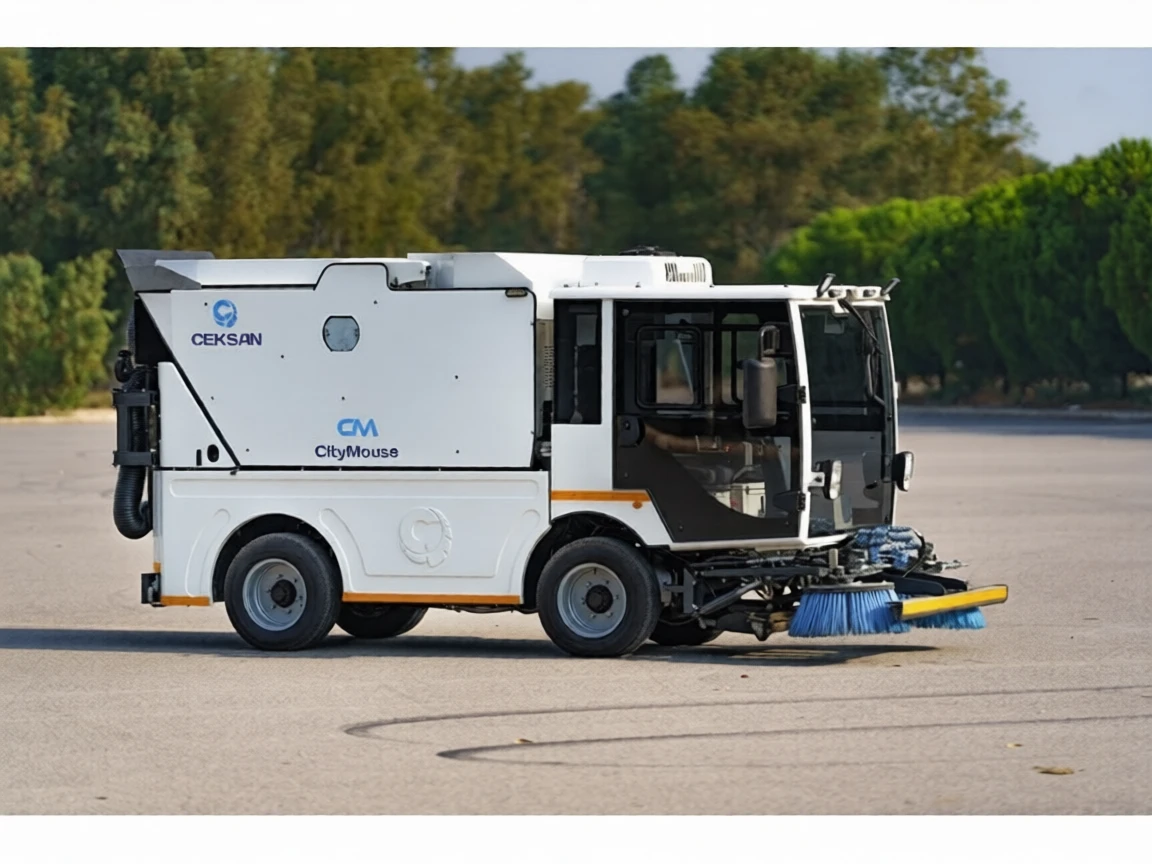

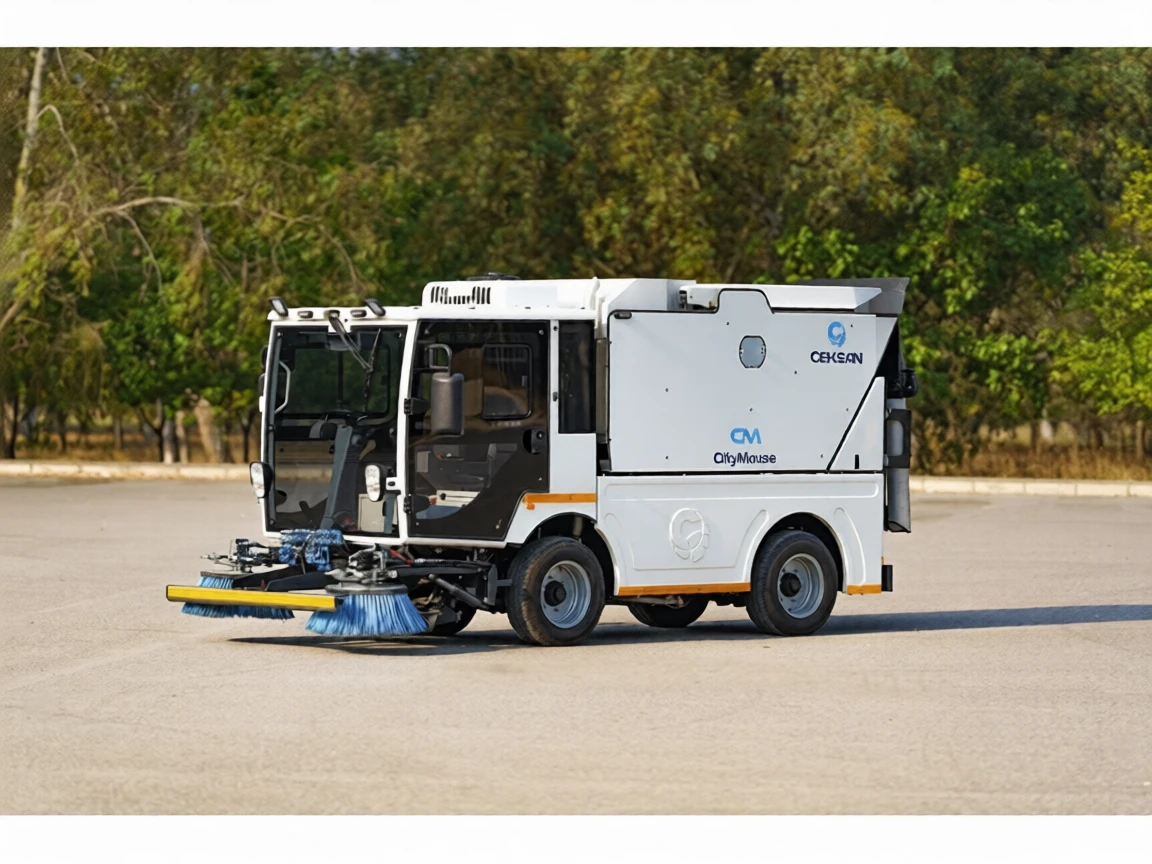

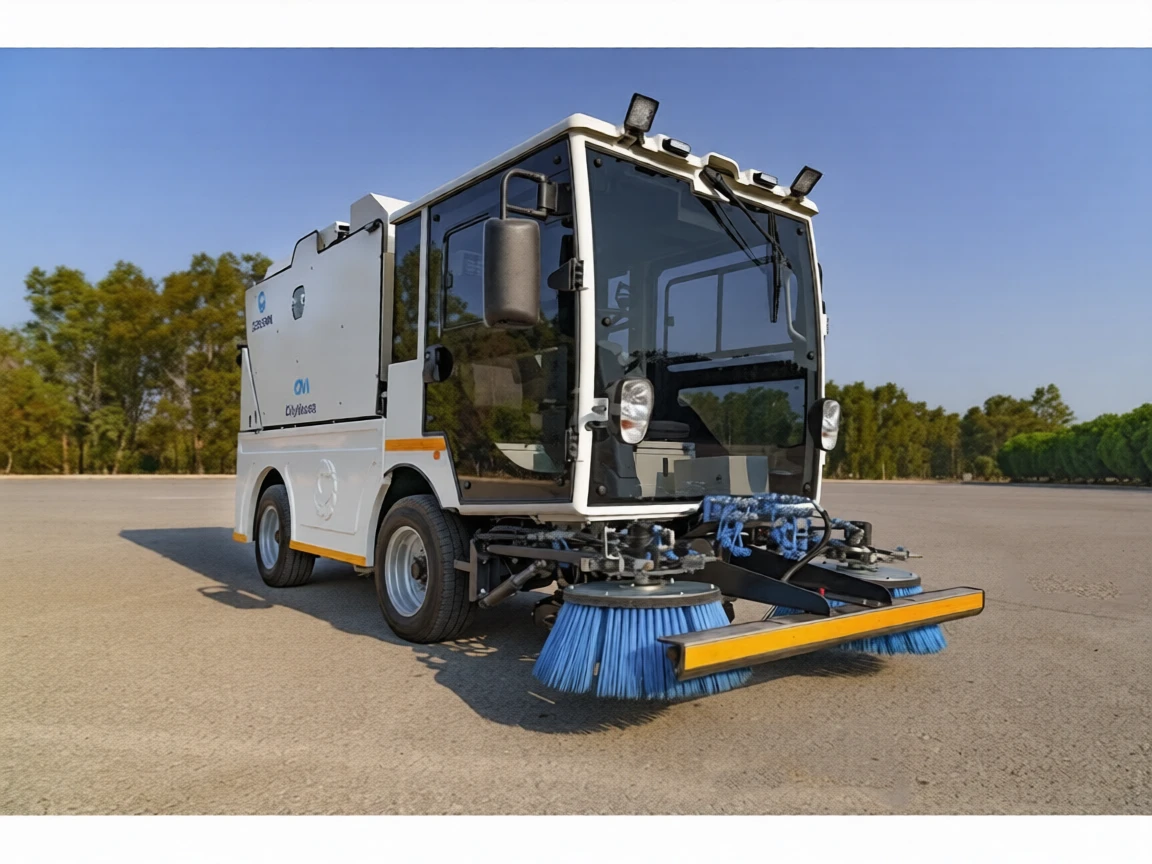

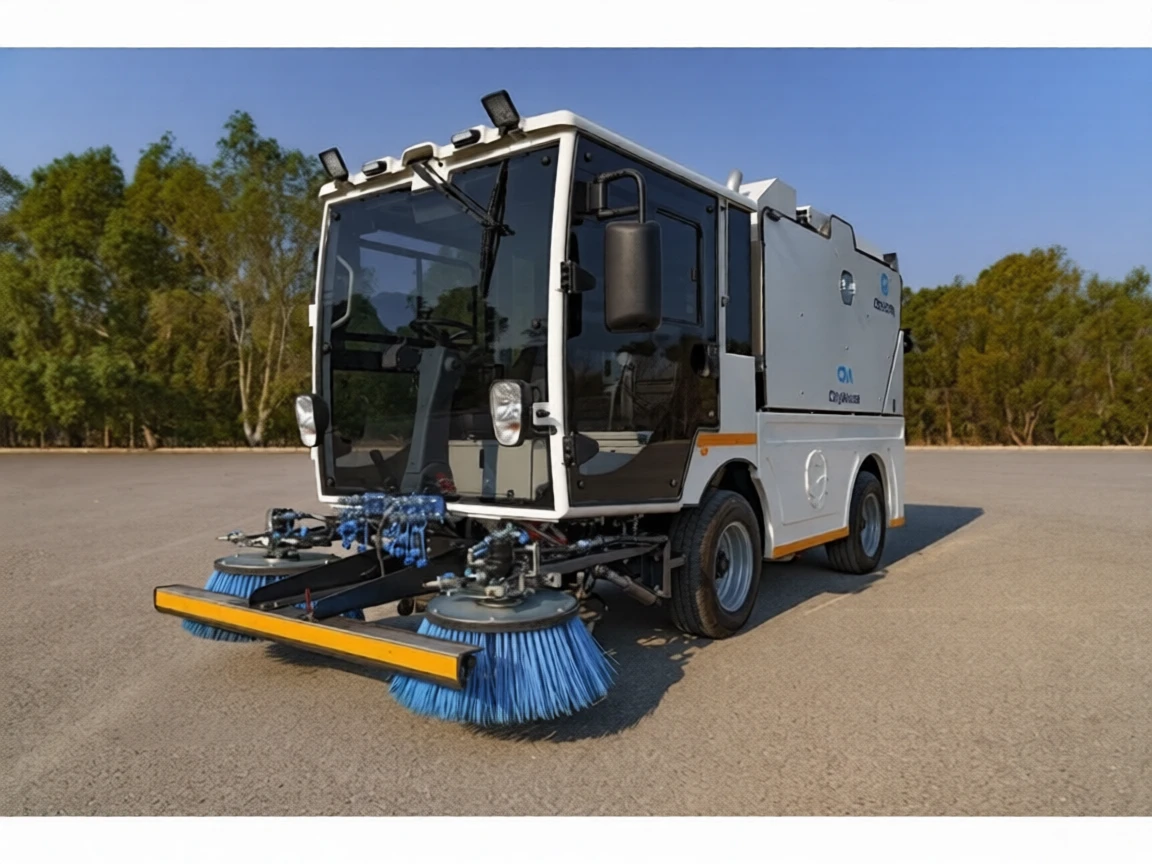

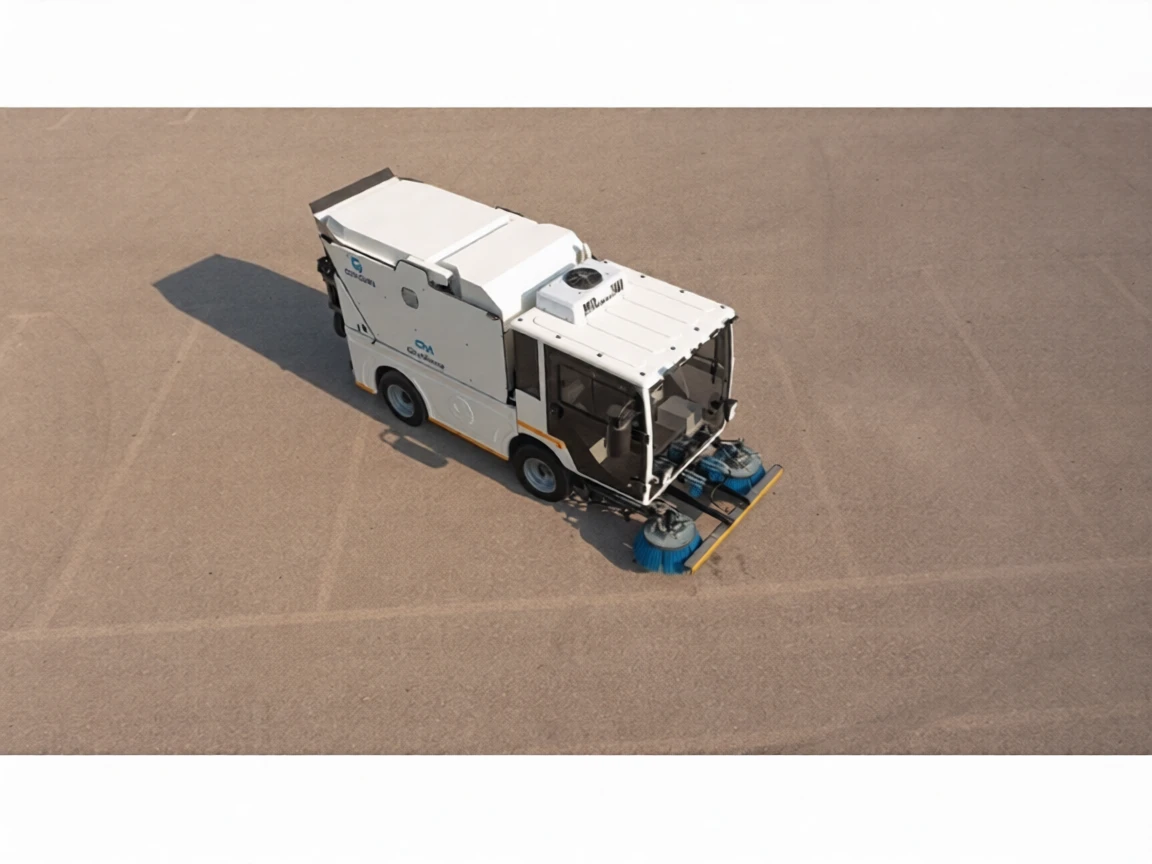

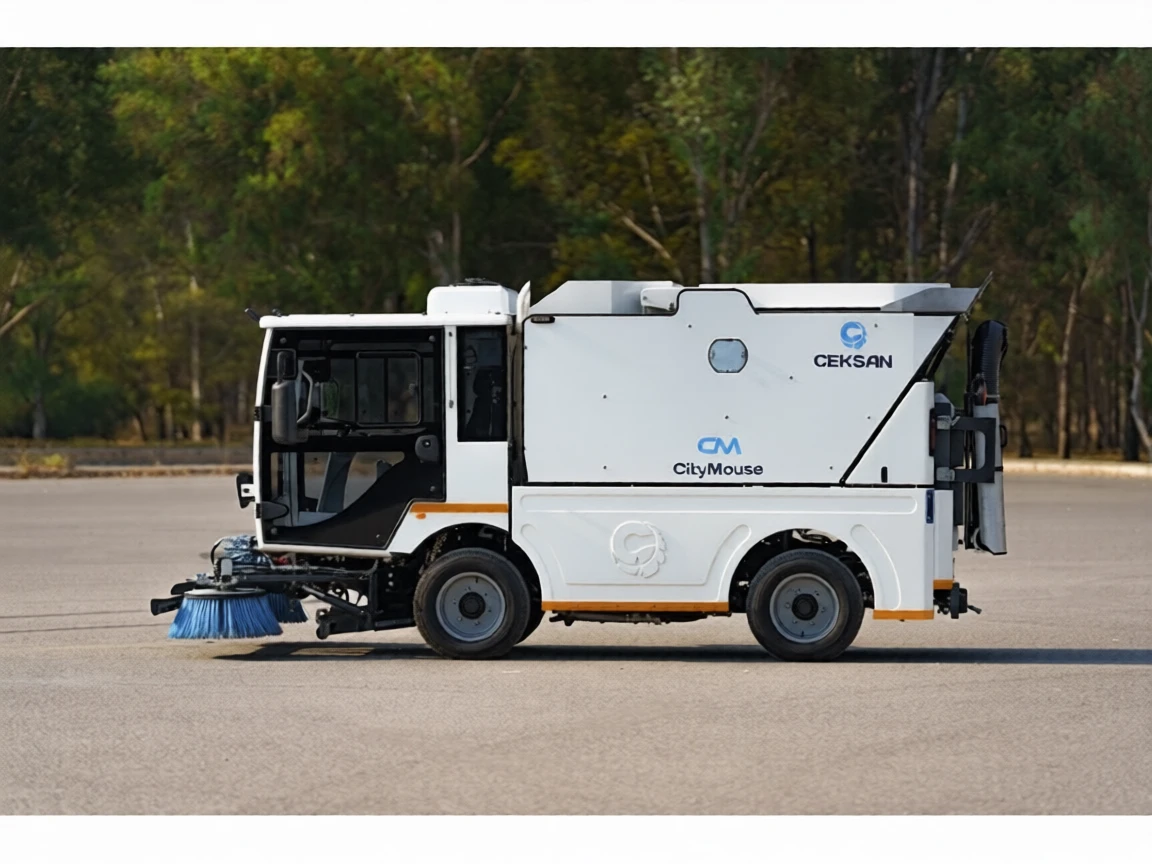

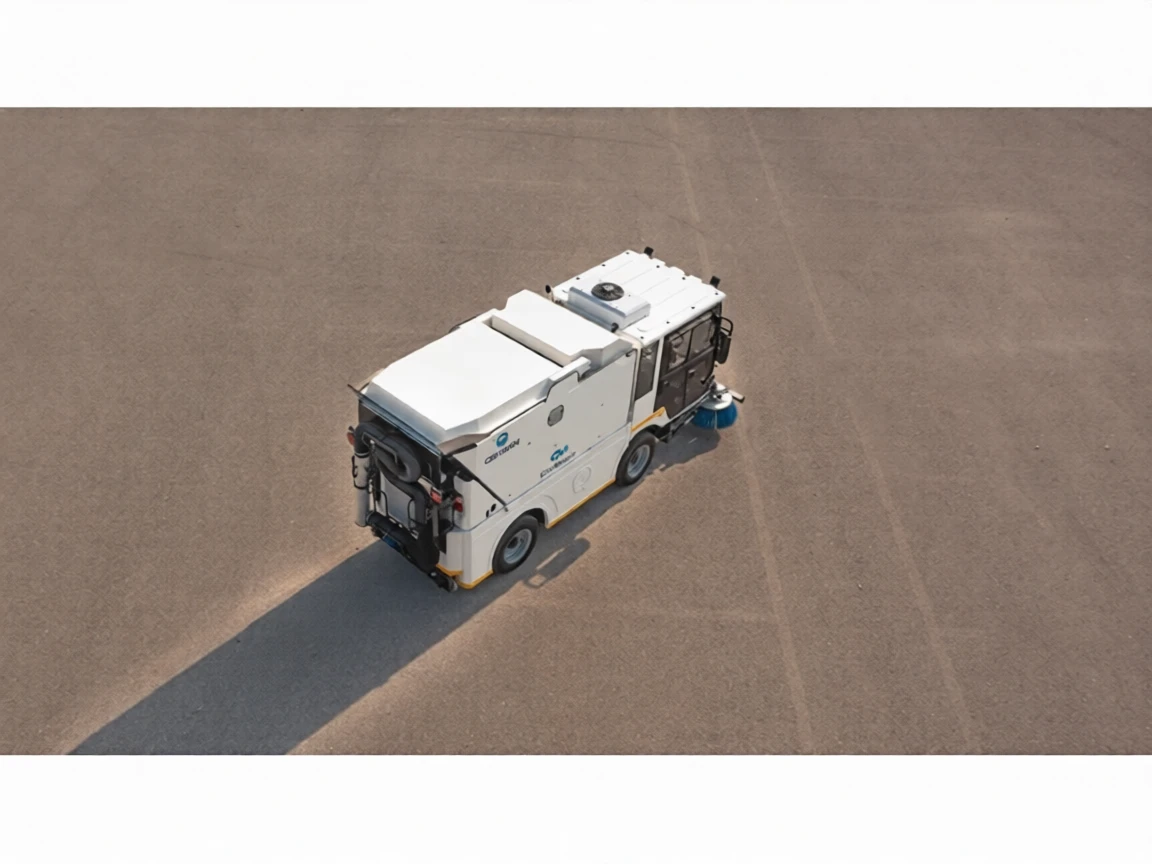

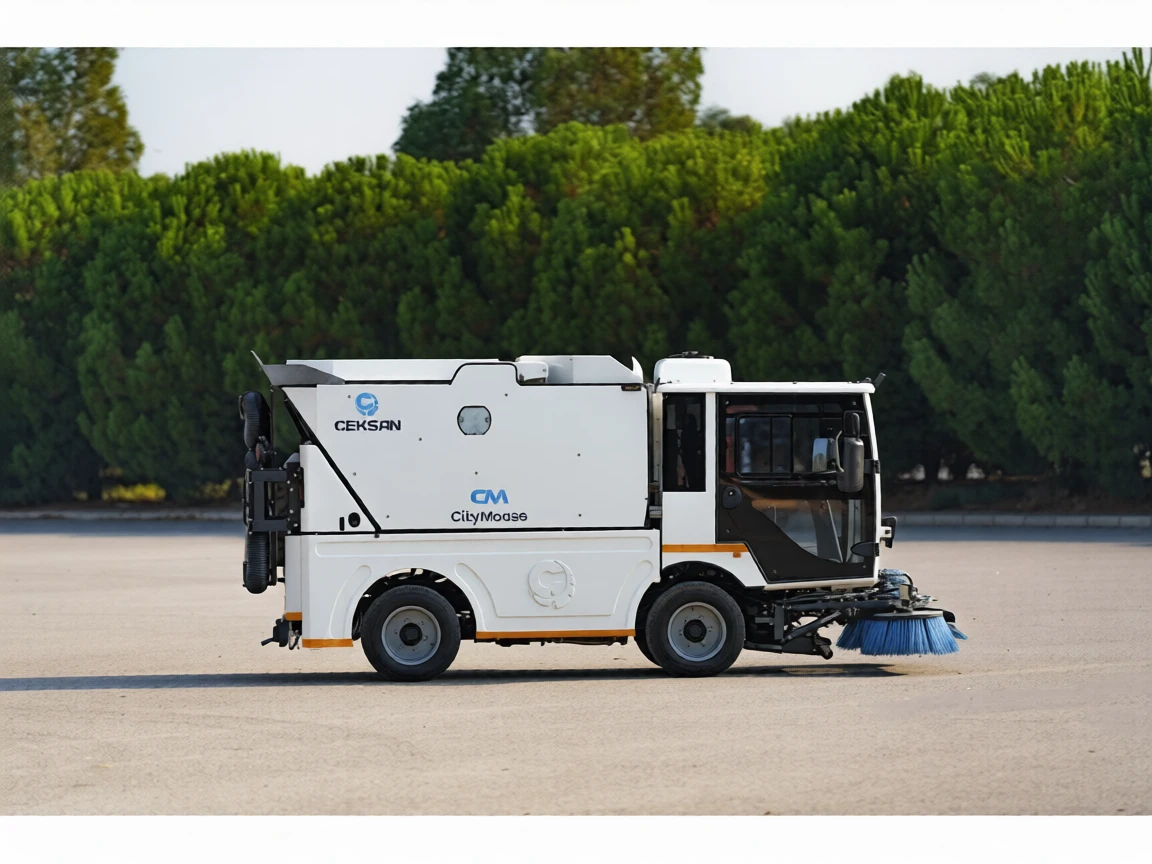

Çeksan CityMouse
Hydrostatic Compact Road Sweeping Machine

ABOUT THE PRODUCT

Thanks to its modular design, CityMouse allows for easy adaptation to all kinds of technological developments of the future.
While designing the system, the goal was to achieve high performance at low cost. Maintenance costs have been minimized without reducing the efficiency of the machine.
The stylish design and robust structure of CityMouse are designed to effectively sweep all kinds of waste it encounters.
With a single button from the cabin, the operator can maneuver both 2-wheel and 4-wheel CityMouse at any time, easily turning around in tight spaces, handling even the most challenging corners and areas without difficulty, and providing sweeping in a single pass.

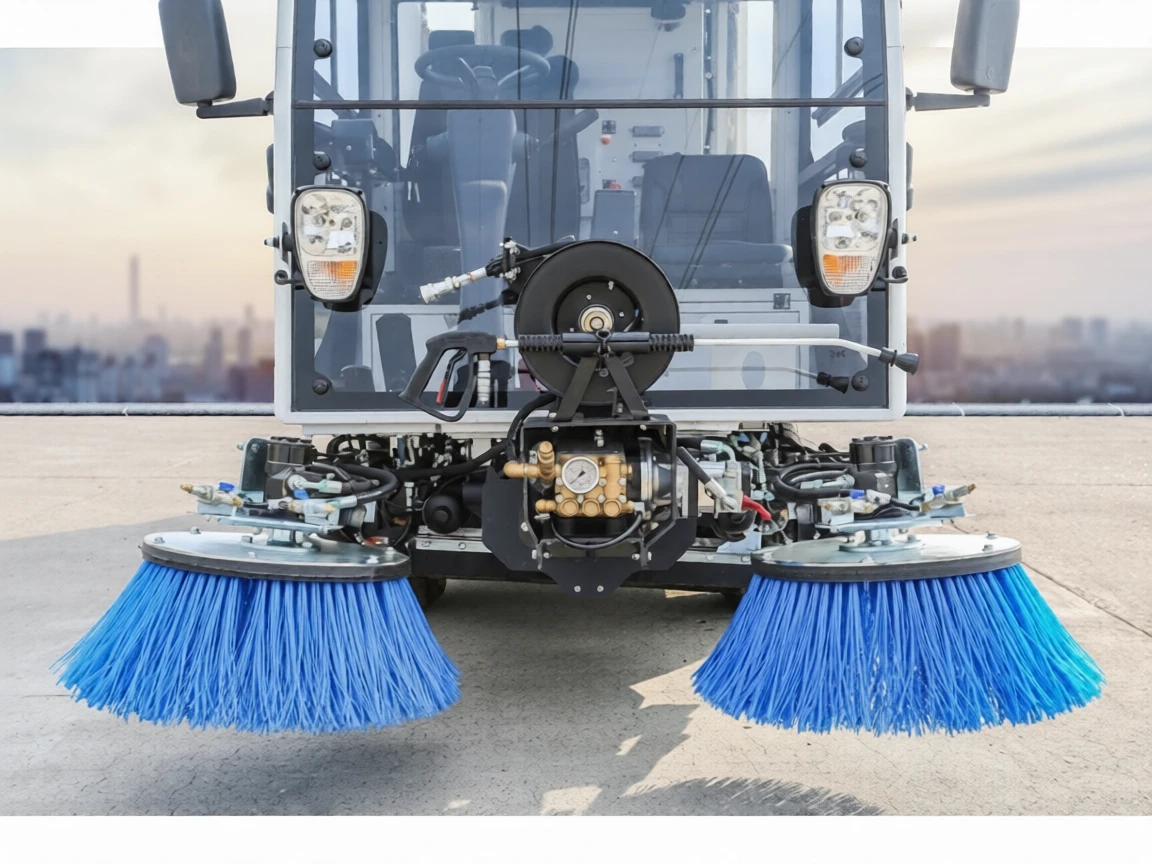

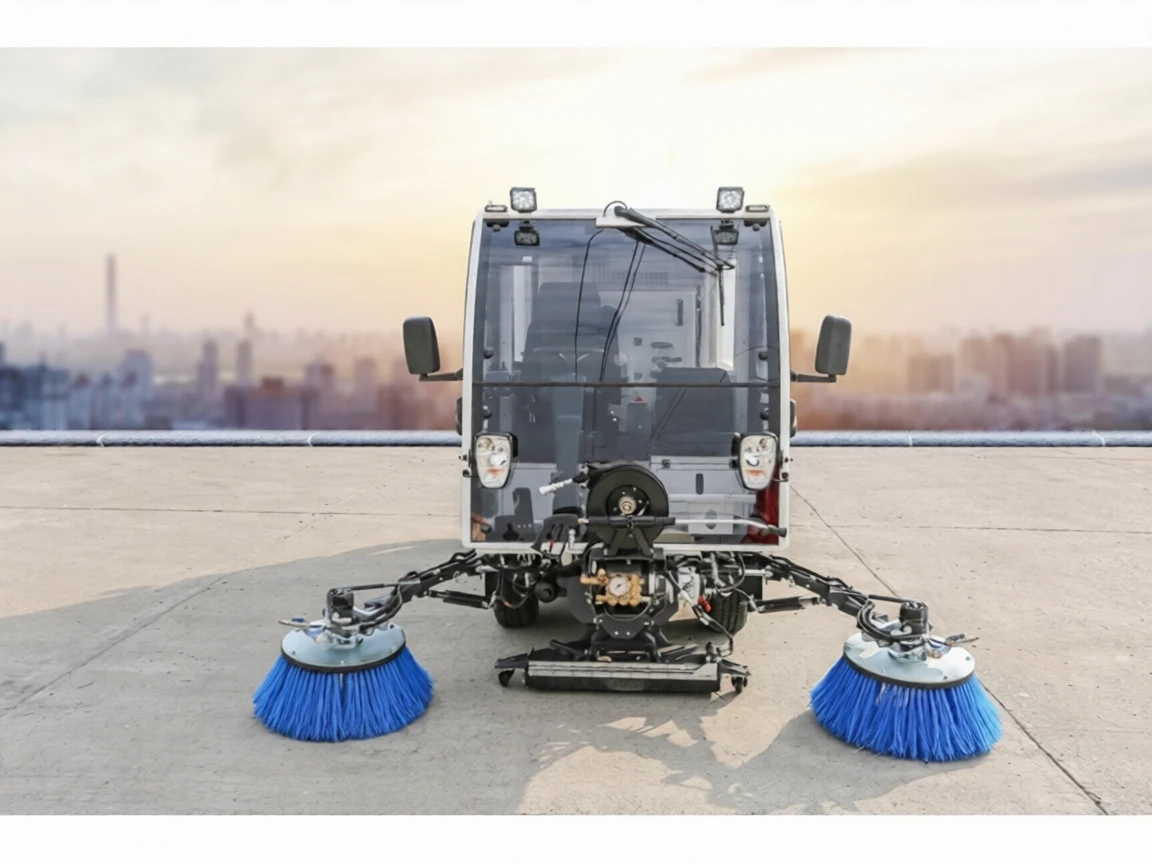

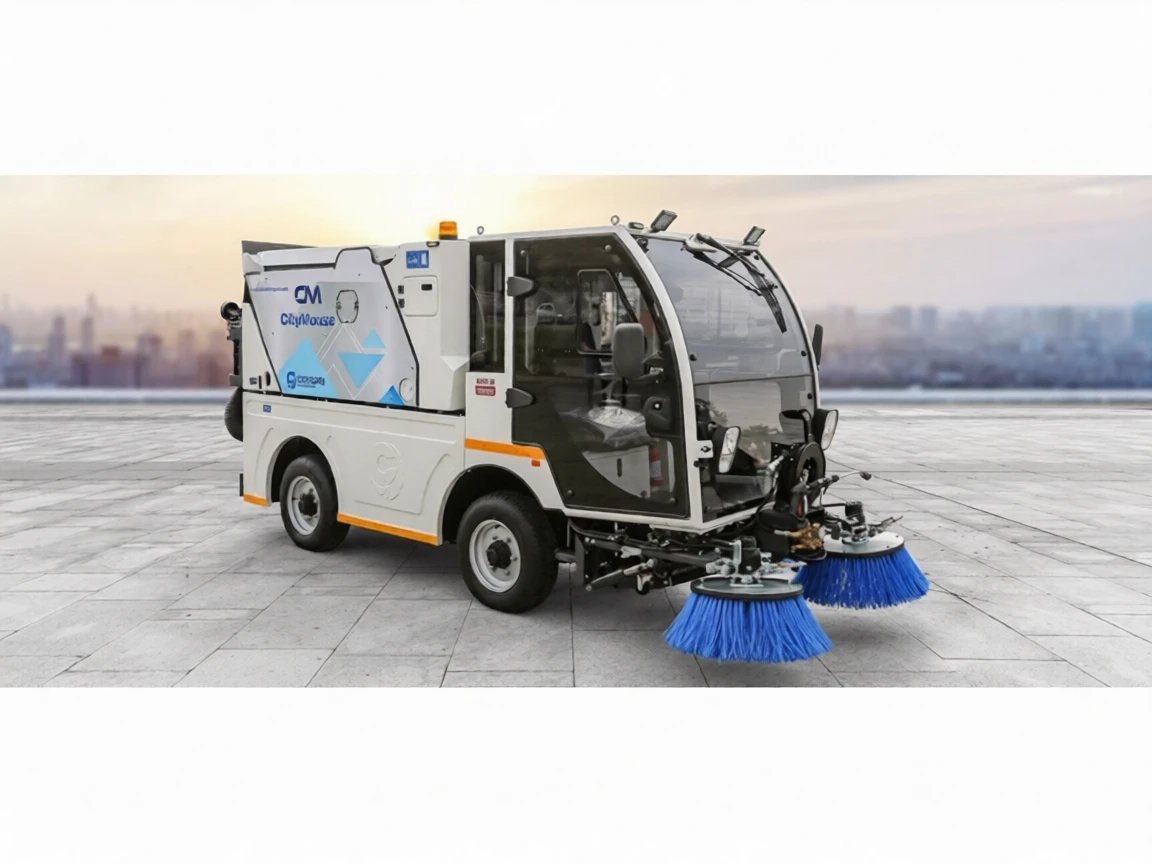

CityMouse is equipped with 2 brushes and is equipped with a recoil mechanism that prevents collisions. Both brushes can be controlled independently or simultaneously from the cabin using a joystick. The rotation speed and ground pressure of the brushes can be adjusted from the cabin.

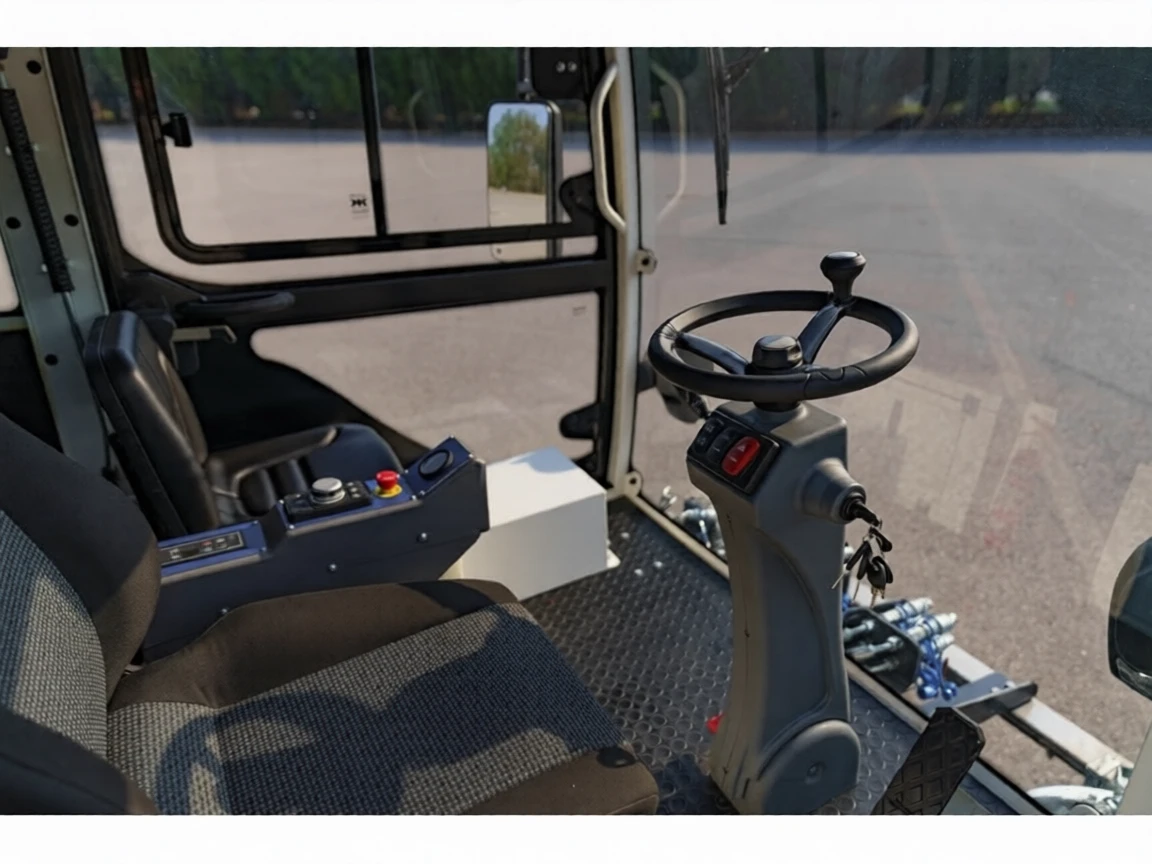

When designing the cabin, operational comfort and ergonomics were prioritized.
Thanks to the high discharge system, the sweeping function can continue without going to the discharge areas, allowing for discharge into any waste container on the road.
Access to the hydraulic system, engine, and electrical control panels is positioned for the fastest access, allowing the operator to easily perform inspections as desired.


TECHNOLOGY

CityMouse
Waste Bin Capacity (m³) 2+
Sweeping Speed (km/h) 0-15
Sweeping Width (mm) 2900
Sweeping Capacity (m²/h) 43500
Wheelbase (mm) 1843
Machine Length (mm) 4593
Machine Width (mm) 1784
Machine Height (mm) 2000
Empty Total Weight (kg) 3300
Hydraulic Oil Tank Capacity (lt) 60
Fuel Tank Capacity (lt) 80
Number of Filters (pc) 4
Brush Diameter (mm) 480
Vacuum Mouth Width (mm) 800
Suction Hose Diameter (mm) 240
Water Pump (bar) 4.2
Engine Type Diesel
Engine Power (kw) 72-75
Load Capacity (kg) 4500
Mesh Filter Surface Area (m²) 0.84
Manoeuvre 2 or 4 Wheels
Speed (km) 25
