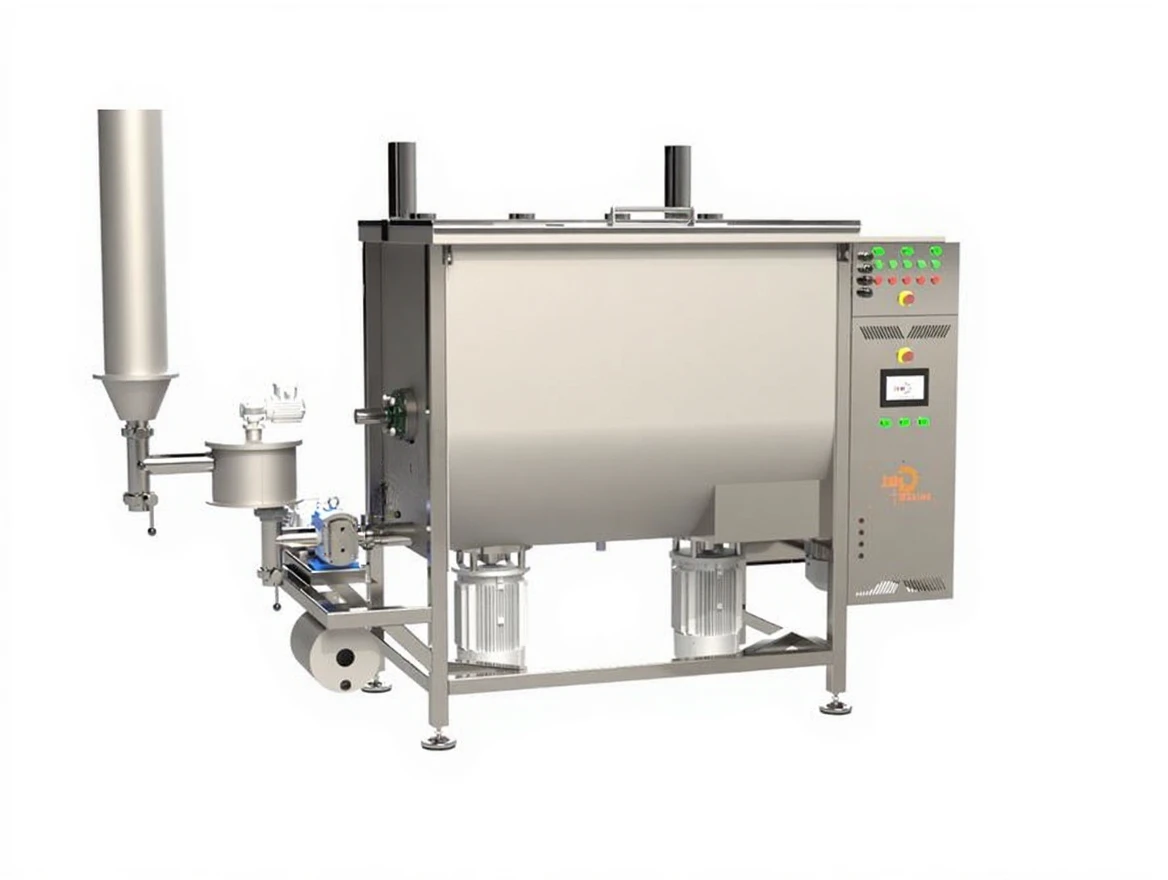

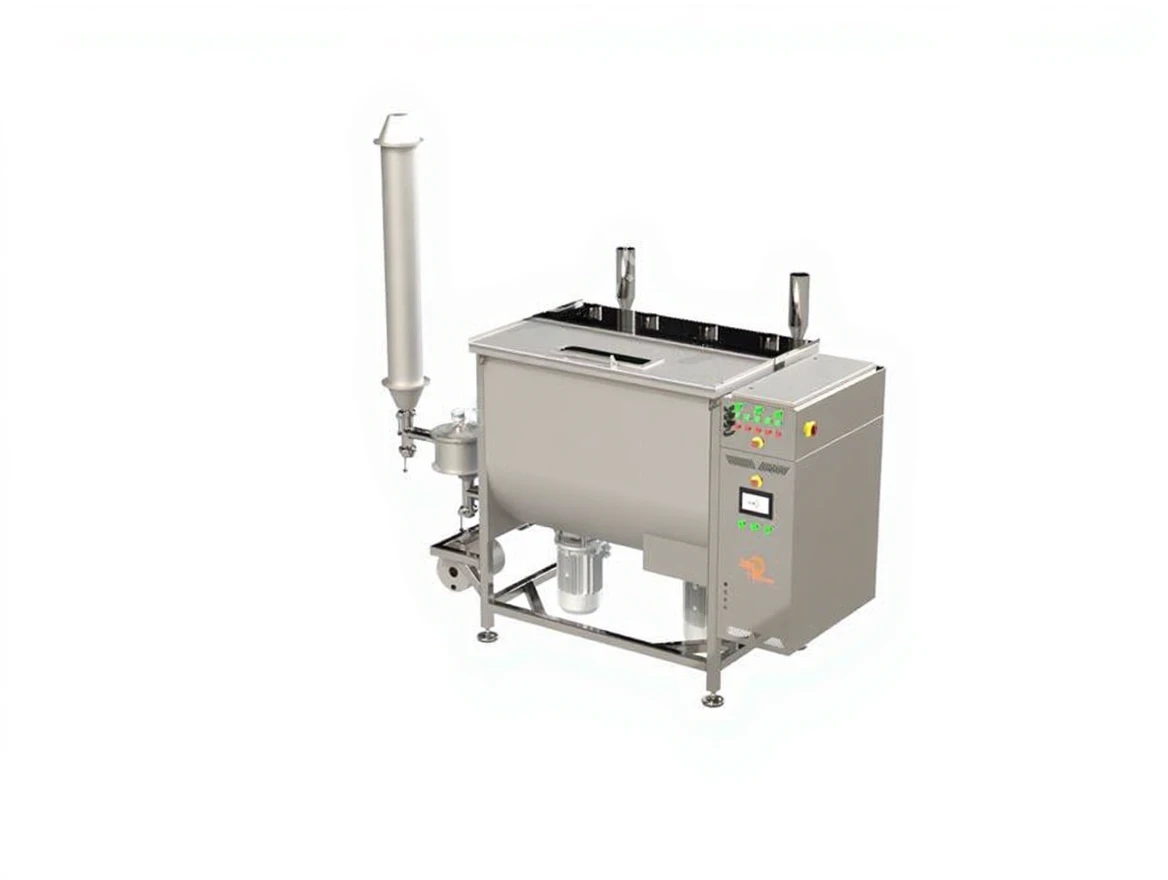

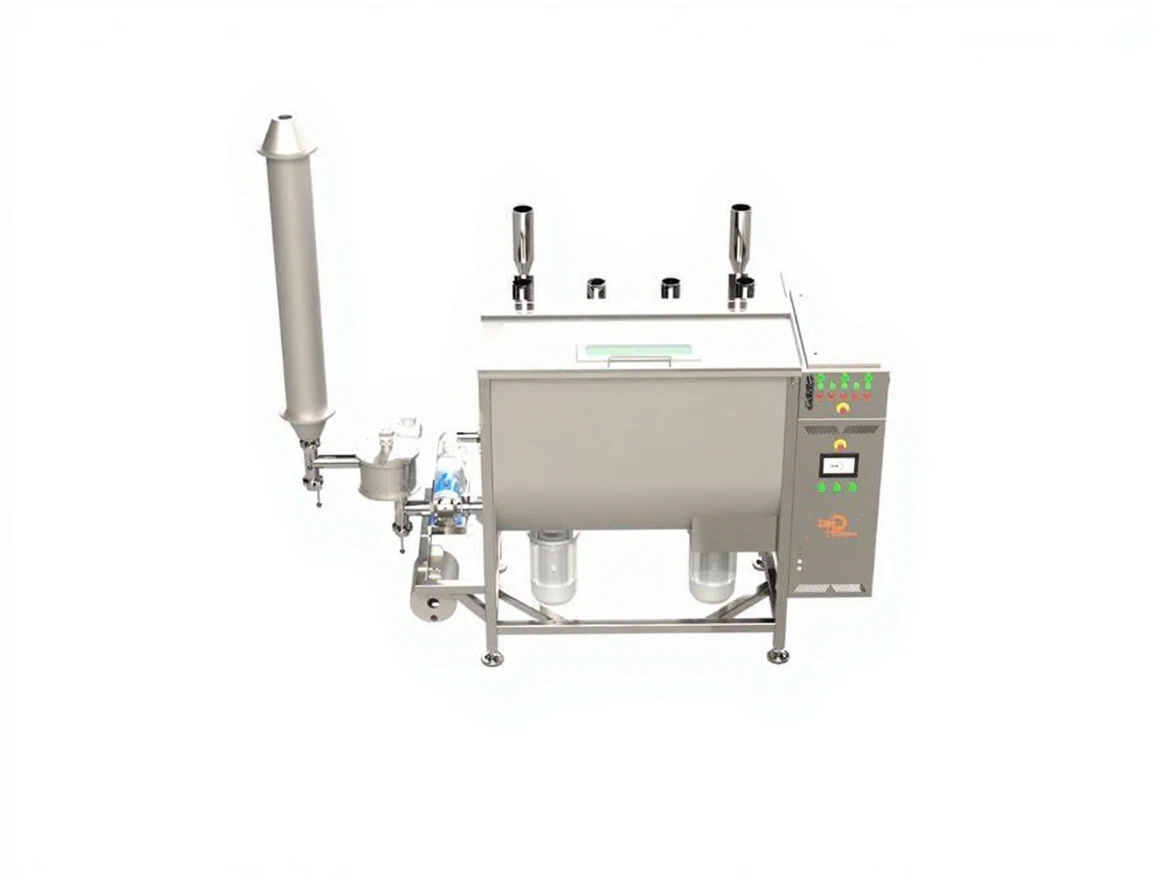

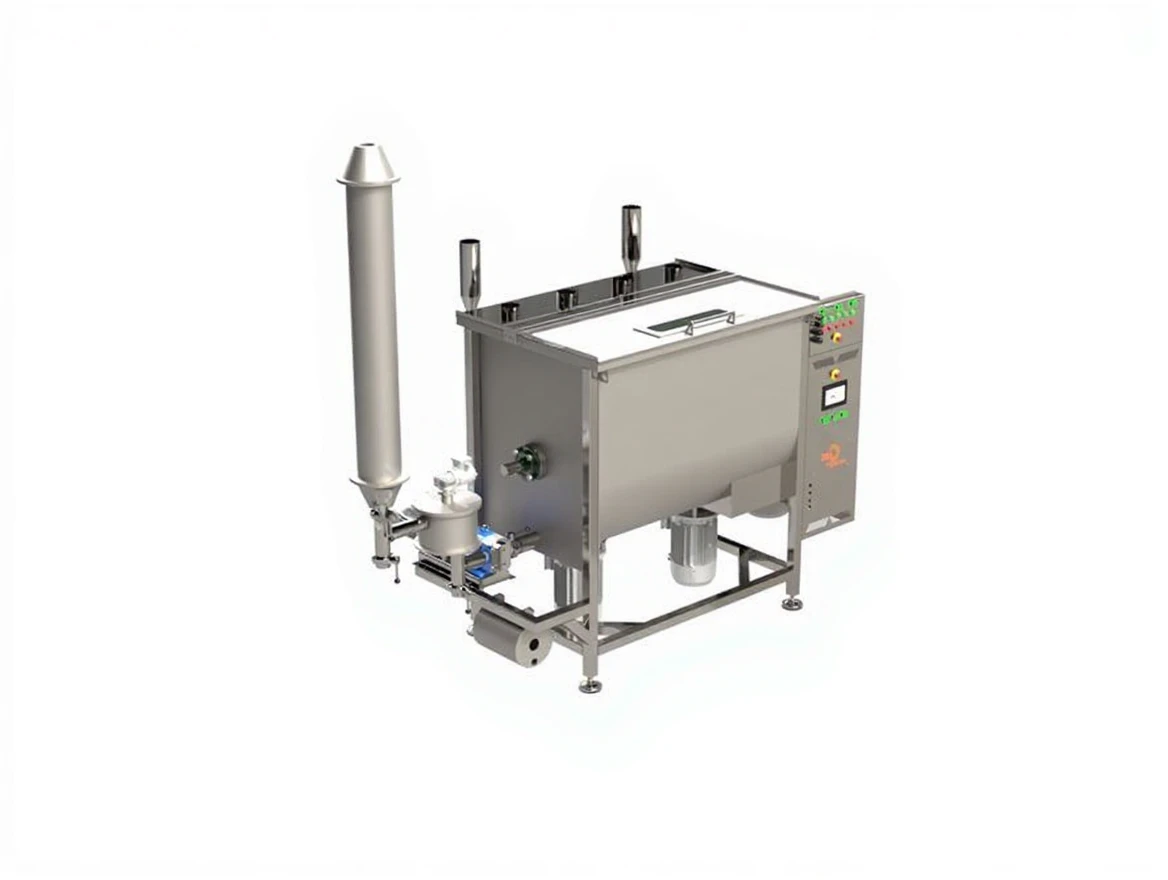

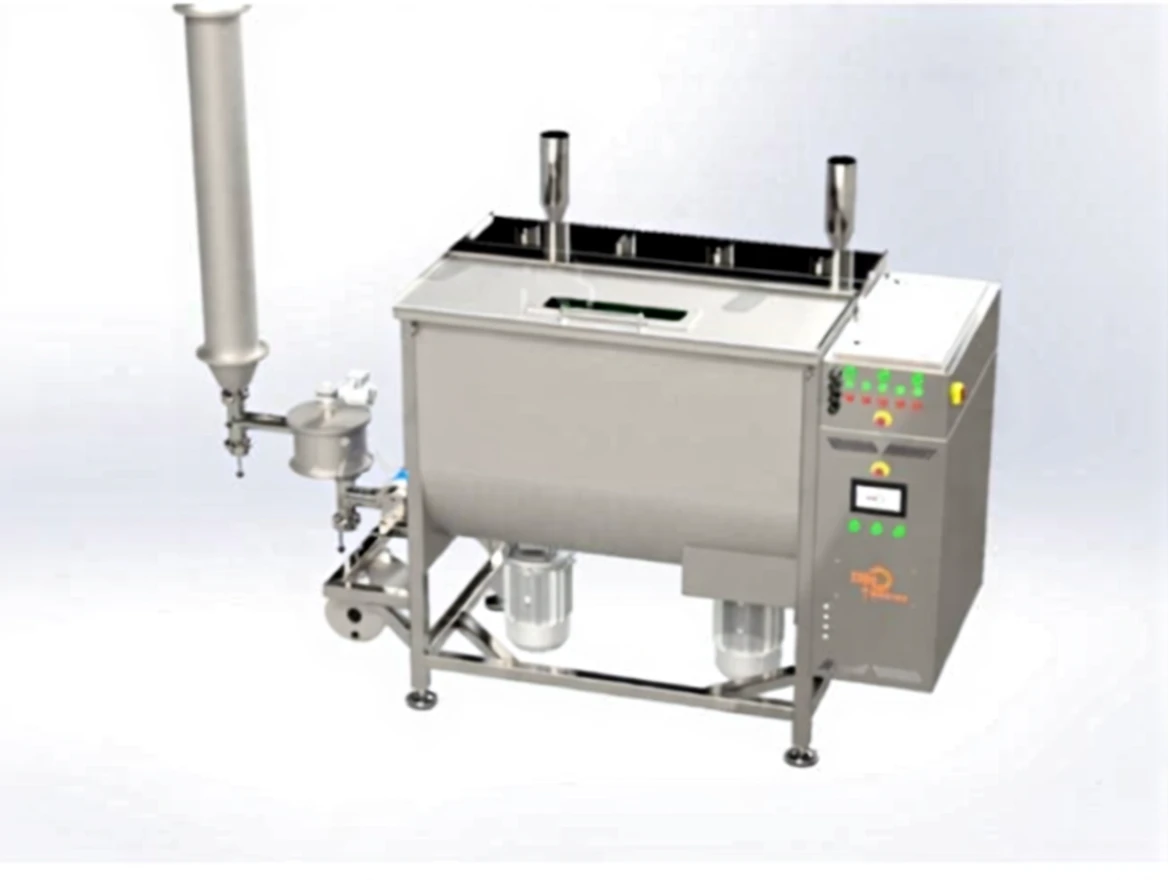

2 Ton Chocolate Preparation Mixer

İem Makine 2 Ton Chocolate Preparation Mixer

The 2 ton chocolate preparation mixer from İem Makine offers a high-capacity and high-performance solution. The stainless steel structure ensures long life and durability. The helical mixing system allows you to achieve homogeneous mixtures. Advanced control and automation features provide ease of use and precise temperature management. It is an ideal choice for businesses looking for an efficient solution in chocolate production. You can contact us for more information and special requests.

Technical Specifications:

• Material and Structure: AISI304 stainless steel frame and body provide a durable and long-lasting structure.

• Motor and Reducer: Offers flexible operation with a KR673 reducer and 18 kW motor providing a speed range of 100-50 rpm.

• Capacity: Suitable for preparing a large amount of chocolate mixture with a 2 ton product capacity.

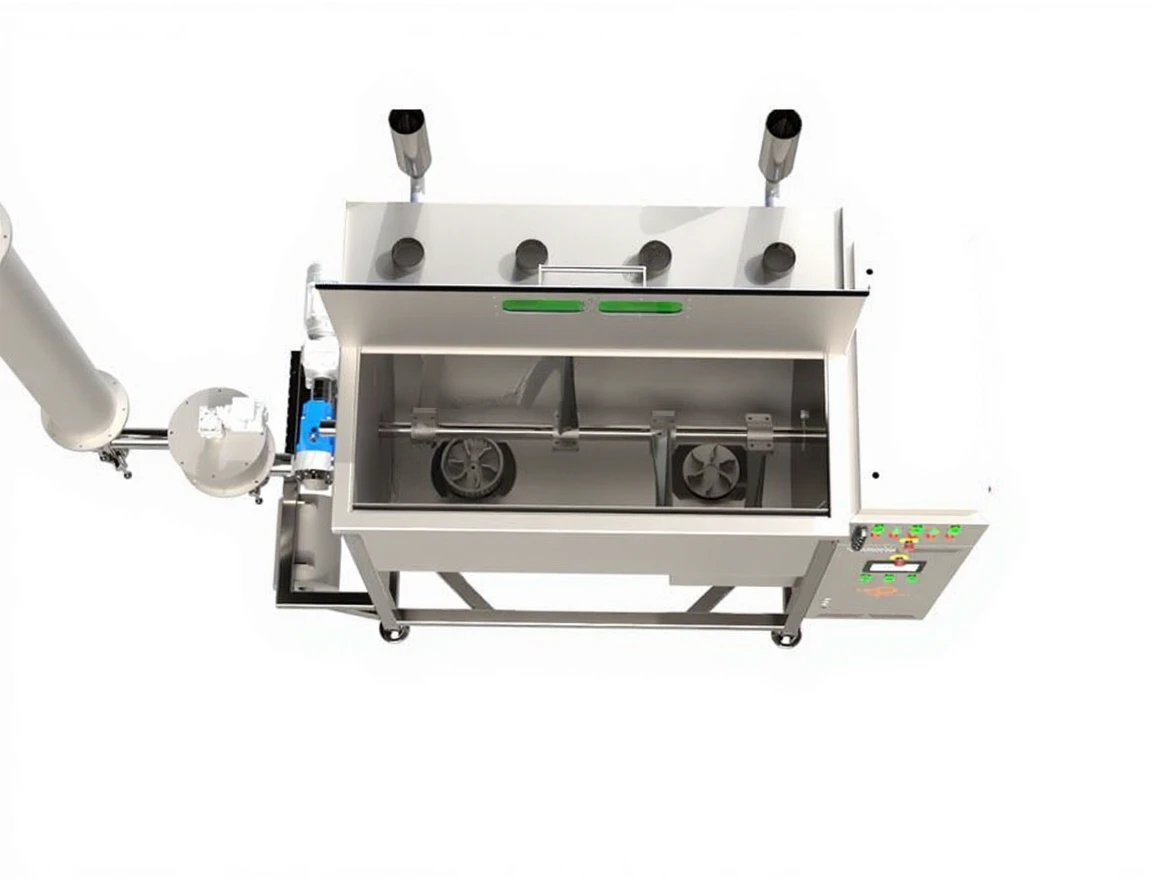

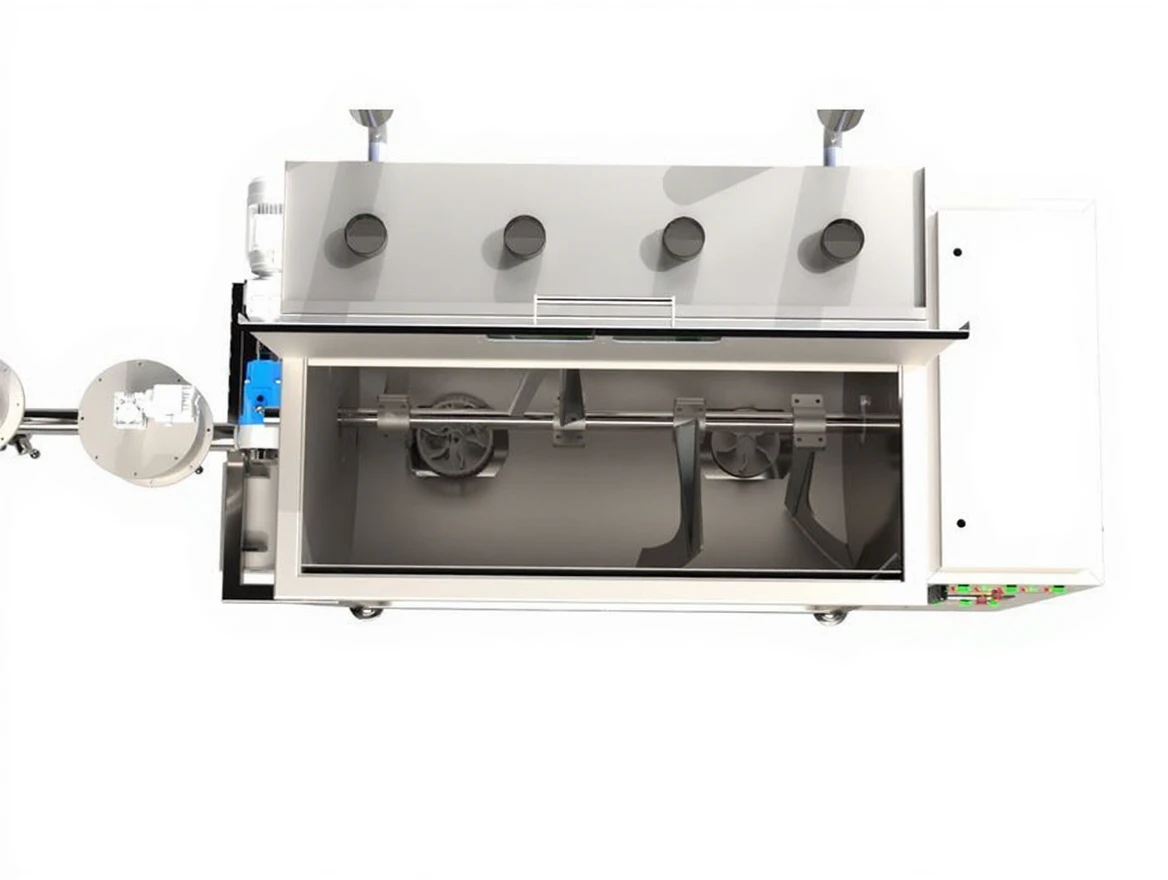

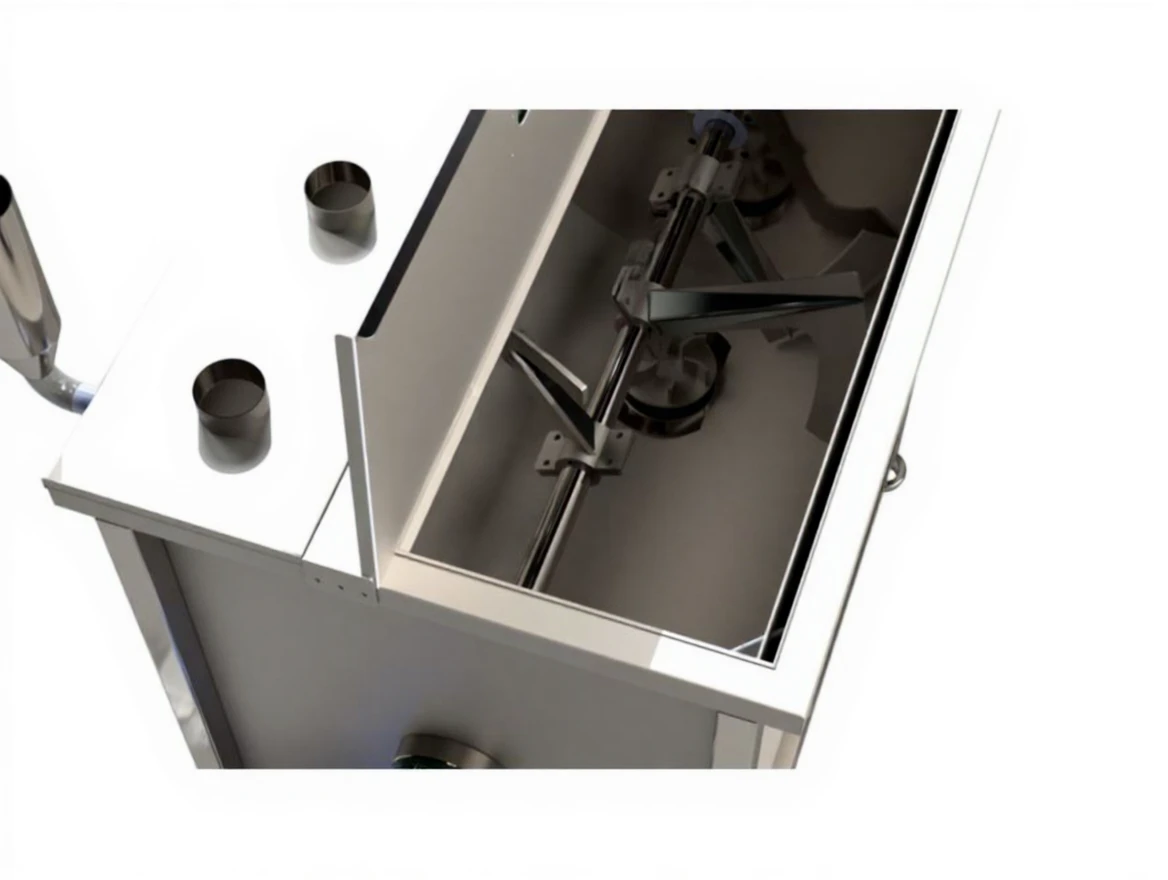

• Mixing System: The helical mixing system provides homogeneous and effective mixing.

• Heating System: Heating is done with 2×7.5 kW resistors; steam or thermal oil can be used as a heating system.

• Control and Panel: Provides a user-friendly interface and recipe management with a PLC control system and 7-inch touch control panel.

• Pump: The 2 finger lobe pump offers a capacity of 2.5 tons per hour; made of AISI304 stainless steel.

• Electricity and Automation: Provides reliable and efficient operations with an electrical panel and process automation.

• Crusher and Homogenizer: The crusher and homogenizer with a 5.5 kW motor operates at 1500 rpm, increasing the uniformity of the product.

• Temperature Control: Operates in a temperature range of maximum 90°C and minimum 70°C, and includes a control mechanism for product temperature and system heat.

• Cooling and Filtration: The pipe-type cooling exchanger, particle crushing sieve, and filtration system provide efficient cooling and cleaning.
