-20℃~400℃ Yüksek Hassasiyetli Isı Tespit Termal Kamera

-20℃~400℃ High Precision Thermal Camera

IR Resolution: 120×90 Pixels
Display: 2.4 inch TFT LCD (320×240)
Field of View (FOV): 50°×38°
Thermal Sensitivity (NETD): ≤60mK
Spatial Resolution (IFOV): 7.3mrad
Frame Rate: ≤25Hz
Focus: Focusless
Temperature Measurement Range: -20℃~400℃
Accuracy: ±2℃ or ±2% whichever is greater
Emissivity: Adjustable 0.01~1.00 (0.95 by default)
Color Palettes: 6 (White Hot, Black Hot, Iron Bow, Rainbow HC, Rainbow, Lava)
Viewing Modes: Thermal
High/Low Temperature Alarm
Icon, LED Flashlight, Buzzer
PC Software Analysis
Laser Pointer
Battery:
Rechargeable Li-ion battery (3.7V 2600mAh)
Battery Operating Time: ≥8 hours
USB: Type-C
Protection Class: IP54
Drop Proof: 2m
Storage: 16GB Micro SD Card
Image/Video Storage Format: BMP
Certifications: CE, UKCA, FCC, RoHS
Net Weight: 310g
Dimension: 197x72x60mm

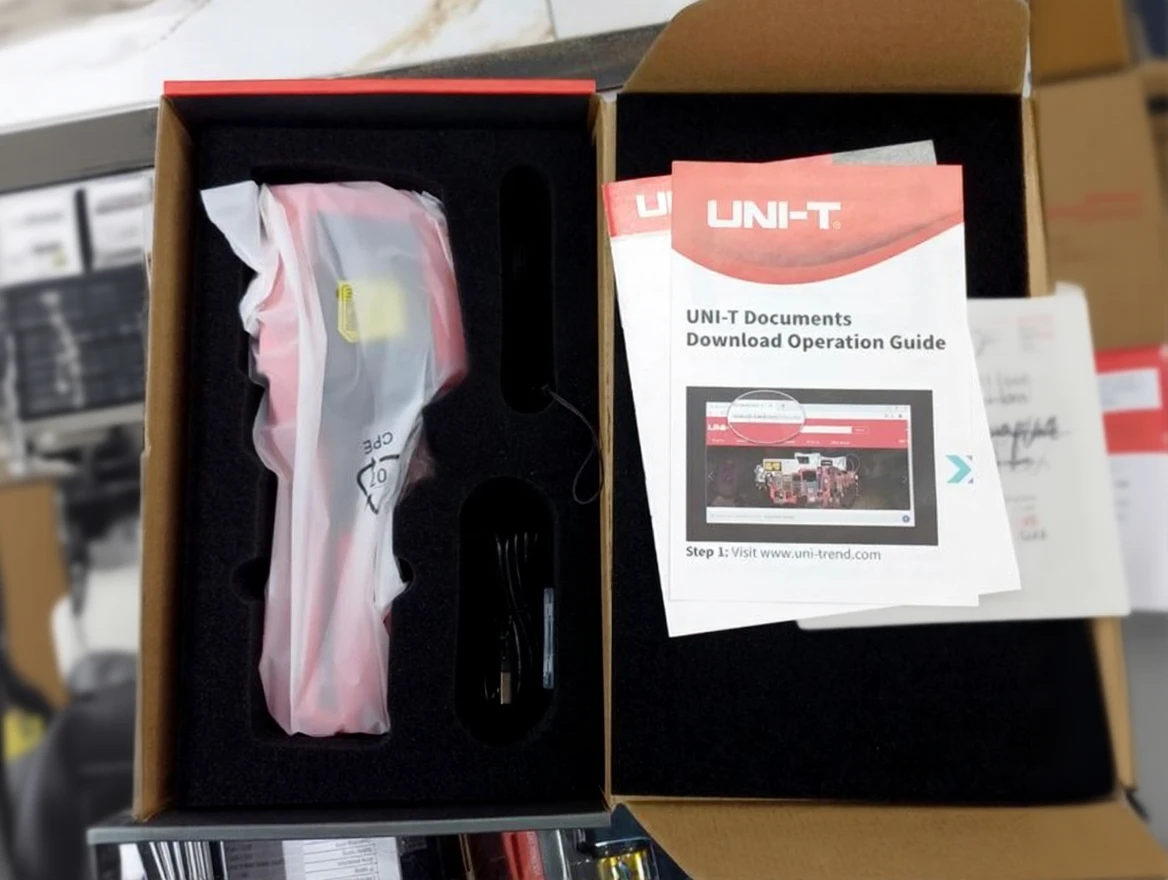

Standard Accessories: Wrist strap, Micro SD card, Type-C USB cable, English user manual

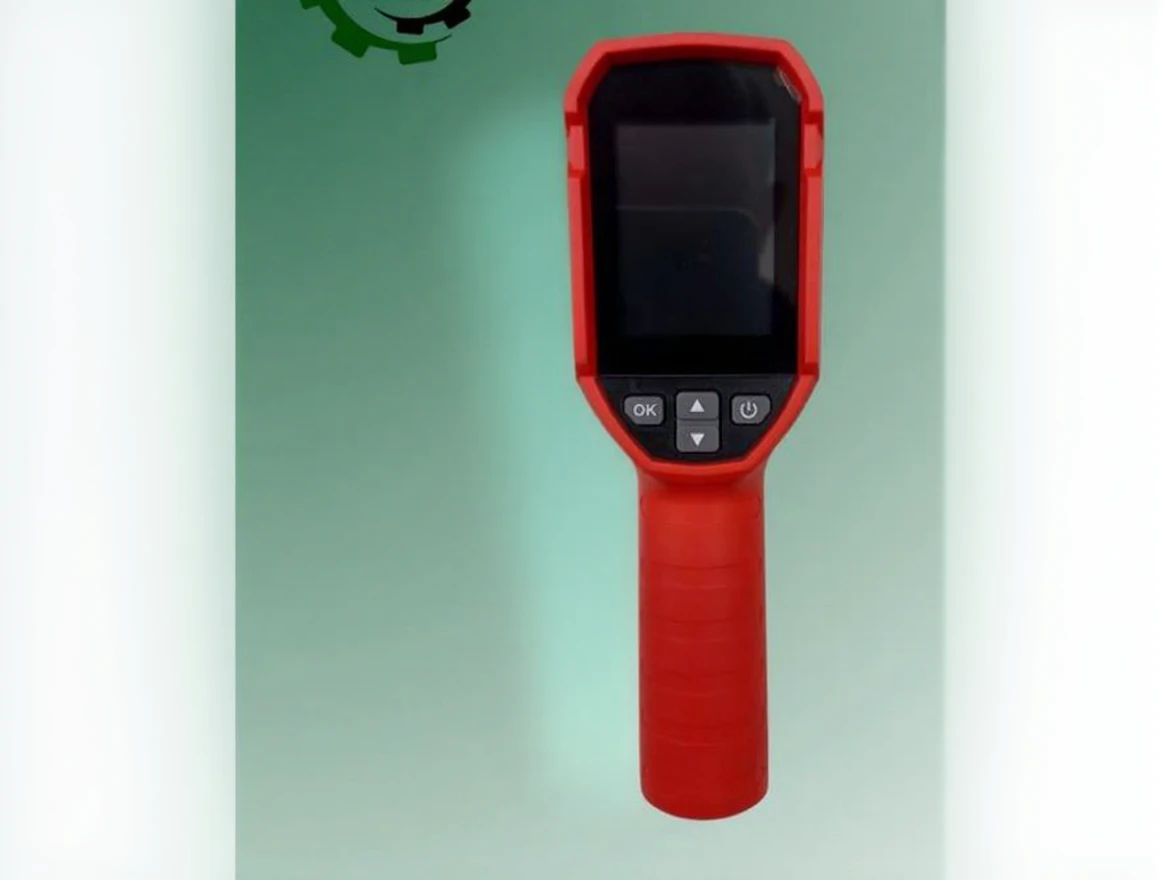

Unit Thermal Camera

This is one of the thermal camera models included in testing and measuring tools.
It has a convenient design and is preferred by users for being a multifunctional product.
With the temperature compensation feature, it provides accurate readings in different temperature environments.
It has PC software analysis, a laser pointer, and a rechargeable Li-Ion battery that provides up to 8 hours of operation.
The measurement data is clearly displayed on the 2.4-inch TFT screen.
UTI712S has 6 color palettes: hot white, hot black, ironbow, rainbow HC, rainbow, and lava.
IR resolution is 120×90 pixels, and the screen is 320×240 pixels.
It has automatic tracking for hot and cold spots, and also features image capture function.
The temperature measurement range of the Unit thermal camera is -20°C to 400°C (-4°F to 752°F), and it alerts the user with icons, LED lights, and buzzer in situations like high and low temperatures.
This high-performance product supports 5 different languages: English, German, French, Russian, and Spanish.
In terms of design, the thermal camera has an ergonomic structure that provides comfortable grip and handling for the user, offering a comfortable working environment.
It is portable and can be fixed on a tripod with a 1/4 inch tripod mounting hole, enabling convenient use in this way.
With its robust structure, the Unit measuring device belongs to IP54 protection class, resistant to dust and splashing water, as well as highly durable against drops from a distance of 2 meters.
