20-76 mm Double Pipe and Profile Beveling Machine

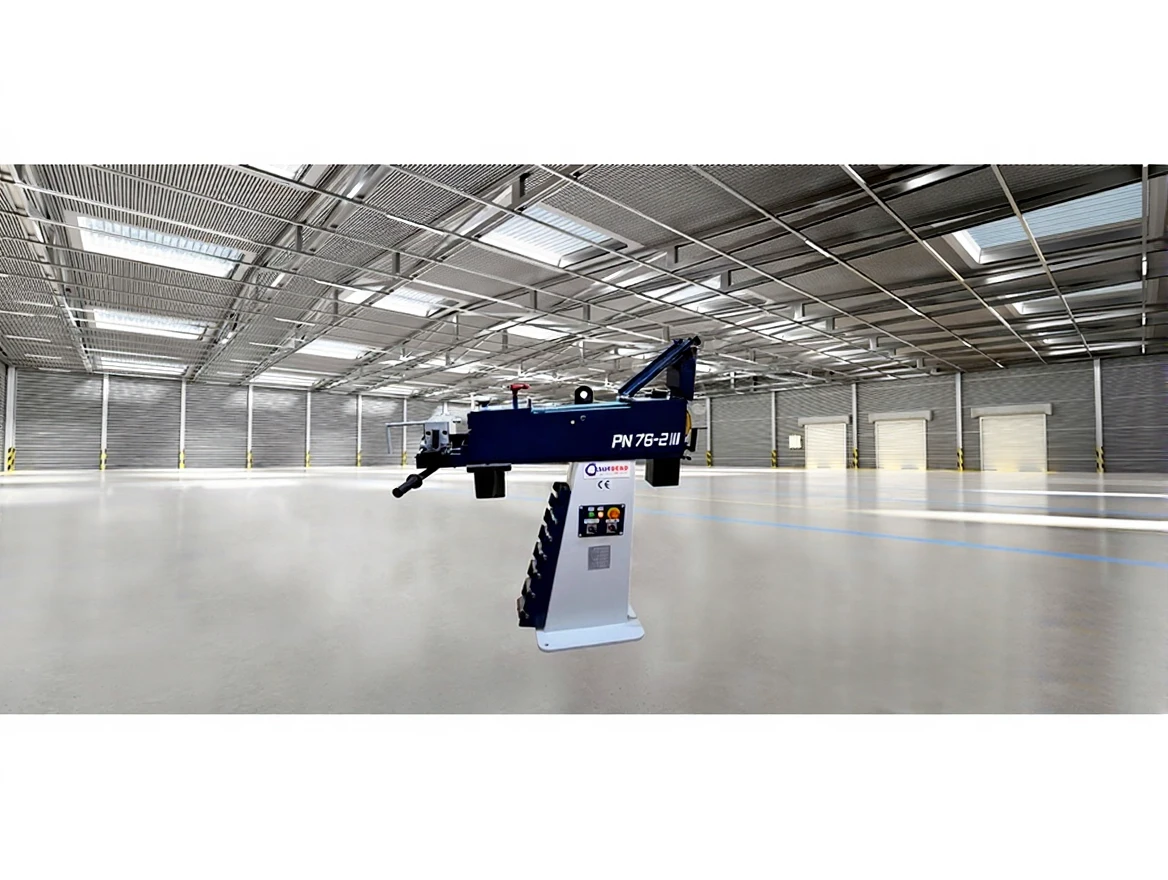

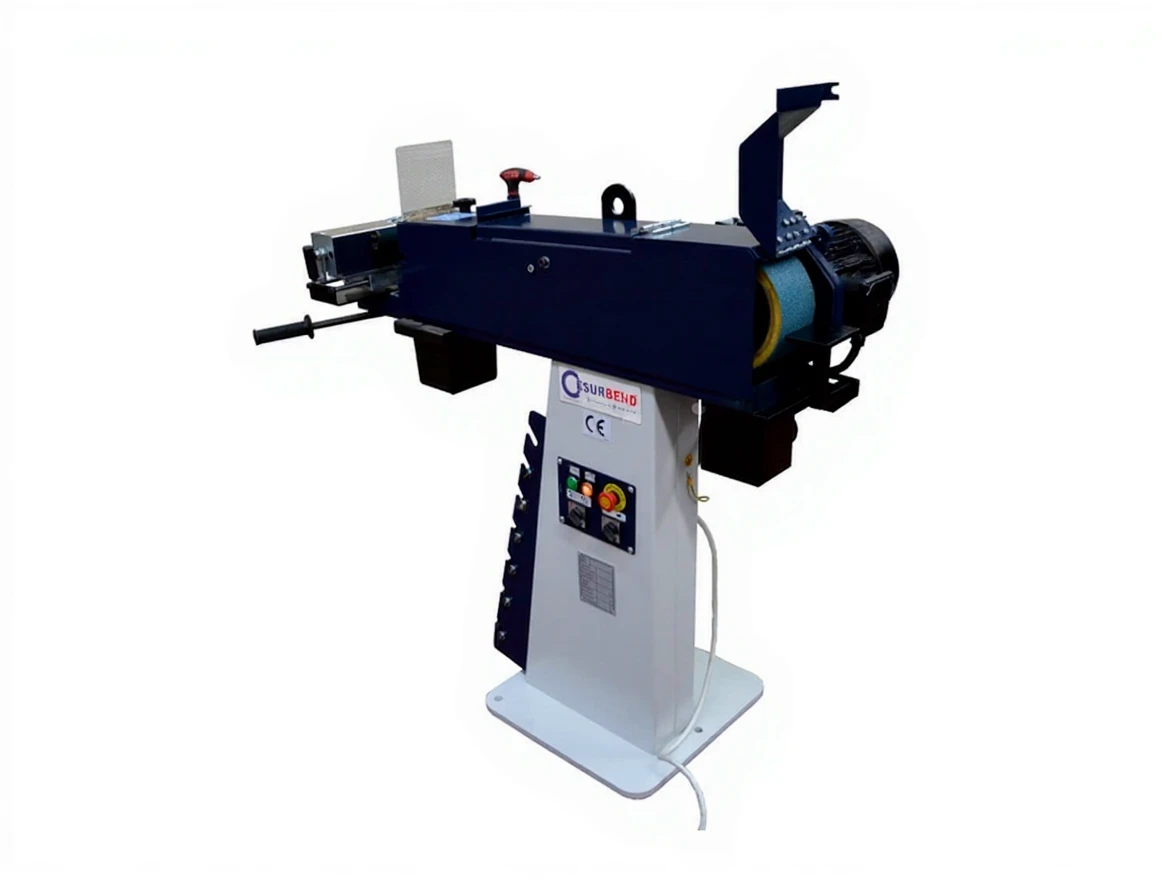

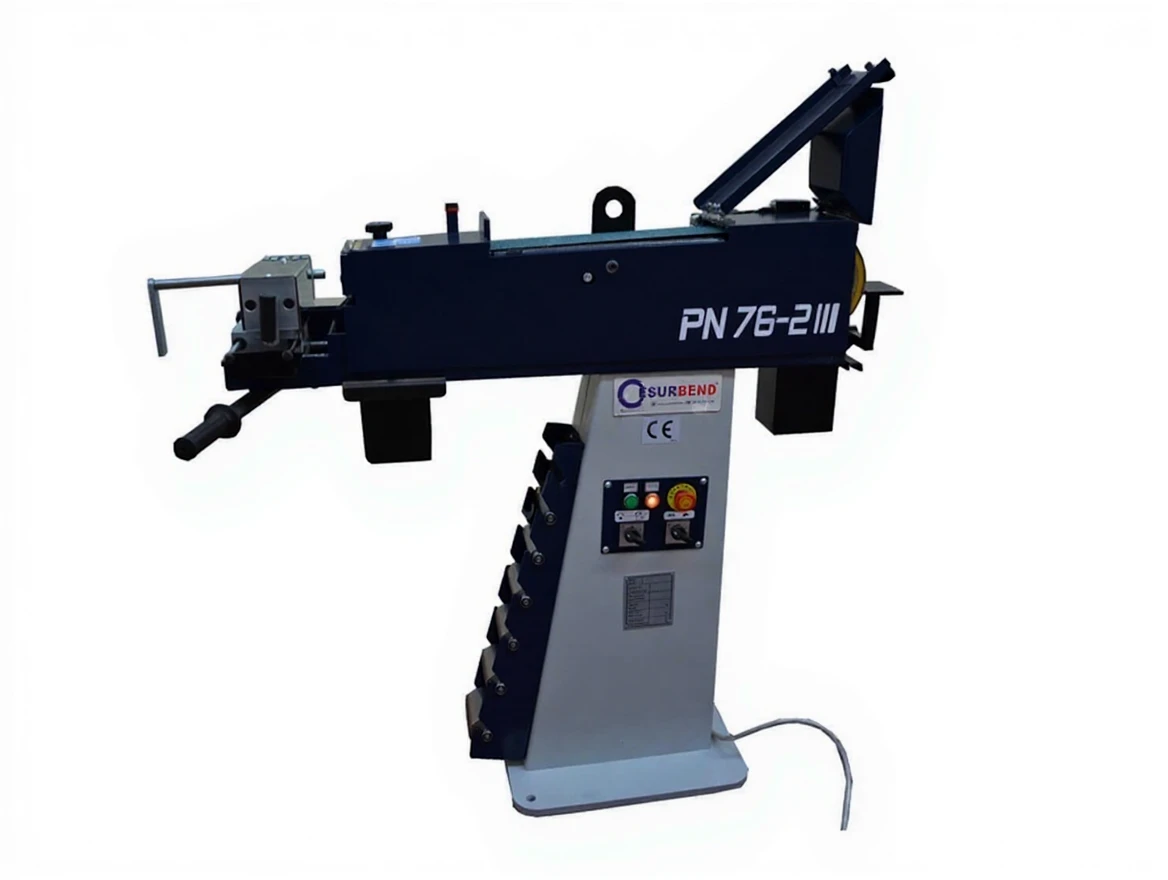

Cesurbend PN 76-2 | 20-76 mm Double Pipe and Profile Beveling Machine

It is a modern machine developed for precise dovetail opening at the ends of pipes and profiles from 20 mm to 76 mm. Thanks to its double pipe processing capacity, it provides both speed and efficiency in production processes. It offers a reliable solution in workshops with its durable structure and practical usage features.

The easily replaceable processing drum makes it possible to choose according to the pipe diameter or profile size. Thanks to its movable vise, parts can be clamped and removed quickly. In addition, the dovetail opening feature up to 60 degrees offers flexible solutions to different production needs.

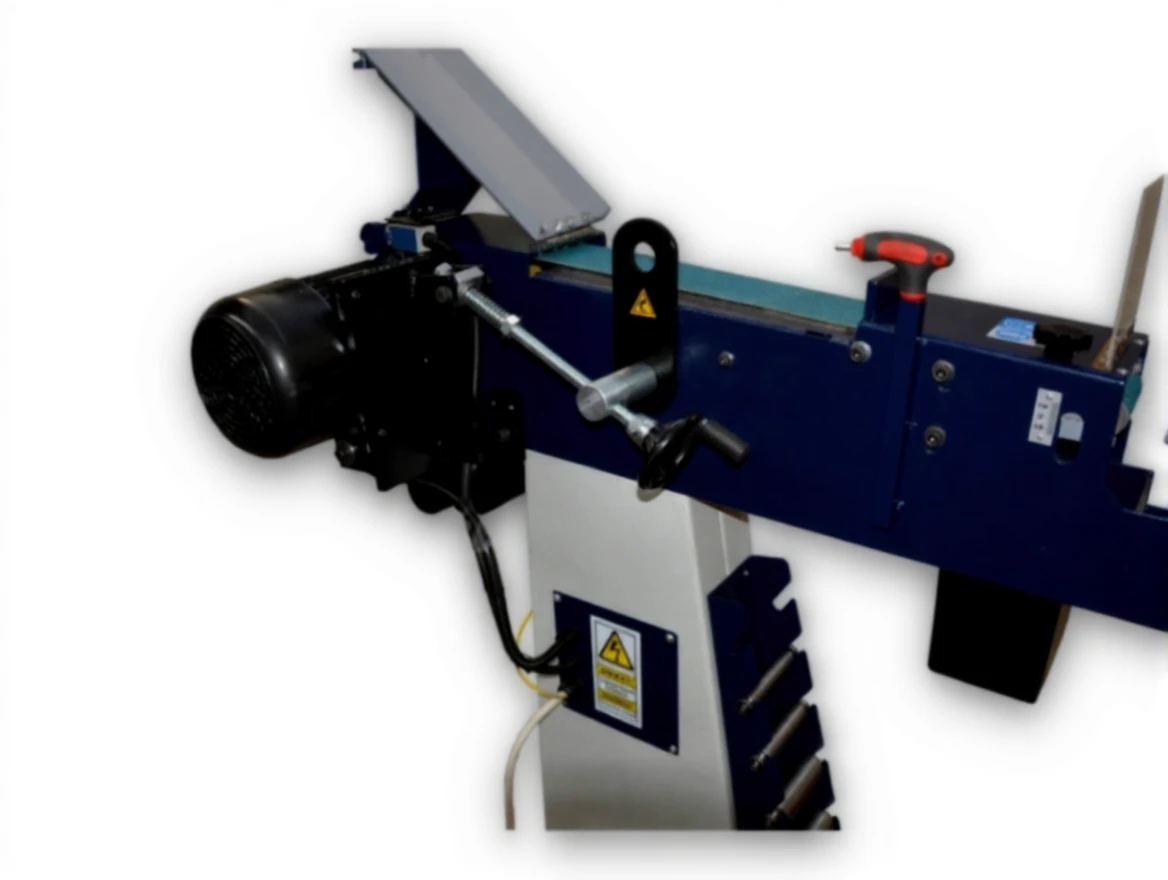

The hinged cover on the top of the machine allows grinding of burr materials; Double-sided support system increases measurement accuracy. Equipped with a bi-directional grinding area, double-speed and bi-directional motor structure, PN 76-2 offers the user a powerful and controlled working environment.

Technical Specifications

• Capacity:20-76mm

• Engine power:2.4 / 3 kW – [ PHONE HIDDEN ] rpm

• Dovetail mandrel dimensions:Ø25, Ø32, Ø42, Ø48, Ø51, Ø60, Ø76

• Sanding length:2000x100mm

• Machine dimensions:500 x 1000 x 1100mm

• Weight:190kg

Areas of Use

Cesurbend PN 76-2 is especially preferred in the pipe and profile processing industry:

• furniture production: Preparation of connection points of pipe frames

• Construction and building industry: Steel construction pipe connections

• industrial production: Various project-based pipe and profile operations

• Metalworking workshops: Angled and precise dovetail opening applications
