20 kVA Alın Punta Kaynak Makinası
| Brand | Fast Makina |
|---|---|
| Model Type |
FMAP – 20KVA |
Description

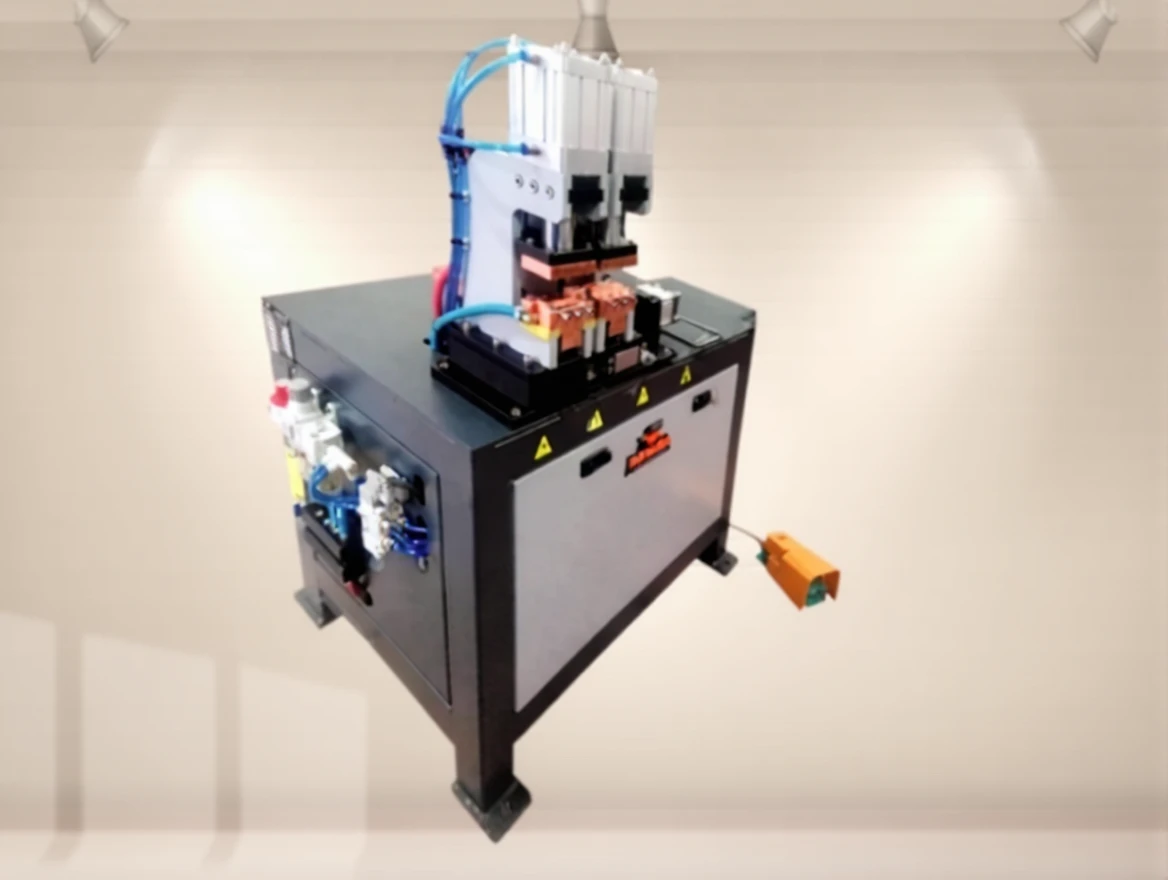

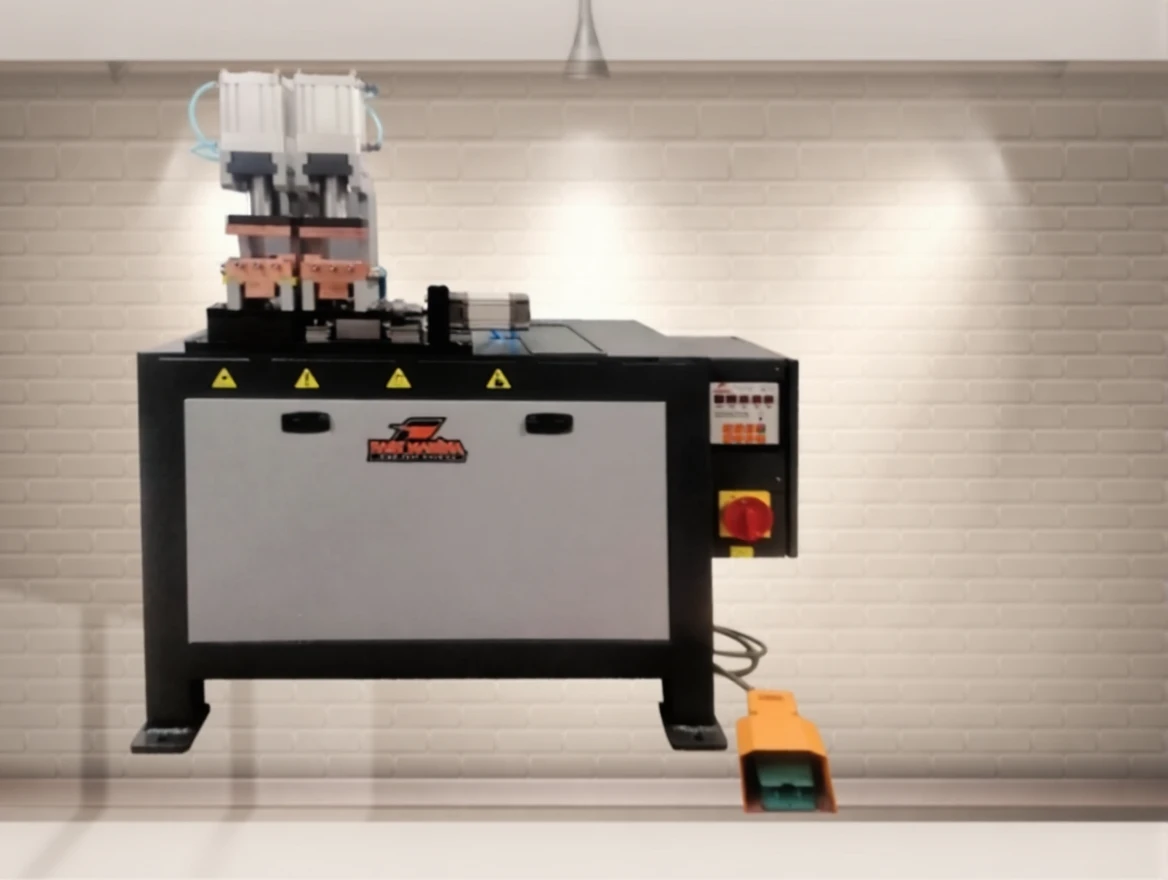

Fast Machinery FMAP – 20KVA
20 kVA Head Type Spot Welding Machine
The Fast Machinery FMAP – 20KVA head type spot welding machine offers powerful solutions for industrial welding operations. It ensures efficient welding processes with pneumatic systems and microprocessor technology.
Fast Machinery FMAP – 20KVA Technical Specifications:
| Model | FMAP – 20KVA | FMAP – 30KVA | FMAP – 60KVA |
|---|---|---|---|
| Rated Power (%50) | 20 kVA | 30 kVA | 60 kVA |
| Rated Current | 50 A | 75 A | 150 A |
| Secondary Voltage | 3.3 V | 5.5 V | 5.8 V |
| Piston Diameter | ø63 | ø80 | ø100 |
| Electrode Pressure Force | 185 daN | 300 daN | 550 daN |
| Air Pressure | 2/8 bar | 2/8 bar | 2/8 bar |
| Cooling Water Input Pressure | 2/5 bar | 2/5 bar | 2/5 bar |
| Cooling Water Input Temperature | 15/25 °C | 15/25 °C | 15/25 °C |
| Cooling Water Input Flow Rate | 15 lt/min | 15 lt/min | 15 lt/min |
| Delayed Network Fuse | 63 A | 80 A | 125 A |
| Power Cable (up to 5 meters) | 2×10+6 | 2×16+6 | 2×35+6 |
| Machine Dimensions (WxDxH) | 750x750x1500 | 750x750x1500 | 750x750x1500 |
| Weight | 300 kg | 380 kg | 460 kg |
