20 M/Min Maximum Speed Capacity Cardboard Reel Machine
| Brand | Yusufoğlu Makina |
|---|---|
| Model Type |
YSF/MM |

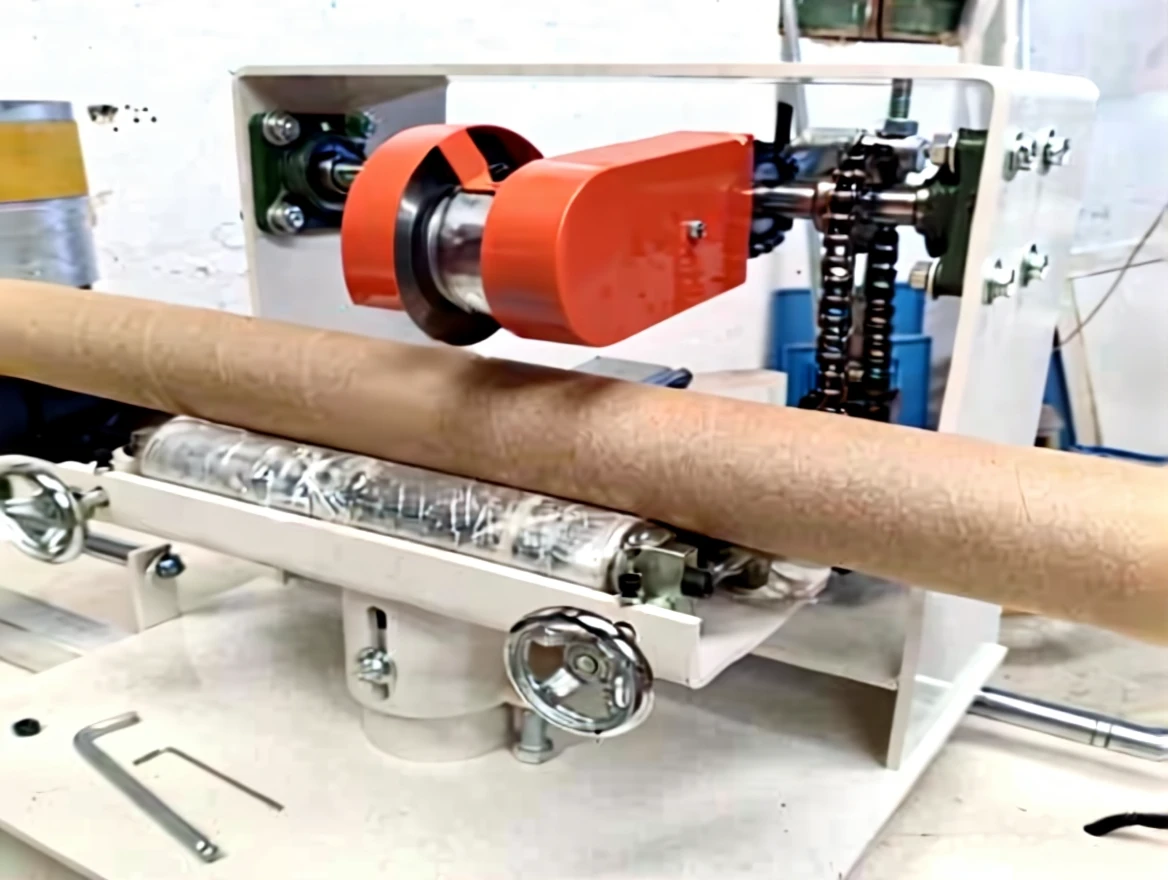

Yusufoğlu Machine YSF/MM Cardboard Reel Machine
Yusufoğlu Machine Cardboard Reel Machine is a professional machine designed to produce inner cardboard for materials to be wound, primarily toilet paper and towel machines.
Our cardboard reel machines have superior features such as synchronized cutting, high speed, length adjustment, energy saving, quiet operation, tight winding, and clean edge cutting.
Additionally, a perforation feature can be added optionally, thus providing solutions suitable for different production needs.
Yusufoğlu Machine YSF/MM Technical Specifications
|
Feature |
Description |
|---|---|
|
Model |
YSF/MM Cardboard Reel Machine |
|
Width of Raw Paper Roll |
50-90 mm |
|
Diameter of Winding Shaft |
15mm – 70mm |
|
Reel Length |
Adjustable |
|
Max. Speed of the Machine |
20 m/min. |
|
Power |
3 kW |
|
Dimensions of the Machine |
Length: 3500mm | Width: 770mm | Height: 1500mm |
|
Finished Reel Inner Diameter |
40 – 75 mm |
|
Finished Reel Layers |
1 – 4 layers |
|
Paper Width |
65 – 85 mm |
|
Paper Grammage |
180 – 350g/m² |
|
Max. Paper Diameter to be Installed |
Max. 1200mm |
|
Paper Stand to be Installed |
3 |
|
First Layer Stand |
1 |
|
Paper Grammage to be Used |
80g/m² |
|
Finished Reel Separation Error |
±2mm |
|
Power Source |
380V, 50Hz |
