20 mm Guide Pull Drill

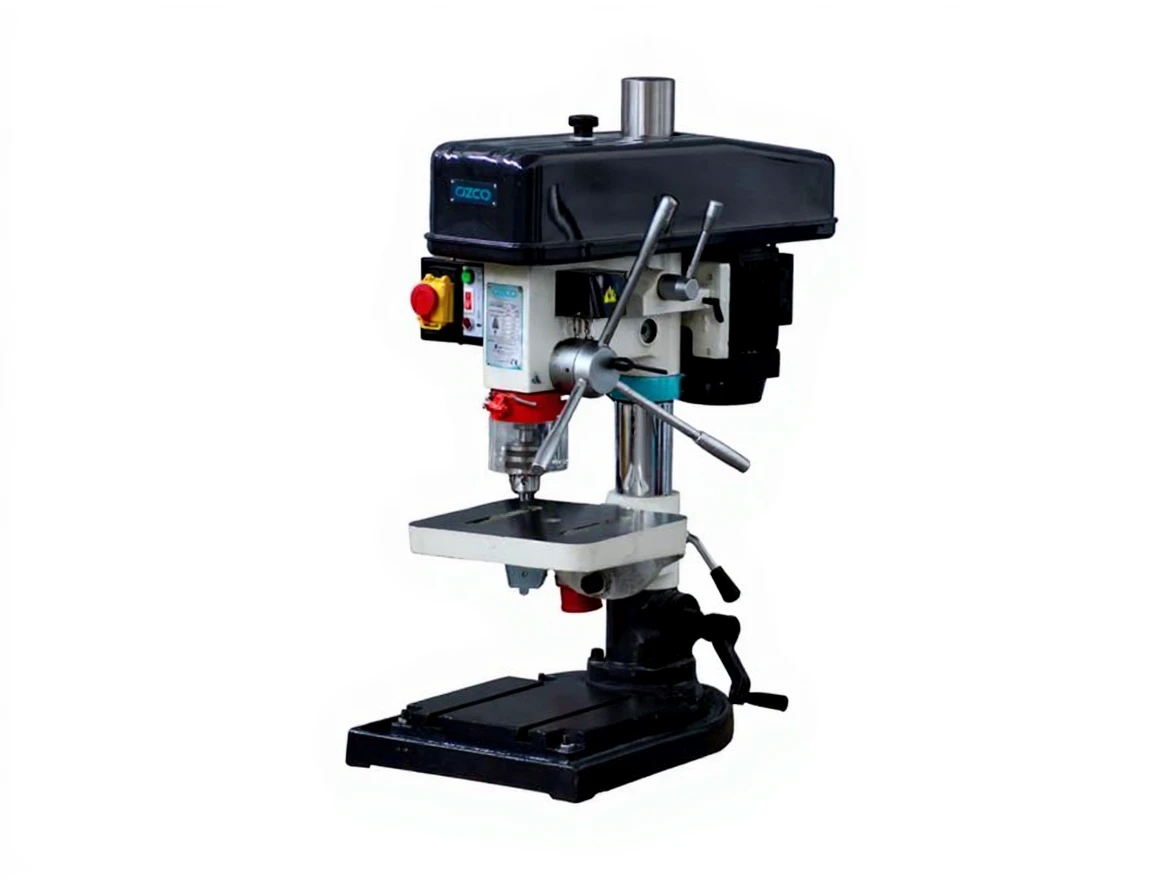

OZCO M20TP GUIDE PULL DRILL

OZCO M20TP GUIDE PULL DRILL Description

Compliant with CE standards, Emergency Stop Button, Safety switch guard/chuck protector, Safety switch belt pulley cover, Cast table that can rotate 360 degrees around its axis and can tilt ± 45 degrees, Cast base providing low vibration and stable operation, Durable high-efficiency copper wound motor, Double-sided motor belt tension adjustment, Depth measurement and locking system, Adjustable height guard, Aluminum belt pulley cover, High-quality cast table, Precision keyless chuck.

OZCO M20TP GUIDE PULL DRILL Shipment Scope

Technical Specifications OZCO M20TP GUIDE PULL DRILL

Motor Power     750 W, 380 V

Operation Type    Belt-driven

Drilling Capacity       20 mm

Guide Capacity     M16

Spindle Taper        MK2

Spindle Stroke     125 mm

Distance Between Spindle and Column   240 mm

Distance Between Spindle and Table           315 mm

Distance Between Spindle and Base         560 mm

Column Diameter       70 mm

Speed       290-2150 rpm

Stages            5

Table Dimensions           280×300 mm

Base Dimensions           590×375 mm

Packaging Dimensions        820x480x1020 mm

Net Weight       140 Kg
