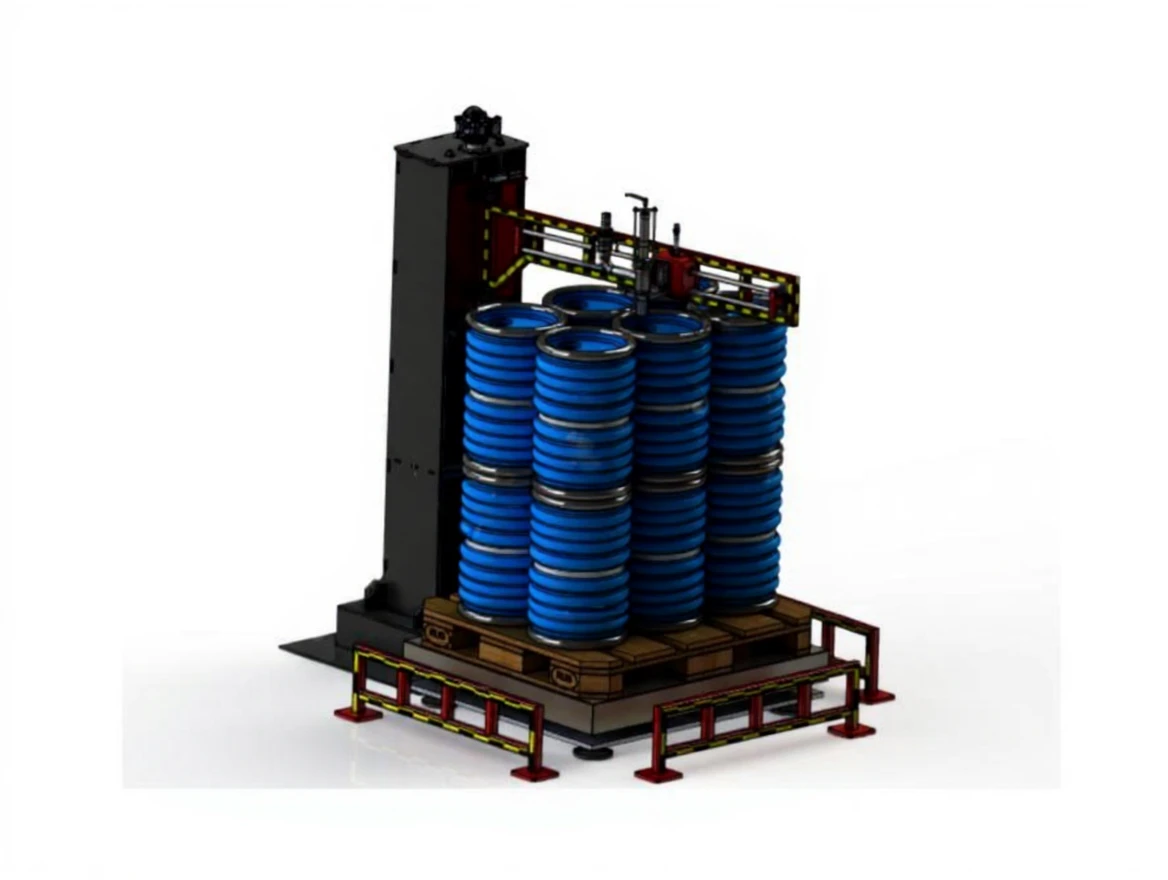

200-2000 Kg Loadcell Scale Single Nozzle Semi-Automatic Packaging Filling Machine

Technical Specifications

✓ Number of filling nozzles in the machine: 1
✓ The machine is a weighing filling machine that operates with a pneumatic system.
✓ Operating System: Mechanical, Pneumatic, and Electromotor controlled
✓ It has the ability to fill between 200kg. and 2000kg. with weight adjustment.
✓ The product to be filled is directly taken from the production tank by the pump.
✓ The nozzle, filling, and filling line are designed for easy cleaning.
✓ The machine requires 8 bar air (from a compressor) and 380 volts of electrical energy to operate.
✓ Optionally, there is 1 pneumatic manual lid closing device mounted on the machine.
✓ All surfaces that come into contact with the product are made of chemical-resistant (Polyvinyl Chloride) PVC or AISI 316, depending on the product’s properties.
✓ Adjusting the weight setting of the machine is quite easy via the PLC screen.
✓ Nozzles can be easily adjusted according to different packaging sizes.
✓ It has a bottom closing mechanism, thus it does not drip and does not dirty the bottles.
✓ It has a feature for precise filling with fast filling at first and slow filling towards the end.

Areas of Use

Chemical and Cosmetic:
Liquid detergent, liquid hand soap, softener, liquid dish detergent, acidic detergent, bleach, liquid fertilizer, all chemical and cosmetic products filled into buckets, bottles, and cans weighing from 5 kg. to over 50 kg., etc…

Lubricating Oil:
Motor oil, fuel additive, antifreeze, all lubricating oils, etc…

Paint:
Paint, all paint industry products filled into buckets, bottles, and cans weighing from 5 kg. to over 50 kg., etc…

Filling Capacity Number

The capacity of the filling machine may vary depending on the chemical properties of the product to be filled (such as foaming).
