200 Kg 11.2 Meter Vertical Personnel Elevator Lift
| Brand | Platfon |
|---|---|
| Model Type |
PM10J |

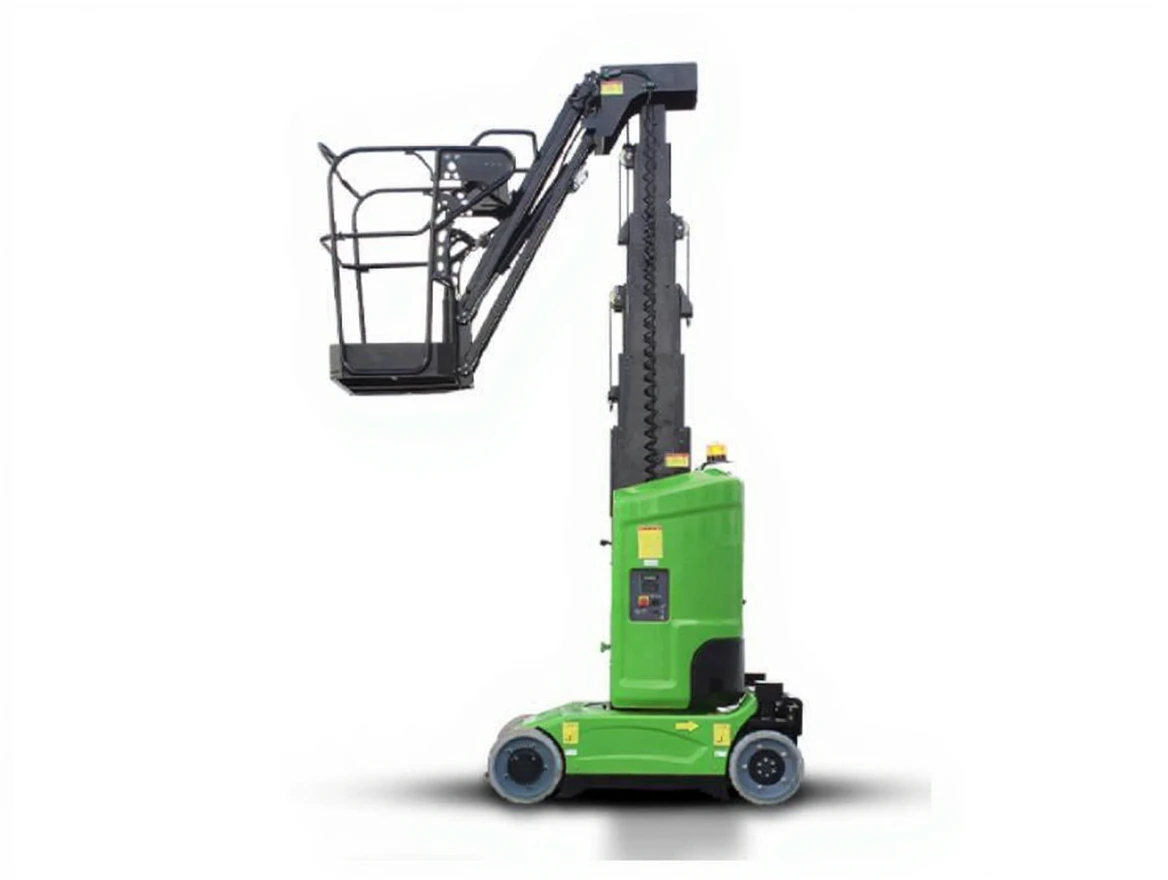

Platfon PM10J 200 Kg 11.2 Meter Vertical Personnel Elevator Lift
|
Feature |
Feature |
|---|---|
|
Maximum Number of People |
2 |
|
Lifting Capacity |
200 kg |
|
Driving Speed (Closed) |
4.5 km/h |
|
Driving Speed (Open) |
0.5 km/h |
|
Climbing Grade |
%25 |
|
Turntable Turning Angle |
345° |
|
Turning Radius (Inside) |
0 m |
|
Turning Radius (Outside) |
1.55 m |
|
Tail Swing |
0 m |
|
Control System |
Proportional |
|
Driving Mode |
2 WD x 2 WS |
|
Wheel Sizes |
381×127 mm non-marking |
|
Driving System |
AC |
|
Working Grade (X/Y) |
2.5° / 2.5° |
|
Battery Capacity |
24V 100Ah (C20) non-maintenance |
|
Battery Charger |
24 V / 15 A |
|
Weight |
2950 kg |
|
STANDARD |
OPTIONS |
|---|---|
|
Emergency Stop |
AC Power on Platform |
|
Emergency Descent |
Platform LED Working Light |
|
Overload Protection |
Custom Color Option |
|
Gradient Level Protection |
|
|
Movement Alarm |
|
|
Warning Flasher Horn |
|
|
Full Height Driving |
|
|
Operating Hour Indicator |
|
|
Charger Protection |
|
|
Fault Diagnosis System |
|
|
Proportional Control |
|
|
Pit Protection |
|
|
Automatic Brake System |
|
|
Fault Diagnosis System |
|
