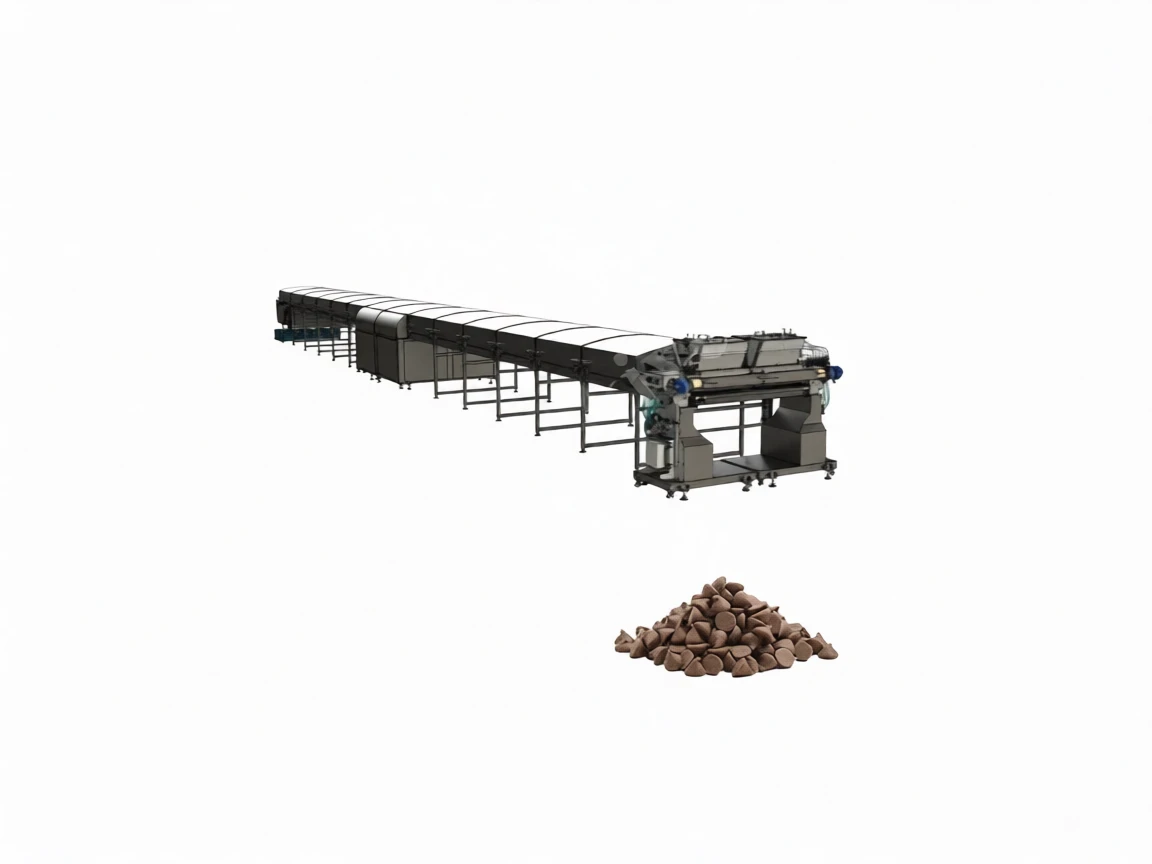

200 Kg/Hour Chocolate Drop Production Machine
| Brand | Akaygam |
|---|---|
| Model Type |
CDFLx2 |
Description
Akaygam CDFLx2
200 Kg/Hour Chocolate Drop Production Machine
Completely made of AISI304 grade stainless steel, aluminum and FDA plastics.
Cooling tunnel insulated with CFC free rubber.
Cooling tunnel separated into 2 cooling zones.
Cooling tunnel with 2 evaporators and 2 condensers.
Belt sliding prevention feature. Pneumatic belt tensioning unit.
PID controlled dry heating of the depositors.
Depositors with servo motor driven vertical motion.
Chocolate suction and outpouring is servo driven.
Level sensors to control the fed chocolate to hoppers of the depositors.
Aluminum matrix with dry heating.
All heaters 24V.
Production capacity 200kg/h for drops or 800kg/h for chips.
Total power consumption 380V 22KW
